33 L/s Compact Turbomolecular Vacuum Pump System (up to 1E-7 Mbar) With Gauge, Ball Valve & SS Bellows Quality Choice

33 L/s Compact Turbomolecular Vacuum Pump System (up to 1E-7 Mbar) With Gauge, Ball Valve & SS Bellows Quality Choice thumbnail-1
33 L/s Compact Turbomolecular Vacuum Pump System (up to 1E-7 Mbar) With Gauge, Ball Valve & SS Bellows Quality Choice photo-1
US$ 13000.00 - 13000.00 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
CYKY
Model Number:
turbomolecular vacuum pump
Contact Supplier Request Quote Chat Now
Zhengzhou CY Scientific Instrument Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhengzhou port etc.
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name CYKY
Model Number turbomolecular vacuum pump
Theory Vacuum Pump
Structure Multistage Pump
Usage Air Pump
Power Electric
Standard or Nonstandard Nonstandard
Fuel Other, electricity
Pressure High Pressure
Application Sewage

33 L/s Compact Turbo Vacuum Pump System (up to 1E-7 mbar) with Gauge, Ball Valve & SS Bellows

turbomolecular pump

Introduction of turbomolecular pump

World-famous Pfeiffer vacuum station made in Germany consists of diaphragm pump as backing

pump and turbo-molecular pump, with complete accessories,

including vacuum gauge with KF25 port ,  SS vacuum bellows with KF40 port,  & LCD digital display

and ball valve together, right now bring the customer

a plug-and-play system with vacuum range from 1E-3 to 1E-7 mbar, which means the customer just

presses the power switch and then get high vacuum level

in short time at very low noise.  It is an ideal tool for most of MTI's tube furnace to achieve high vacuum >10-5 torr.

turbomolecular pump

Technical parameters of turbomolecular pump

  turbomolecular pump

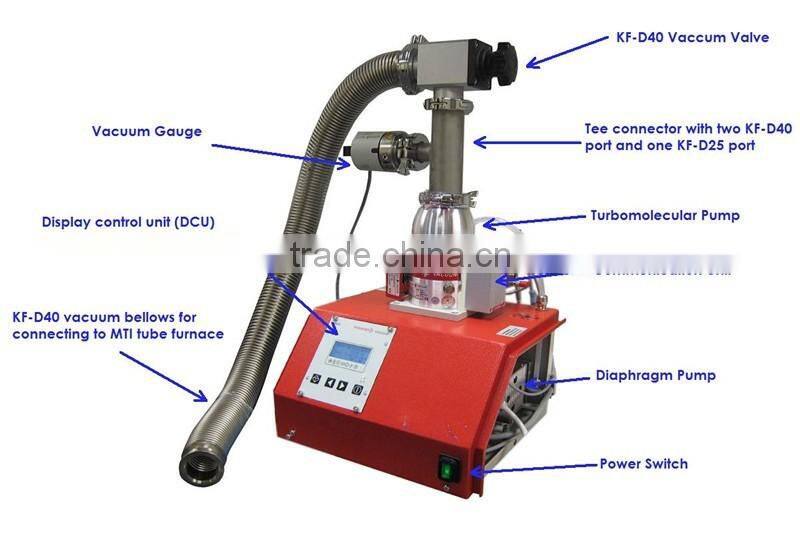

Connection

   

Molecular pump with KF40 to T type of Vacuum Tube and KF25 to Vacuum Gauge

Vacuum gauge with KF25 port to install to T -tube

Right angle high vacuum valve with KF40 port, which connects between  T- vacuum tube and SS vacuum bellows

600 mm length SS vacuum bellows with KF40 port to connect to furnace flange

One  KF40 to KF25 adapter is included to connect the pump to MTI's furnace which has KF25 port on flange

Ultimate Pressure

  <7.5E-9Torr (1E-6Pa) without any leaking

Start-up Time

   2 Min.

Working Range

   From 750Torr to <7.5E-8Torr (1E5Pa ~ <1E-5Pa)

Backing Pump's Pumping Speed

   0.9m^3/H (15L/min) at 50Hz and 1.0m^3/H (16.6L/min) at 60Hz

Turbo Pump's Pumping Speed

Nitrogen    N2     33 L/s

Helium      He     39 L/s      ( 2340L/minute)

Hydrogen  H2     32 L/s

For customer's reference:
1. Please go to bigger pump HVS-3 for bigger volume over 10L in volume, this pump is too small to vacuum MTI's tube or other chambers over 10L
2. The station's total pumping speed can not be simply equal to the Backing Pump Speed + Turbo Pump Speed, see below table for vacuum rate reference

Time ( Minute(s) )

Pressure (Torr)

Time ( Minute(s)

Pressure (Torr)

0

760 (Atmosphere)

5

1.37 x 10^-2

1

15

6

1.29 x 10^-2

2

2.70 x 10^-2

15

 6.7 x 10^-3

3

1.66 x 10^-2

180

1.05 x 10^-5



Current

4A max.

Mains Connection

90-132 V/ 185-265V (Universal)

Weight

15 Kg

Warranty

 One year manufacture warranty

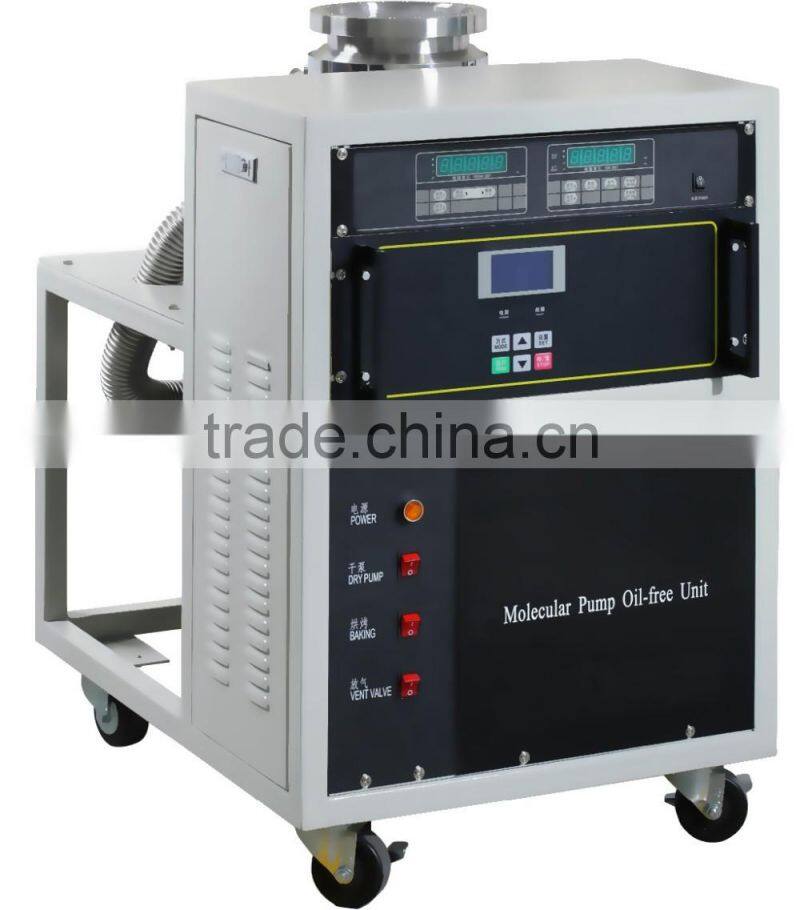

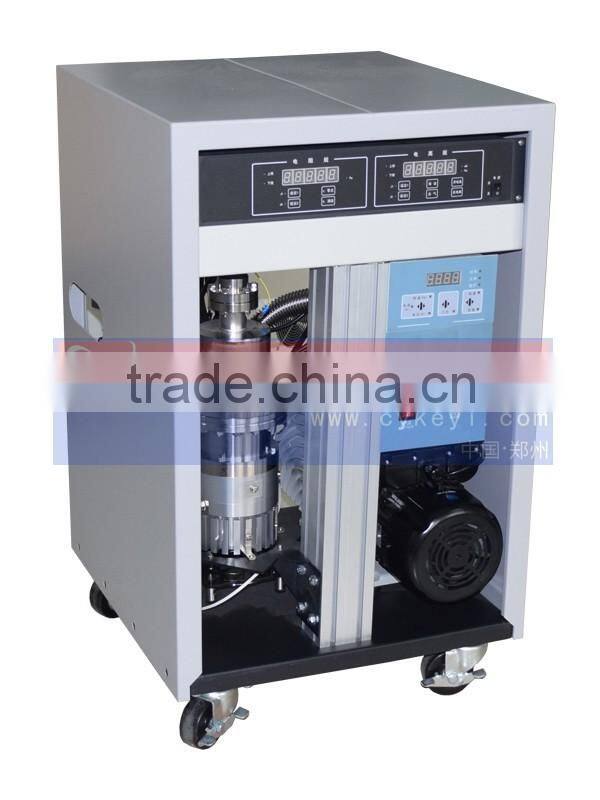

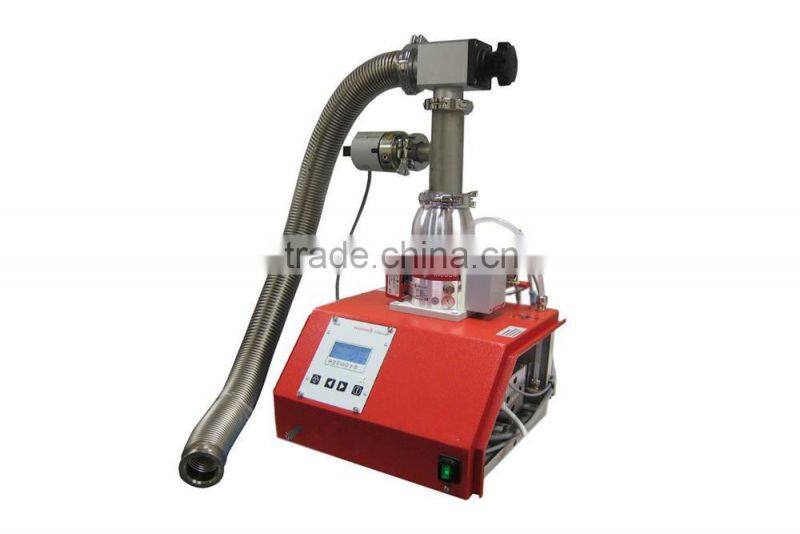

 More photos of turbomolecular pump

33 L/s Compact Turbomolecular Vacuum Pump System (up to 1E-7 mbar) with Gauge, Ball Valve & SS Bellows33 L/s Compact Turbomolecular Vacuum Pump System (up to 1E-7 mbar) with Gauge, Ball Valve & SS Bellows33 L/s Compact Turbomolecular Vacuum Pump System (up to 1E-7 mbar) with Gauge, Ball Valve & SS Bellows33 L/s Compact Turbomolecular Vacuum Pump System (up to 1E-7 mbar) with Gauge, Ball Valve & SS Bellows

Packaging & Shipping

 33 L/s Compact Turbomolecular Vacuum Pump System (up to 1E-7 mbar) with Gauge, Ball Valve & SS Bellows



Our Services



1. Factory prices with the best quality.

2. One year free-of-charge maintenance for all the dental equipment

3. Customized service for special demand

4. Fast and flexible delivery, by sea, by air, by express

5. Quick response within 24 hours

How to order

1. If you are interested in our products, please tell us the model number and quantity.

2. We will make a proforma invoice for your order.

3. We will deliver the product ASAP on receipt of the payment

Guarantee

1. Guarantee for one year after shipment.

Payment

1. Western Union

2. PayPal

3. Secure Payment through Alibaba

4. Telegraphic transfer

5. L/C



Company Information



Zhengzhou CY Scientific Instrument Co., Ltd is mainly engaged in the research and development, design, manufacturing

and sales of equipment used in scientific researches. Independence and innovation is the company's tenet.Our main

products include: tube furnace, muffle furnace, plasma cleaner, vacuum furnace, atmosphere furnace,CVD system and

customized lab equipment.Welcome you come to visit us.
