Product Overview

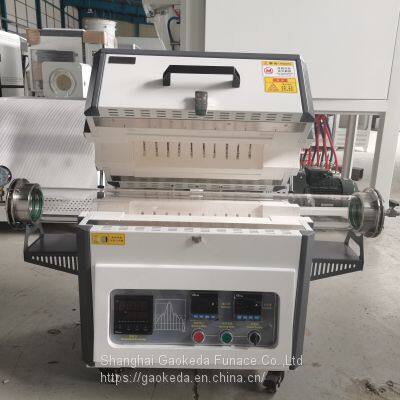

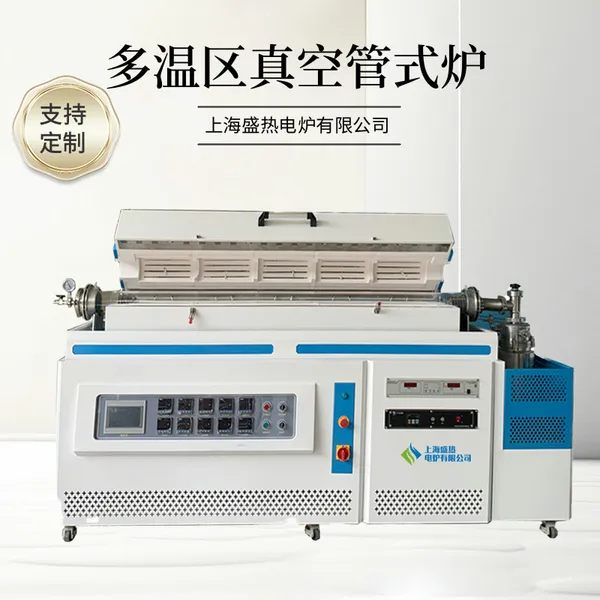

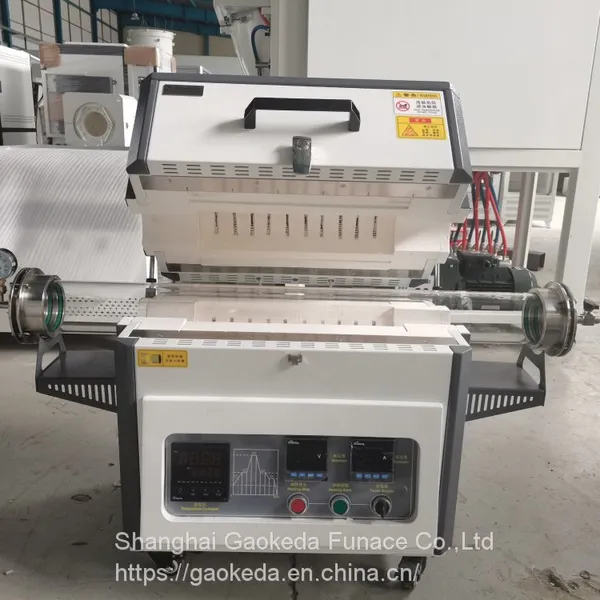

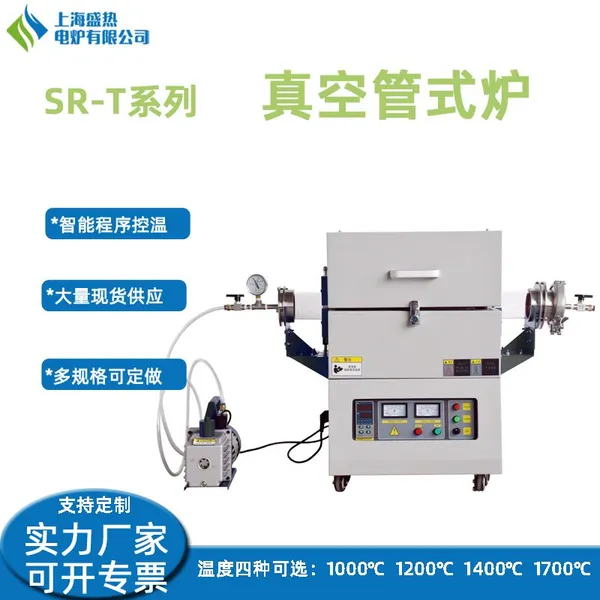

Shengre SR-T series tubular furnaces adopt a double-layer air-cooled structure, and the furnace is formed by high-temperature vacuum adsorption of high-purity alumina ceramic fibers. It is composed of two semicircular furnace structures, which is convenient to start; The temperature control system adopts industrial precision 0.2 level intelligent instruments and PID intelligent program for temperature control, which is accurate, safe and reliable; The heating element adopts HRE molybdenum containing resistance wire/silicon carbon rod/silicon molybdenum rod, with fast heating rate, high temperature resistance, oxidation resistance, and corrosion resistance; The stainless steel flanges at both ends have high sealing performance and are convenient for pre vacuuming. The cold state vacuum degree can reach 6.67x10-5Pa;
Product Usage: Mainly used for melting, sintering, and analyzing metal materials, non-metallic materials, and other compounds in universities, scientific research institutes, laboratories, and operating enterprises under controlled atmosphere or vacuum.
Product specifications
Type |
Furnace tube diameter |
Hot zone |
Power |
Max. temperature |
Tube material |
Thermocouple |
Heater |
SR-T |
40mm |
300mm |
3 KW |
1200
|
Quartz tube
|
N type
|
Resistance wire
|
60mm |
300mm |
3 KW |
|||||
80mm |
300mm |
5 KW |
|||||
|
1400
|
Alumina tube |
S type
|
Sic heater |
||||
100mm |
300mm |
5 KW |
|||||
120mm |
300mm |
6 KW |
|||||
1700 |
Alumina tube |
Btype |
MoSi2 heater |
||||
40mm |
450mm |
3 KW |
|||||
60mm |
450mm |
3 KW |
|||||
80mm |
450mm |
5 KW |
|||||
100mm |
450mm |
5 KW |
|||||
120mm |
450mm |
6 KW |
|||||
Customized it as your require | |||||||
