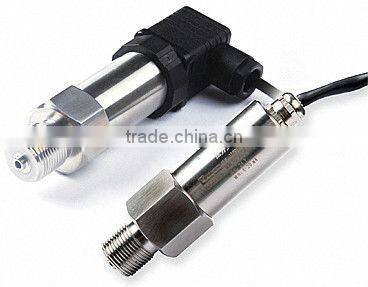

Best Price Piezoresistive Pressure Transmitter

FOB Price

Negotiable / Piece

10 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	TENLEE
Model Number	621P,622P,623P,624P,625P

1. analysis very low frequency or constant pressure testing
2.respond to 0 Hz
3.different measuring range available

1. Introduction

621P series Piezoresistive Pressure Transmitter, are applied for analysis very low frequency or constant pressure testing.

Unlike piezoelectric pressure sensors, these sensors respond to 0 Hz .

Measuring Range XX: MPA;

2. Specifications

Model	Measuring Range	Zero Output	Full Scale Output	Operating Temperature	Power Supply	Accuracy	Size (mm)	Mounting Screw	Output Type
621PXX	0-60MPa	4mA	20mA	-20 to +80°C	+24VDC	±0.5%	Φ28×100	M20×1.5	J1:Hersman joint J2:integral Cable; J3: Aviation joint
622PXX	-0.1MPa to 0 to +0.1MPa to 100MPa	4mA	20mA	-40 to +85°C	+24VDC to +36VDC	±0.5%	Φ27×121	M20×1.5
623PXX		0	5V			±0.5%	Φ27×121	M20×1.5
624PXX		0	10V			±0.5%	Φ27×121	M20×1.5
625PXX		1	5V			±0.5%	Φ27×121	M20×1.5

3. Our products:

*Vibration acceleration, velocity, displacement, dynamic force, pressure sensor

*Signal conditioning unit, charge, voltage, IEPE, strain control device

*Vibration excitation system: modal vibration force, vibration platform, pulse hammer, vibration

calibration instrument

*Dynamic data acquisition system, vibration signal analysis system, modal test and analysis systems,

strain test, impact test system
