Home > Electrical & Electronics > Sensor > Pressure Sensor > General Purpose Triaxial Piezoelectric Vibration Sensor

General Purpose Triaxial Piezoelectric Vibration Sensor

Name: General Purpose Triaxial Piezoelectric Vibration Sensor
Brand: TENLEE
SKU: 112030167
Availability: InStock

General Purpose Triaxial Piezoelectric Vibration Sensor thumbnail-1

General Purpose Triaxial Piezoelectric Vibration Sensor photo-1

US$ 350 - 500 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

TENLEE

Model Number:

TL143A,145A,243A,245A,146A,246A

Contact Supplier Request Quote Chat Now

Yueqing Tenlee Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai/ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name TENLEE

Model Number TL143A,145A,243A,245A,146A,246A

Usage Vibration Sensor

Theory Other, piezoelectric

Output Other, voltage,charge

Specifications

1.vibration/product/structure/package drop test,vibration control
2.high rigidity,quick response,large G value
3.IEPE,PE

1.General Purpose Piezoelectric Accelerometers

Piezoelectric accelerometers offer tremendous versatility for shock and vibration measurements. These rugged sensors can withstand adverse environmental conditions. A wide variety of configurations are available to support multiple application requirements. Specialty units are also available through mechanical or electrical design adjustments or additional qualification testing.

There are two broad categories for piezoelectric accelerometers-those that contain built-in signal conditioning electronics (IEPE type) and those that do not (Charge Output(PE) type). Generally, IEPE accelerometers are preferred, due to ease of use and lower system cost. Charge Output accelerometers are used for high temperature environments, which would otherwise destroy the electrical components contained in an IEPE type.

Triaxial accelerometers offer simultaneous measurements in three orthogonal directions permitting the entire vibration being experienced by a structure to be analyzed. Each unit incorporates three separate sensing elements that are oriented at right angles with respect to each other. Multi-pin electrical connectors, individual cable leads, or multiple coaxial connectors provide the signal outputs for the x, y, and z-axis acceleration.

The use of triaxial accelerometers has gained popularity since the desire for in-depth structural vibration analysis has increased and multi-channel data acquisition costs have declined. These devices are vital tools for structural analysis testing requirements.

2.Applications

Routine Vibration Testing; Product Testing; Structural Testing; Vibration Control; Package Drop Testing

3.General Purpose Triaxial Accelerometers

Modal Analysis;Micro Machining; Motors & Pumps;Vibration Isolation

4.General Purpose Piezoelectric Accelerometers

Motion of a rigid body can be characterized within six degrees of freedom. Providing mechanical excitation to simulate all of this motion as may be encountered in the real world can entail a variety of test machines. Regardless of the apparatus, the goal is always to ensure that the product under test can adequately perform, and reliably survive, in the environment in which it will be deployed, or to which it will be exposed during transport. Our accelerometers provide the measurement signals needed to control the vibratory input and to analyze the product’s reaction to such testing. Did the test achieve the acceleration amplitudes and frequencies desired? Did the product react in a consistent manner? Did any components or mounting techniques become altered? These are just a few of the questions that can be verified by analyzing the signals generated by our accelerometers.

Packaging a product for safe transport is essential to ensure its survival from the factory to the end-user. A good package design requires testing to determine its effectiveness at restraining or cushioning the product from transport and accidental forces. Our accelerometers are instrumental in measuring both the impact and vibration experienced by the outer container and the product. The difference between these measurements provides useful data for quantifying the effectiveness of the packaging materials and the package design.

5.Specifications

Model	Sensitivity	Frequency Range (±10%)	Measuring Range	Resolution	Operating Temperature	Weight	Output Type	Mounting Type	Size
143A10	10mV/g	1Hz to 6kHz	±500g	0.005grms	-40 to +121°C	34 Gram	3-M5	2-Φ3 hole	25.4X22 X13mm
143A20	20mV/g	1Hz to 6kHz	±250g	0.003grms	-40 to +121°C	50Gram
143A50	50mV/g	1Hz to 5kHz	±100g	0.001grms	-40 to +121°C	34Gram
243A10	10pC/g	1Hz to 6kHz	±200g	N/A	-54 to +150°C	34Gram

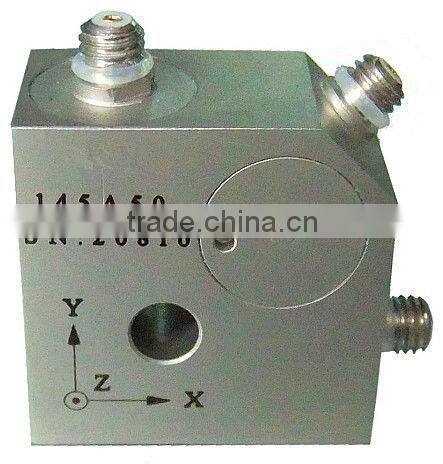

145A10	10mV/g	1Hz to 6kHz	±500g	0.005grms	-40 to +121°C	54Gram	3-M5	Φ5 hole /M6(Z); 2-M5(X,Y)	25.4X25.4 X14mm
145A20	20mV/g	1Hz to 6kHz	±250g	0.003grms	-40 to +121°C	43Gram
145A50	50mV/g	1Hz to 5kHz	±100g	0.001grms	-40 to +121°C	45Gram
145A100	100mV/g	1Hz to 5kHz	±50g	0.0005grms	-40 to +121°C	45Gram
245A10	10pC/g	1Hz to 5kHz	±2000g	N/A	-54 to +150°C	42Gram
245A20	20pC/g	1Hz to 5kHz	±1000g	N/A	-54 to +150°C	70Gram
146A01	1000mV/g	0.2Hz to 500Hz	±5g	0.0001grms	-40 to +121°C	820 Gram	4-pin Socket	Φ5 hole / M6	75X75 X38mm

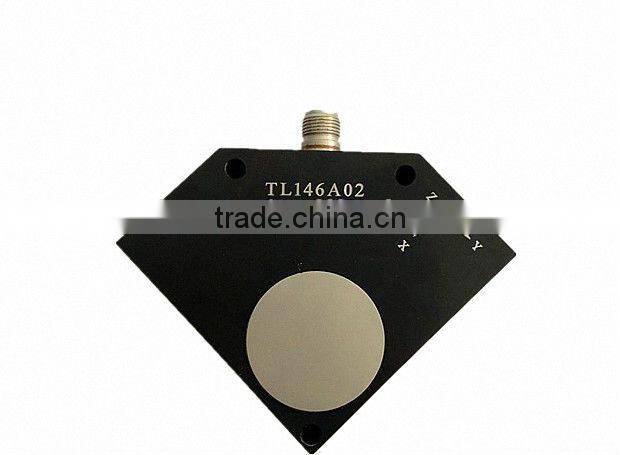

146A02	2000mV/g	0.2Hz to 500Hz	±2.5g	0.0001grms	-40 to +121°C	820 Gram
246A01	1000pC/g	0.2Hz to 500Hz	±100g	N/A	-54 to +150°C	820 Gram
