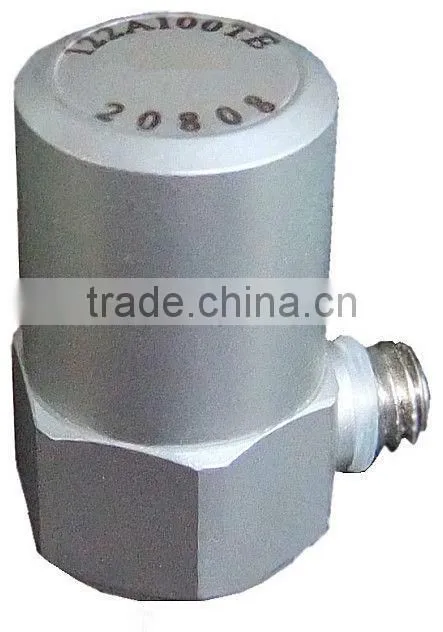

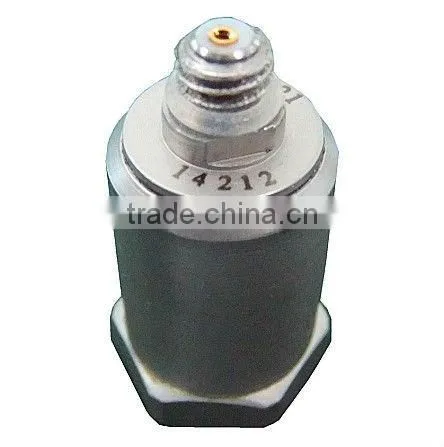

Single Axis Piezoelectric Acceleration Sensor

Name: Single Axis Piezoelectric Acceleration Sensor
Brand: TENLEE
SKU: 112030093
Availability: InStock

Single Axis Piezoelectric Acceleration Sensor thumbnail-1

Single Axis Piezoelectric Acceleration Sensor photo-1

US$ 110 - 140 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

TENLEE

Model Number:

TL122A,121A,221A,222A

Contact Supplier Request Quote Chat Now

Yueqing Tenlee Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai/ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name TENLEE

Model Number TL122A,121A,221A,222A

Usage Vibration Sensor

Theory Other, piezoelectric

Output Other, voltage,charge

Specifications

1.vibration/product/structure/package drop test,vibration control
2.high rigidity,quick response,large G value
3.IEPE,PE

1.General Purpose Piezoelectric Accelerometers

Piezoelectric accelerometers offer tremendous versatility for shock and vibration measurements. These rugged sensors can withstand adverse environmental conditions. A wide variety of configurations are available to support multiple application requirements. Specialty units are also available through mechanical or electrical design adjustments or additional qualification testing.

There are two broad categories for piezoelectric accelerometers-those that contain built-in signal conditioning electronics (IEPE type) and those that do not (Charge Output(PE) type). Generally, IEPE accelerometers are preferred, due to ease of use and lower system cost. Charge Output accelerometers are used for high temperature environments, which would otherwise destroy the electrical components contained in an IEPE type.

2.Applications

Routine Vibration Testing; Product Testing; Structural Testing; Vibration Control; Package Drop Testing

3.Specifications

Model :	Sensitivity	Frequency Range (±10%)	Measuring Range	Operating Temperature	Output Type	Mounting Type	Size	Weight
221A10	10pC/g	1Hz to 12kHz	±5000g	-54 to +150°C	M5	Top M5	Φ13x25mm	12Gram
222A10	10pC/g	1Hz to 12kHz	±5000g	-54 to +150°C	M5	Side M5	Φ13x20 mm	12Gram
221A25	25pC/g	1Hz to 10kHz	±2000g	-54 to +150°C	M5	Top M5	Φ13x25mm	15Gram
222A25	25pC/g	1Hz to 10kHz	±2000g	-54 to +150°C	M5	Side M5	Φ13x20 mm	15Gram
221A50	50pC/g	0.5Hz to 6kHz	±1000g	-54 to +150°C	M5	Top M5	Φ16x28 mm	32Gram
222A50	50pC/g	0.5Hz to 6kHz	±1000g	-54 to +150°C	M5	Side M5	Φ16x23 mm	32Gram
221A100	100pC/g	0.5Hz to 6kHz	±1000g	-54 to +150°C	M5	Top M5	Φ16x28 mm	38Gram
222A100	100pC/g	0.5Hz to 6kHz	±1000g	-54 to +150°C	M5	Side M5	Φ16x23mm	38Gram
221A200	200pC/g	0.5Hz to 5kHz	±600g	-54 to +150°C	M5	Top M5	Φ18x31 mm	45Gram
222A200	200pC/g	0.5Hz to 5kHz	±600g	-54 to +150°C	M5	Side M5	Φ18x26 mm	45Gram
221A500	500pC/g	0.2Hz to 3kHz	±150g	-54 to +150°C	M5	Top M5	Φ18x31 mm	50Gram
222A500	500pC/g	0.2Hz to 3kHz	±150g	-54 to +150°C	M5	Side M5	Φ18x26 mm	50Gram
222A1000	1000pC/g	0.2Hz to 2kHz	±80g	-54 to +150°C	M5	Top M5	Φ28x26 mm	60Gram
2106C	25pC/g	1Hz to 10kHz	±2000g	-54 to +150°C	M5	Side M5	Φ13x20 mm	15Gram

Model	Sensitivity	Frequency Range (±10%)	Measuring Range	Resolution	Operating Temperature	Weight	Output Type	Mounting Type	Size
121A01	1mV/g	1Hz to 12kHz	±5000g	10mgrms	-40 to +121°C	9Gram	Top M5	M5	Φ12×20mm
122A01	1mV/g	1Hz to 12kHz	±5000g	10mgrms	-40 to +121°C	10Gram	Side M5	M5	Φ12×16mm
121A05	5mV/g	1Hz to 12kHz	±1000g	5mgrms	-40 to +121°C	9Gram	Top M5	M5	Φ12×20mm
122A05	5mV/g	1Hz to 12kHz	±1000g	5mgrms	-40 to +121°C	10Gram	Side M5	M5	Φ12×16mm
121A10	10mV/g	1Hz to 10kHz	±500g	2.5mgrms	-40 to +121°C	9.5Gram	Top M5	M5	Φ12×20mm
122A10	10mV/g	1Hz to 10kHz	±500g	2.5mgrms	-40 to +121°C	12Gram	Side M5	M5	Φ12×16mm
121A20	20mV/g	1Hz to 10kHz	±250g	1.5mgrms	-40 to +121°C	9.5Gram	Top M5	M5	Φ12×20mm
122A20	20mV/g	1Hz to 10kHz	±250g	1.5mgrms	-40 to +121°C	12Gram	Side M5	M5	Φ12×16mm
121A50	50mV/g	0.5Hz to 8kHz	±100g	1mgrms	-40 to +121°C	18Gram	Top M5	M5	Φ13×20mm
122A50	50mV/g	0.5Hz to 8kHz	±100g	1mgrms	-40 to +121°C	18Gram	Side M5	M5	Φ13×16mm
121A100	100mV/g	0.5Hz to 8kHz	±50g	0.5mgrms	-40 to +121°C	18Gram	Top M5	M5	Φ13×22mm
122A100	100mV/g	0.5Hz to 8kHz	±50g	0.5mgrms	-40 to +121°C	20Gram	Side M5	M5	Φ13×22mm
121A200	200mV/g	0.3Hz to 5kHz	±25g	0.2mgrms	-40 to +121°C	28Gram	Top M5	M5	Φ18×31mm
122A200	200mV/g	0.3Hz to 5kHz	±25g	0.2mgrms	-40 to +121°C	30Gram	Side M5	M5	Φ18×26mm
121A500	500mV/g	0.2Hz to 3kHz	±10g	0.1mgrms	-40 to +121°C	40Gram	Top M5	M5	Φ18×31mm
122A500	500mV/g	0.2Hz to 3kHz	±10g	0.1mgrms	-40 to +121°C	57Gram	Side M5	M5	Φ18×26mm
122A1000	1000mV/g	0.2Hz to 1kHz	±5g	0.05mgrms	-40 to +121°C	65Gram	Side M5	M5	Φ26x30 mm
