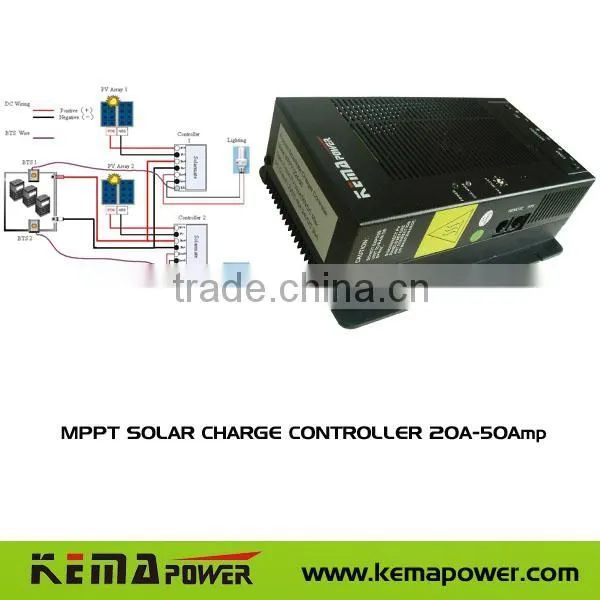

12V24V 20A-50Amp MPPT SOLAR CHARGE CONTROLLER
- 10000 Piece / Pieces per Month
- Shenzhen/Guangzhou
- T/T Credit Card
- TENTEK EMS Controller 1.6kW with Smart Meter
- Factory High Efficiency 20A 30A 36V 48V 12V 24V Solar Power Station Charge Controller For Telecom Projects
- Ipandee Ce Fcc Rohs Certificate Pv Input Rs485 Solar Regulator Mppt 40A 12V 24V Mppt Charge Controller For Household
- Ipandee Oem Solar System Parallel 1400W 50A 12V 24V Mppt Charge Controller With Wifi App Remote Monitoring
- Ipandee Off-Grid System Explorer-Ns Series Oled Display Suitable All Battery 30A 40A 50A 60A 12V 24V Solar Controller For Rv
- Ipandee Oem Solar System Parallel 1400W 50A 12V 24V Mppt Charge Controller With Wifi App Remote Monitoring
Product Details
Place of Origin: | Guangdong, China | Brand Name: | KEMAPOWER | Model Number: | MPPT SOLAR CHARGE CONTROLLER 12V24V 20A-50Amp |
Application: | Charger Controller | Rated Voltage: | Other, 12V/24V | Maximum Current: | 50A |
Product Description
Key Features
1. Fully digitized microprocessor control,use SCM
2. provide longer battery life and improved system performance
3. Series PWM charge mode & State of Charge(SOC) battery regulation, OR ON/OFF series battery charging
4. 4 stages charging :Equaliaztion,PWM,Boost Float
5. External Temperature compensation sensor
6. Battery capacity set
7. LCD display for charging discharge state, charge current; Battery capacity rate,voltage, Temp.; and DC load state,current; and solar panel voltage; clock and fault
8. Full circuit protection, electronic fuse
9.Overload and short circuit protection and resume when released
10.over discharge protection and resume
11.Over charge protection
12.Reverse polarity protection for solar panel ,battery and DC load.
13.Reverse current at night
14.lighting protection
15.12V or 24VDC Auto work
16.automatic or Manual load reconnection
17.adjustable parameters by user
18.Optional load control functions: Time Control, light Control and Timer set, Time display use for solar street light
Solar Charge Controller
ITEM | MODE | MPPT1224-20 | MPPT1224-30 | MPPT1224-40 | MPPT1224-50 |
Rated charge Current(include load current | 20A | 30A | 40A | 50A | |
Rated load Current | 15A | 15A | 15A | 15A | |
System Voltage | 12/24V AUTO work | ||||
Input Range | 15-55VDC | ||||
Max. PV open circuit array voltage | 55VDC | ||||
Protection | Over load | 2.0 * Inom>5s;1.5 * Inom >20s;1.25 * Inom temperature controlled for load | |||
Short circuit | Over 200%, shut off right now.for load and solar panel | ||||
Over Voltage | 17V; 2*17V;4*17V for DC load | ||||
Low Voltage | |||||
Reverse polarity | protection for solar panel ,battery and DC load. | ||||
Reverse current | yes.at night | ||||
lighting protection | yes.TVS | ||||
Typical idle consumption | At idle < 10mA | ||||
Charging voltage | Bulk charge | 14.6V;2*14.6V,4*14.8V | |||
equalizing charging | 14V; 2*14V | ||||
Float charge | 13.4V;2*13.4V;4*13.4V | ||||
Over charge disconnection | 14.8 or 24*14.8VDC | ||||
Over charge recovery | 13.6v; 2*13.6V | ||||
Over discharge disconnection | 10.8Vdc or 2*10.8V (default) | ||||
Over discharge reconnection | 12.3Vdc or 2*12.3V | ||||
Temperature compensation | _13.2mV/°C or -26.4mV/°C | ||||
Low Voltage Reconnect (LVR): | 12.0-14.0Vdc or 24-28VDC,Adjustable | ||||
Low Voltage Disconnect (LVD): | 10.5-12.5Vdc or 21-25VDC.Automatic disconnection | ||||
Battery type and charge voltage setup | 10 position rotary switch battery type selector to adjust the charge voltage. | ||||
Battery fuse | 2-2.5 times rated current on anode wire by user. | ||||
Charging control mode | Series PWM charge mode & State of Charge(SOC),Automatic compensation or | ||||
Running Temperature | 0-40°C (full load) 40-60°C (de-rating) | ||||
Tropicalization | PCB was spray cover.Teminals corrosion protected | ||||
Protection class | IP21 | ||||
Case Material | IRON | ||||
LED Display | charging,discharge,battery,temp. solar panel running state, Error Mode | ||||
Terminal size | #8 AWG | ||||
Optional | BTS - optional remote battery temperature sensor for increased charging precision | ||||
product size.( mm) | 202*66*140 | 202*66*140 | 202*66*140 | 202*66*140 | |
Carton Size (mm) | 710*435*860/6 | 460*260*352/6 | 72*980*450/30 | 460*260*352/6 | |
Carton weight( kg) | 2.0 | 59.4 | 61.0 | 2.0 |
