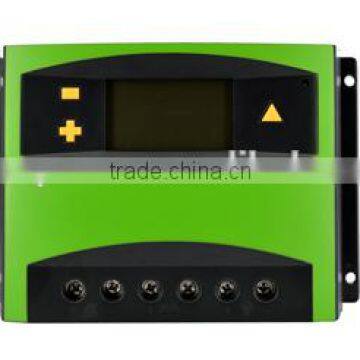

HT60D Series 40A 50A 60A PWM Solar Charge Controller

HT60D Series 40A 50A 60A PWM Solar Charge Controller thumbnail-1
HT60D Series 40A 50A 60A PWM Solar Charge Controller photo-1
US$ 26.8 - 46 MOQ: 30 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Kemapower
Model Number:
HT60D
Contact Supplier Request Quote Chat Now
Foshan Kemapower Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Kemapower
Model Number HT60D
Rated Voltage Other, 12V/24V/48V
Maximum Current 40A/50A/60A
Product Description

HT60D Series 40A 50A 60A PWM Solar Charge Controller



Key features:

1. 4 stage solar charge controller
2. Charging and discharging parameters adjustable
3. Time and Light Control function selectable for street light
4. With clock function
5. with Temperature compensation function
6. Communication with computer by RJ45 option
7. Preset charging parameters for three battery types
8. 12/24V or 12V/24V/48V automatic recognition,10A,20A,30A for choice
9.LCD for generated energy capacity, fault code and battery,PV,Load,charge,discharge details
10. Protection for PV input over current and reverse polarity; battery over charge,
Over discharge,reverse polarity and back discharge; Load
overload and short circuit,controller over Temp.Charging and discharging parameters adjustable
11. Time and Light Control function selectable for street light
12. With clock function
13. with Temperature compensation function
14. Communication with computer by RJ45 option
15.Preset charging parameters for three battery types
16. 12/24V or 12V/24V/48V automatic recognition,10A,20A,30A for choice
17. LCD for generated energy capacity, fault code and battery,PV,Load,charge,discharge details
18. Protection for PV input over current and reverse polarity;
battery over charge, Over discharge,reverse polarity and back discharge;
Load overload and short circuit,controller over Temp.



Technical Specifications



 ITEM

 MODEL

HT60D-4024

HT60D-5024

HT60D-6024

HT60D-4048

HT60D-5048

HT60D-6048

Rated charge current

40A

50A

60A

40A

50A

60A

Rated load current

40A

50A

60A

40A

50A

60A

System voltage

12/24V AUTO work

48VDC

Protection

Over Load

≥120%, 60s;≥150%,10s,≥180%,0.2s

Short circuit

Yes

Over voltage

16V for 12VDC,32V for 24VDC,64V for 48VDC

Low Voltage Disconnection(LVD)

10.8V for 12VDC, 21.6V for 24VDC,43.2V for 48VDC

Low Voltage Reconnection(LVR)

12.6V for 12VDC,25.2V for 24VDC,50.4V for 48VDC

Reverse polarity

protection for solar panel ,battery and DC load.

Reverse current

Yes.at night

Static current

≤13mA

≤15mA

Loop Voltage Drop

Charge / Discharge

≤0.17V /≤0.10V

≤0.28V /≤0.10V

≤0.28V /≤0.10V

≤0.17V /≤0.10V

≤0.28V /≤0.10V

≤0.28V /≤0.10V

Charging   voltage

absorption charging

14.4V for 12VDC,28.8V for 24VDC,57.6V for 48VDC

Float charge

13.8 for 12VDC,27.6V for 24VDC,55.2V for 48VDC

Open Circuit Voltage of solar panel

12VDC/24V ≤50V;48V ≤100V

Temperature compensation

-4mV/Cell/℃

Charging control mode

PWM Multi-stage(bulk, absorption,float)

LCD Display

LCD for Bat type,VDC,,PV output VDC,Amp and Accumulative charge AH.Load Amp and  Accumulative discharge AH,Battery charge and discharge value. Controller internal Temp,fault code and S/N. load Time and light control status

USB Charge

NO

NO

NO

NO

NO

NO

Running temperature

-20 ~ +55 °C

Storage temperature

-30 ~ +80 °C

Humidity requirements

10% -90%, no condensation

Installation cable area

≤25mm2

Protection class

IP30

Case material

ABS

Product size(mm)

188*125*48.5

187*125*56

188*125*48.5

187*125*56

Product Weight(kg)

0.562

0.562

0.701

0.564

0.564

0.703

Carton size(mm)

535*415*190

Carton weight(kg)

14KG /24PCS

14KG /24PCS

17KG /24PCS

14KG /24PCS

14KG /24PCS

17KG /24PCS

Notes

Model HT**D:D-LCD, 24-12V/24VDC, 48-- 48VDC

1.LVR,ABSORB,LVD,FLOAT,P(PM)
2.Day and night
3. Battery type: FLD,GEL,SLD Null means Usr
4. Charging
5.Error
6. Discharging
7. Time
8. Capacity
9. Load state
10.Unit
11. Data display area
