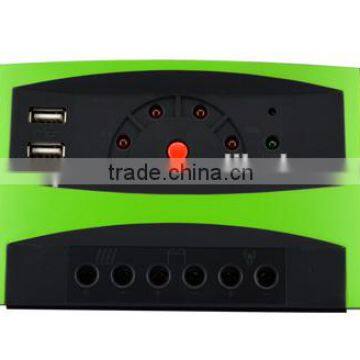

HT30U Series10A 20A 30A PWM Solar Charge Controller

Key Features

1.PWM home solar charge controller
2. With 2*5V 1A USB charger
3. 4 LED to display battery capacity and battery status
4. Bigger terminal, more safety and easy to installation
5. 12/24V automatic recognition, 10A, 20A, 30A for choice
6. LED Indicators for Charing, Load, fault and protection status
7. Protection for over charge, over discharge, overload, and short circuit, reverse polarity
8. Preset charging and discharging parameter

 ITEM

 MODEL

HT30U-1024

HT30U-2024

HT30U-3024

Rated charge current

10A

20A

30A

Rated load current

10A

20A

30A

System voltage

12/24V AUTO work

Protection

Over load

≥120%, 60s;≥150%,10s,≥180%,0.2s

Shortcircuit

Yes

Over voltage

Yes

Low Voltage Disconnection(LVD)

10.7V for 12VDC, 21.4V for 24VDC

Low Voltage Reconnection(LVR)

12.6V for 12VDC,25.2V for 24VDC

Reverse polarity

protection for solar panel ,battery and DC load.

Reverse current

Yes.at night

Static current

≤ 12.5mA ( USB is OFF )

Voltage drop

Loop Voltage Drop

Charging:<0.22V,Discharging:<0.12V

Charging   voltage

Float charge

13.8 for 12VDC,27.6V for 24VDC

Equalizing charging

14.6V for 12VDC,29.2V for 24VDC

Open Circuit Voltage of solar panel

12VDC ≤50V; 24VDC  ≤100V

Charging control mode

PWM

LED Display

LED for Charing,Load, fault and protection status

USB Charge

2*5V 1.0A

2*5V 1.0A

2*5V 1.0A

Running temperature

-20 ~ +55 °C

Storage temperature

-30 ~ +80 °C

Humidity requirements

10% -90%, no condensation

Installation cable area

≤6mm2

≤6mm2

≤16mm2

Protection class

IP30

Case material

ABS

Product size(mm)

188*95*46.5

Product Weight(kg)

0.34

0.34

0.345

Carton size(mm)

535*425*200

Carton weight(kg)

15KG / 30PCS

Notes

Model HT**U: ,U-5V/1A USB,24--12V/24VDC
