Factory High Efficiency 20A 30A 36V 48V 12V 24V Solar Power Station Charge Controller For Telecom Projects

Factory High Efficiency 20A 30A 36V 48V 12V 24V Solar Power Station Charge Controller For Telecom Projects thumbnail-1
Factory High Efficiency 20A 30A 36V 48V 12V 24V Solar Power Station Charge Controller For Telecom Projects thumbnail-2
Factory High Efficiency 20A 30A 36V 48V 12V 24V Solar Power Station Charge Controller For Telecom Projects thumbnail-3
Factory High Efficiency 20A 30A 36V 48V 12V 24V Solar Power Station Charge Controller For Telecom Projects thumbnail-4
Factory High Efficiency 20A 30A 36V 48V 12V 24V Solar Power Station Charge Controller For Telecom Projects thumbnail-5
Factory High Efficiency 20A 30A 36V 48V 12V 24V Solar Power Station Charge Controller For Telecom Projects photo-1

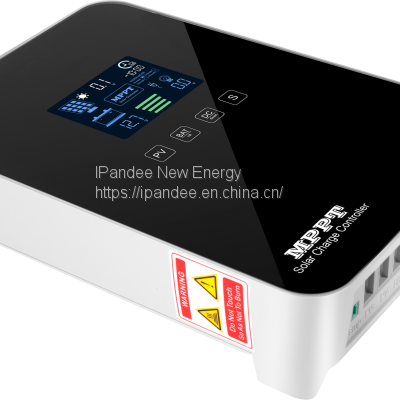

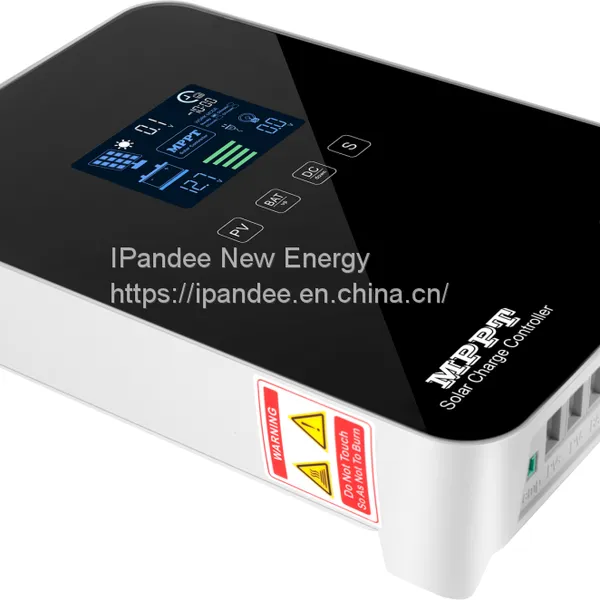

Factory High Efficiency 20A 30A 36V 48V 12V 24V Solar Power Station Charge Controller For Telecom Projects photo-2

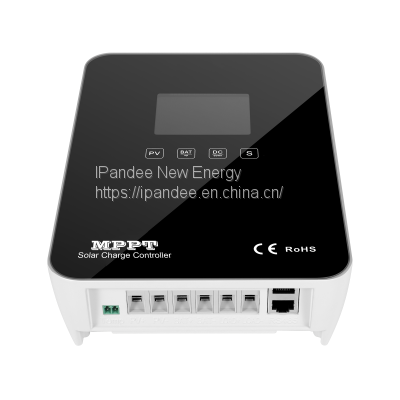

Factory High Efficiency 20A 30A 36V 48V 12V 24V Solar Power Station Charge Controller For Telecom Projects photo-3
Factory High Efficiency 20A 30A 36V 48V 12V 24V Solar Power Station Charge Controller For Telecom Projects photo-4
Factory High Efficiency 20A 30A 36V 48V 12V 24V Solar Power Station Charge Controller For Telecom Projects photo-5
US$ 70 - 300 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
IPANDEE
Place of Origin:
China
Model Number:
EXPLORE-N
Contact Supplier Request Quote Chat Now
IPandee New Energy
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name IPANDEE
Place of Origin China
Model Number EXPLORE-N
Application Charger Controller
Rated Voltage 48V
Maximum Current 60A
Factory High Efficiency 20A 30A 36V 48V 12V 24V Solar Power Station Charge Controller For Telecom Projects
Explorer-N series
EN2420
EN2430
EN2440
EN2450
EN2460
EN4820
EN4830
MPPT efficiency
≥99.5%
Standby power
0.8W~1.5W
Heat-Dissipating method
Automatic cooling
Battery system
12Vsystem : 9VDC-15VDC
 24Vsystem : 18VDC-30VDC
12Vsystem: 9VDC-15VDC
24Vsystem: 18VDC-30VDC
36Vsystem: 32VDC-40VDC
48Vsystem: 42VDC-60VDC
Settable lithium-ion battery system
8VDC-30VDC
18VDC-60VDC
Max.PV input voltage(Voc)
100VDC
150VDC
Min.Vmpp Voltage
Battery voltage + 2V
Start-up charging voltage
Battery voltage + 3V
Low input voltage protection
Battery voltage + 2V
Over voltage protection / Recovery
100VDC/95VDC
150VDC/145VDC

Rated input power
12V system
260W
390W
520W
650W
780W
260W
390W
24V system
520W
780W
1040W
1300W
1560W
520W
780W
36V system
--
--
--
--
--
780W
1170W
48V system
--
--
--
--
--
1040W
1560W
Li-ion
252W-504W
378W-756W
504W-1008W
630W-1260W
756W-1512W
252W-1008W
378W-1512W
Activation for lithium battery
Optional
Battery types
Sealed(SEL).Gel(GEL).Flooded(FLD),User-defined(USER),Li-ion(LIT)
Rated charge current
20A
30A
40A
50A
60A
20A
30A
Temperature compensation
-3mV/℃/2V
Charge method
3 stages: CC (Constant current) - CV (Constant voltage) - CF (Floating charge)
Output voltage stability accuracy
≤±0.2V
Load voltage
Same as battery voltage
Rated load current
20A
30A
20A
Load control mode
On/Off, PV voltage control mode, Dual-time control mode, PV + Time control mode
Low voltage protection
10.5V (default), 11V (restored), settable
Setting method
PC software / APP / Controller
Display
High-definition LCD segment code backlight display
Communication
Dual RJ45 port / RS485/ support PC software monitoring/ support WiFi module for APP cloud monitoring / support centralized parallel monitoring
Protections
Input & output over-volt / low-voltage protection, reverse polarity protection, over-heating protection, battery shedding protection etc.
Operating ambient temperature
-20℃~+50
Storage temperature
-40℃-+75°C
IP(Ingress protection)
IP43
Altitude
0~3000m
Max. connection size
28m㎡
Recommended breaker
≥40A
≥63A
≥63A
≥100A
≥100A
40A
60A
Net Weight/Gross Weight (kg)
1.7/2.03
2.4/2.83
Product size /Packing size (mm)
220x148x58.8/289x212x105
245x170x68.5/334x255x123
Factory High Efficiency 20A 30A 36V 48V 12V 24V Solar Power Station Charge Controller For Telecom Projects
