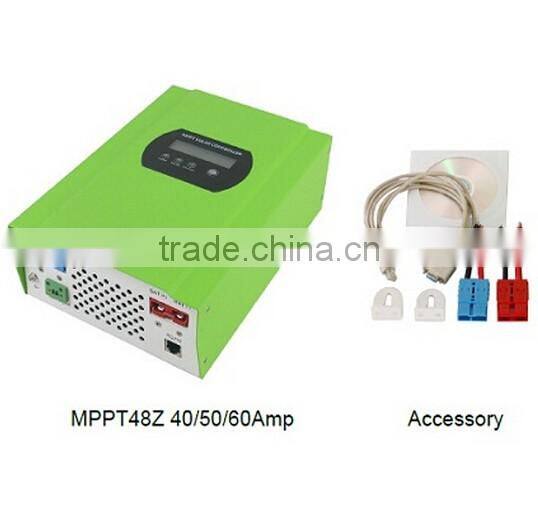

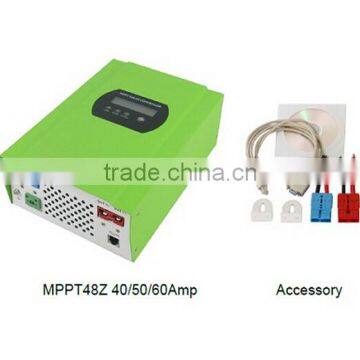

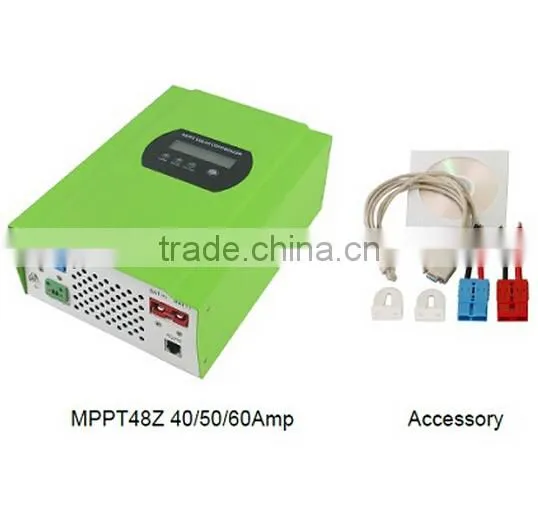

MPPT48Z-I Series Mppt Solar Charge Controller

Name: MPPT48Z-I Series Mppt Solar Charge Controller
Brand: KEMAPOWER
SKU: 112010107
Availability: InStock

US$ 180.00 - 180.00 MOQ: 20 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

KEMAPOWER

Model Number:

MPPT48Z-I

Foshan Kemapower Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name KEMAPOWER

Model Number MPPT48Z-I

Rated Voltage Other, 12/24/48V

Maximum Current 44/55/66

Key Feature:
1.LCD display MPPT(Maximum Power Point Tracking) solar charge controller
2.12V/24V/48V system auto recognize
3.Max PV input voltage 150VDC
4.Three Stages charging, fast charge/Constant charge/Floating charge Vented/Sealed/Gel/NiCd Option charge
5.User-Defined charge voltage by software
6.LCD+LED Display the input and output parameter of PV and battery, fault info
7.with Temperature Compensation
8.RS232 Communication For Operating and testing
9.Extensible LAN remote control optional

Technical Specifications

Item	Model		MPPT48Z-40Ⅰ	MPPT48Z-50Ⅰ	MPPT48Z-60Ⅰ
Output	Rated Charge Voltage		DC12V/24V/48V Automatic recognition
	Output VDC Precision		≤±1.5%
	Rated Output Current		40A	50A	60A
	Current-limiting Protection		44A	55A	66A
	Over Charge Protection		14.6V For 12VDC System, 2 for 24VDC, 4 For 48VDC
	Selectable battery		Sealed lead acid, vented, Gel, NiCd.Other types of the batteries also can be defined
	Temperature Compensation		14.2V-(The highest temperature-25℃)*0.3
Input	MPPT Range		DC18V~DC150V For 12VDC system,DC34~DC150V For 24VDC,DC65~DC150V For 48VDC
	System Max. PV Power	12V	570W	700W	900W
		24V	1130W	1400W	1700W
		48V	2270W	2800W	3400W
	Low Voltage Input Protection		DC16V for 12V system,DC30V for 24V ,DC60V for 48V
	Low Voltage Input Recovery		DC22V for 12V system,DC34V for 24V ,DC65V for 48V
	Max DC Voltage		160VDC
	Overvoltage Protection		150VDC
	Overvoltage Recovery		DC145V
Conversion Efficiency			≥96.5%,≤99%
Display	LCD display		Input,output parameter For PV,Battery and Controller working status
	LED display		3 LEDs:Fault,charge,power
Communication			RS232 Communication by PC, or LAN(optional)
Protection	Input Low Voltage/Overvoltage/ Polarity Reversal/Protection
	Output Overvoltage /Polarity ReversalProtection
	Short-circuit Protection,Recover after eliminating
	Over Temperature Protection,95℃
Physical	Product size		D270W185H90 mm
	G.N/N.G(kg)		3.6/3
	IP Grade		IP21
