HT30DU Series10A 20A 30A PWM Solar Charge Controller With LCD Display

HT30DU Series10A 20A 30A PWM Solar Charge Controller With LCD Display thumbnail-1
HT30DU Series10A 20A 30A PWM Solar Charge Controller With LCD Display photo-1
US$ 10.5 - 21 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
KEMAPOWER
Model Number:
HT30DU
Contact Supplier Request Quote Chat Now
Foshan Kemapower Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name KEMAPOWER
Model Number HT30DU
Application Solar System Controller
Rated Voltage Other, 12V/24V/48V
Maximum Current 10A/20A/30A

HT30DU Series10A 20A 30A PWM Solar Charge Controller with LCD Display

Key features:


1. 4 stage solar charge controller
2. With 2*5V 1A USB charger for 12V/24V. 48VDC None
3. Charging and discharging parameters adjustable
4. Time and Light Control function selectable for street light
5. 12/24V or 12V/24V/48V automatic recognition,10A,20A,30A for choice
6. Preset charging parameters for three battery types
7. With Temperature compensation function
8. Communication with computer by RJ45 option

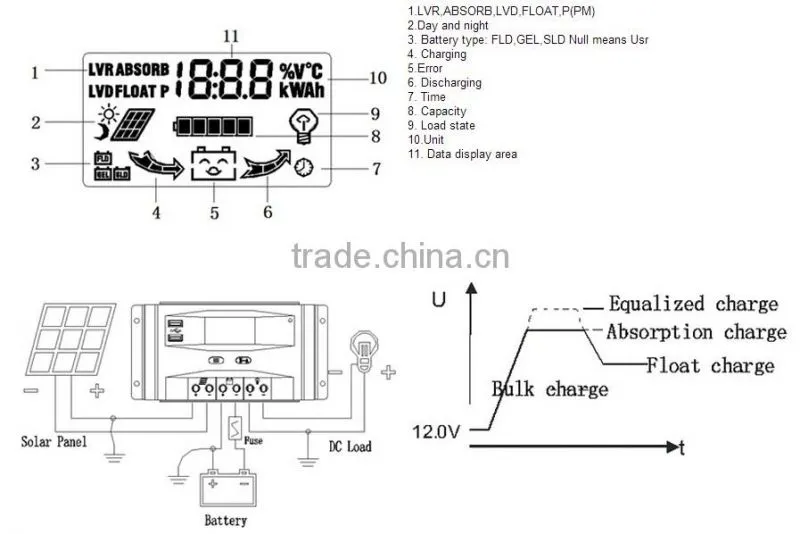

9. LCD for generated energy capacity, fault code and battery,PV, Load,charge,discharge details
10. Protection for PV input over current and reverse polarity; battery over charge,
over discharge,reverse polarity and back discharge; Load overload and short circuit,controller over Temp



Technical Specifications



 ITEM

 MODEL

HT30DU-1024

HT30DU-2024

HT30DU-3024

HT30D-3048

Rated charge current

10A

20A

30A

30A

Rated load current

10A

20A

30A

30A

System voltage

12/24V AUTO work

48VDC

Protection

Over Load

≥120%, 60s;≥150%,10s,≥180%,0.2s

Short circuit

Yes

Over voltage

16V for 12VDC,32V for 24VDC,64V for 48VDC +- 0.5V

Low Voltage Disconnection(LVD)

10.7V for 12VDC, 21.4V for 24VDC

Low Voltage Reconnection(LVR)

12.6V for 12VDC,25.2V for 24VDC

Reverse polarity

protection for solar panel ,battery and DC load.

Reverse current

Yes.at night

Static current

≤13mA

≤25mA

loop voltage drop

Charge / Discharge

≤0.21V / ≤0.12V

≤0.21V / ≤ 0.1V

≤0.24V / ≤0.12V

≤0.25V / ≤0.10V

Charging  voltage

absorption charging

14.4V for 12VDC,28.8V for 24VDC,57.6V for 48VDC, 2hours

Float charge

13.8 for 12VDC,27.6V for 24VDC,55.2V for 48VDC

Equalizing charging

14.6V for 12VDC,29.2V for 24VDC,58.4V for 48VDC, 2hours

Open Circuit Voltage of solar panel

12VDC/24V ≤50V; 48V ≤100V

Temperature compensation

 '-4mV/Cell/℃

Charging control mode

PWM 4-stage(bulk, absorption,float, equalized)

USB Charge

2*5V 1.0A

2*5V 1.0A

2*5V 1.0A

NO

LCD Display

LCD for Bat type,VDC,,PV output VDC,Amp and Accumulative charge AH.Load Amp and  Accumulative discharge AH,Battery charge and discharge value. Controller internal Temp,fault code and S/N. load Time and light control status

Running temperature

-20 ~ +55 °C

Storage temperature

-30 ~ +80 °C

Humidity requirements

10% -90%, no condensation

Installation cable area

≤6mm2

≤16mm2

≤16mm2

≤16mm2

Protection class

IP30

Case material

ABS

Product size(mm)

188*90*46.5mm

Product Weight(kg)

0.355

0.36

0.36

0.36

Carton size(mm)

535*425*200

Carton weight(kg)

15KG / 30PCS

Notes

Model HT**DU:D-LCD,U-5V/1A USB,24-12/24VDC






  HT30DU Series10A 20A 30A PWM Solar Charge Controller with LCD Display
