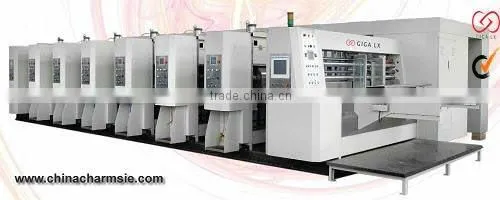

GIGA LX Full Computerized High Speed Flexo Printing Machine
US$ 100,000 - 500,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Other, flexo
Place of Origin:
Shanghai, China
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
GIGA-LX 708 Flexo Printer Machine for Making Corrugated CardboardUS$ 100,000 - 500,000MOQ: 1 Set -
GIGA LX Carton Box Printing MachineUS$ 130,000 - 550,000MOQ: 1 Set
-
GIGA LX 708 Flexo Printer & Die Cutter & SlotterUS$ 350,000 - 800,000MOQ: 1 Set
-
GIGA 4 Colour Flexo Printing MachineUS$ 80,000 - 400,000MOQ: 1 Set
-
GIGA LX Used Flexo Label Printing MachineUS$ 130,000 - 400,000MOQ: 1 Set
Condition
New
Plate Type
Other, flexo
Place of Origin
Shanghai, China
Brand Name
GIGA - LX
Model Number
LX - 708
Usage
Card Printer
Automatic Grade
Automatic
Voltage
380v
Gross Power
65-125KW
Dimensions(L*W*H)
8M-15Mx7Mx2.2M
Weight
10mt-25mt
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1:Computerized Flexo Printing Machine2:Ceramic Roller Doctor Chamber

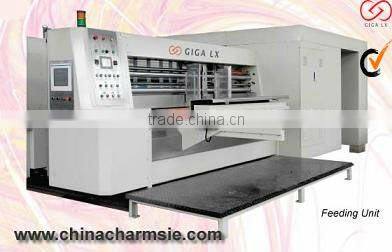

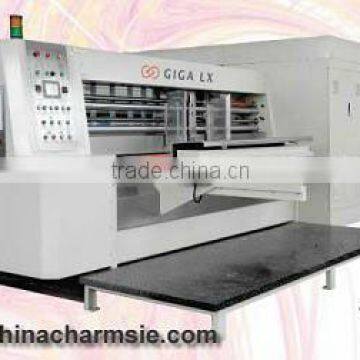

3:Servo Control Lead Edge Feeder
4:IR UV Dryer

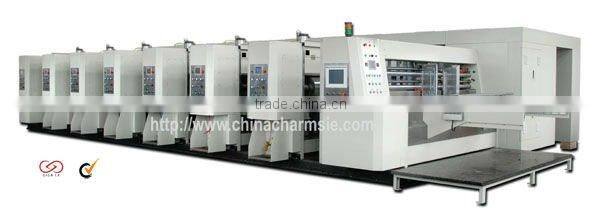

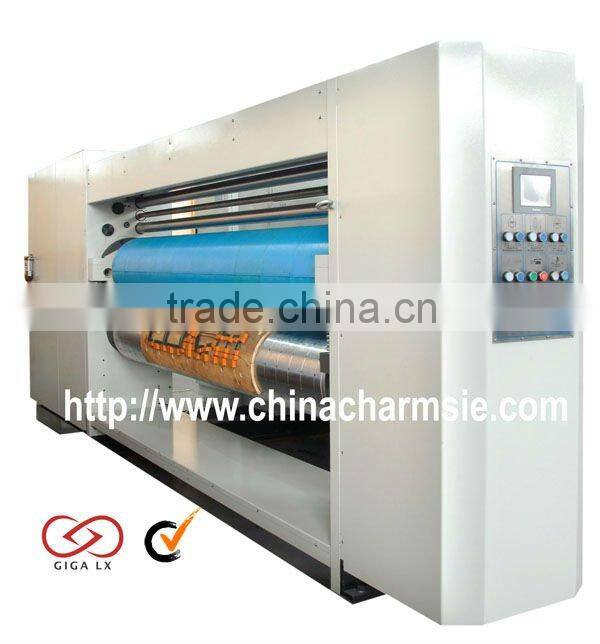

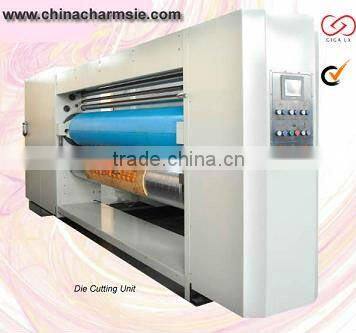

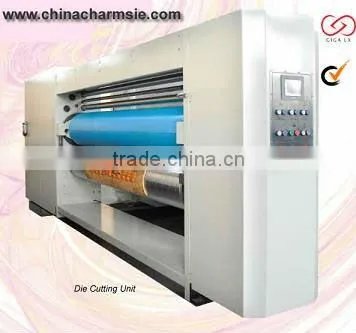

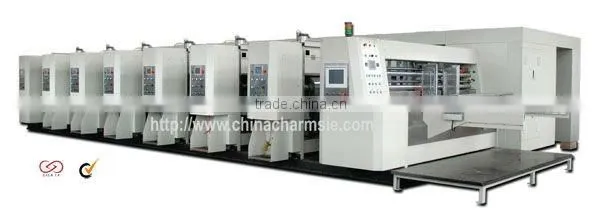

LX-708 Full Computerized High Speed Flexo Printing Slotting& Die Cutting machine
Full Computerized High Speed Flexo Printing Machine

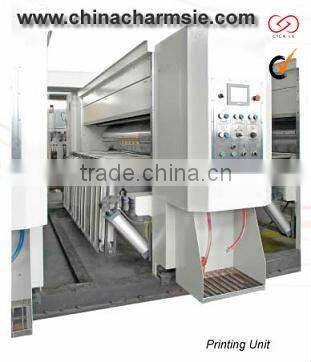

Computerized corrugated flexo printing machine main Machine Function
4 - 7Color, with servo control lead edge feeder, vacuum suction conveyor for printer and IR Dryer and UV Dryer,ceramic roller, doctor chamber, UV dryer and IR dryer for option.
- Keep the functions of intelligence zero returning, memory reset and automatic order formation,9999 order memory.

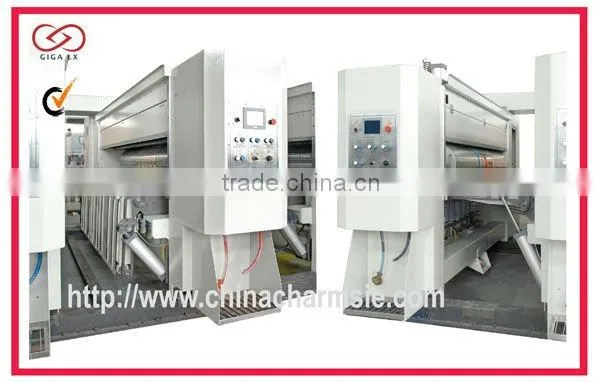

- Dual system of touch screen man-machine interaction and manual electrical control.
- The complete set of machine is operated computerized upon the designing principle of man-machine integration. It can do the job of setting, correction, execution, change and memory, etc. on the touch screen with precise data display in the shortest time.
- Transmission gears are made of high-quality alloy steel 20CrMnTi. The Rockwell hardness of the gears can get to 60 degree and more after the process of carburization quench and fine grinding.
- All rolls and shafts are chrome plated to enhance the hardness.
- Apply the joining with non-keypiece so as to decrease the connection gap and keep long term register accuracy.

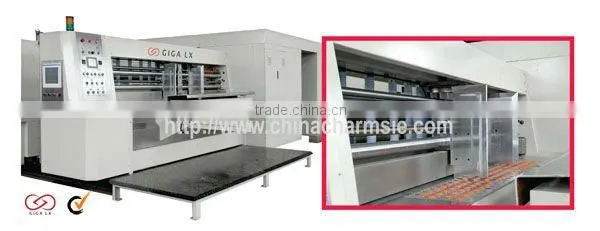

- Servo control Lead edge feeder--patent #ZL2005 2 0045628.x Servo motor-quick react, precision positioning, system stability and durability. Electrical camshaft supersedes mechanical style;
- Synchronous belt un-interval links feeding shaft with servo motor shaft, to improve feeding precision alignment; Half-wheel, quick replacing structure, to keep consistency of feeding position, and to avoid uneven wearing on the surface of feeding wheel;lx808
- Flexo printing machine and carton box making machine prices are very good with very good quality.
We provide loan to below business situation
1. The value of order over RMB 1 million (including 1 million).
2. Only for boxing machine LX308N, LX-608CN LX707N or corrugated machine production line include LXC-180NN, LXC-220H1.8N models.
3. We accept O/A (Open account), it based on the credit level of buyer's bank credit report.
4. The details please consult with our sales department.
1. The value of order over RMB 1 million (including 1 million).
2. Only for boxing machine LX308N, LX-608CN LX707N or corrugated machine production line include LXC-180NN, LXC-220H1.8N models.
3. We accept O/A (Open account), it based on the credit level of buyer's bank credit report.
4. The details please consult with our sales department.
Model |
1800/2200x1000 |
2500x1200/1400/1600 |
2800x1200/1400/1600 |
|
Max. machine speed (pcs/min) |
200 |
160/140/120 |
160/140/120 |
|
Max. printing speed(pcs/min) |
180 |
120 |
120 |
|
Max. feeding size(mm) |
1770/2170*970 |
2500*1170/1370 |
2500*1170/1370 |
|
Skip feeding size(mm) |
1770/2170*1170 |
2500*1370/1570/1770 |
2500*1370/1570/1770 |
|
Min. feeding Size(mm) |
650*280 |
650*380/400/450 |
700*380/400/450 |
|
Feeding depth (mm) |
2.5-10 |
2.5-10 |
2.5 - 10 |
|
Min. slot interval |
Positive cut (mm) |
120*120*120*120 |
140*140*140*140 |
140*140*140*140 |
|
Reverse cut (mm) |
190*50*190*50 |
250*80*250*80 |
250*80*250*80
|
|
Max. printing area(mm) |
1750/2150*950 |
2450*1150/1350 |
2750*1150/1350 |
|
Standard printing plate thickness(mm) |
7.2 |
7.2 |
7.2 |
|
20140626 j8
