GIGA-LX 708 Flexo Printer for making corrugated cardboardEasy operation and maintain
Systematize sale and after-sale service
GIGA-LX 708 Flexo Printer for making corrugated cardboard
Product Details
Type: Flexographic Printer
Condition: New
Plate Type: Flexo
Place of Origin: Shanghai, China (Mainland)
Brand Name: GIGA LX
Model Number: LX708
Automatic Grade: Automatic
Color & Page: Multicolor
Voltage: 380V
Gross Power: 30-45kw
Dimensions(L*W*H): 8000x7000x2200
Certification: Got CE
After-sales Service Provided: Engineers available to service machinery overseas
Style: Carton machine, Flexo printing machine
Characteristic: Got Ce certification
Characteristic 1: Pressure-free stretching feeding mechanism, Got patent
Characteristic 2: Servo control lead edge feeder for option, Patent got
Advanced equipments: CNC machining center, milling machine, high precision grinding machine
Packaging & Delivery
Packaging Details: |
In steel pallet |
Delivery Detail: |
120 days |
Specifications
1.Touch-screen,Got CE
2.4 colour flexo printer machine
3.Memory order999 slotter machine
4.CNC adjusting system die cutter
LX307 Automatic Flexo Printer slotter and die cutter machine
Automatic 4 Colour Flexo Printer Machine
Main functions:
Touch screen and electric control dual system.
High quality materials and fittings,memory order 999.
All transmission gears made of high quality alloy steel (20CrMnTi) grinded under high temperature with hardness HRC58-62
CAPT-LOCKS union link to reduce the connect interval and keep long lasting overprint precision
Functions of intelligent zero returning and memory reset,Suitable for small size carton
The transmission system adopts two oil pumps circulating lubrication lx708

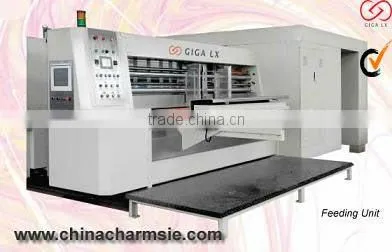

Feeding Unit.
Back-pushing suck blower feeding system (Lead edge feeder is option)Lx708 Continuous or skip feeding, with counter device, Feeding guide rail use linear bearing to make smooth feeding, lx307 Synchronous working of automatic feeding and anilox roller to reduce waste, Equipped with dust suck removing machine, to improve printing quality of flexo printing machine.

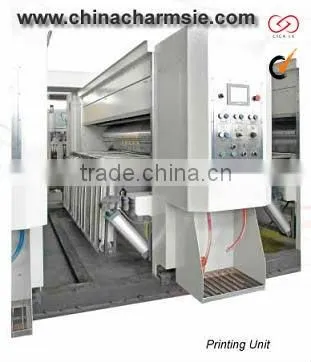

Printing Unit
Box machine forme roller and pressure roller are made of high quality steel, with grinded and chrome plated surface, Dynamic and static balancing make steadily running, Hanging forme, make installation easy and quick, Forme changing both foot switch, and/or electric control (forward / backward run), Anilox roller auto lifting device synchronous working with paper feeding system (In feeding, anilox roller pressed whereas in stop, it released)
Planetary gear phasing structure
Printing phase automatic 360 degree adjust by PLC, touch screen and motorized digital control. Forme roller intelligent zero returning, short cut resetting under dynamic and static condition
Motorized adjusts digital display the transversal position of the forme roller, up to 20 mm
Slotting Machine Unit
Pre-scoring wheel: Pre-scored paperboard will not crush
Upper scoring wheel coated by polyurethane to avoid possible crush on the paperboard
Transverse movement of scoring wheel, doctor wheel and slotting head controlled by motorized button control, lx708 easy and quick
7 mm thick slotting knives are made of alloy tool steel by heat treatment and finely ground, sharpened endurable teeth
Aluminium hand hole punch device.

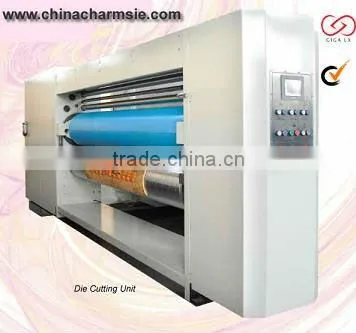

Die Cutting Unit
New CNC difference adjusting system for rotary die cutting,
Adjusting the error and difference of die-cutter's Cardboard,
Easy operation
Anvil roller and mould roller adopts high-grade steel with finely reground and chrome plated surface. Dynamic balancing correction enhances running stability
Mould roller and anvil roller can be apart by the air cylinder eccentric mechanism , to decrease the load of the machine and to prolong the life of the cutting mould and urethane rubber
Mechanical drive anvil roller transverse moves up to ±30mm, and installed with radial differential device, to improve the life of anvil roller
Unique speed difference compensation device makes the anvil roller slide together to make a perfect die cutting
Stacking Unit
Connection arm has manual and automatic operation methods
Tension of the driving belt of connection arm can be adjusted alone; quantity of connection arms can be set at will
Platform elevation and transmission motor has braking function,
A pneumatic controlled plate, Anti slipping belt used in the transport bed lx708
20140617 j2
