WANTE MACHINERY WANTE RBAND
QT6-15B Concrete Brick Raw Material and Hollow Block Making Machine
WANTE MACHINERY WANTE RBAND
QT6-15B Concrete Brick Raw Material and Hollow Block Making Machine showing
A. QT6-15B use hydraulic pressure system. Its hydraulic motor can provide super power.
B.As a multi-purpose machine, exchanging mold can produce standard bricks, hollow bricks,multi-hole bricks.
C.The PLC computer controlled directional vibration, frequency and brake to cancel the vibration energy.
D.Feeding in low-frequency, vibrating in high-frequency, and table and Mould vibrating together will make
concrete fully liquefied and exhausted within 2-3 seconds to achieve high-density and high strength,
Particularly be suitable for the production of high-strength blocks, you can stack immediately after forming.
E.Storing materials of the host machine is controlled by the photoelectricity, material namely use namely send
to avoid the impact of aftershocks, some concrete liquefied advanced.
F.Swinging loading device is installed in the feeding hopper,
it can put the materials into the molding box uniformly by adjusting the swinging fork.
G.Imports of electric appliances and the original hydraulic component could make the control system and
hydraulic system basically operate without fault; ten formulations kept by the computer can be called at random.
dozens of mechanical action of different products could be adjusted through the menu to select the addition and
subtraction without needing professionals.
The machine use the Siemens motor(or ABB) which is with best quality.
H.Its life is 1.3 times than common motor.

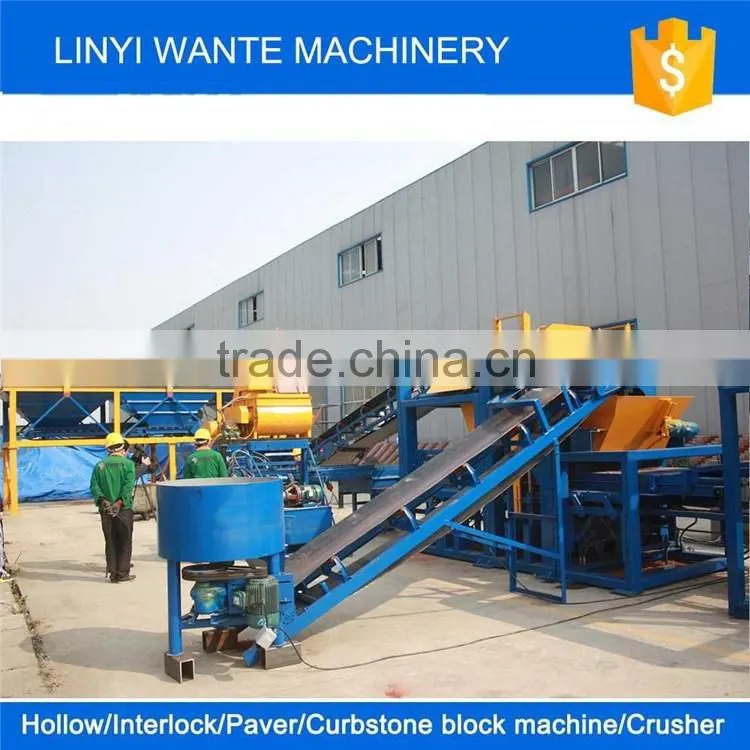

WANTE MACHINERY WANTE RBAND
QT6-15B Concrete Brick Raw Material and Hollow Block Making Machine Line
No. |
Model |
Quality |
Weight KGS |
KW |
1 |
PLD1200 batching machine |
1 |
4000 |
|
2 |
JS500 mixer |
1 |
3500 |
|
3 |
QT6-15B block machine |
1 |
8000 |
|
Accessory for QT6-15B |
||||
Conveyor belt |
1 |
1000 |
||
Hydraulic station |
1 |
|||
PLC controller |
1 |
|||
Block sweeper |
1 |
|||
Hydraulic barrow |
2 |
|||
Fittings |
1 |
|||
Tools |
1 |
|||
4 |
Stacker machine |
1 |
2000 |
|
5 |
Total |
18500 |
||
WANTE MACHINERY WANTE RBAND
QT6-15B Concrete Brick Raw Material and Hollow Block Making Machine parameters
Main specification and technical parameters | |
Overall size |
2900x2200x2650mm |
Shaping cycle |
15-18 seconds |
Pallet size |
940x830x25mm (bamboo) |
940x830x20mm (plastic) | |
Vibration frequency |
Max.5500 R/Min |
Electricity |
380V/220V/ (adjustable) |
Vibration force |
55KN |
Total weight |
8000 KGS |
WANTE MACHINERY WANTE RBAND
QT6-15B Concrete Brick Raw Material and Hollow Block Making Machine block samples
WANTE MACHINERY WANTE RBAND
QT6-15B Concrete Brick Raw Material and Hollow Block Making Machine showing
WANTE MACHINERY WANTE RBAND
QT6-15B Concrete Brick Raw Material and Hollow Block Making Machine delivering show
