2016 New designed WT2-10 auto clay brick making machine in pakistan
1. New designed by WANTE MACHINERY originally.
2. Saves labor and have highest capacity in China

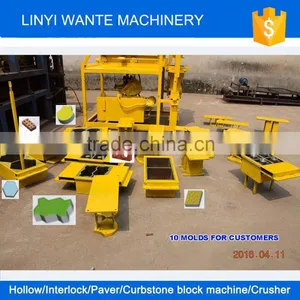

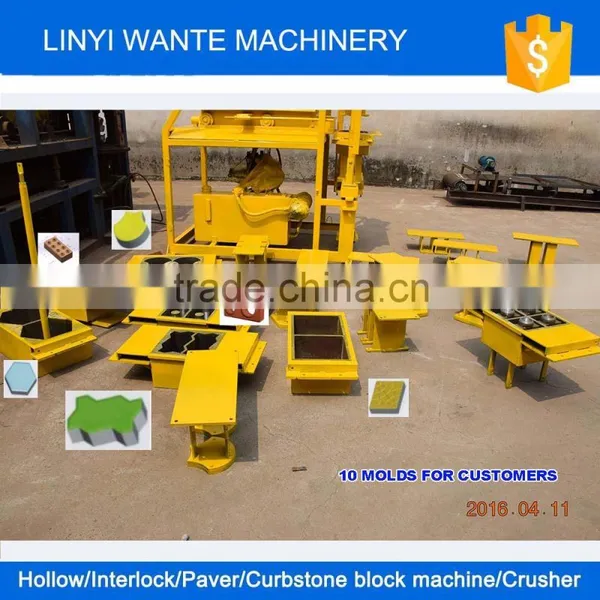

3. Produce 2 pcs per mold with different sizes.

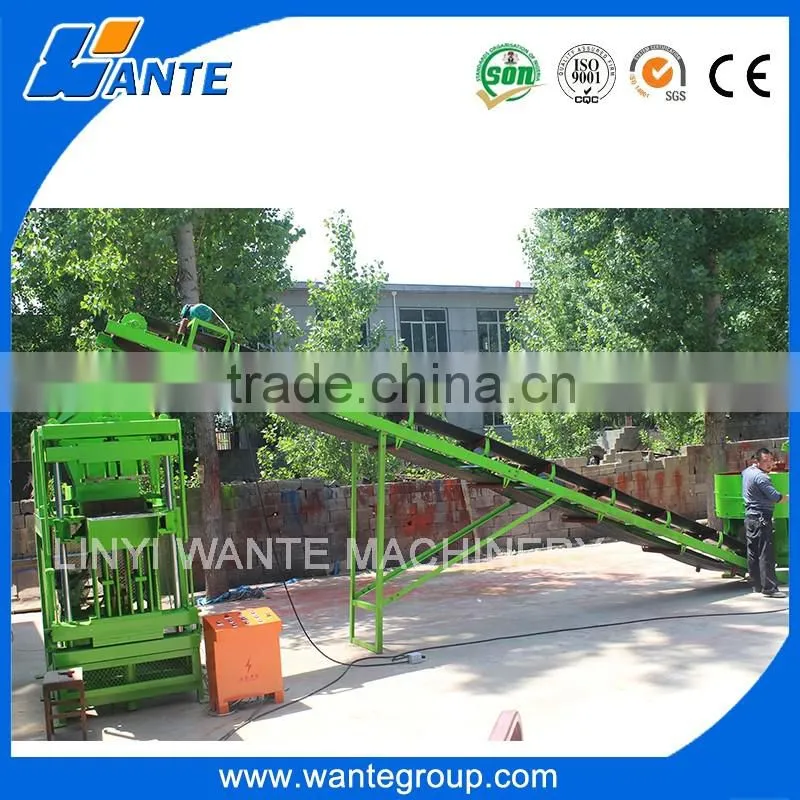

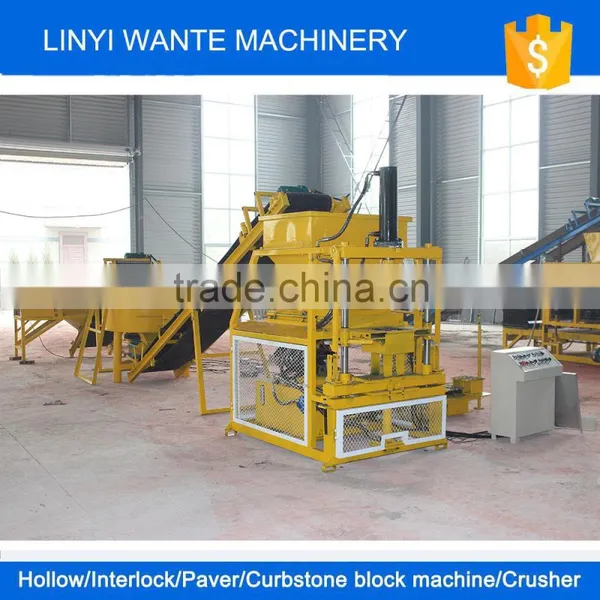

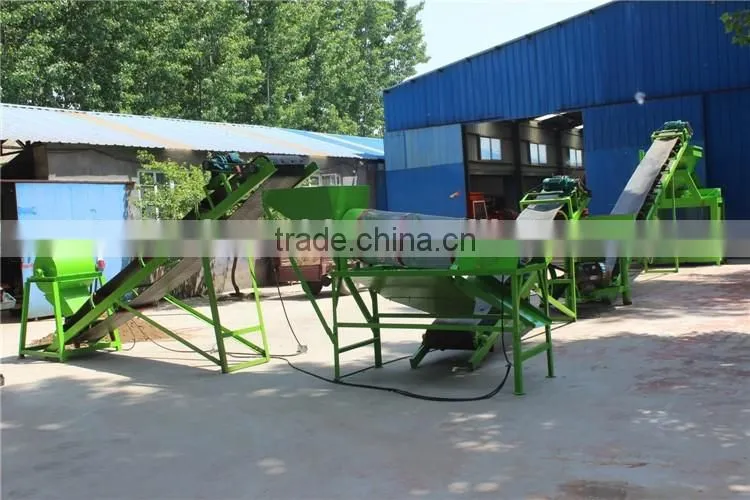

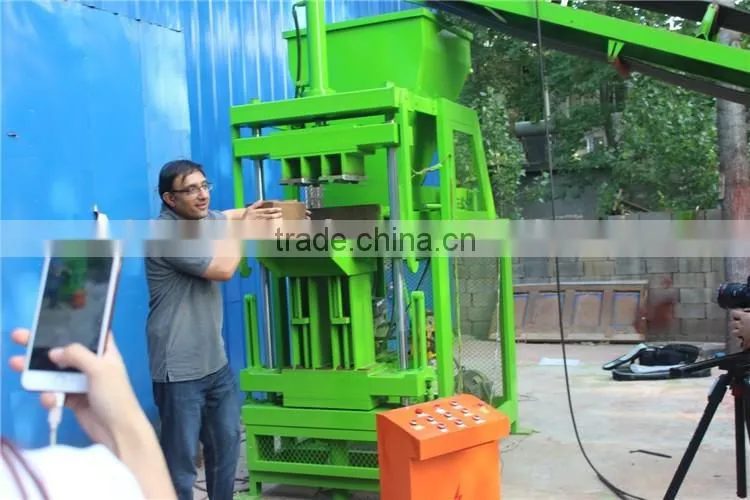

2016 New designed WT2-10 auto clay brick making line showing
2016 New designed WT2-10 auto clay brick making machine working process:
1. Big clay made into small size by soil crusher
2. Remove the big size clay, use small size clay only
3. Pour the clay and cement to mixer , mixing them with water
4. Transfer the finished raw material to host machine by conveyor machine.
5. Produce green block.
6. Carry the green block to curing aera.
2016 New designed WT2-10 auto clay brick making machine Specification:
|

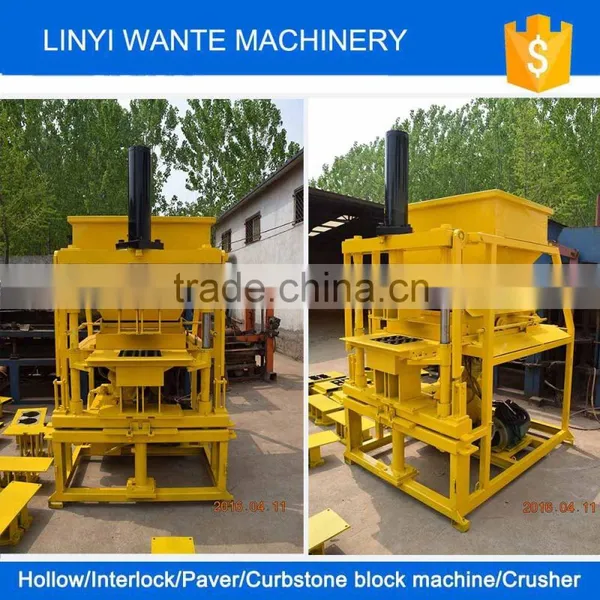

WT2-10 hydraulic interlocking block machine |
|
Overall size |
2500(L)×900(W)×2300(H)mm |
|
Shaping cycle |
6-8 seconds |
|
Power |
7.5 KW |
|
15 Hp diesel engine | ||
Pressure |
16Mpa |
|
Total weight |
1300 KGS |
|
|
|
Conveyor belt |
|
Belt width (M) |
6(4.5/3) |
|
Belt length (M)/KW |
6/2.2 |
|
Belt speed (M/S) |
2 |
|
|
JD350 mixer |
|
Overall size |
1200(L)×1200(W)×1300(H)mm |
|
Shaping cycle |
5 mins |
|
Volume |
350L (25Kgs Cement) |
|
Electricity |
380V/220V/ (adjustable) |
|
Total weight |
330KG |
|
|

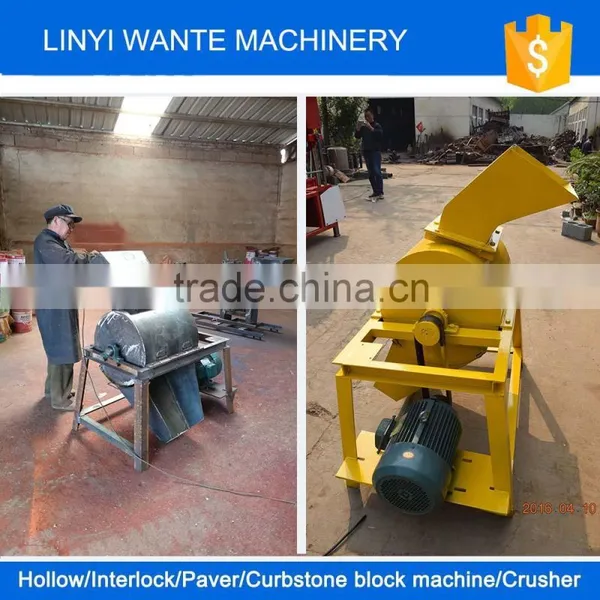

Soil crusher |
|
Overall size mm |
1100(L)x1100(W)x1400(H)mm |
|
Motor |
5.5kw |
|
Electricity |
220v |
|
380v | ||
Capacity |
500KGS/H |
|
Total weight |
200 KGS |
|
|

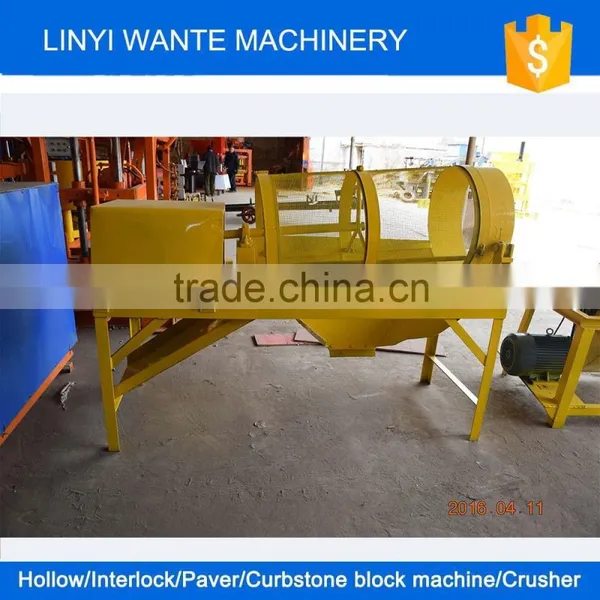

Soil screen |
|
Power |
3KW |
|
|
Capacity
|
480KGS/h | |
Total weight |
300KGS |
|
|
||

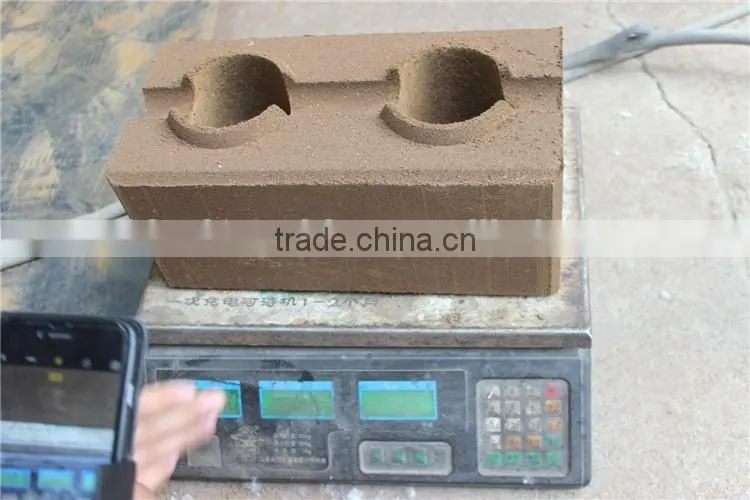

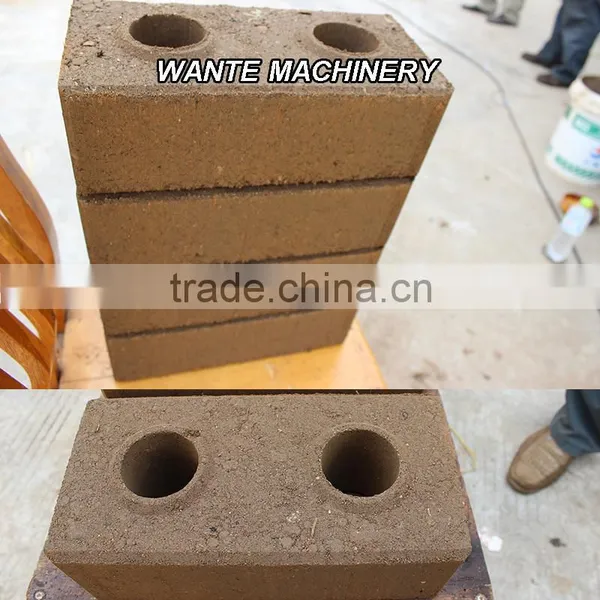

Bricks test
Delivery site
