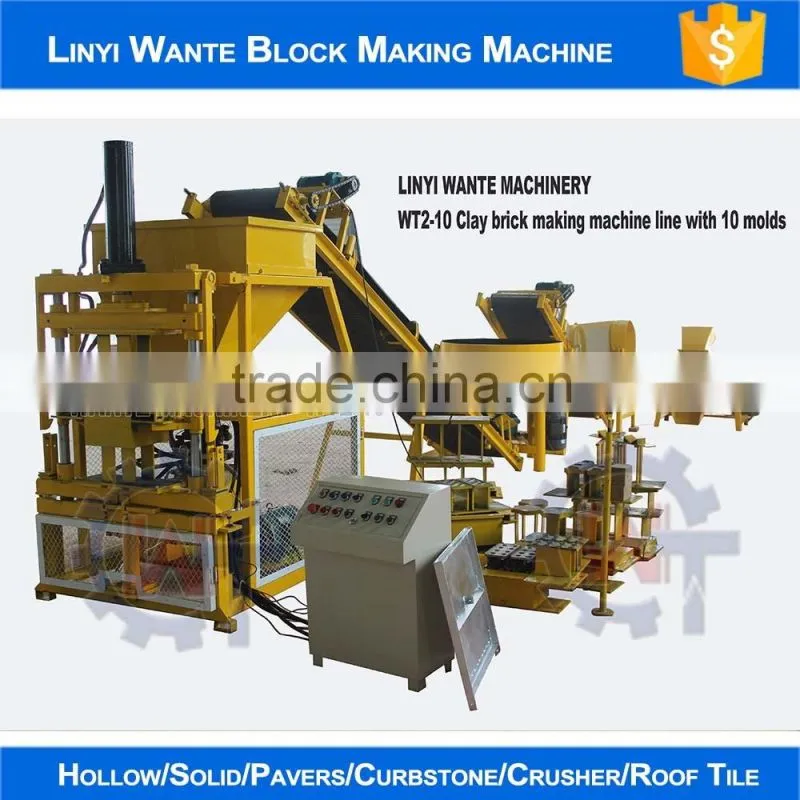

WT2-10 is a new model in our factory, produce 2 pcs per mold, as it is a whole production line, saves labor and have a high capacity.

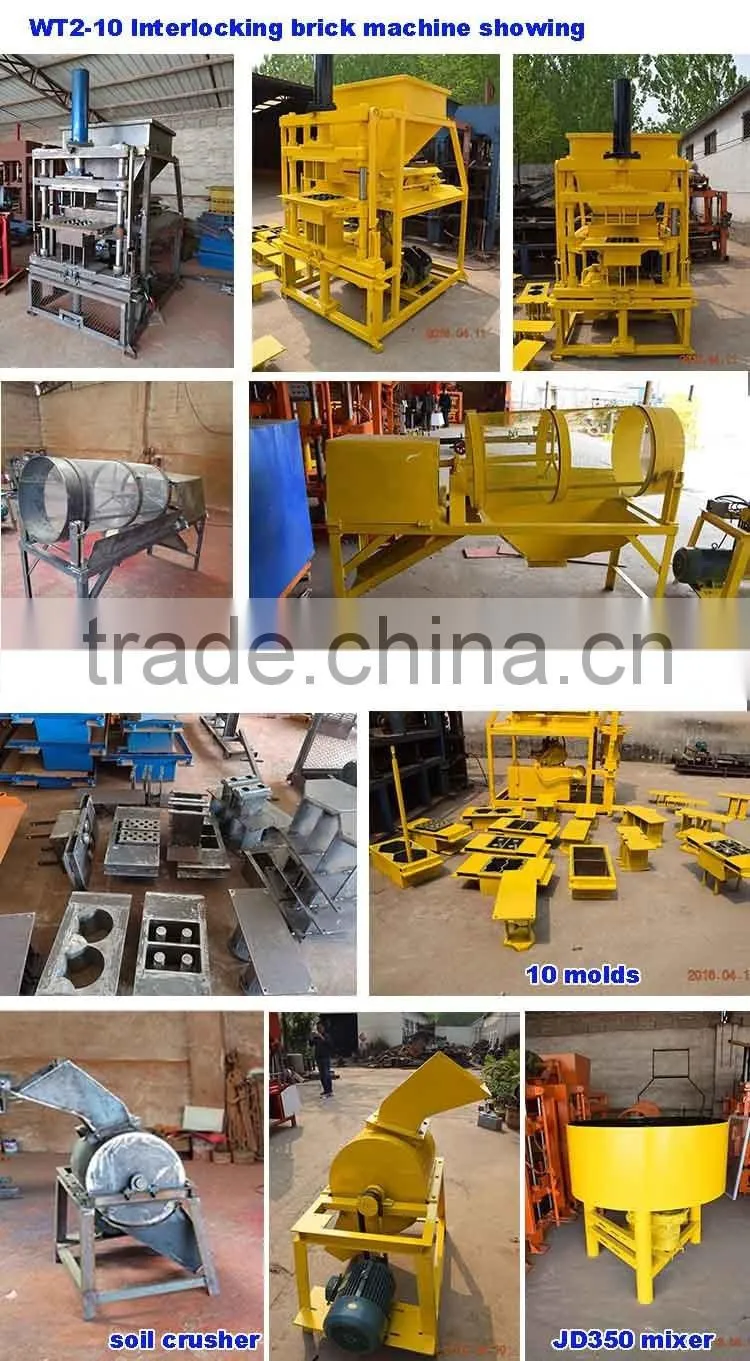

WANTE MACHINERY WT2-10 Latest design interlocking brick machine line
No. |
Description of goods |
Qty |
|
1 |

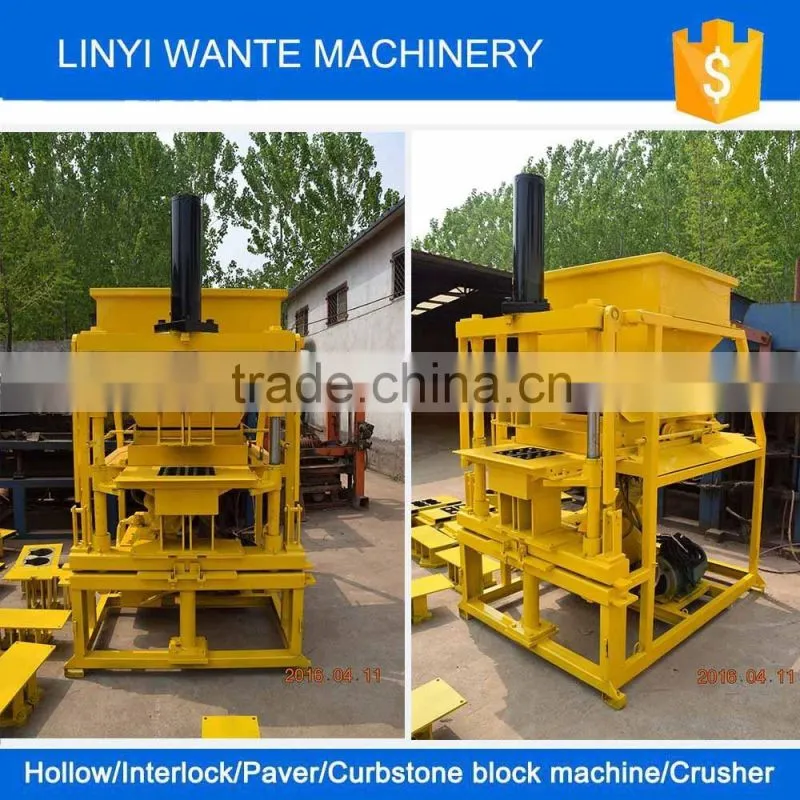

WT2-10 hydraulic interlocking block machine |
1 |
|
2 |
Accessory for WT2-10 |
||
|

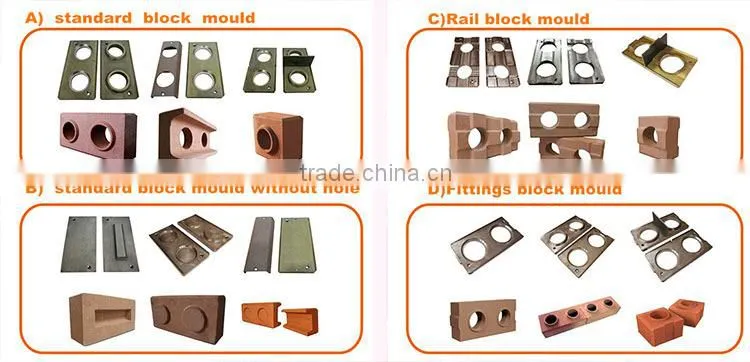

Free Interlocking Mold |
1 |
|
|
Hydraulic station and motor |
1 |
|
|
Tools |
1 |
|
Optional |
Soil crusher |
1 |
|
|
Soil screen |
1 |
|
|
Conveyor belt (3.0 m ) |
1 |
|
|
JD350 mixer |
1 |
|
|
Conveyor belt (4.5m ) |
1 |
|

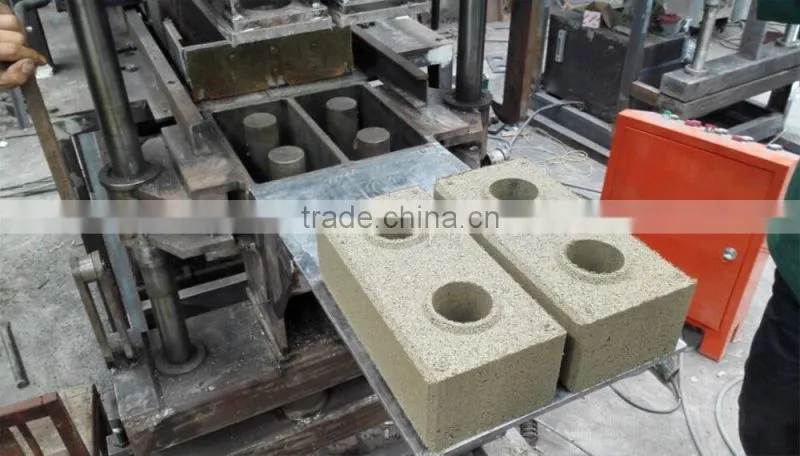

WT2-10 block machine can produce 2 pcs blocks a mold, compare to WT1-10 , it has a bigger capacity and higher efficency.
WANTE MACHINERY WT2-10 Latest design low cost clay brick making machine
Paratmeters | |
Overall size |
1200(L)×1200(W)×2100(H)mm |
Shaping cycle |
5-6 seconds |
Power |
7.5 KW |
|
15 Hp diesel engine |
Pressure |
16Mpa |
Total weight |
1200 KGS |

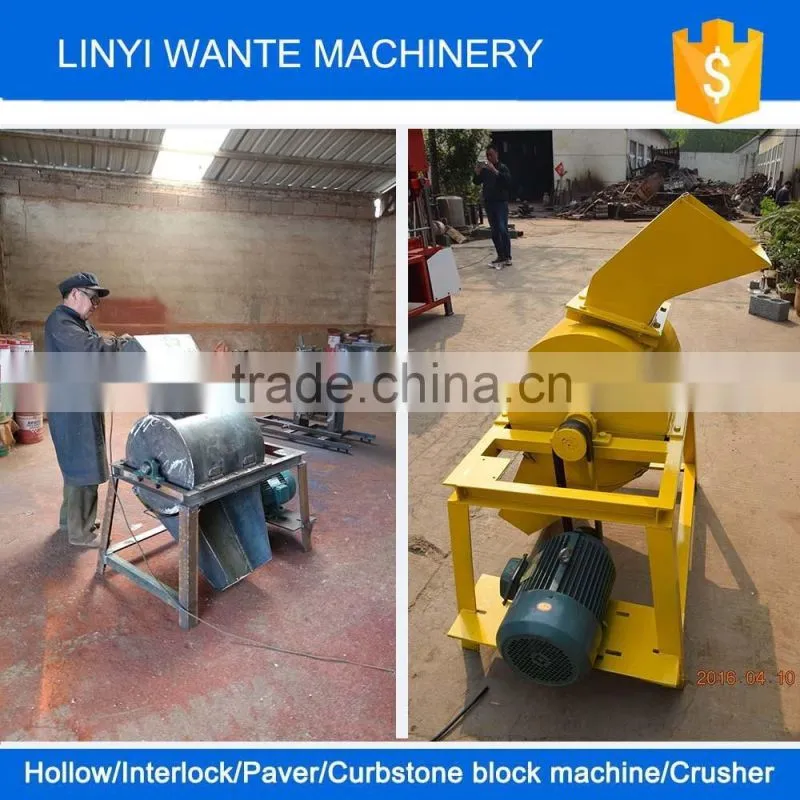

Soil crusher | |
Overall size mm |
1100(L)×1100(W)×1400(H)mm |
Motor |
3 KW |
Capacity |
500KGS/H |
Electricity |
380V/220V/ (adjustable) |
Total weight |
200 KGS |

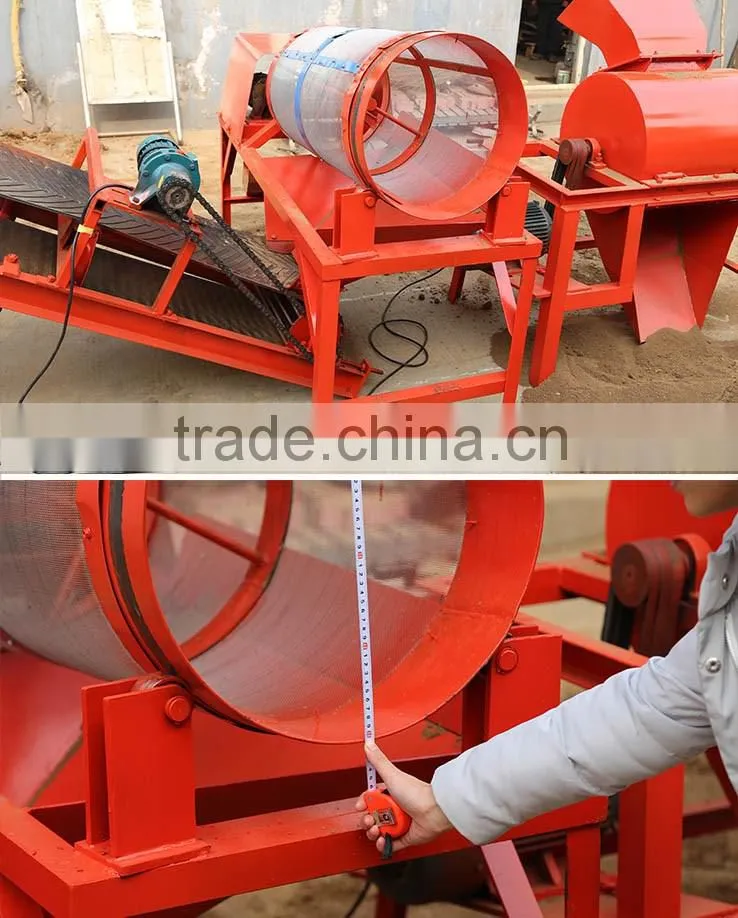

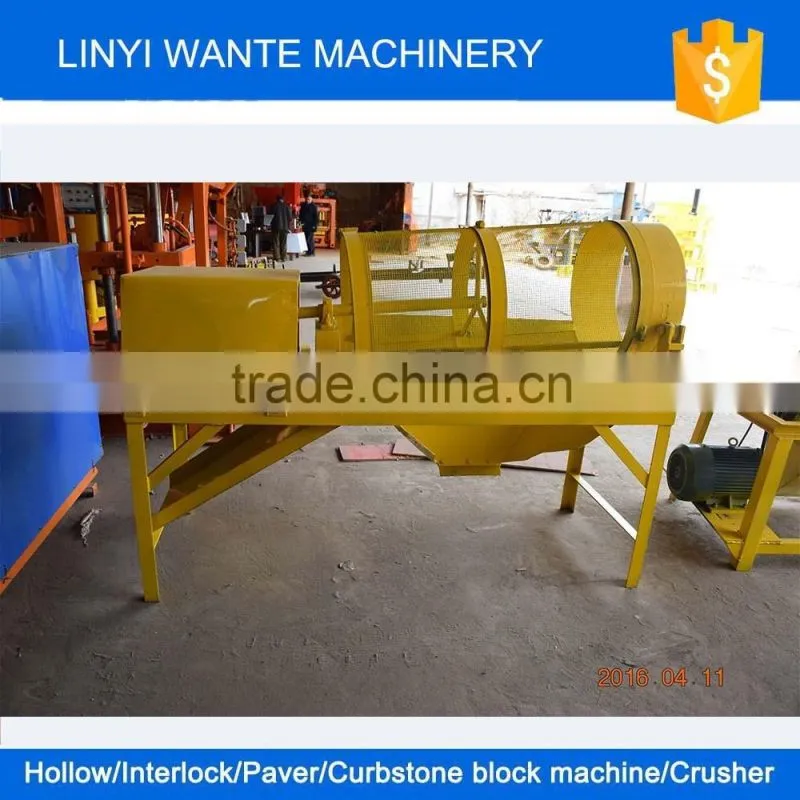

Soil screen | |
Power |
3KW |
Capacity |
480KGS/h |
Rated power |
380V or 220V |
Size |
Diameter:500mm |
Total weight |
300 KGS |
Conveyor belt | |
Power |
2.2KW |
length |
6M |
Rated power |
380V or 220V |
Capacity |
2M/S |
Total weight |
240 KGS |
JD350 mixer | |
Overall size |
1200(L)×1200(W)×1300(H)mm |
Shaping cycle |
5 mins |
Volume |
350L (25Kgs Cement) |
Electricity |
380V/220V/ (adjustable) |
Total weight |
330KGS |
WANTE MACHINERY WT2-10 Latest design interlocking brick machine line
| NO | BLOCK SIZE | PCS/mold | PCS/HOUR | PCS/8HOURS |
| 1 |
300*150*100mm 250*125*65mm |
2 | 600-800 | 4800-5200 |
| 2 |
300*150*100mm 250*125*65mm |
2 | 600-800 | 4800-5200 |
Iraq Customer |
|
UZ Customer |
|
|
Uz Customer |
|
|
WANTE MACHINERY WT2-10 Latest design interlocking brick machine line
WANTE MACHINERY WT2-10 Latest design interlocking brick machine line
