QT10-15 light weight concrete brick making machine

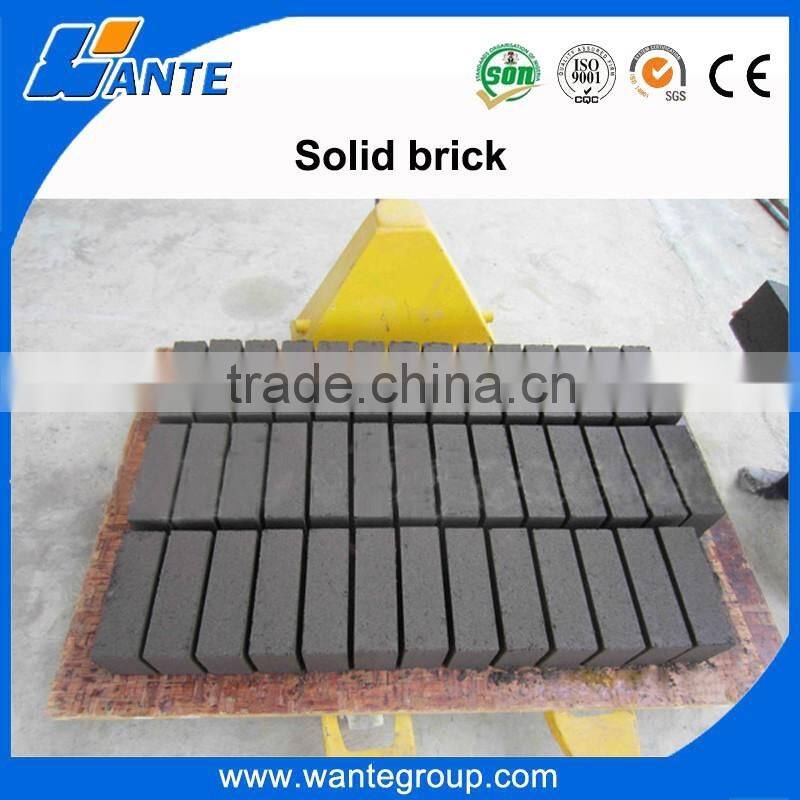

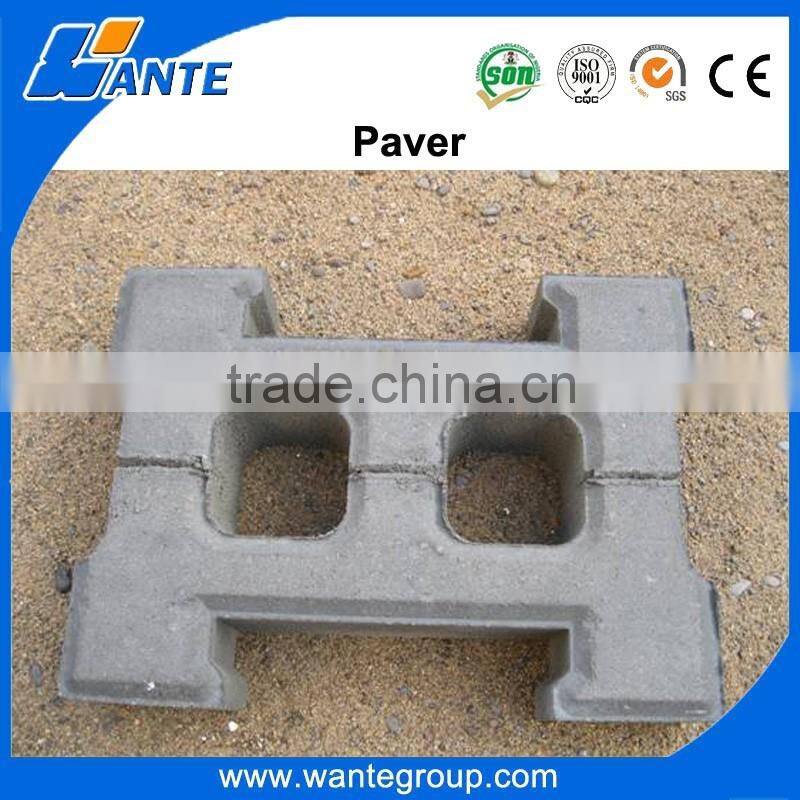

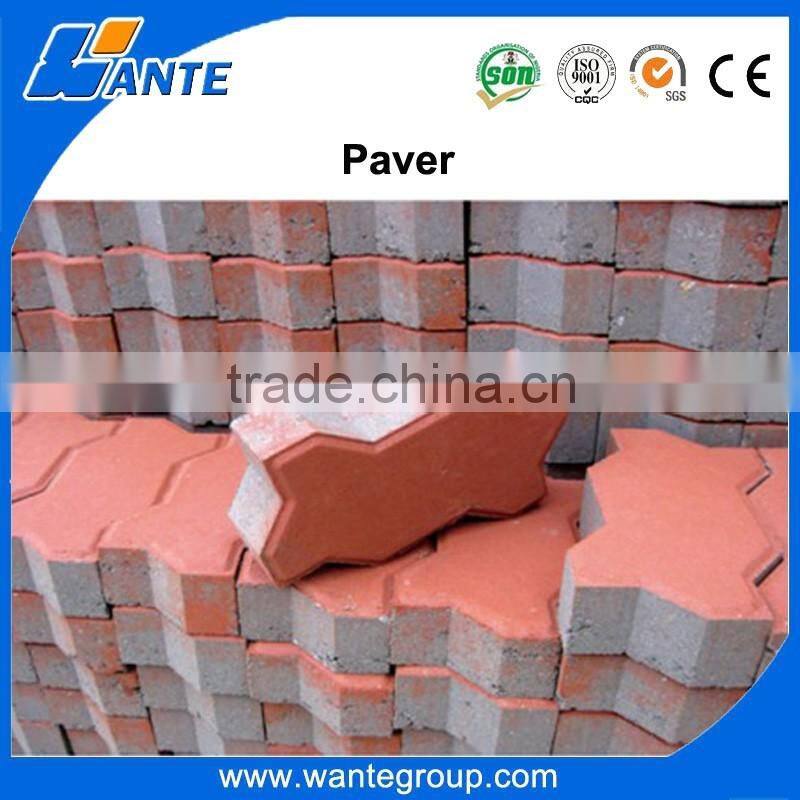

Brick samples

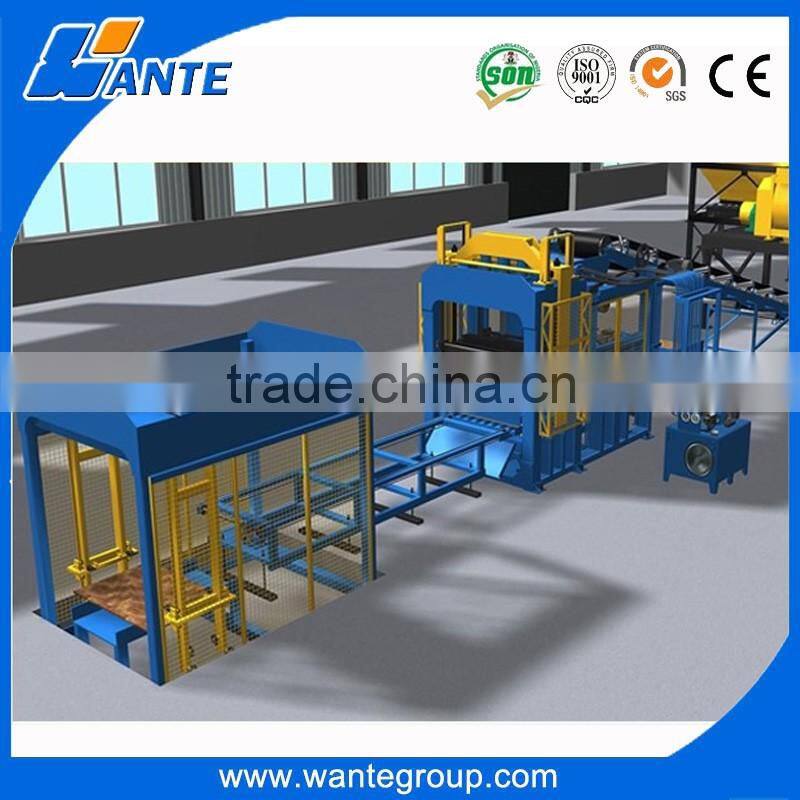

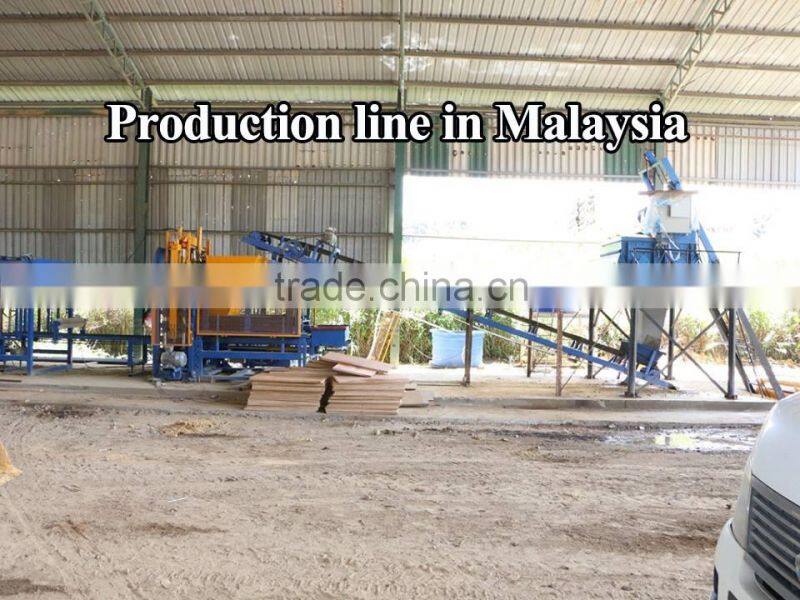

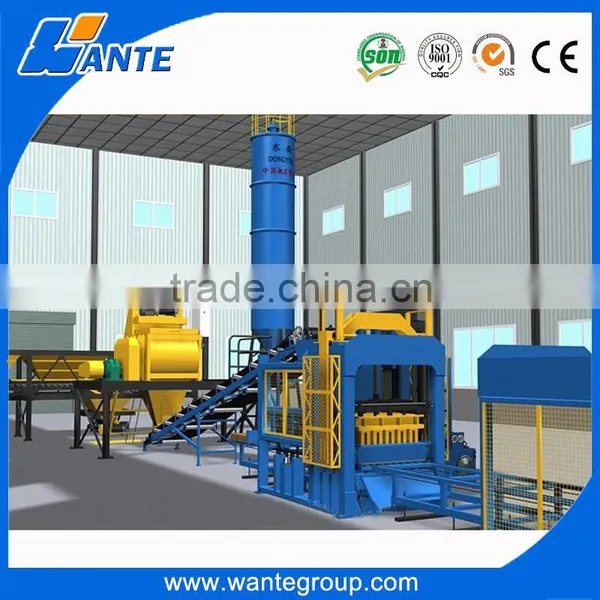

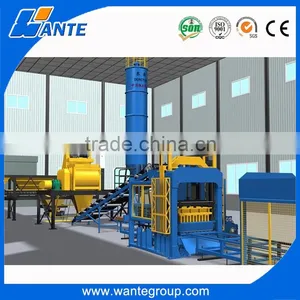

Production line

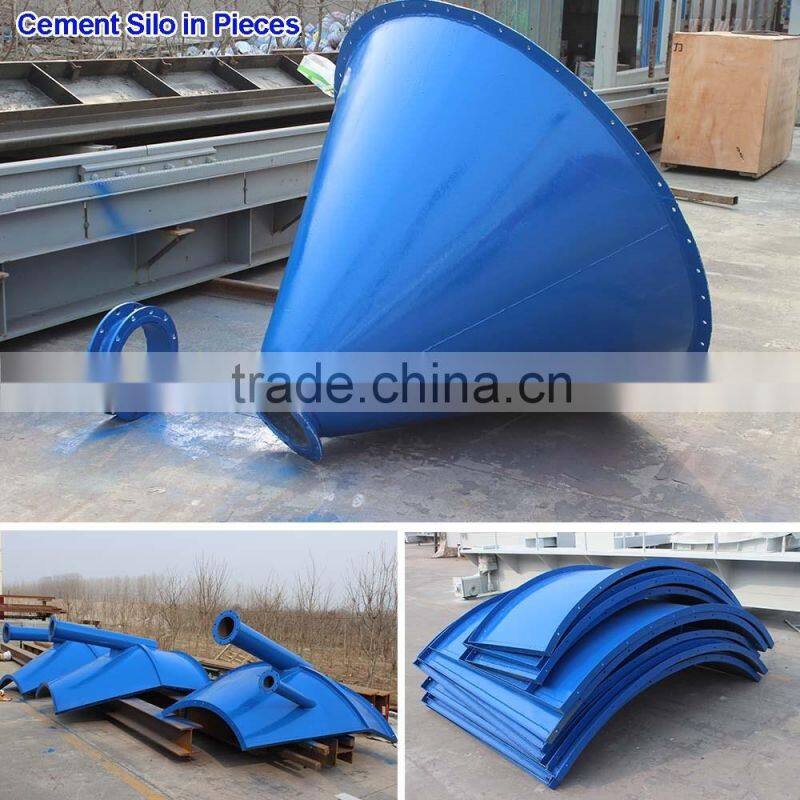

(1).Cement silo (we produce the cement silo in pieces , esay to deliver)

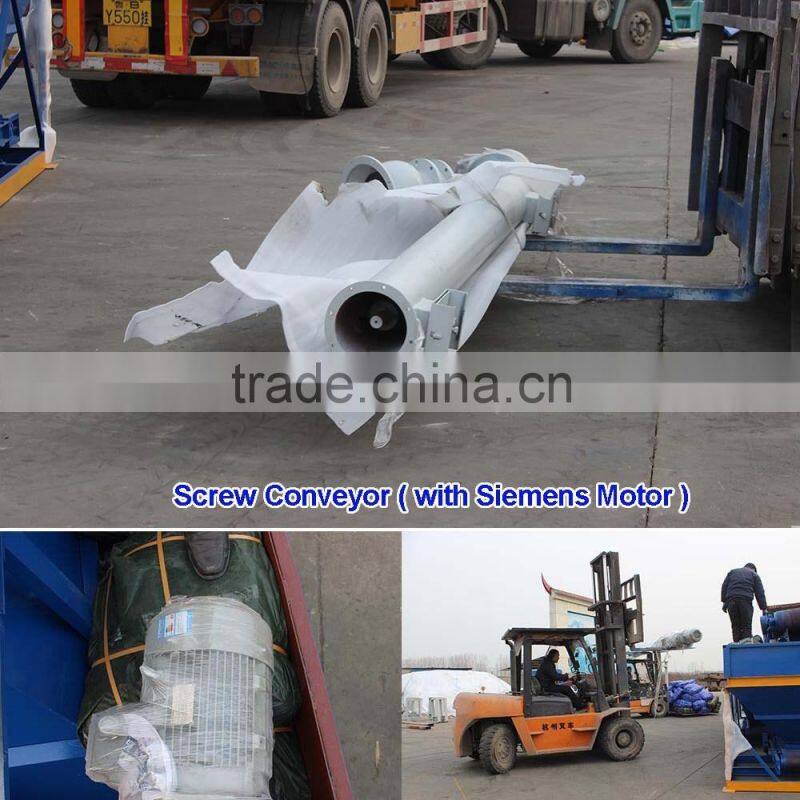

(2).Screw conveyer
This is instrumental for transporting fly ash from the silos (optional fitting) or cement hopper
(optional fitting) to the loading bins of the batching machine.

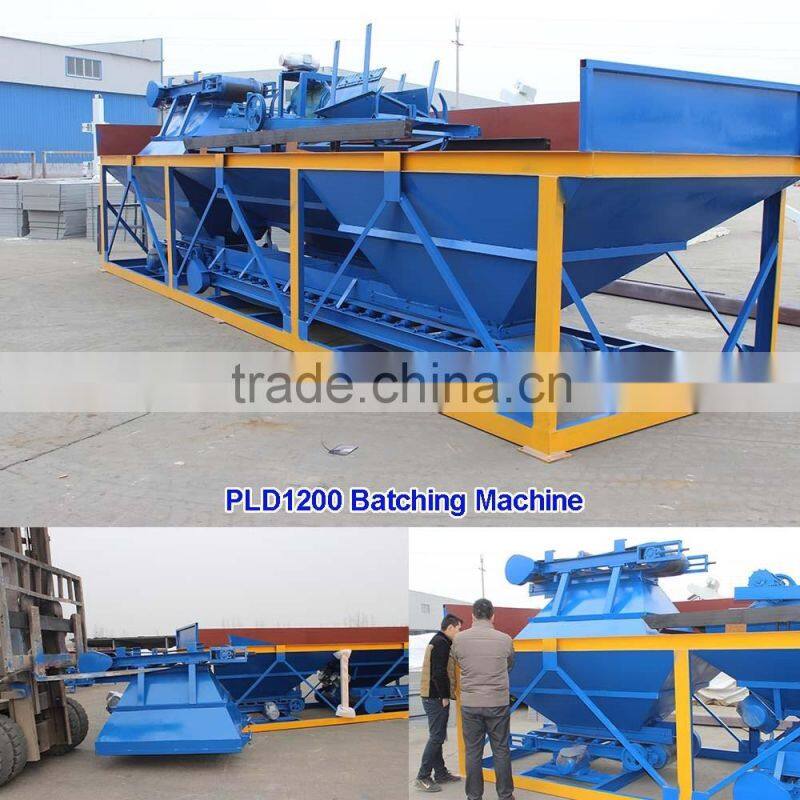

(3) PLD1200 batching machine
Function: This is the starting point of the Production process. It consists of three loading bins
and one weighing bin. It also contains belt conveyers to convey materials from loading bins to
weighing bin. Batching and weighing is done by PLC control. We can load three different types
of material into the loading bin
Model | PL1200 |
Weigh bucket capacity (L) | 1200 |
Productivity m3/h) | 56 |
Batching precision | ±1concrete block moulding machine |
Max weighing capacity (kg) | 3000 |
Number of material matching | 3 |
Work loading height (mm) | 3000 |
Feeding belt speed (m/s) | 1 |
Power (kw) | 12 |
Gross weight (kg) | 4000 |
Demission (mm) | 9000*2200*3500 |

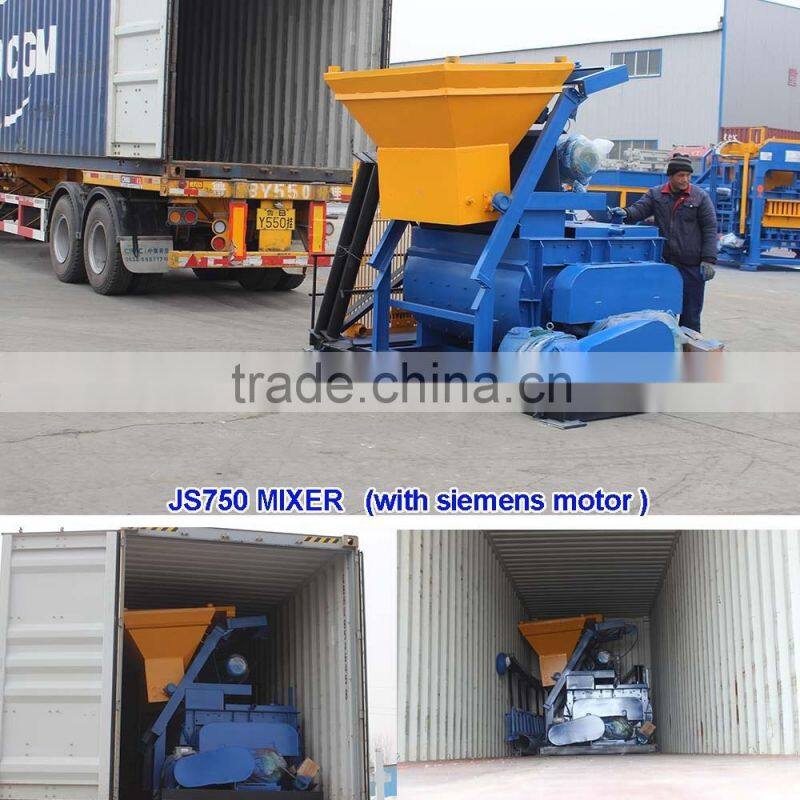

(4) JS750 mixer machine
Function:All the ingredients are mixed in this mixture machine. The mixing time and speed is
controlled by PLC. The inbuilt water pump adds water to the mix automatically, as per requirement.
(5). Belt conveying machine (6m)
When the batching plant's weighing bin trips according to the PLC control, the material comes to
this conveyor belt. The material is then carried to the mixture machine.

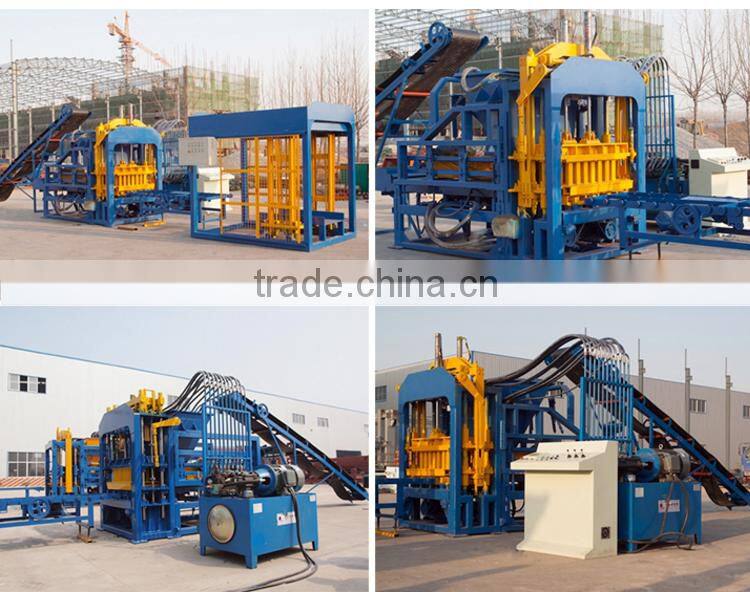

(6) Host machine
QT8-15 is the newest fully automatic block machine .It starts using hydraulic pressure system with
two hydro-cylinder.The lifting speed is fast and the pressure function is well.
Main specification and technical parameters | |
Overall size | 3000x2100x2850mm |
Shaping cycle | 15-18 seconds |
Pallet size | 1100x730x30mm (bamboo) |
1100x730x25mm (plastic) | |
Vibration frequency | Max.5500 R/Min |
Electricity | 380V/220V/ (adjustable) |
Vibration force | 55KN |
Total weight | 8000 KGS |

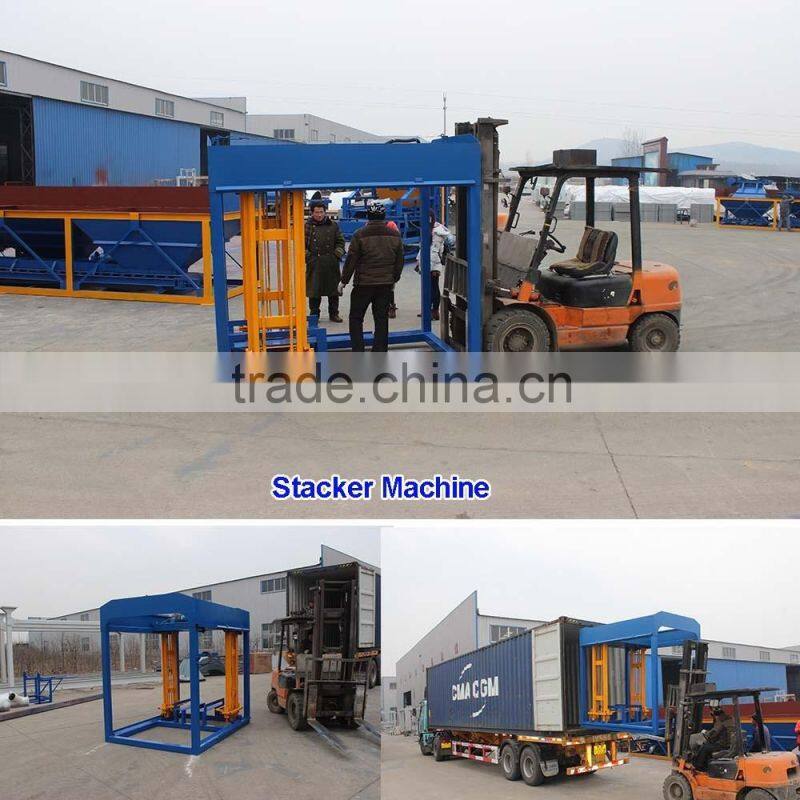

(7)Stacker
This lifts the pallets carrying the bricks/blocks, and stacks them on 5 to 6 layers automatically.
Main specification and technical parameters | |
Overall size | 2100(L)×1800(W)×2300(H)mm |
Power (KW) | 3KW |
Electricity | 380V/220V/ (adjustable) |
Stacker layer | 3 floor |
Speed | 0.5M/S |
Total weight | 2000KGS |
Pre-sale
(1) Professional suggestions (raw material matching, machine selection, plan
The condition of building factory, feasibility analysis for brick machine production line)
(2) Device model choice (recommend the best machine according to the raw material,
capacity and the size of brick)
(3) 24 hours on-line service
(4) Welcome to visit our factory and production line anytime,if you need, we can Make
invitation card for you.
(5) Introduce the company file, product categories and production process.
Sale:
(1) Update the production scheduling in time
(2) Quality supervision
(3) Product acceptance
(4) Shipping on time
After-sale:
(1) The engineer will guide to carry out the plant at the clients side if needed.
(2) Set up, fix,and operate
(3) offer training to the operator until they are satisfied at clients side.
(4) Skill support the whole using life.
(5) Recall clients regularly ,get feedback in time,keep well communication with each other.
Packing: Iron Box & Soft Packing.
Delivery Date: 15-20 days after confirming the down payment.
Shipping Method: By sea or according to customers
Shipping Port: Qingdao, China.
