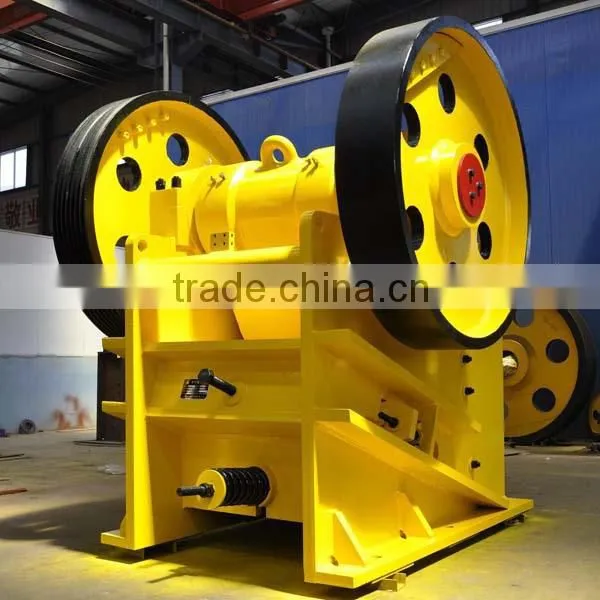

PE600X900 Stone Jaw Crusher Information
Characteristics of PE jaw crushers
1. Big feeding granularity and breaking ration, large capacity.
2. Opration is stable and reliable, fixed with over-loading protective device.
3. Low energy consumption , little wearing spare parts, low maintenance cost.
4. Adjusting parts are reinforced emphatically and finish machining, reduce repair frequence.
5. Axle bearing adopts with Multi-storey labyrinth seal, prolonging operation life.
6.Using modules lubrication, more easier and convenient for maintenance.
7.Adopting belt pulley new locking craft, keyless connection, making mainenance more convenient.
PE series Jaw Crusher main parameters
| Model | Feed Opening(mm) |
Max. Feed Size (mm) |
Discharge Size (mm) |
Capacity (t/h) |
Rotation speed (r/min) |
Motor power (KW) |
Overall Dimension (mm) |
Weight (T) |
| PE-400×600 | 400×600 | ≤340 | 40-90 | 15-40 | 270 | 30 |
1450×1750 ×1672 |
6.5 |
| PE-500×750 | 500×750 | ≤420 | 50-100 | 20-52 | 270 | 55 |
1600×1970 ×1950 |
9.3 |
| PE-500×750 | 500×750 | ≤480 | 50-110 | 20-80 | 270 | 55 |
1892×1964 ×2010 |
11.5 |
| PE-600×900 | 600×900 | ≤520 | 65-130 | 50-150 | 260 | 75 |
2075×2128 ×2390 |
16.6 |
| PE-700×1000 | 700×1000 | ≤600 | 70-140 | 80-170 | 260 | 90 |
2500×2286 ×2435 |
22 |
| PE-750×1060 | 750×1060 | ≤630 | 80-140 | 100-180 | 250 | 110 |
2770×2380 ×2972 |
29.3 |
| PE-800×1100 | 800×1100 | ≤700 | 100-200 | 120-230 | 250 | 110 |
2955×2390 ×2972 |
29 |
| PE-900×1100 | 900×1100 | ≤800 | 100-200 | 130-250 | 250 | 132 | 35 | |
| PE-900×1200 | 900×1200 | ≤800 | 100-230 | 180-280 | 250 | 132 |
3300×2820 ×3410 |
55 |
| PE-1000×1200 | 1000×1200 | ≤900 | 140-250 | 200-400 | 200 | 132 |
3435×3182 ×3025 |
60 |
| PE-1100×1300 | 1100×1300 | ≤1000 | 170-280 | 300-600 | 180 | 160 | 72 | |
| PE-1200×1500 | 1200×1500 | ≤1100 | 180-300 | 400-800 | 180 | 160 | 4200 |
PE series Jaw Crusher
Performance features of Jaw Crusher
1. The grain size of charge is big, the breaking ratio is big. the productivity is high.
2. The operation is stable and reliable,fixed with over-loading protective device.
3. The energe consumption is low, the throwaway parts are little,the maintenance cost is low.
4. The adjusting parts are reinforced emphatically. and precisi on working, reduce the frequency of rapair.
5. The bearing part adopts multilayer labyrinth craft, to prolong the operating life of the bearing.
6. Adopt the way of mould lubrication, the maintenance work is quicker and more convenient.
7. The pulley adopts new craft and to be locked tensely, connects without keys, the maintenance is more convenient.
Applicability of Jaw Crusher
1. Widely applied to all sorts of ore,rock etc whose breaking compressive strength is below 320Mpa.
2. Be widely used for the crafts of mine, metallurgy, road-bridge, building materials, water conservancy, chemical industry etc.
Working Principle of PE jaw crushers
Motor passes motive power to eccentric shaft end's pulley, making the eccentric shaft under lead of motor do rotatory movement according to the demanded speed rated; Dynamic jaw head propelled by the eccentric shaft's eccentric force makes regular fixed track compressive to break the materials.
Details of PE jaw crushers
Application of PE jaw crsuhers
1. Widely applied to all sorts of ore, rock, quarry, etc., the breaking compressive strength not exceeding 320Mpa.
2. Being widely used in mine, metallurgy, roads and bridges, building materials, water conservancy and chemical industry, etc.
Quality control
According to the contract specification, manufacture issues the quality guarantee to correctly and honestly meet the
contract items! Manufacture should irrevocably level up the contract items and the standard quality issued by the
buyer's government, assures the product is qualified and suits for buyers require in the contract!
We have passed ISO9001 2000 certificate, to assure the quality, in the real process, strictly inspect raw material,
product line, document and reserve all the data of the whole line, assure the process and management meet the quality.
The buyers have the right to charge for the unsatisfactory products, deal with it according to the contract, from the date
of goods,arriving within the deadline, if the quality, specification, quantity, weight, packing can not correspond to the
contract, accept the Insurance companies and shipping company, the buyer can ask for replace without no charge.
Based on the mutual confirmation between manufacturer and buyer, have the right to change, Supplement, amend
the items, but should correspond to the china current law and international trade law items!
The guarantee entries into force from the signed contract and after receive the prepayment, it valid until within 30days
receiving the goods and forwarding inspection!
Our customer
Until now our machine have exported more than 30 countries
Jaw crusher in our factory
Construstion site
Contact: Betty Skype: bettyliu4260 Tel: 0086-18315730268
Thanks for your attention, waiting to talk more details with you
