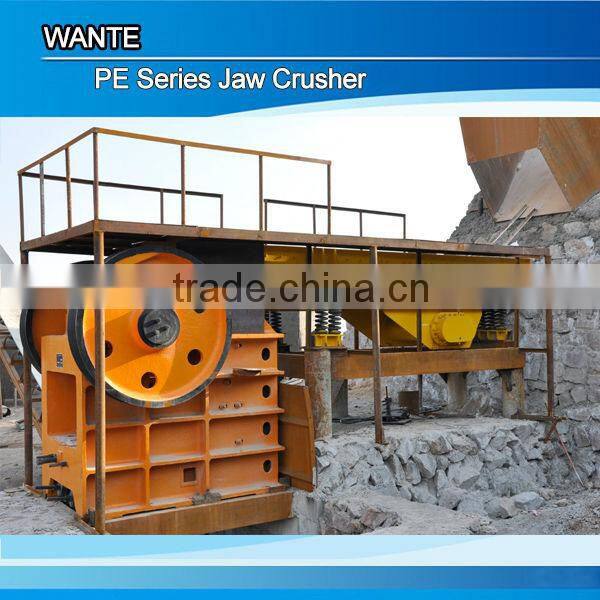

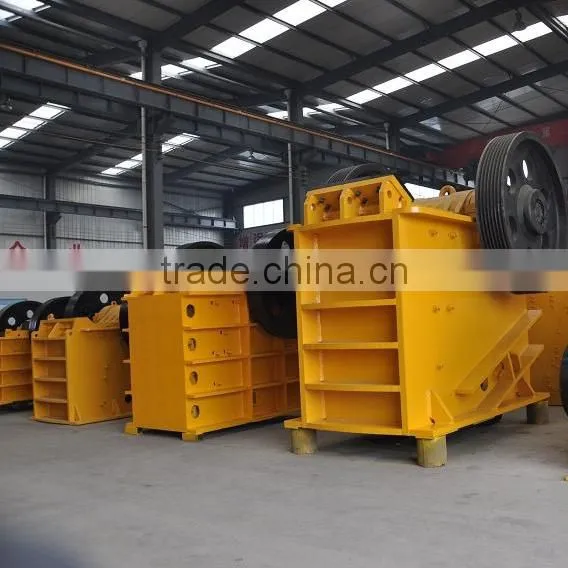

Popular compound pendulum jaw crusher price
1. Mining, metallurgy industry
2. Crushers for quarry
3. Higher crushing ratio

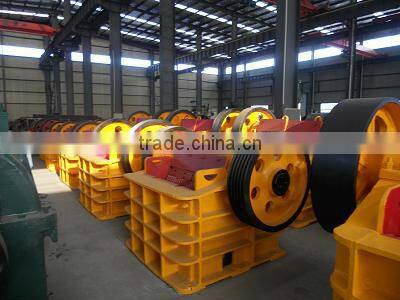

Linyi Wante Machinery, one professional manufacturer of stone crushers.Our brand SDSY Jaw Crusher, Hammer Crusher, Cone Crusher, Impact Crusher, Belt Conveyor,Vibrating Feeder, Vibrating Screen are good sale in and out of China. Our products have been exported to many countries, that including Indonesia, Saudi Arabia, Jordan, Sri Lanka, Kuwait, Vietnam and so on.
Reliable Popular compound pendulum jaw crusher price

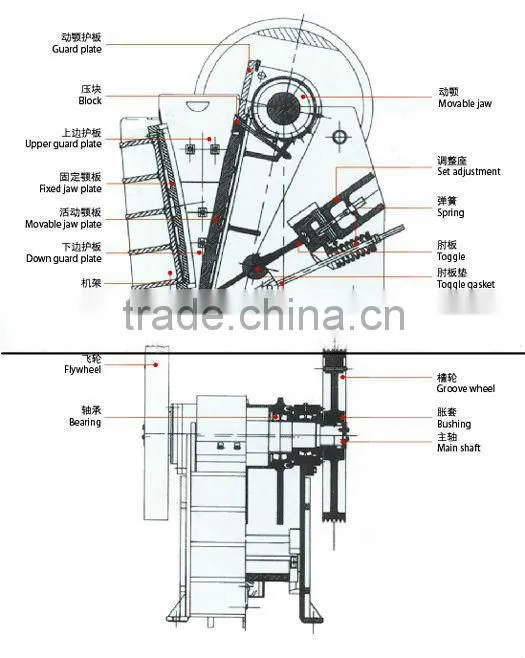

Performance features of Popular compound pendulum jaw crusher price
1. The grain size of charge is big, the breaking ratio is big. the productivity is high.
2. The operation is stable and reliable,fixed with over-loading protective device.
3. The energe consumption is low, the throwaway parts are little,the maintenance cost is low.
4. The adjusting parts are reinforced emphatically. and precisi on working, reduce the frequency of rapair.
5. The bearing part adopts multilayer labyrinth craft, to prolong the operating life of the bearing.
6. Adopt the way of mould lubrication, the maintenance work is quicker and more convenient.
7. The pulley adopts new craft and to be locked tensely, connects without keys, the maintenance is more convenient.
Applicability of Popular compound pendulum jaw crusher price
1. Widely applied to all sorts of ore,rock etc whose breaking compressive strength is below 320Mpa.
2. Be widely used for the crafts of mine, metallurgy, road-bridge, building materials, water conservancy, chemical industry etc.
Specifications of Popular compound pendulum jaw crusher price
| Model | Feed Opening(mm) | Max. Feed Size (mm) | Discharge Size (mm) | Capacity (t/h) | Rotation speed (r/min) | Motor power (KW) | Overall Dimension (mm) | Weight (T) |
| PE-400×600 | 400×600 | ≤340 | 40-90 | 15-40 | 270 | 30 | 1450×1750×1672 | 6.5 |
| PE-500×750 | 500×750 | ≤420 | 50-100 | 20-52 | 270 | 55 | 1600×1970×1950 | 9.3 |
| PE-500×750 | 500×750 | ≤480 | 50-110 | 20-80 | 270 | 55 | 1892×1964×2010 | 11.5 |
| PE-600×900 | 600×900 | ≤520 | 65-130 | 50-150 | 260 | 75 | 2075×2128×2390 | 16.6 |
| PE-700×1000 | 700×1000 | ≤600 | 70-140 | 80-170 | 260 | 90 | 2500×2286×2435 | 22 |
| PE-750×1060 | 750×1060 | ≤630 | 80-140 | 100-180 | 250 | 110 | 2770×2380×2972 | 29.3 |
| PE-800×1100 | 800×1100 | ≤700 | 100-200 | 120-230 | 250 | 110 | 2955×2390×2972 | 29 |
| PE-900×1100 | 900×1100 | ≤800 | 100-200 | 130-250 | 250 | 132 | 35 | |
| PE-900×1200 | 900×1200 | ≤800 | 100-230 | 180-280 | 250 | 132 | 3300×2820×3410 | 55 |
| PE-1000×1200 | 1000×1200 | ≤900 | 140-250 | 200-400 | 200 | 132 | 3435×3182×3025 | 60 |
| PE-1100×1300 | 1100×1300 | ≤1000 | 170-280 | 300-600 | 180 | 160 | 72 | |
| PE-1200×1500 | 1200×1500 | ≤1100 | 180-300 | 400-800 | 180 | 160 | 4200×3732×3842 | 100.9 |
If you are not sure which crusher you need, please go choosing tips
To better meet your need, please provide at least following information:
1.Max size of the feed stone?
2.Max size of the discharge stone?
3.Capcaity( tons per hour)?
4.Do you just need the crusher, or crusher with feeder,vibtating screens,conveyors and some others?
We take this opportunity to introduce ourselves as" Linyi Wante Machinery Co.,LTD", one professional manufacturer of mining machinery in China and our brand is SDSY. For further details,
please contact :Mandy Skype:mandy_chengli87
Mobile phone:008615206805586
QQ:979211086
