Home > Manufacturing & Processing Machinery > Mining Machinery > Mining Crusher > Stone Jaw Crusher Price

Stone Jaw Crusher Price

Name: Stone Jaw Crusher Price
Brand: Wante
SKU: 112000065
Availability: InStock

US$ 3,960 - 9,906 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Jaw Crusher

Application:

coal, chemical, road construction and so on

Contact Supplier Request Quote Chat Now

Linyi Wante Machinery Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Jaw Crusher

Application coal, chemical, road construction and so on

Motor Type AC Motor

Power(W) 30kw

Capacity(t/h) 16-40

Place of Origin Shandong, China

Brand Name Wante

Model Number PE series

Dimension(L*W*H) 1450x1750x1672mm

Certification ISO9001&CE

Warranty One year

After-sales Service Provided Engineers available to service machinery overseas

PE series Jaw Crusher Information

Characteristics of PE jaw crushers

1. Big feeding granularity and breaking ration, large capacity.

2. Opration is stable and reliable, fixed with over-loading protective device.

3. Low energy consumption , little wearing spare parts, low maintenance cost.

4. Adjusting parts are reinforced emphatically and finish machining, reduce repair frequence.

5. Axle bearing adopts with Multi-storey labyrinth seal, prolonging operation life.

6.Using modules lubrication, more easier and convenient for maintenance.

7.Adopting belt pulley new locking craft, keyless connection, making mainenance more convenient.

PE series Jaw Crusher main parameters

Model	Feed Opening(mm)	Max. Feed Size (mm)	Discharge Size (mm)	Capacity (t/h)	Rotation speed (r/min)	Motor power (KW)	Overall Dimension (mm)	Weight (T)
PE-400×600	400×600	≤340	40-90	15-40	270	30	1450×1750 ×1672	6.5
PE-500×750	500×750	≤420	50-100	20-52	270	55	1600×1970 ×1950	9.3
PE-500×750	500×750	≤480	50-110	20-80	270	55	1892×1964 ×2010	11.5
PE-600×900	600×900	≤520	65-130	50-150	260	75	2075×2128 ×2390	16.6
PE-700×1000	700×1000	≤600	70-140	80-170	260	90	2500×2286 ×2435	22
PE-750×1060	750×1060	≤630	80-140	100-180	250	110	2770×2380 ×2972	29.3
PE-800×1100	800×1100	≤700	100-200	120-230	250	110	2955×2390 ×2972	29
PE-900×1100	900×1100	≤800	100-200	130-250	250	132		35
PE-900×1200	900×1200	≤800	100-230	180-280	250	132	3300×2820 ×3410	55
PE-1000×1200	1000×1200	≤900	140-250	200-400	200	132	3435×3182 ×3025	60
PE-1100×1300	1100×1300	≤1000	170-280	300-600	180	160		72
PE-1200×1500	1200×1500	≤1100	180-300	400-800	180	160	4200

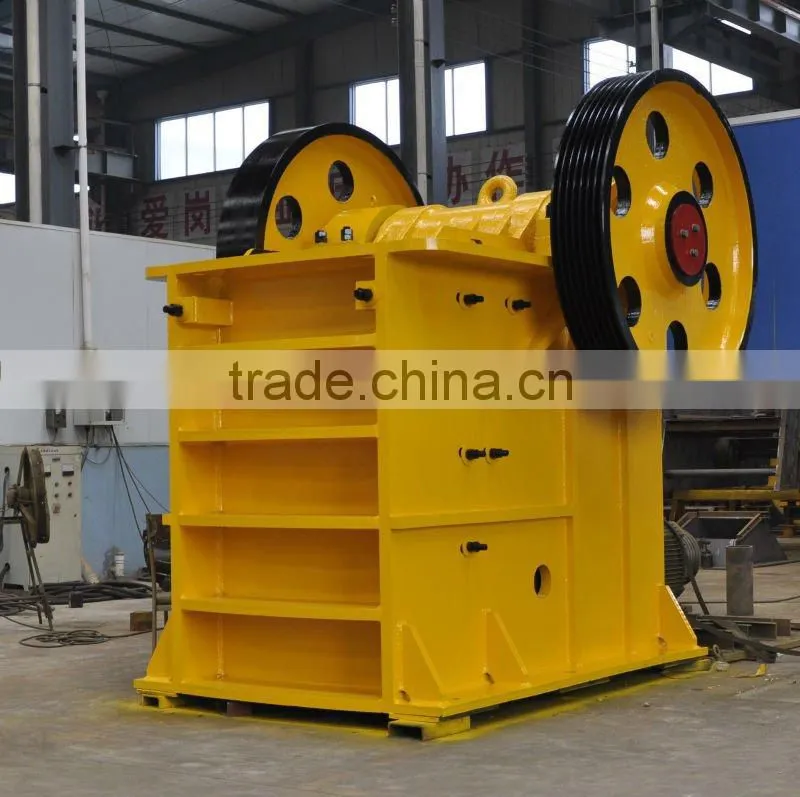

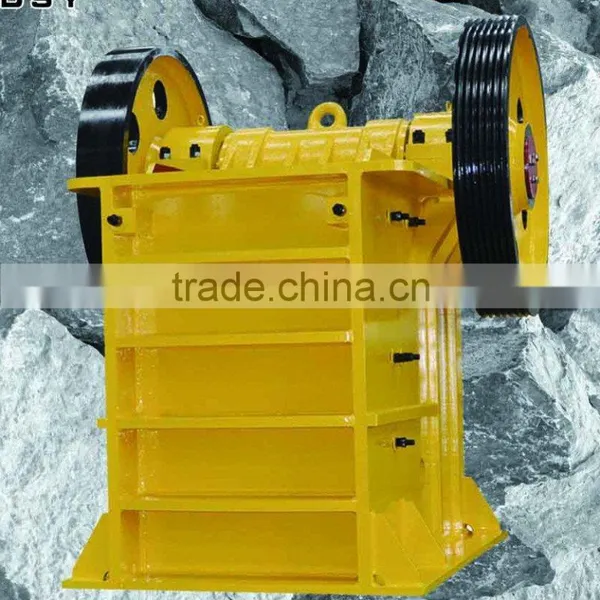

PE series Jaw Crusher

Performance features of Jaw Crusher
1. The grain size of charge is big, the breaking ratio is big. the productivity is high.

2. The operation is stable and reliable,fixed with over-loading protective device.

3. The energe consumption is low, the throwaway parts are little,the maintenance cost is low.

4. The adjusting parts are reinforced emphatically. and precisi on working, reduce the frequency of rapair.

5. The bearing part adopts multilayer labyrinth craft, to prolong the operating life of the bearing.

6. Adopt the way of mould lubrication, the maintenance work is quicker and more convenient.

7. The pulley adopts new craft and to be locked tensely, connects without keys, the maintenance is more convenient.

Applicability of Jaw Crusher

1. Widely applied to all sorts of ore,rock etc whose breaking compressive strength is below 320Mpa.
2. Be widely used for the crafts of mine, metallurgy, road-bridge, building materials, water conservancy, chemical industry etc.

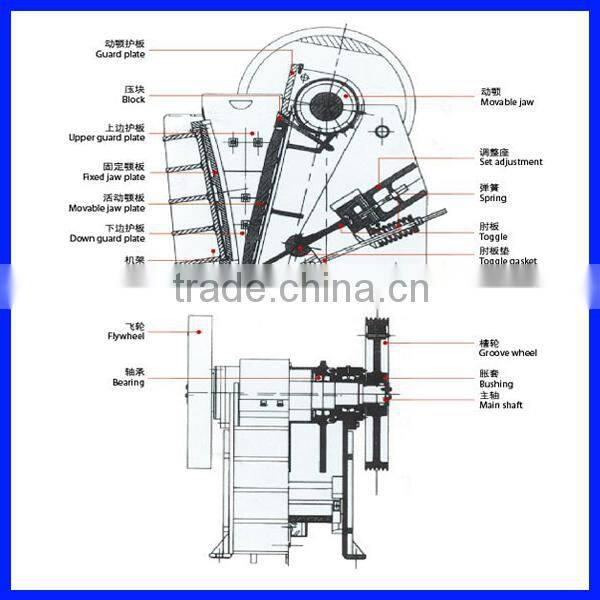

Working Principle of PE jaw crushers

Motor passes motive power to eccentric shaft end's pulley, making the eccentric shaft under lead of motor do rotatory movement according to the demanded speed rated; Dynamic jaw head propelled by the eccentric shaft's eccentric force makes regular fixed track compressive to break the materials.

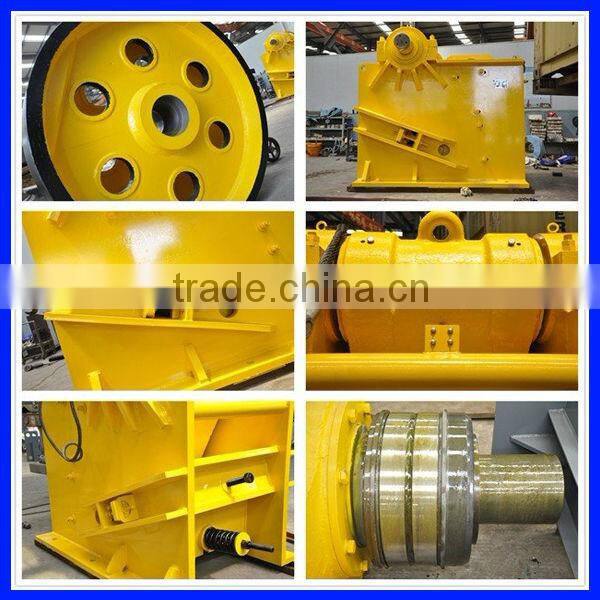

Details of PE jaw crushers

Application of PE jaw crsuhers

1. Widely applied to all sorts of ore, rock, quarry, etc., the breaking compressive strength not exceeding 320Mpa.

2. Being widely used in mine, metallurgy, roads and bridges, building materials, water conservancy and chemical industry, etc.

Quality control

According to the contract specification, manufacture issues the quality guarantee to correctly and honestly meet the

contract items! Manufacture should irrevocably level up the contract items and the standard quality issued by the

buyer's government, assures the product is qualified and suits for buyers require in the contract!
We have passed ISO9001 2000 certificate, to assure the quality, in the real process, strictly inspect raw material,

product line, document and reserve all the data of the whole line, assure the process and management meet the quality.
The buyers have the right to charge for the unsatisfactory products, deal with it according to the contract, from the date

of goods,arriving within the deadline, if the quality, specification, quantity, weight, packing can not correspond to the

contract, accept the Insurance companies and shipping company, the buyer can ask for replace without no charge.
Based on the mutual confirmation between manufacturer and buyer, have the right to change, Supplement, amend

the items, but should correspond to the china current law and international trade law items!
The guarantee entries into force from the signed contract and after receive the prepayment, it valid until within 30days

receiving the goods and forwarding inspection!

Our customer

Until now our machine have exported more than 30 countries

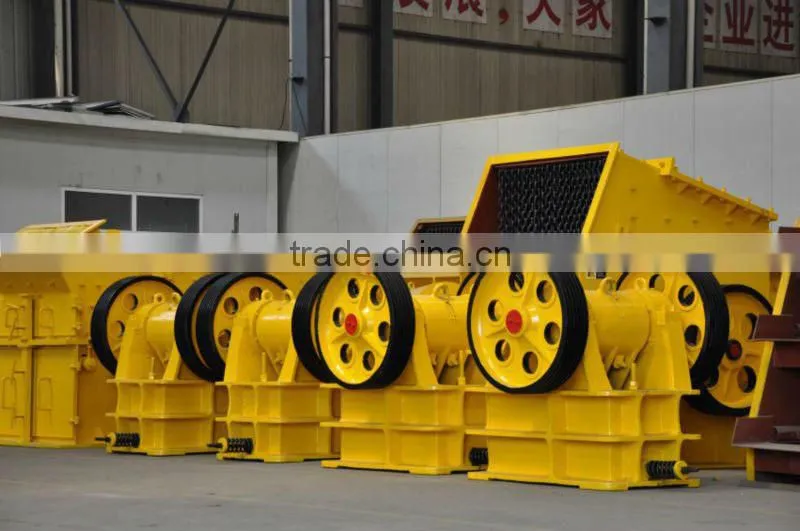

Jaw crusher in our factory

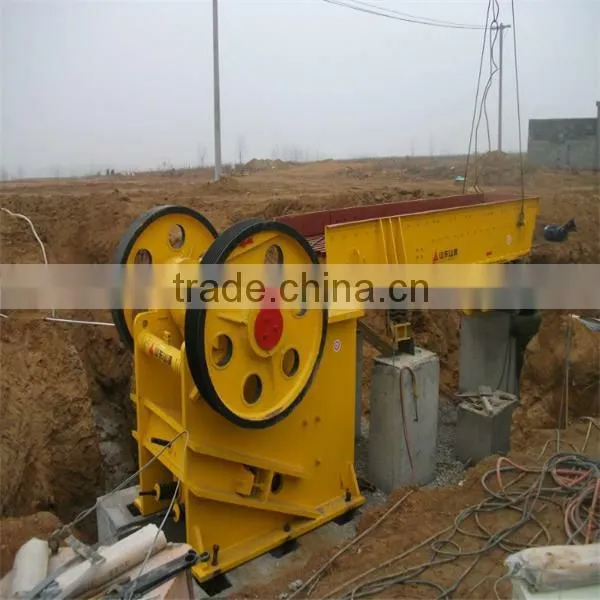

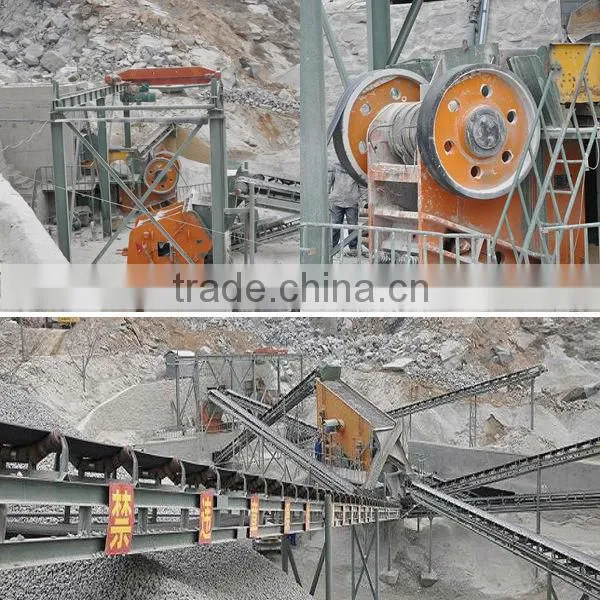

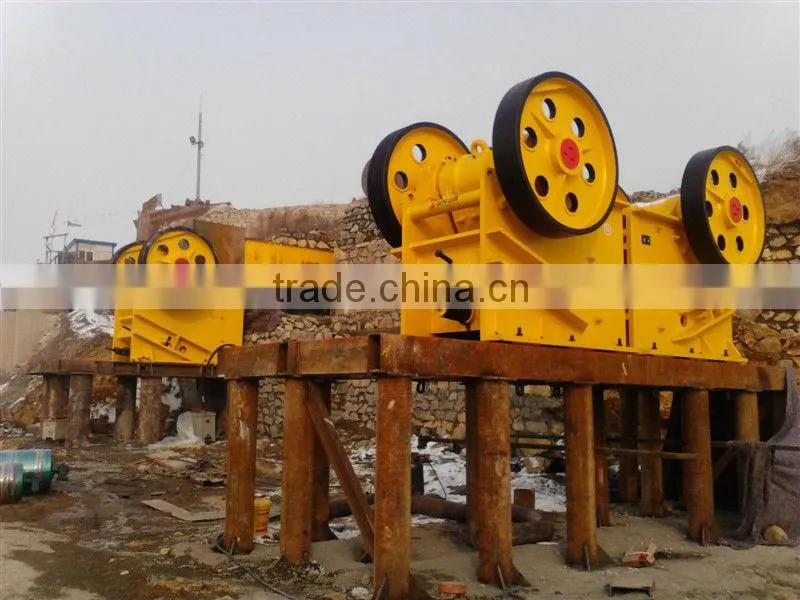

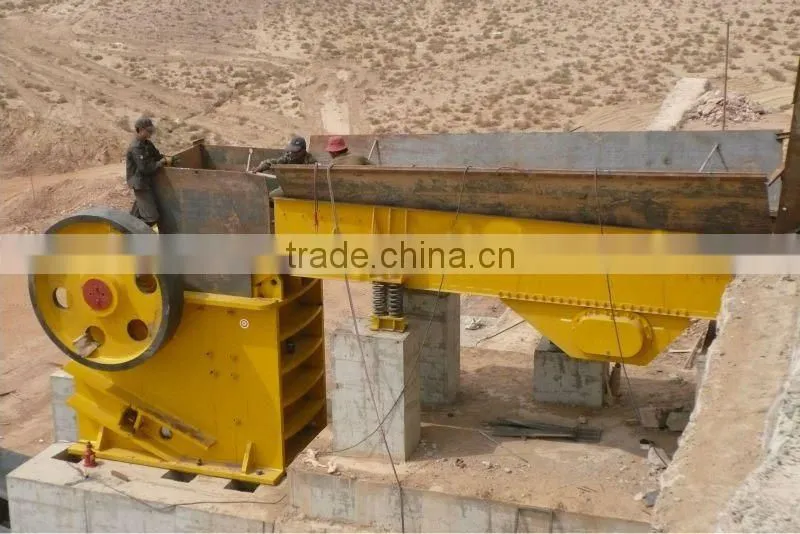

Construstion site

Contact: Betty Skype: bettyliu4260 Tel: 0086-18315730268
