Home > Products > Crusher machine > PE Series Gold Milling Jaw Crushers
PE Series Gold Milling Jaw Crushers
- 2600 Set / Sets per Month
- Qingdao
- T/T Credit Card
- PE Series Stone Jaw Crushers
- WANTE MACHINERY WANTE BRAND QT6-15 electric brick making machine and hollow concrete blocks making business plan
- WANTE MACHINERY WANTE BRAND QT6-15 hollow concrete brick machine / paving block machine
- WANTE MACHINERY WANTE BRAND QT6-15 Brick Molding Machine Processing delivering to ALGERIA FAIR
- 2015 trade assurance QT12-15 Top selling highly quality fully automatic Concrete block making product line Quality Choice
- WANTE MACHINERY WANTE BRAND QT4-15C Light Weight Blocks Machine Cost
Product Details
Condition: | New | Type: | Jaw Crusher | Application: | coal, chemical, road construction and so on |
Motor Type: | AC Motor | Power(W): | 30kw | Capacity(t/h): | 16-40 |
Place of Origin: | Shandong, China | Brand Name: | Wante | Model Number: | PE series |
Dimension(L*W*H): | 1450x1750x1672mm | Certification: | ISO9001&CE | Warranty: | One year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Nude package, if needed, costomer pay for it.
Product Description
PE Series Gold Milling Jaw Crushers Information
PE Series Gold Milling Jaw Crushers main parameters
Model | Feed Opening(mm) | Max. Feed Size (mm) | Discharge Size (mm) | Capacity (t/h) | Rotation speed (r/min) | Motor power (KW) | Overall Dimension (mm) | Weight (T) |
PE-400×600 | 400×600 | ≤340 | 40-90 | 15-40 | 270 | 30 | 1450×1750 ×1672 | 6.5 |
PE-500×750 | 500×750 | ≤420 | 50-100 | 20-52 | 270 | 55 | 1600×1970 ×1950 | 9.3 |
PE-500×750 | 500×750 | ≤480 | 50-110 | 20-80 | 270 | 55 | 1892×1964 ×2010 | 11.5 |
PE-600×900 | 600×900 | ≤520 | 65-130 | 50-150 | 260 | 75 | 2075×2128 ×2390 | 16.6 |
PE-700×1000 | 700×1000 | ≤600 | 70-140 | 80-170 | 260 | 90 | 2500×2286 ×2435 | 22 |
PE-750×1060 | 750×1060 | ≤630 | 80-140 | 100-180 | 250 | 110 | 2770×2380 ×2972 | 29.3 |
PE-800×1100 | 800×1100 | ≤700 | 100-200 | 120-230 | 250 | 110 | 2955×2390 ×2972 | 29 |
PE-900×1100 | 900×1100 | ≤800 | 100-200 | 130-250 | 250 | 132 | 35 | |
PE-900×1200 | 900×1200 | ≤800 | 100-230 | 180-280 | 250 | 132 | 3300×2820 ×3410 | 55 |
PE-1000×1200 | 1000×1200 | ≤900 | 140-250 | 200-400 | 200 | 132 | 3435×3182 ×3025 | 60 |
PE-1100×1300 | 1100×1300 | ≤1000 | 170-280 | 300-600 | 180 | 160 | 72 | |
PE-1200×1500 | 1200×1500 | ≤1100 | 180-300 | 400-800 | 180 | 160 | 4200 |
PE Series Gold Milling Jaw Crushers
Performance features of Jaw Crusher
1. The grain size of charge is big, the breaking ratio is big. the productivity is high.
2. The operation is stable and reliable,fixed with over-loading protective device.
3. The energe consumption is low, the throwaway parts are little,the maintenance cost is low.
4. The adjusting parts are reinforced emphatically. and precisi on working, reduce the frequency of rapair.
5. The bearing part adopts multilayer labyrinth craft, to prolong the operating life of the bearing.
6. Adopt the way of mould lubrication, the maintenance work is quicker and more convenient.
7. The pulley adopts new craft and to be locked tensely, connects without keys, the maintenance is more convenient.
Applicability of Jaw Crusher
1. Widely applied to all sorts of ore,rock etc whose breaking compressive strength is below 320Mpa.
2. Be widely used for the crafts of mine, metallurgy, road-bridge, building materials, water conservancy, chemical industry etc.

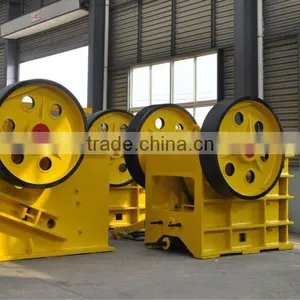

Jaw crusher in our factory
Construstion site
Contact: Betty Skype: bettyliu4260 Tel: 0086-18315730268
Thanks for your attention, waiting to talk more details with you
Company Profile
Linyi Wante Machinery Co., Ltd. has long engaged in the research, production and sales of block making machines. There is state-of-the-art equipment, superb technology and high-standard test bases. Our company has always been adhering to the "integrity, pragmatism, innovation, development" spirit of enterprise, constantly absorbing domestic and foreign advanced technologies and mature experience. After 10 years of unremitting efforts, we have rapidly developed into a leading enterprise in the industry.
Our main products: aerated concrete production lines, concrete block making machines, hydraulic paver block machines, cement pipe machines, widely used in building materials, roads and bridges, energy and others. On the foundation of the domestic market, we focus on the development of international market. Our products have been exported to more than 100 countries and regions, such as Africa, Southeast Asia, the Middle East and South America, with frequent international business dealings. We have established a good market reputation.
Our company has a perfect quality management system, and has passed the ISO9001:2000 international quality management system certification. Besides, our company has established our own sales network in many countries around the world, and has set up sales branches and service outlets in major cities across the country. So we are able to provide our clients with timely and convenient service.
We adhere to the brand philosophy that "excellence, do first-class products, creating a model for the industry", and enhance the brand ideology of "building the brand quality, service, innovation, positive enterprising, noble professionalism" to drive our company forward to a first-class enterprise.
