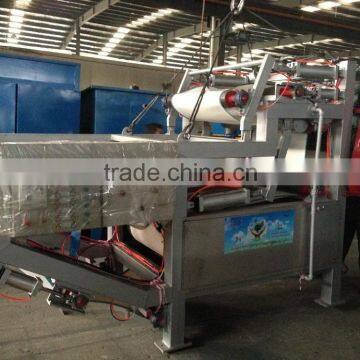

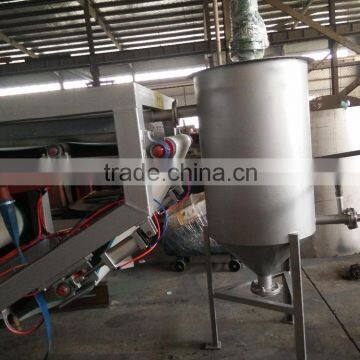

YIMEI belt type filter press is a new-style high-efficiency sludge treatment equipment developed by our company based on the digestion and absorption advanced foreign technology , which has the advantages of high efficiency, low energy consumption, better dehydration effect, simple structure, easy maintenance, low noise, steady operation, safe and reliable, continuous automatic production etc. now have widely used in solid-liquid separation,such as the project of petroleum, chemical, coal, metallurgy, building materials, light textile, food and water supply and drain environmental protection etc.
Sludge belt filter press increased concentration based on original belt filter press , sludge inspissation machines including condensed section, dehydration section, sludge mixed reaction system, which can put the second pond sludge (water ratio 99.2-99.6%) concentrated dehydration directly, thus eliminating the traditional enrichment pool, saving a lot of investment.

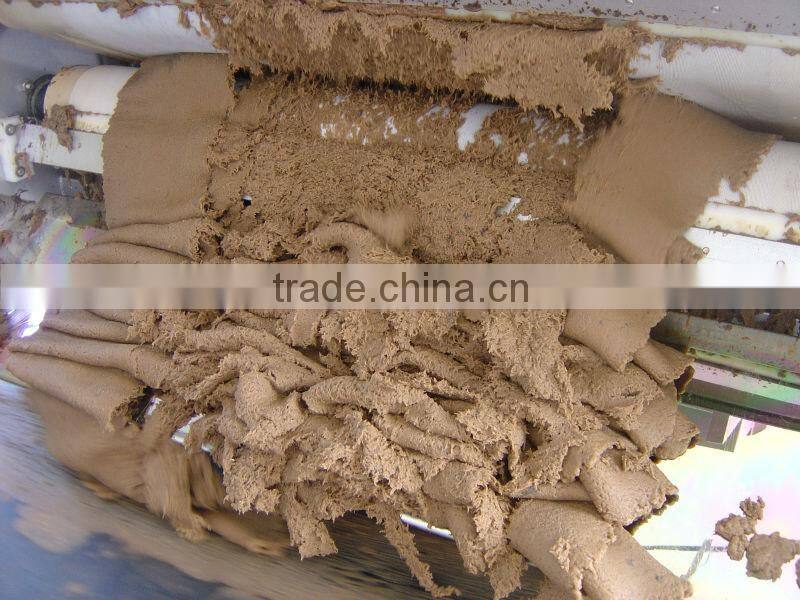

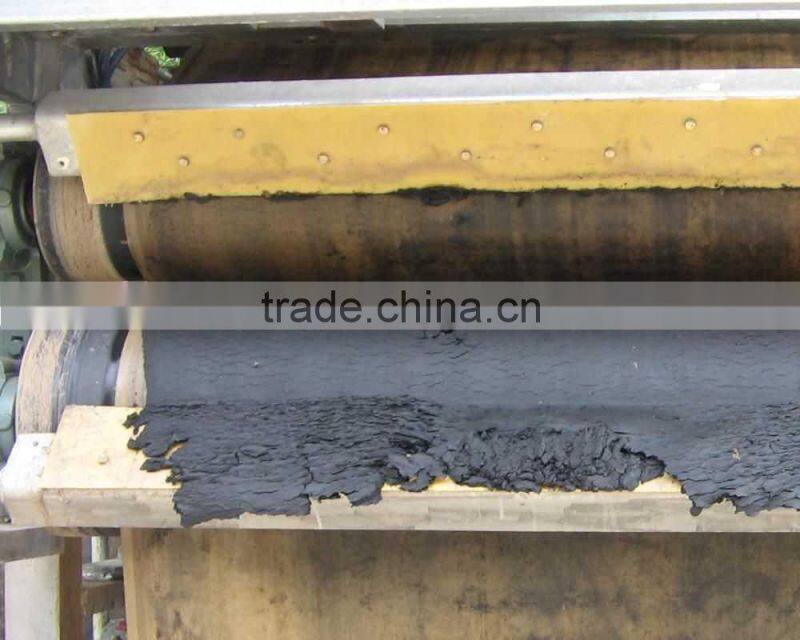

Belt filter is an efficiency equipment by further dehydrating process of concentrated (water ratio 95-98%) material into filter cake dehydration ,with the feature of continuous automatic production, low production cost and installation, can change different mesh filters, continuous stepless speed regulation, adapting to different kinds of material solid-liquid separation. Whole equipment structure is reasonable, prevent water splashed outside, high inatalltion accuracy of roller serial, few times adjust deviation, extended the life of filters, bearings, and pneumatic component, main transmission adopts motor stepless speed regulation, increases the speed range, operation stable, the front of rinse water add cleaning brush, improved filters washing effect, reduce wash water yield,increase the rate of sludge dewatering.
Main technology parameter:
2.1 Belt filter press
2.1.1 reducer of filter press model number: SA70 DT90S NA15 B51 d60(frequency control of motor speed)
2.1.2 reducer`s power: 1.5KW
2.1.3 treatment capacity: 3-10m3/h
2.1.4 belt speed of Presses filter machine: 5-12m/min
2.1.5 effective width of filter belt: 1000mm
2.1.6 speed regulating style: stepless speed regulating
2.2 Belt type filter press
2.2.1 effective width of belt: 1000mm
2.2.2 filter line`s range of speed: 1.5-6.0m/min
2.2.3 speed regulation style: stepless speed regulating
2.2.4 Main transmission motor power: 1.5KW
2.2.5 treatment capacity: 10-13m3/h
2.2.6 filter cake moisture content: ≤75%
