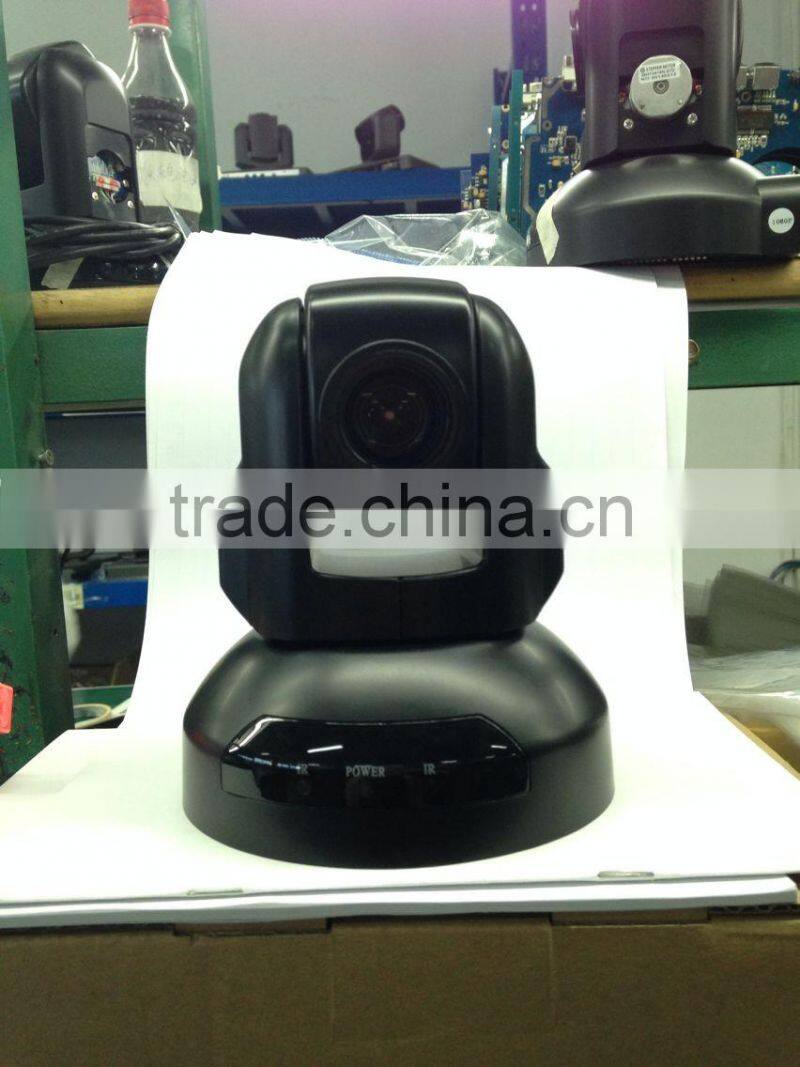

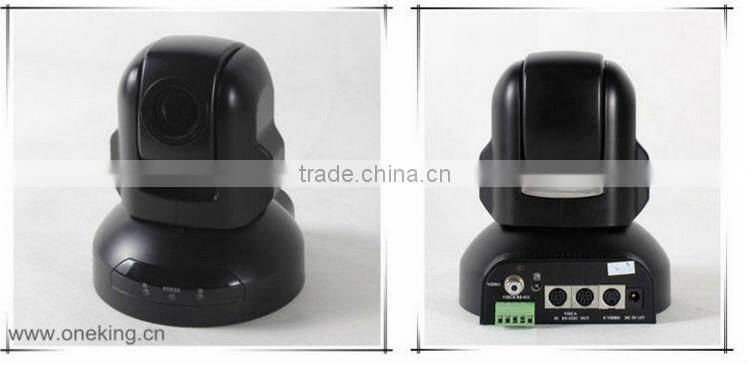

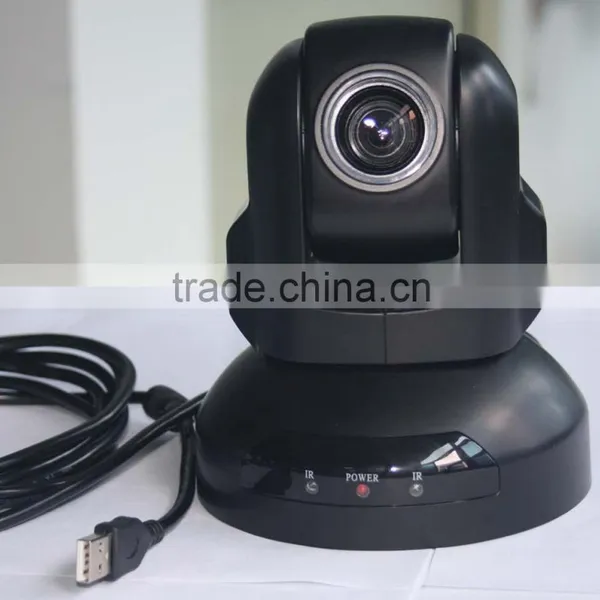

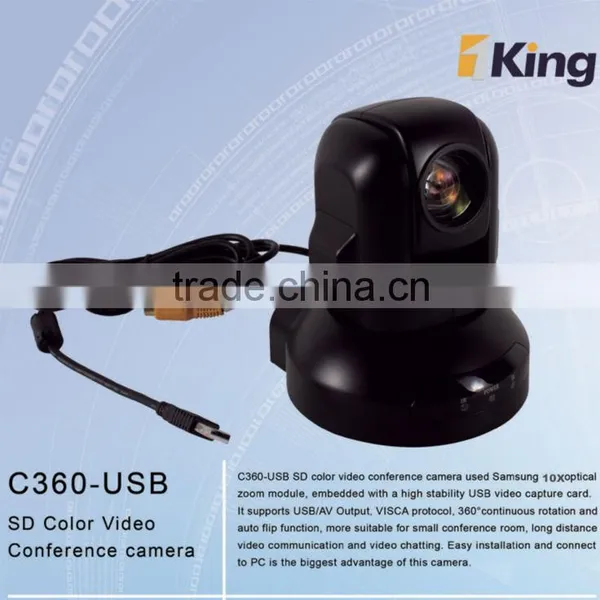

Made In China USB Interface Mini Zoom Digital Camera Dome High Speed CCD Mounted Video Cheap Wide Angle Camera
Outstanding Features of Model No:C360-USB PTZ Camera:
1.Professional video conference camera design
2.High speed pan movement
3.Competitive advantage of low-cost
4.High-quality digital display
5.Power Switch
6.Working and standby indicator lights
Performance Of C360-USB PTZ Camera:
1.CCD Sensor
2.12x Optical x 16x digital Zoom
3.F=3.9-46 mm f= 1.67-1.88
4.High Speed PTZ

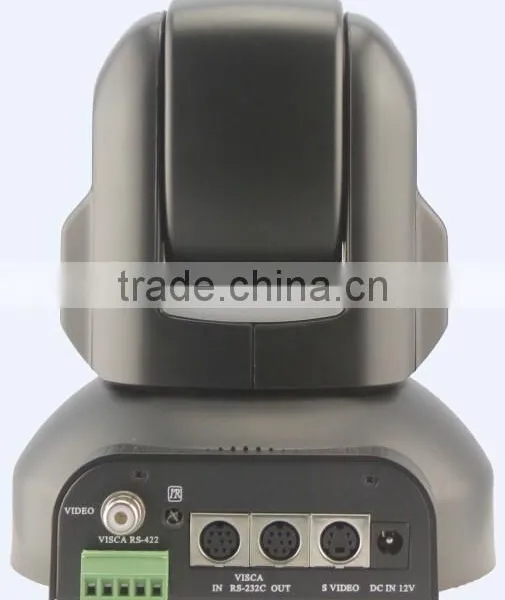

5.USB/AV video output interface
Specification Of SD USB Interface Video Conference Camera:
1.support Samsung 10x/12x and oneking 10x camera modules.
2.Support Speed match,OSD menu,image auto flip,boundary
3.Scanning and remote control.
4.Support 4 cruise sequence and 64 preset position.
5.Support 360°pan movement range.
6.Support IR wireless remote control P/T/Z
7.Support wall/ceiling mout and desktop installation.
Installation Of SD USB Interface Video Conference Camera:
1. Desktop
2. Ceiling mount
3.Standard Tripod accessory
specification sheet
Model |
C360 |
|
|
Image Sensor |
CCD |
1/4” SONY CCD |
Minimum Scene Illumination |
0.2 Lux at F1.6 |
|
White Balance |
AUTO/Manual |
|
Gain Control |
Auto |
|
Back-light Compensation |
On/Off |
|
Electronic shutter |
1/50-1/10,000s |
|
Horizontal resolution |
560TVL |
|
S/N Ratio |
> 50dB |
|
Lens |
Focus |
AUTO |
Iris |
AUTO/Manual |
|
Zoom |
12x Optical X 16 digital Zoom |
|
f=3.9-46 mm,F1.67-1.88 | ||
Video Output |
VIDEO:VBS:1.0Vpp at 75ohm; |
|
S-VIDEO | ||
Communication |
EIA/RS-422 |
|
EIA/RS-232(Bidirectional) | ||
Baud Rate |
2400/4800/9600 bps |
|
Patrol tours |
4 |
|
Pattern tours |
4 |
|
Preset |
64 |
|
Privacy Mask Zone |
4 |
|
Power On Active |
Auto pan scan or Patrol(Programmable) |
|
Speed Matching Function |
Support |
|
OSD Menu |
Support |
|
Image Auto Flip |
Support |
|
Pan Speed |
0-280 degrees/s |
|
Tilt Speed |
0-100 degrees/s |
|
Pan rotation angle |
360 degrees continuously |
|
Tilt rotation angle |
180 degrees |
|
Auto Pan Scan |
Support |
|
Boundary Scan |
0-359 degrees(programmable) |
|
Remoter Control |
RF Wireless remote control P/T/Z (10M) |
|
Power |
DC 12V+-10%;1.2A |
|
Temperature and humidity |
0o-60o C,0-95% RH(non-condensation) |
|

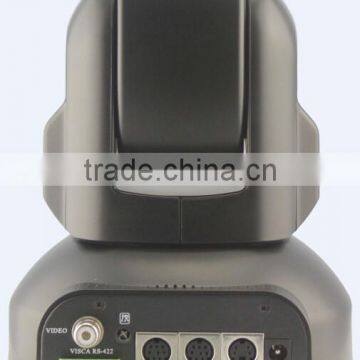

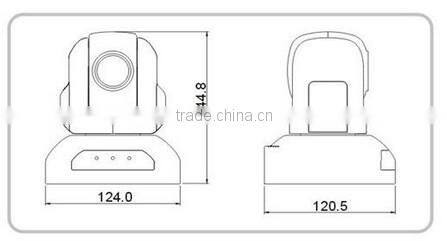

SD USB Interface Video Conference Camera Size:

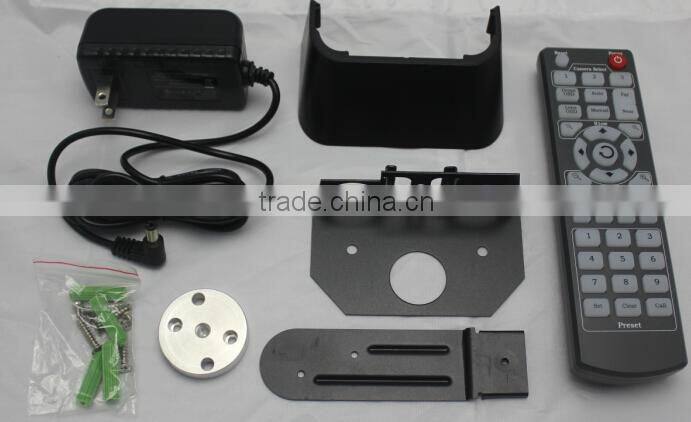

Accessories of SD USB Interfacer Video Conference Camera :

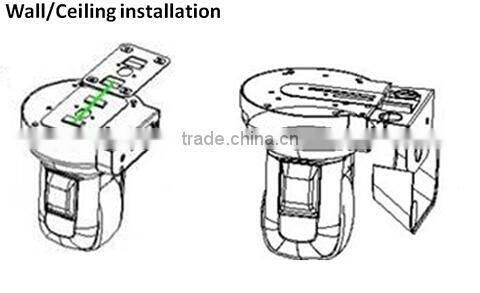

Installation of SD USB Interfacer Video Conference Camera :

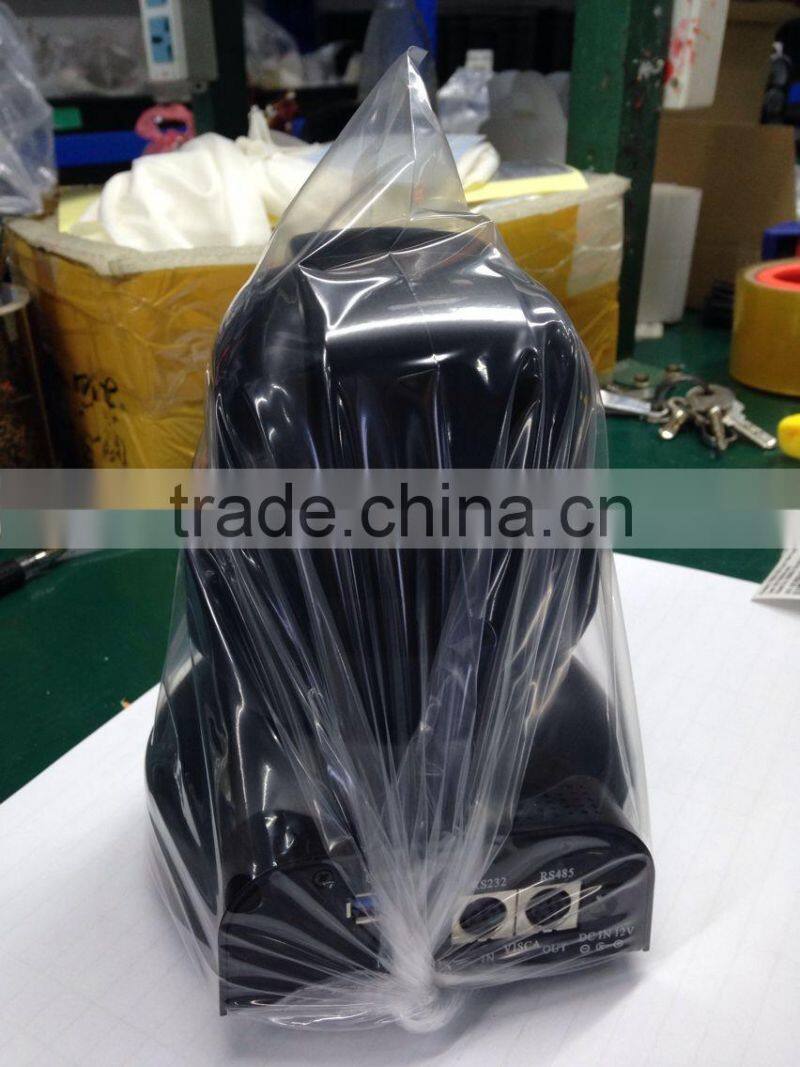

Packaging & Shipment & Service of SD USB Interfacer Video Conference Camera :
Company Information Of SD USB Interfacer Video Conference Camera :
Oneking Technologies was found in 2005, a high-tech enterprises which has 110 staff, engaged in designing, producing and marketing of the professional Color Video Conferencing cameras and video surveillance products over 7-year. Since 2001 we had took part in research of network video & audio products in the Institute of Shenzhen University telecommunications, and keep pace with the most advanced Technologies.
Example Project Of SD USB Interfacer Video Conference Camera :
Trade Fair Of SD USB Interfacer Video Conference Camera :

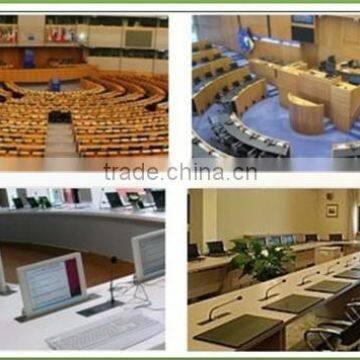

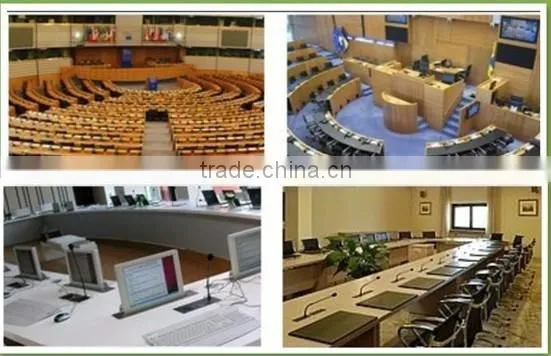

Effection Of SD USB Interfacer Video Conference Camera :
Effection Of SD USB Interfacer Video Conference Camera :
Guarantees & Warranties & Terms & Conditions
1. Quality is guaranteed within 2 years and delivery is on time.
2. T/T, Western Union or Paypal are accepted.
3. 3-5 working days since payment receipt;
4. Traking No. will be sent to you after delivery. And you will get every important shipping status by email.
5. We ensure our goods with the same quality as the approved one. If not, we will remake them for you.
