PTZ Mini USB Video Conference Camera

PTZ Mini USB Video Conference Camera thumbnail-1
PTZ Mini USB Video Conference Camera thumbnail-2
PTZ Mini USB Video Conference Camera thumbnail-3
PTZ Mini USB Video Conference Camera thumbnail-4
PTZ Mini USB Video Conference Camera photo-1

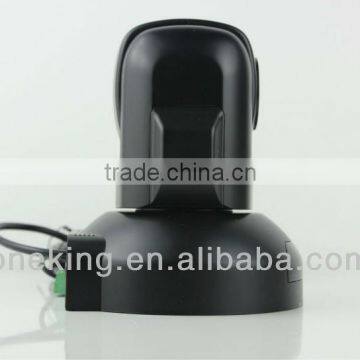

PTZ Mini USB Video Conference Camera photo-2

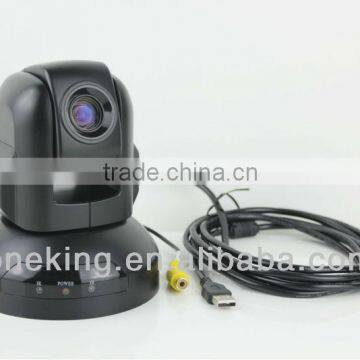

PTZ Mini USB Video Conference Camera photo-3

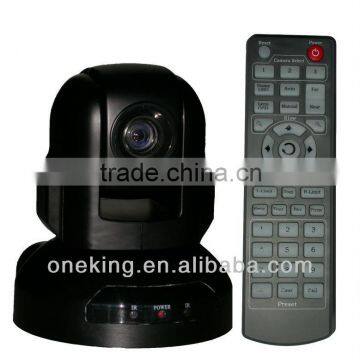

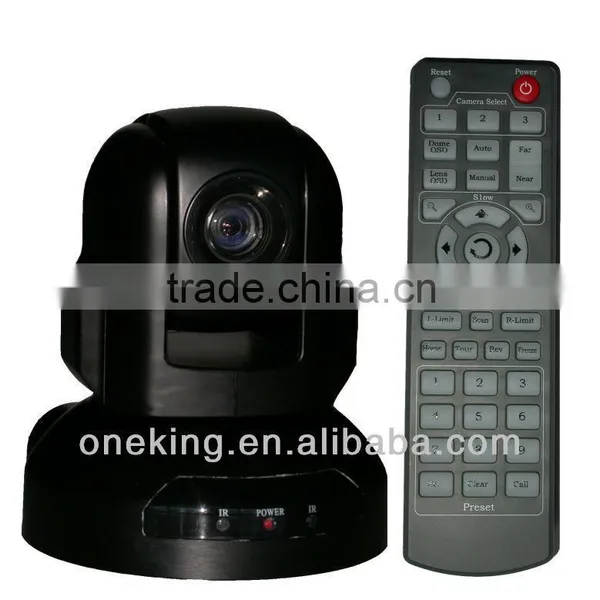

PTZ Mini USB Video Conference Camera photo-4
US$ 350 - 450 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Oneking/OEM
Model Number:
C360-USB
Contact Supplier Request Quote Chat Now
Shenzhen Oneking Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Oneking/OEM
Model Number C360-USB
Type Other, Digital Camera, USB Video ConferenceCamera
Style Mini Camera
Sensor CCD
Technology Pan / Tilt / Zoom
Special Features Other, Vandal-proof, Vandal-proof

Specifications

USB Video Conference Camera
Sony/Samsung 10xOptical zoom
S-Video,VISCA Protocol RS-485/422

Detailed Product Description:
1. USB Video Conference Camera
2. 10x Optical zoom
3. RCA or S-Video,VISCA Protocol
4. P/T/Z Movement
5. Wall/Ceiling moun

We are the professioanl manufacturer of Video Conferencing Camera


PTZ Mini USB Video Conference CameraPTZ Mini USB Video Conference Camera



Features]







Main Features:



- 10x Optical Oneking Zoom 480TVL/650TVL

- Oneking/Samsung/Sony Brands optional

- Built in USB Video Card

- VISCA OUT RS-232C for 2nd camera control

- CD Driver in the package

- 64 preset position

- Pan >0~280°/s Tilt >0~100°/s

- 360° continuously Pan rotation

- Provided wall & ceiling/ Desk fix mounting

- IR Remote controller  One touch to Multi-functions

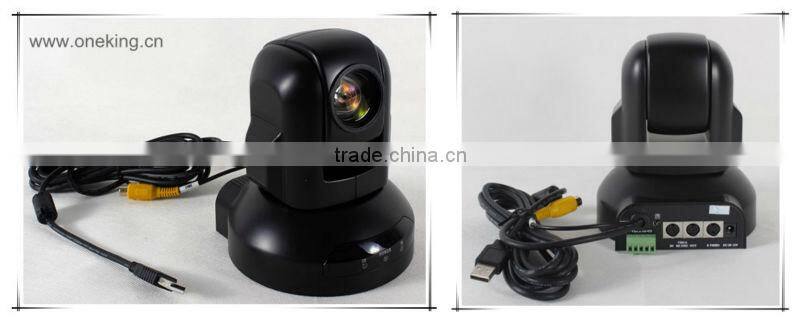

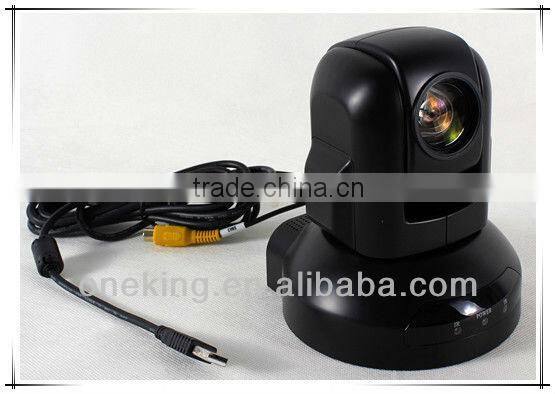

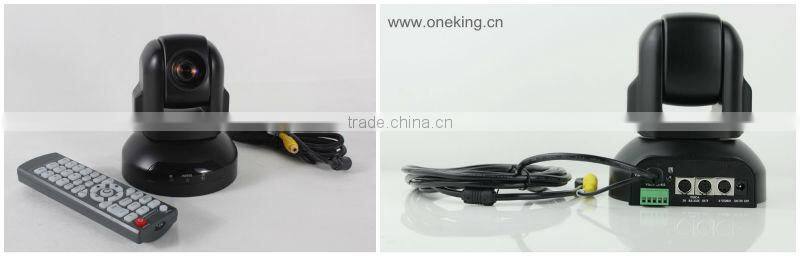

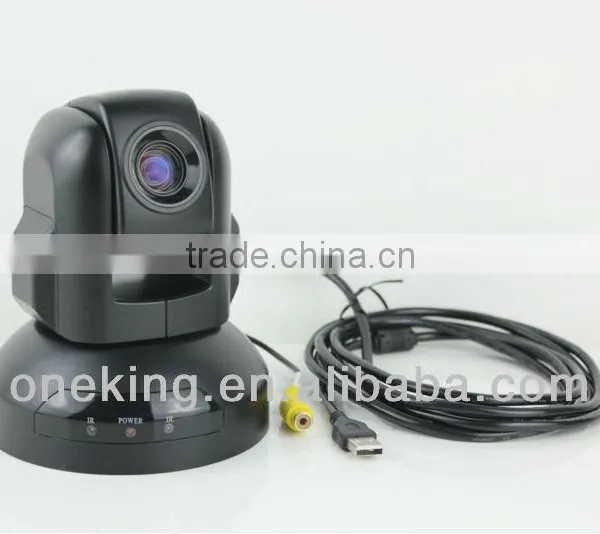

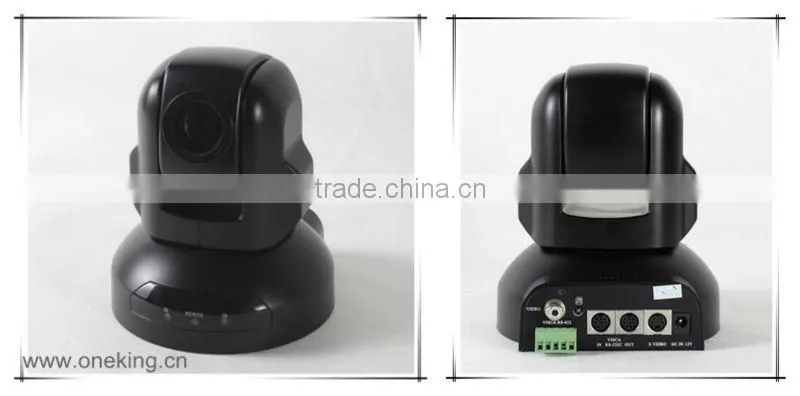

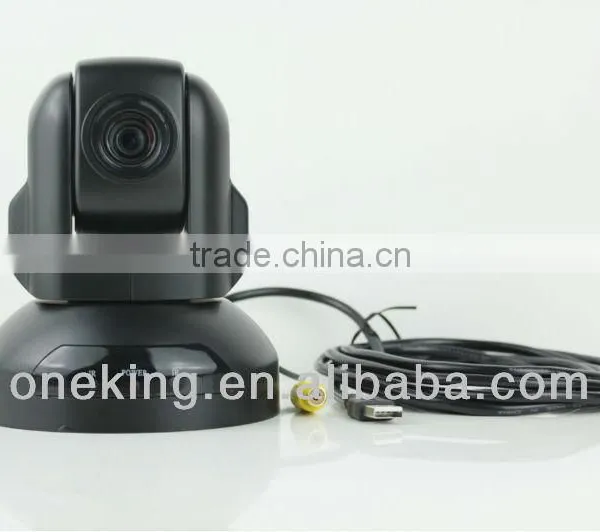

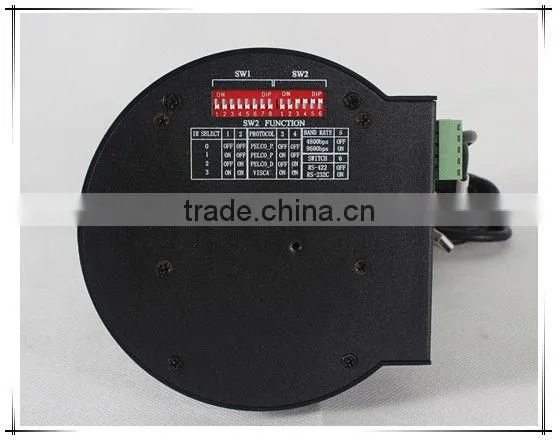

Detail images shows of USB Video PTZ Conference Camera:



PTZ Mini USB Video Conference CameraPTZ Mini USB Video Conference CameraPTZ Mini USB Video Conference Camera



PTZ USB Video Conference Camera Size:

PTZ Mini USB Video Conference CameraPTZ Mini USB Video Conference Camera

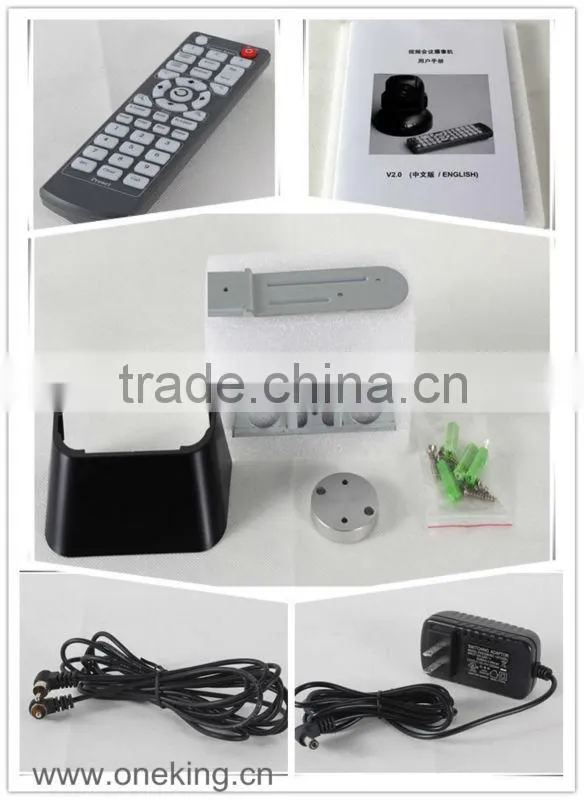

Accessories of USB Video Conference Camera :



Controller  / Bracket / For Tripod / Screw / User Manual/  Power Adaptor  /Control Wire /  Video Capture Card Driver



PTZ Mini USB Video Conference Camera



PTZ  USB Video Conference Package Box :



PTZ Mini USB Video Conference Camera





Spec Sheet of Video Conference Camera C360-USB :



Model No.
C360-USB
Image Sensor
Sensor
1/4" SONY CCD

Signal System
PAL/NTSC
Illumination
0.7Lux Color/0.05Lux B/W

White Balance
Auto/Manual
Gain Control
Auto
Back-light
compensation
On /Off
E-Shutter
1/50 - 1/120,000S

Horizontal
Resolution
480TVL/560TVL
S/N Ratio
>50db
Lens
Focus
f=3.8-38mm F=1.8


Iris
Auto/Manual
Zoom
10x Optical Zoom

Video Output
VBS: 1.0Vpp at 75 Ohm, S-Video (MINTRON/SONY Camera module)
USB Output (Optional)
Control Decoder
Built-in decoder
Communication
Interface
EIA/RS422, EIA/RS232(Bidirectional)
PTZ Control Protocol
VISCA, PELCO-P, PELCO-D (optional)
Baud Rate
4800/9600bps
Patrol Lines
4 Patrol Lines
Preset Position
64 Preset Position
Power-off Protection
Saved scanning or patrol line settings Automatically Before power off
Speed Matching
Slow down camera Pan/Tilt movement speed while camera zooming in
OSD Menu
To change parameters of camera or camera module from OSD Menu
Image Auto Flip
Image Auto Flip
Pan Speed
1-280 degree per second
Tilt Speed
1-100 degree per second
Pan Rotation Angle
360 degree continuously
Tilt Rotation Angle
240 degree
Auto Pan Scan
Support auto pan scanning
Boundary Scan
0-359 degree (programmable)
Remoter Control
IR wireless remote controller P/T/Z
Power Supply
DC12V±10%, 1.2A
Working Temperature
0-50°C
Environment Humidity
0-95%RH
Size(LxWxH)
124X120X145mm
Weight
80g



 Factory Show:

 PTZ Mini USB Video Conference Camera
