SD PTZ Conference Camera With SONY 18x Zoom Conferencing Camera

SD PTZ Conference Camera With SONY 18x Zoom Conferencing Camera thumbnail-1
SD PTZ Conference Camera With SONY 18x Zoom Conferencing Camera thumbnail-2
SD PTZ Conference Camera With SONY 18x Zoom Conferencing Camera thumbnail-3
SD PTZ Conference Camera With SONY 18x Zoom Conferencing Camera photo-1
SD PTZ Conference Camera With SONY 18x Zoom Conferencing Camera photo-2
SD PTZ Conference Camera With SONY 18x Zoom Conferencing Camera photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Video Conference System, Other, Video Conference System, Mini PTZ camera
Place of Origin:
China
Brand Name:
Oneking
Contact Supplier Request Quote Chat Now
Shenzhen Oneking Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Video Conference System, Other, Video Conference System, Mini PTZ camera
Place of Origin China
Brand Name Oneking
Model Number C368

Specifications

SD Video PTZ Conference Camera
Sony18X /CN18X Optical zoom
S-Video,VISCA Protocol RS-485/422
Wall/ceiling/Tripod mounts

We are the professional manufacturer of Color Video PTZ Conference Camera------



Outstanding Features:

  • Private camera mould design
  • HOV 54.8 degree for wide angle
  • 18x optical zoom from 5-90mm at F1.6-F3.0
  • 550TVL/650TVL ,Sony/oneking camera module
  • High speed PTZ Plateform with low noise motor
  • Video Output: SD:VBS,S-Video(Sony lens). USB(optional)





SD Color Video PTZ Conference Camera with 18x Optical zoom                                                       SD PTZ Conference Camera with SONY 18x zoom Conferencing Camera





Brief Description of SD Video Conferencing Equipment:







C368 New color video conference camera equipped with color high TVL sony 18x optical zoom lens (18x Oneking optical zoom lens is optional),support USB/AV video output, compatible with VISCA PTZ Control Protocol; It supports 360 continuously pan movement and come with image auto flip function.Especially suited for video conference, Telemedicine System, Remote Education, Court and Training Room etc.





Specification:

  • Support speed match,OSD Menu,image auto flip,boundary scanning and remote control.
  • Support VISCA/PELCO-D protocol and RS232C/RS485
  • Support 4 cruise sequence and 64 preset postions.
  • Support spped adjustment from 1-200 °/s at Pan and from 1-150°/s at Tilt.
  • Support 360 ° pan movement range.
  • Support IR wireless remote control P/T/Z
  • Support celling mount and desktop Installation.

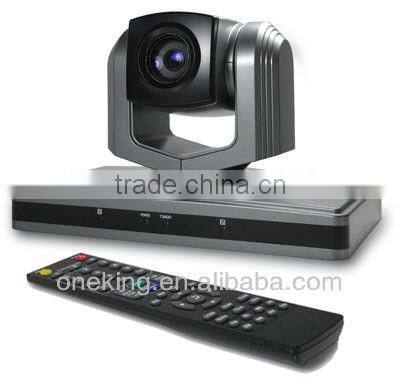

SD  Video PTZ  Conference Camera Details Product Images :



SD PTZ Conference Camera with SONY 18x zoom Conferencing CameraSD PTZ Conference Camera with SONY 18x zoom Conferencing Camera

SD PTZ Conference Camera with SONY 18x zoom Conferencing Camera



SD PTZ Conference Camera with SONY 18x zoom Conferencing CameraSD PTZ Conference Camera with SONY 18x zoom Conferencing Camera

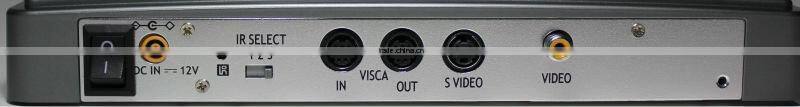

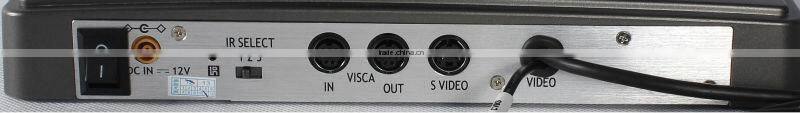

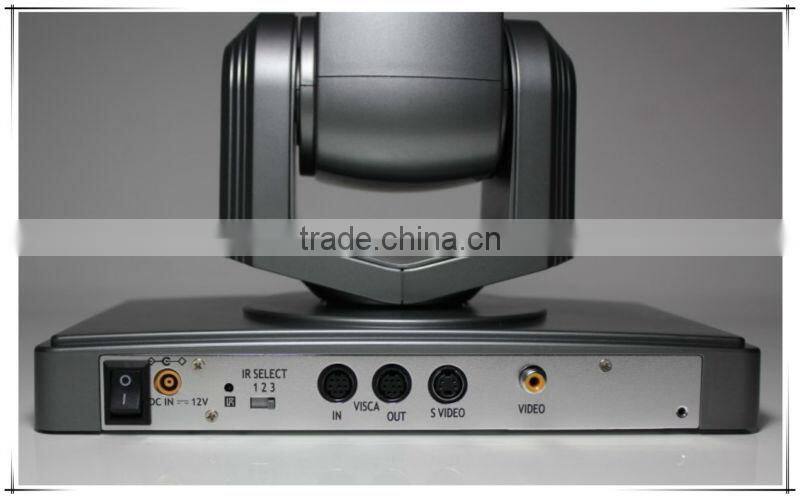

SD Video PTZ Conference Camera ---Back Board Interface:





C368

 SD PTZ Conference Camera with SONY 18x zoom Conferencing Camera

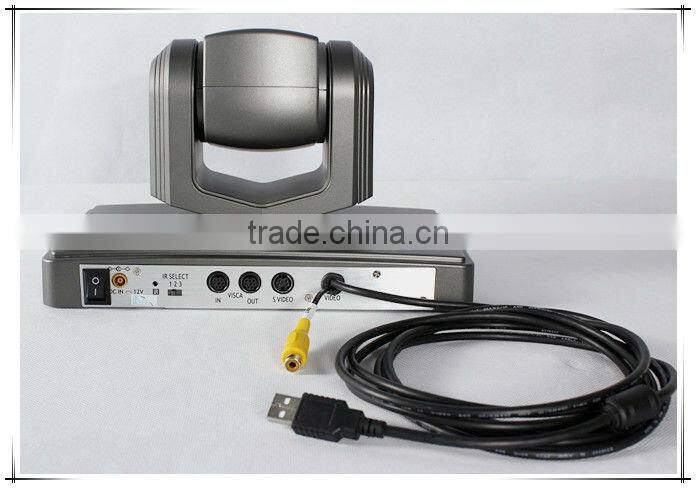

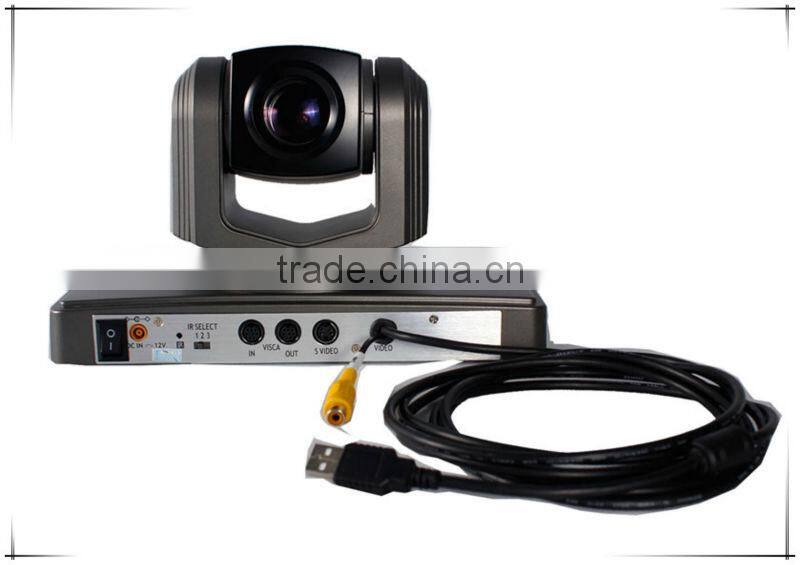

C368-USB





 SD PTZ Conference Camera with SONY 18x zoom Conferencing Camera



HD PTZ  Conference Camera Video  Camera ---Remote controller:



 SD PTZ Conference Camera with SONY 18x zoom Conferencing Camera

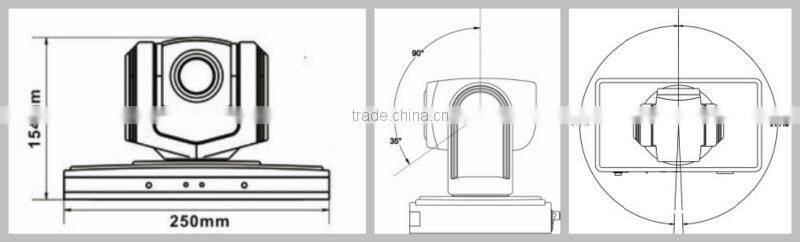

HD PTZ  Conference Camera Size and Pan Tilt  Movement Range:



SD PTZ Conference Camera with SONY 18x zoom Conferencing Camera







SD PTZ Conference Camera ----Specification Sheet:





Model:C368  C368-USB





Model No.

C368

C368-USB


Camera module

C368 / Sony 18X

C368-USB/Sony 18x

C368/ Oneking 18x

C368-USB/ Oneking 18x

Image Sensor

Sensor

1/4" Exview CCD

1/3’ Sony Effio-E CCD

Signal System

PAL/NTSC

PAL/NTSC

Illumination

1.0Lux/F1.4

0.5 Lux

White Balance

Auto/Manual

Auto/Manual

Gain Control

Auto

Auto

Back-light
compensation

On /Off

On /Off

E-Shutter

1 - 1/100,000s

1/50-1/10,000s

Horizontal
Resolution

550TVL

650TVL

S/N Ratio

>50db

>50db

Lens

Focus

f=4.1-73.8 F1.4 -3.0

f=5-90mm F1.6 -3.0

Iris

Auto/Manual

Auto/Manual

Zoom



18x Optical X12x Digital Zoom

18x optical zoom

Video Output

SD:VBS,S-Video(Sony lens), USB(optional)

Control Decoder

Built-in decoder

Communication
Interface

EIA/RS422, EIA/RS232(Bidirectional)

PTZ Control Protocol

VISCA, PELCO-P, PELCO-D (optional)

Baud Rate

4800/9600bps

Patrol Lines

4 Patrol Lines

Preset Position

64 Preset Position

Power-off Protection

Saved scanning or patrol line settings Automatically Before power off

Speed Matching

Slow down camera Pan/Tilt movement speed while camera zooming in

OSD Menu

To change parameters of camera or camera module from OSD Menu

Image Auto Flip

Image Auto Flip

Pan Speed

1-280 degree per second

Tilt Speed

1-100 degree per second

Pan Rotation Angle

360 degree continuously

Tilt Rotation Angle

240 degree

Auto Pan Scan

Support auto pan scanning

Boundary Scan

0-359 degree (programmable)

Remoter Control

IR wireless remote controller P/T/Z

Power Supply

DC12V±10%, 1.2A

Working Temperature

0-50°C

Environment Humidity

0-95%RH

Size(LxWxH)

124X120X145mm

Weight

800g
