SD Color Video Conference Camera with SONY 18x zoom Conferencing Camera

Specifications

SD Video Conference Camera
Sony18X /CN18X Optical zoom
S-Video,VISCA Protocol RS-485/422
Wall/ceiling/Tripod mounts

We are the professional manufacturer of Color Video Conference Camera------



Outstanding Features:

• Private camera mould design
• HOV 54.8 degree for wide angle
• 18x optical zoom from 5-90mm at F1.6-F3.0
• 550TVL/650TVL ,Sony/oneking camera module
• High speed PTZ Plateform with low noise motor
• Video Output: SD:VBS,S-Video(Sony lens). USB(optional)





SD Color Video Conference Camera with 18x Optical zoom





Brief Description of SD Video Conferencing Equipment:







C368 New color video conference camera equipped with color high TVL sony 18x optical zoom lens (18x Oneking optical zoom lens is optional),support USB/AV video output, compatible with VISCA PTZ Control Protocol; It supports 360 continuously pan movement and come with image auto flip function.Especially suited for video conference, Telemedicine System, Remote Education, Court and Training Room etc.





Specification:

• Support speed match,OSD Menu,image auto flip,boundary scanning and remote control.
• Support VISCA/PELCO-D protocol and RS232C/RS485
• Support 4 cruise sequence and 64 preset postions.
• Support spped adjustment from 1-200 °/s at Pan and from 1-150°/s at Tilt.
• Support 360 ° pan movement range.
• Support IR wireless remote control P/T/Z
• Support celling mount and desktop Installation.

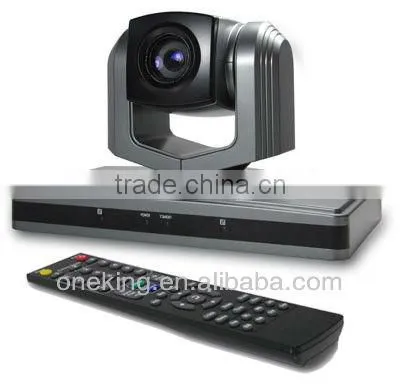

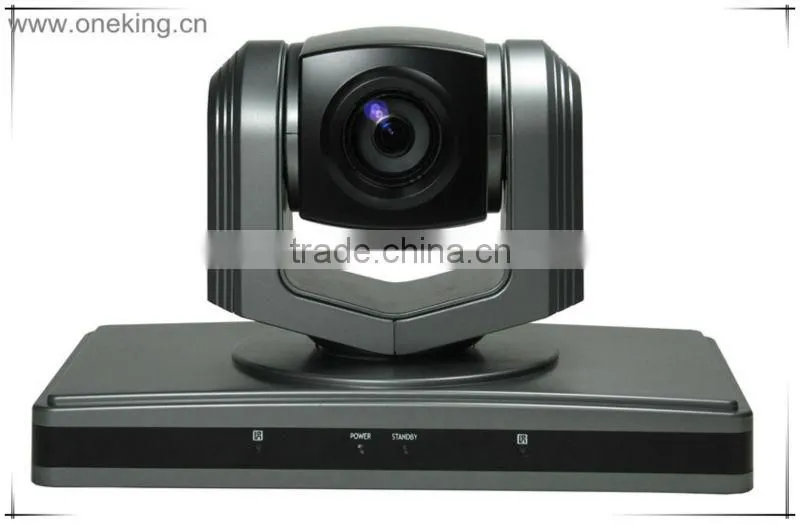

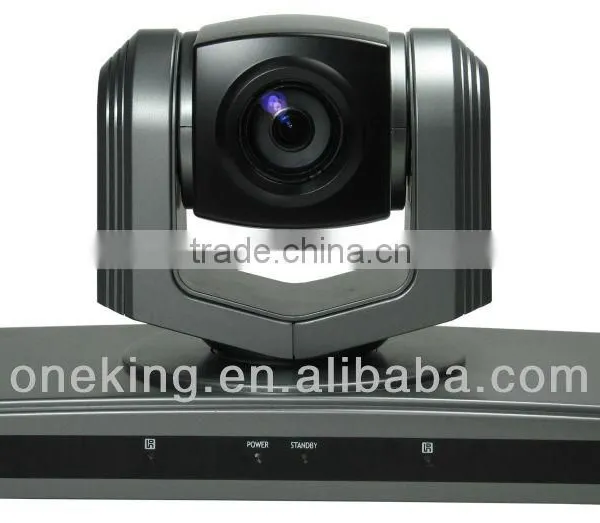

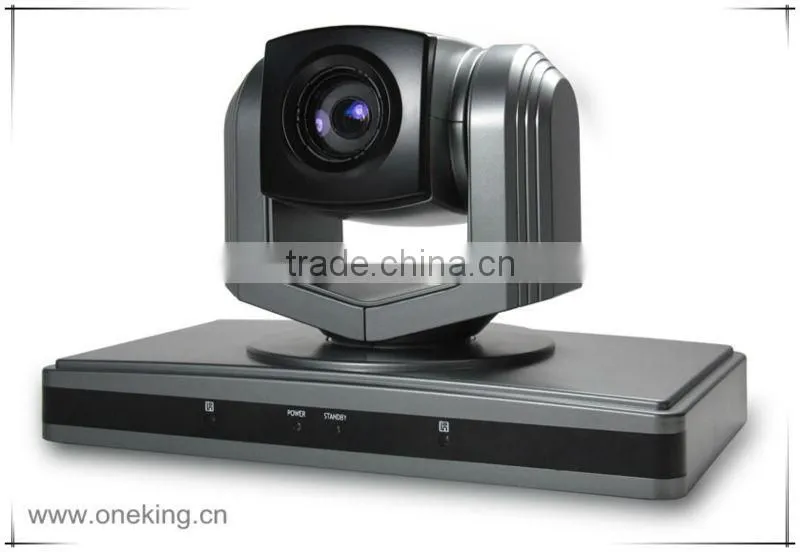

SD PTZ Camera Video Conference Camera Details Product Images :

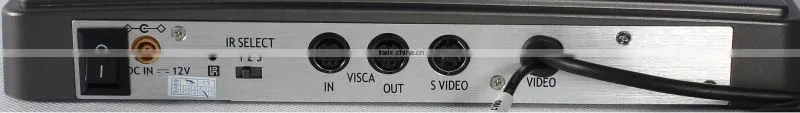

SD PTZ Camera Video Conference Camera ---Back Board Interface:





C368

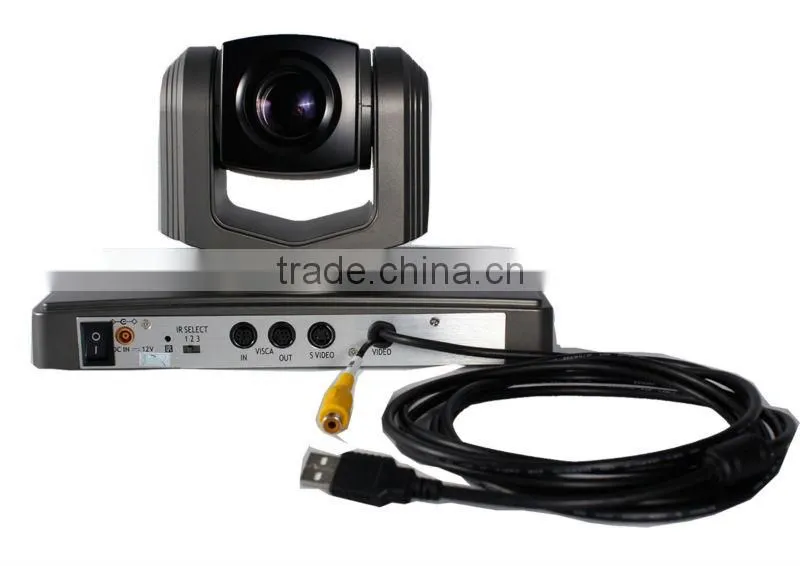

C368-USB









HD PTZ Camera Video Conference Camera ---Remote controller:

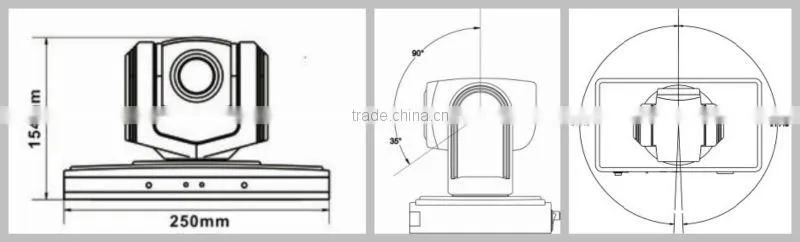

HD PTZ Video Conference Camera Size and Pan Tilt  Movement Range:













SD PTZ Video Conference Camera ----Specification Sheet:





Model:C368  C368-USB







Model No.	C368		C368-USB
	Camera module	C368 / Sony 18X C368-USB/Sony 18x	C368/ Oneking 18x C368-USB/ Oneking 18x
Image Sensor	Sensor	1/4" Exview CCD	1/3’ Sony Effio-E CCD
	Signal System	PAL/NTSC	PAL/NTSC
	Illumination	1.0Lux/F1.4	0.5 Lux
	White Balance	Auto/Manual	Auto/Manual
	Gain Control	Auto	Auto
	Back-light  compensation	On /Off	On /Off
	E-Shutter	1 - 1/100,000s	1/50-1/10,000s
	Horizontal Resolution	550TVL	650TVL
	S/N Ratio	>50db	>50db
Lens	Focus	f=4.1-73.8 F1.4 -3.0	f=5-90mm F1.6 -3.0
	Iris	Auto/Manual	Auto/Manual
	Zoom	18x Optical X12x Digital Zoom	18x optical zoom
Video Output		SD:VBS,S-Video(Sony lens), USB(optional)
Control Decoder		Built-in decoder
Communication Interface		EIA/RS422, EIA/RS232(Bidirectional)
PTZ Control Protocol		VISCA, PELCO-P, PELCO-D (optional)
Baud Rate		4800/9600bps
Patrol Lines		4 Patrol Lines
Preset Position		64 Preset Position
Power-off Protection		Saved scanning or patrol line settings Automatically Before power off
Speed Matching		Slow down camera Pan/Tilt movement speed while camera zooming in
OSD Menu		To change parameters of camera or camera module from OSD Menu
Image Auto Flip		Image Auto Flip
Pan Speed		1-280 degree per second
Tilt Speed		1-100 degree per second
Pan Rotation Angle		360 degree continuously
Tilt Rotation Angle		240 degree
Auto Pan Scan		Support auto pan scanning
Boundary Scan		0-359 degree (programmable)
Remoter Control		IR wireless remote controller P/T/Z
Power Supply		DC12V±10%, 1.2A
Working Temperature		0-50°C
Environment Humidity		0-95%RH
Size(LxWxH)		124X120X145mm
Weight		800g
