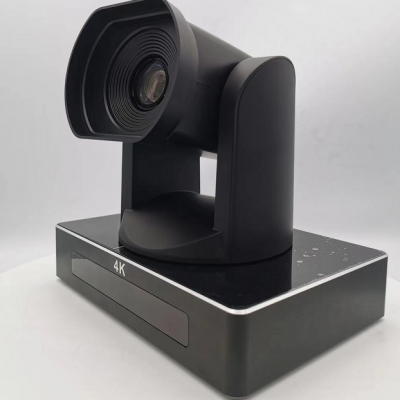

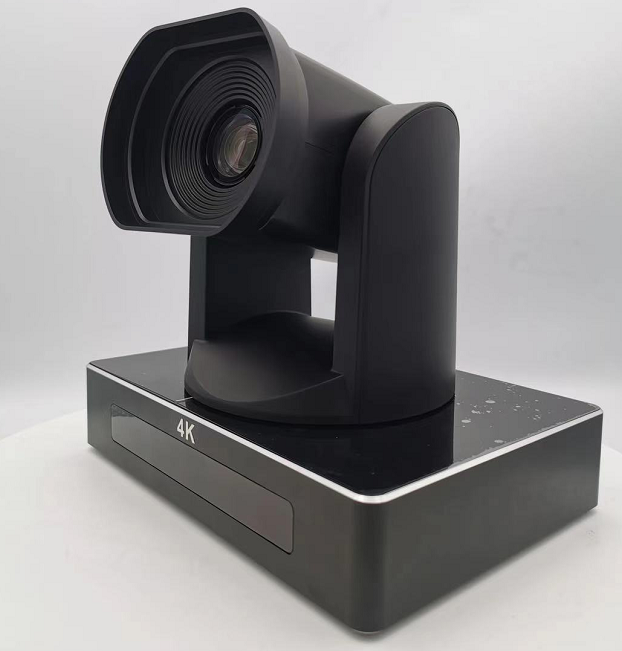

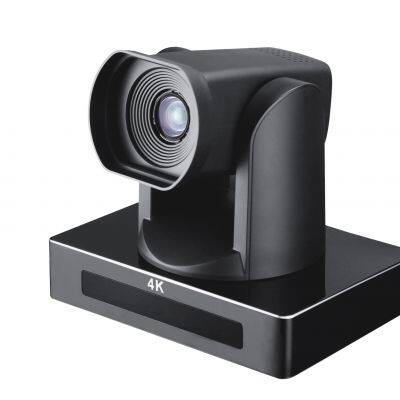

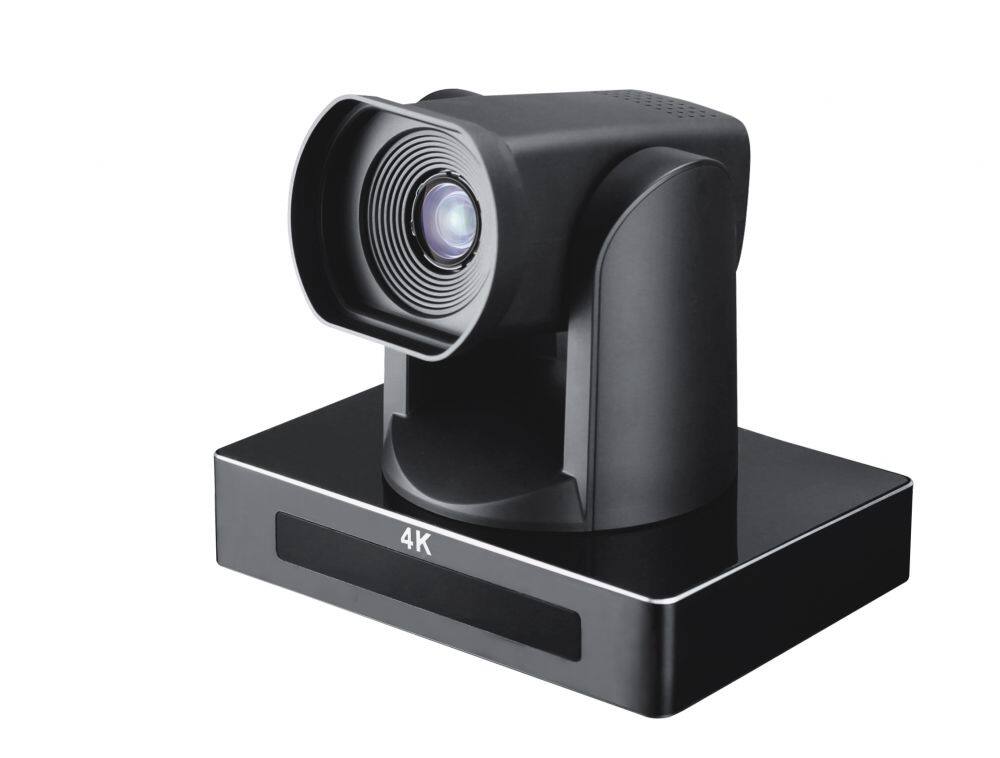

USB HDMI SDI LAN Sony Sensor UHD 4k 20x PTZ Video Conference Camera

USB HDMI SDI LAN Sony Sensor UHD 4k 20x PTZ Video Conference Camera thumbnail-1
USB HDMI SDI LAN Sony Sensor UHD 4k 20x PTZ Video Conference Camera thumbnail-2
USB HDMI SDI LAN Sony Sensor UHD 4k 20x PTZ Video Conference Camera thumbnail-3
USB HDMI SDI LAN Sony Sensor UHD 4k 20x PTZ Video Conference Camera photo-1
USB HDMI SDI LAN Sony Sensor UHD 4k 20x PTZ Video Conference Camera photo-2
USB HDMI SDI LAN Sony Sensor UHD 4k 20x PTZ Video Conference Camera photo-3
US$ 3175 - 3968 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Hotrain or OEM
Place of Origin:
China
Model Number:
F4K20
Contact Supplier Request Quote Chat Now
Shaanxi Fatego Network Technology Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen, Hong Kong
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Hotrain or OEM
Place of Origin China
Model Number F4K20
Type Audio Conference System, Network Conference System, Video Conference System
Function Translation

USB HDMI SDI LAN Sony Sensor UHD 4k 20x PTZ Video Conference Camera




Specifications:

Image sensor

1/2.5   inches  Cmos sensor

Effective   pixels

8.51   Mega Pixels  (16:9)

Video   resolution

3840x2160P30/25,1080P60/50/30/25, 1080I/60/50,   720P60/50

Lens zoom

20x   optical zoom

12x   digital zoom

Focal   length

F1.6-F3.5,f=4.4mm-88.4mm

Angle   of View:

70.2°(wide angle end);  4.1°(far end)

Min. illumination

0.1Lux

White balance

Auto

Focus

Auto/   Manual

Diaphragm

Auto/   Manual

Shutter

Auto

SNR(Signal   to Noise Ratio)

>50dB

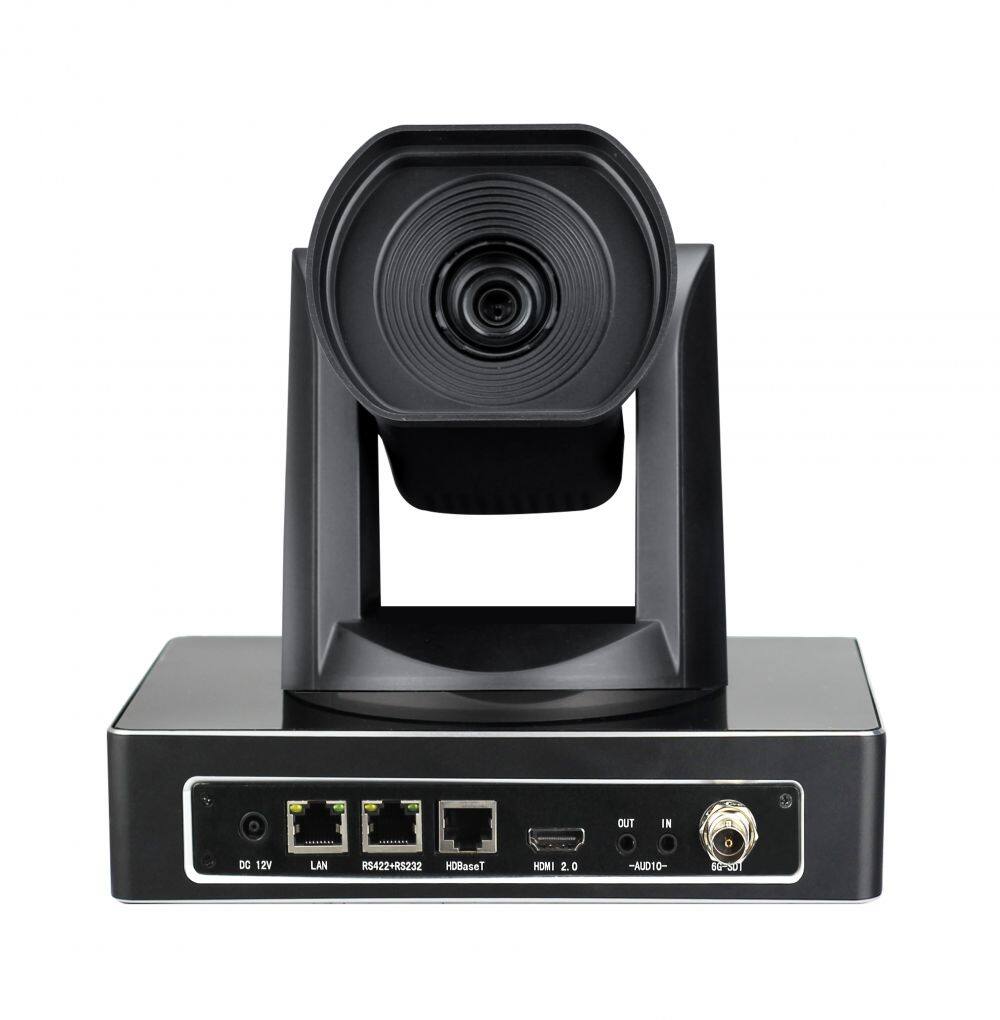

HD video interface

HDMI2.0

Max. support 4KP30

6G-SDI

Max. support 4KP30

HD-BasT

Max. support 4KP30, Support   network simultaneous transmission

LAN

reserved function

Control signal interface

LAN (RS422,RS232)

Control signal format

Start bit:1 bit; data bit:8 bits, stop bit: 1 bit;

Baud rate: 9600/4800/2400bps

Power port

HEC3800



Pan rotation

±170 degree

Pan control speed:

0.1-100°/sec

Tilt rotation:

-30 to 90 degree

Tilt control speed

0.1-60°/sec

Preset accuracy

0.1 degree

Presets number

255

Color

Black

Power adapter

AC110V-AC220V to DC12V/3A

Input voltage

DC12V (DC11.5-DC12.5V)

Power consumption

24W(max.)

Storage temperature

-10℃ to +60℃

Working temperature

/0℃ to +45℃

Size:

210mmX175mmX145mm

Weight:

2.5KG(1.3KG)



Shaanxi Fatego Network Technology Co., Ltd

Address: 22F/C Building, Fuerdun International Finance Center, Xi’An, China

Post code: 710000

Contact: Stone

Email: ftg_blue@163.com  shiyuzhen@ihotrain.com

Phone: + 86 13319200202

Contact: Eva

Email: evaliu@ihotrain.com

+86 15035067916

+86 17316608049



Product Tags: 4k camera , PTZ Conference Camera , Video Conference Camera , 4K video camera , 4k PTZ camera , 4k conference camera
