12 Optical x 16 Digital Zoom 560TVL 360 Degrees Pan Video Conference Camera

12 Optical x 16 Digital Zoom 560TVL 360 Degrees Pan Video Conference Camera thumbnail-1
12 Optical x 16 Digital Zoom 560TVL 360 Degrees Pan Video Conference Camera thumbnail-2
12 Optical x 16 Digital Zoom 560TVL 360 Degrees Pan Video Conference Camera thumbnail-3
12 Optical x 16 Digital Zoom 560TVL 360 Degrees Pan Video Conference Camera thumbnail-4
12 Optical x 16 Digital Zoom 560TVL 360 Degrees Pan Video Conference Camera thumbnail-5
12 Optical x 16 Digital Zoom 560TVL 360 Degrees Pan Video Conference Camera thumbnail-6
12 Optical x 16 Digital Zoom 560TVL 360 Degrees Pan Video Conference Camera photo-1

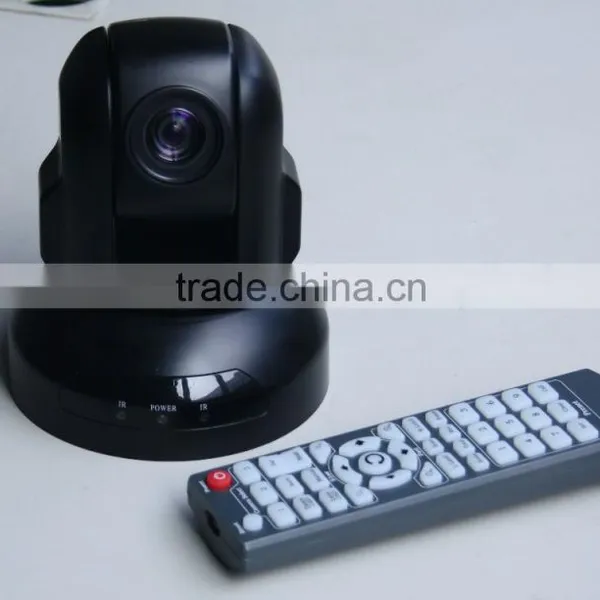

12 Optical x 16 Digital Zoom 560TVL 360 Degrees Pan Video Conference Camera photo-2

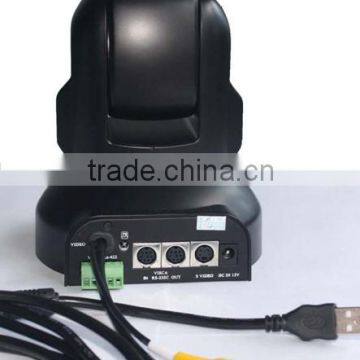

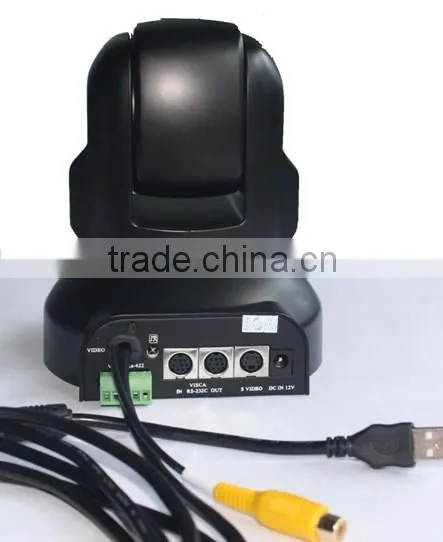

12 Optical x 16 Digital Zoom 560TVL 360 Degrees Pan Video Conference Camera photo-3

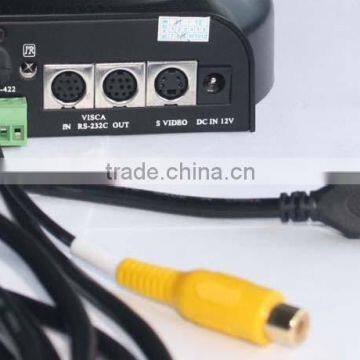

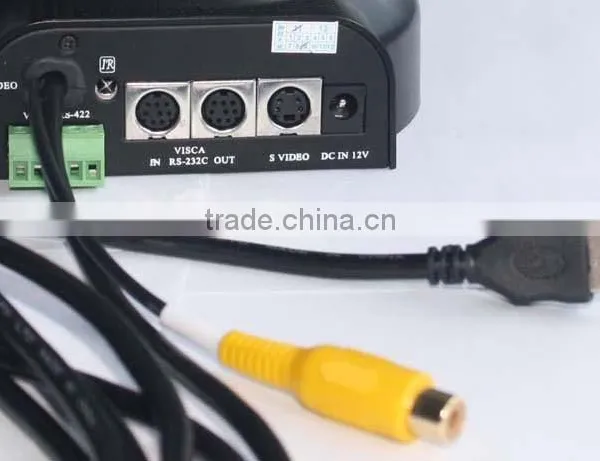

12 Optical x 16 Digital Zoom 560TVL 360 Degrees Pan Video Conference Camera photo-4

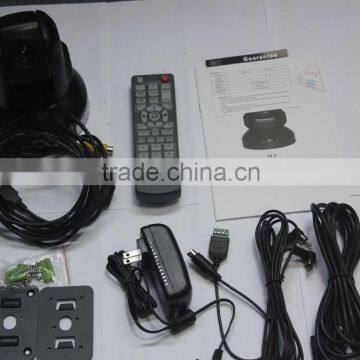

12 Optical x 16 Digital Zoom 560TVL 360 Degrees Pan Video Conference Camera photo-5

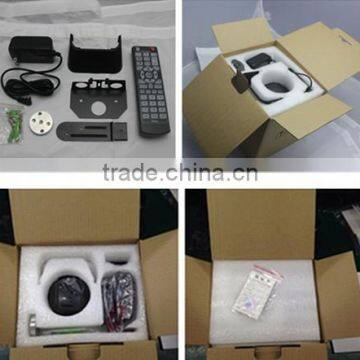

12 Optical x 16 Digital Zoom 560TVL 360 Degrees Pan Video Conference Camera photo-6
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Video Conference System
Simultaneous Interpretation:
No
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Shenzhen Oneking Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Video Conference System
Simultaneous Interpretation No
Place of Origin Guangdong, China
Brand Name Oneking/OEM
Model Number C360-USB-560TVL

Specifications

360 degrees pan video conference camera
a) 12 optical x 16 digital zoom
b) S-Video,VISCA Protocol RS-485/422
c) Wall/ceiling/

We are proffessional manufacturer of Color Video Conference Camera----

12 Optical x 16 Digital Zoom 560TVL 360 degrees pan video conference camera



360 degrees pan video conference camera



Model no.: C-360-USB



12 optical x 16 digital zoom, 560TVL



12 Optical x 16 Digital Zoom 560TVL 360 degrees pan video conference camera



C-360-USB Color Video PTZ Camera which adopted 12 optical x 16 digital zoom with high performance 560TVL Quality, it equipped with USB video card and provided USB, AV video output both, ideally suited for Web video conferencing system, remote education system etc.



Product Description
Features:
  • 12 Optical x 16 Digital 560TVL
  • Built in USB Video Card- CD Driver in the package-
  • USB/AV Video output- Pan >0~280°/s Tilt >0~100°/s
  • 360° continuously Pan rotation

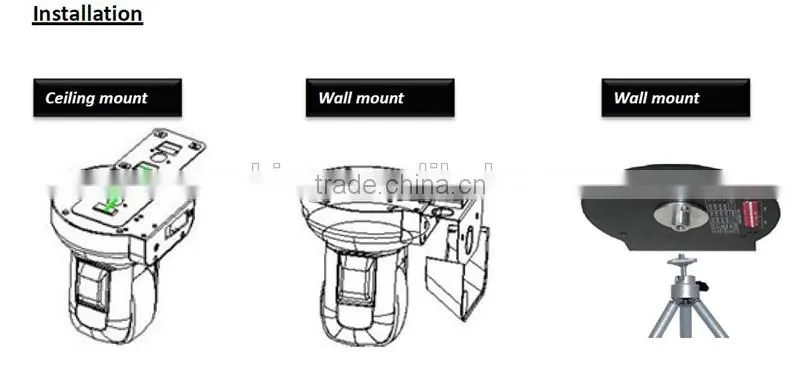

  •  Provided wall & ceiling mounting
  • IR Remote controller

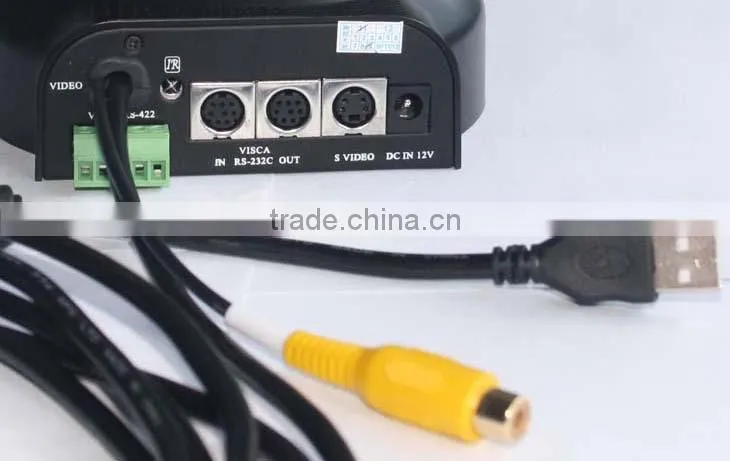

  • Support S-Video RS-232 Visca Protocol

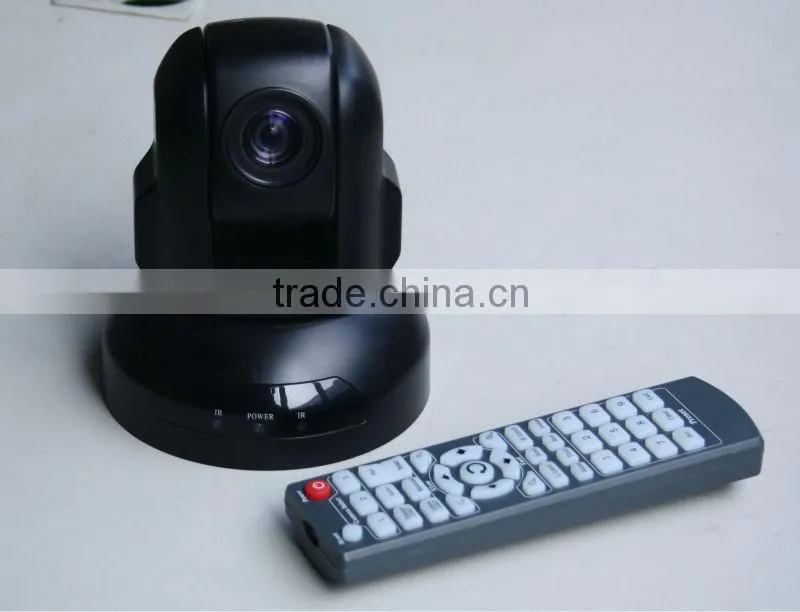

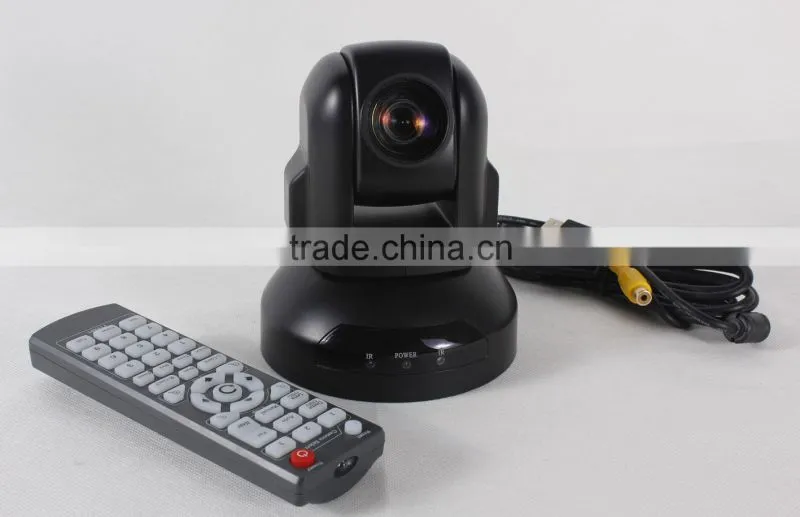

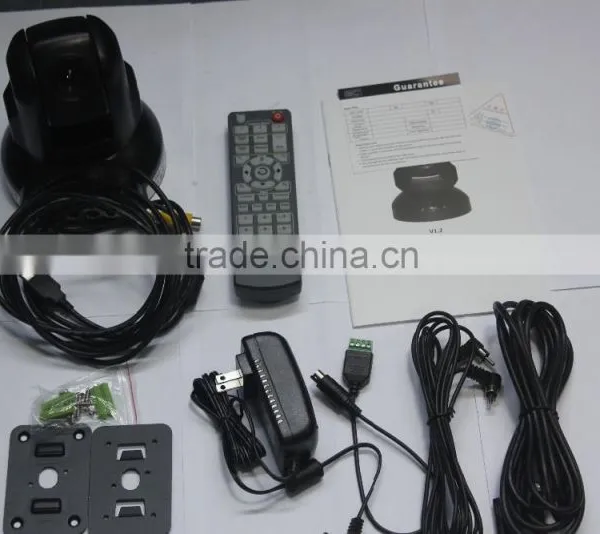

360 degrees pan video conference camera Images:

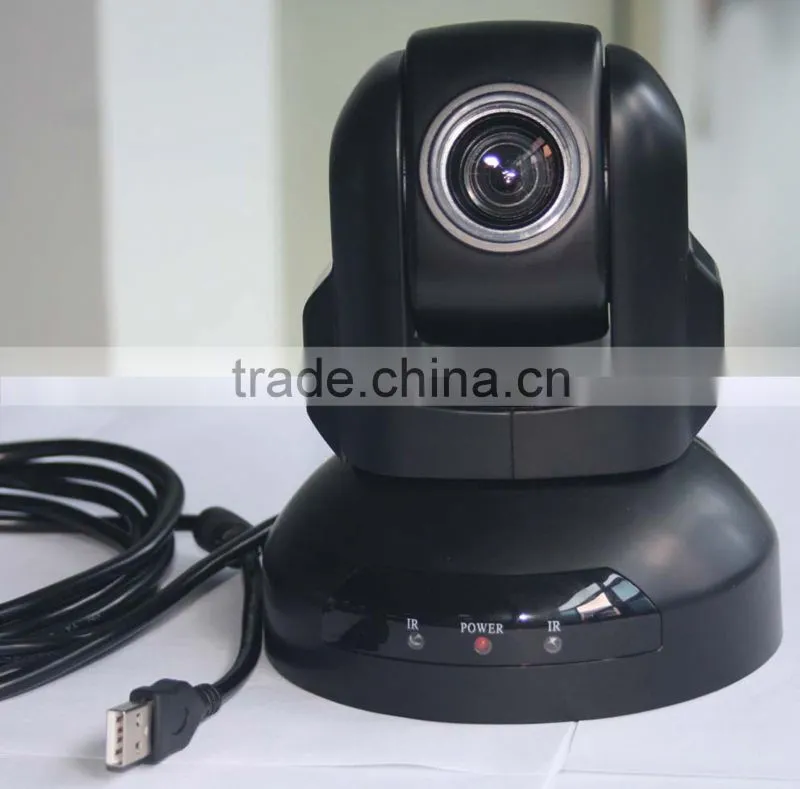

12 Optical x 16 Digital Zoom 560TVL 360 degrees pan video conference camera12 Optical x 16 Digital Zoom 560TVL 360 degrees pan video conference camera12 Optical x 16 Digital Zoom 560TVL 360 degrees pan video conference camera12 Optical x 16 Digital Zoom 560TVL 360 degrees pan video conference camera12 Optical x 16 Digital Zoom 560TVL 360 degrees pan video conference camera12 Optical x 16 Digital Zoom 560TVL 360 degrees pan video conference camera 12 Optical x 16 Digital Zoom 560TVL 360 degrees pan video conference camera



Specification Sheet:



Model   C-360-USB
 Image Sensor         CCD1/4” Interline Transfer CCD
  Minimum Scene Illumination  0.2Lux at F1.6
  White Balance  AUTO/Manual
  Gain Control  Auto
  Back-light Compensation  On/Off
  Electronic shutter  1/50-1/120,000S
  Horizontal resolution  560 TVL
  S/N Ratio  > 50dB
  Lens     Focus  AUTO
  Iris  AUTO/Manual
  Zoom 12 Optical X 16 Digital
f=3.9-46 mm,F1.67-1.88
  Video Output      VIDEO VBS: 1.0Vpp at 75ohm;
  USB interface
  Communication     EIA/RS-422
  EIA/RS-232 (Bidirectional)
   Baud Rate  4800/9600 bps
   Patrol tours 4
   Pattern tours4
   Preset 64
   Privacy Mask Zone 4
   Power On Active  Auto pan scan or Patrol (Programmable)
   Speed Matching Function  Support
   OSD Menu   Support
   Image Auto Flip   Support
   Pan Speed  0-280 degrees
   Tilt Speed  0-100 degrees
   Pan rotation angle  360 degrees continuously
   Tilt rotation angle  240 degrees
   Auto Pan Scan  Support
   Boundary Scan  0-359 degrees (programmable)
Remoter ControlRF Wireless remote control P/T/Z (10M)
PowerDC 12V+-10%;1.2A
Temperature and humidity0o-60o C,0-95% RH (non-condensation)

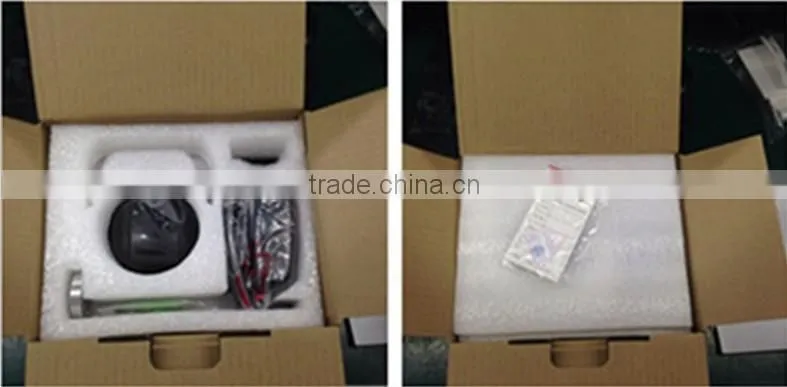

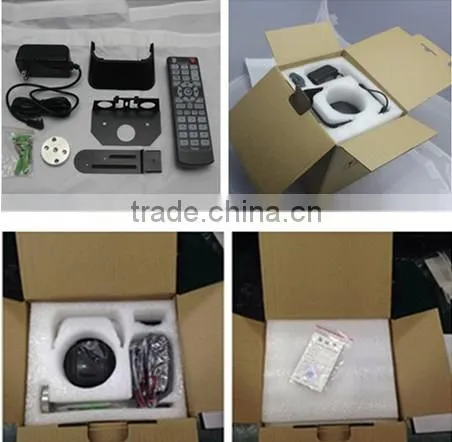

Packaging & Shipping

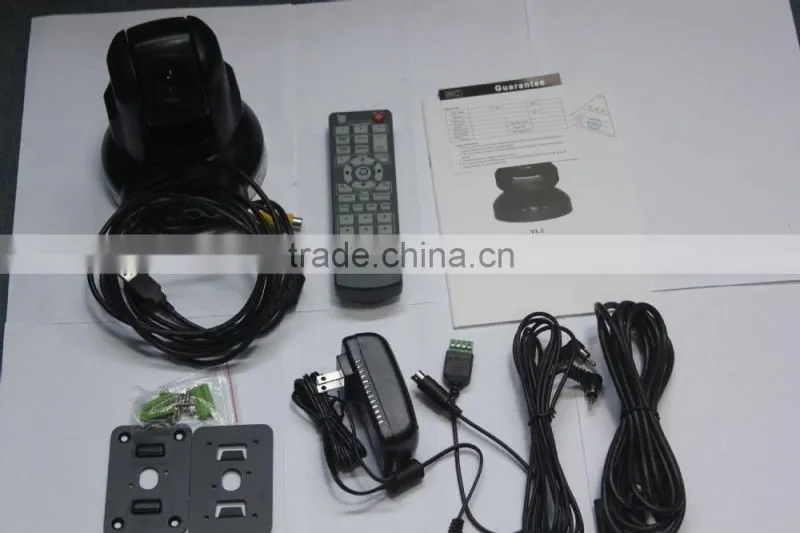

12 Optical x 16 Digital Zoom 560TVL 360 degrees pan video conference camera

12 Optical x 16 Digital Zoom 560TVL 360 degrees pan video conference camera

Our Services

Guarantees/Warranties/Terms and Conditions

1. Quality is guaranteed within 2 years and delivery is on time.
2. T/T, Western Union or Paypal are accepted.
3. 3-5 working days since payment receipt;
4. Traking No. will be sent to you after delivery. And you will get every important shipping status by email.
5. We ensure our goods with the same quality as the approved one. If not, we will remake them for you.
