Fixed Lens Video Conference Camera With 360 Degrees Pan

Fixed Lens Video Conference Camera With 360 Degrees Pan thumbnail-1
Fixed Lens Video Conference Camera With 360 Degrees Pan thumbnail-2
Fixed Lens Video Conference Camera With 360 Degrees Pan thumbnail-3
Fixed Lens Video Conference Camera With 360 Degrees Pan thumbnail-4
Fixed Lens Video Conference Camera With 360 Degrees Pan photo-1
Fixed Lens Video Conference Camera With 360 Degrees Pan photo-2
Fixed Lens Video Conference Camera With 360 Degrees Pan photo-3
Fixed Lens Video Conference Camera With 360 Degrees Pan photo-4
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Video Conference System, Other, Video Conference System, Mini camera
Function:
Other
Simultaneous Interpretation:
No
Contact Supplier Request Quote Chat Now
Shenzhen Oneking Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Video Conference System, Other, Video Conference System, Mini camera
Function Other
Simultaneous Interpretation No
Place of Origin Guangdong, China
Brand Name Oneking/OEM
Model Number C361

Specifications

Fixed Lens Video Conference Camera
6mm fixed lens
S-Video,VISCA Protocol RS-485/422
Wall/ceiling/Tripod mounts

Detailed Product Description:
1.Fixed Video Conference Camera
2. 6mm fixed lens
3. RCA or S-Video,VISCA Protocol
4. P/T/Movement
5. Wall/Ceiling mounting

We are the professional manufacturer of Video Conferencing Camera

Fixed lens Video Conference Camera with 360 degrees pan



 Fixed lens Video Conference Camera with 360 degrees pan





Features]

Main Features:



- 6mm fixed lens 480TVL/650TVL

-  USB Video Output is optional

-  VISCA OUT RS-232C for 2nd camera control

 - CD Driver in the package

 - 64 preset position

 - Pan >0~280°/s Tilt >0~100°/s

- 360° continuously Pan rotation

 - Provided wall & ceiling/ Desk fix mounting

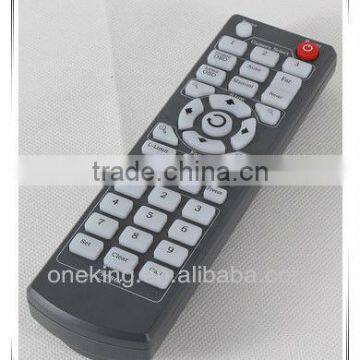

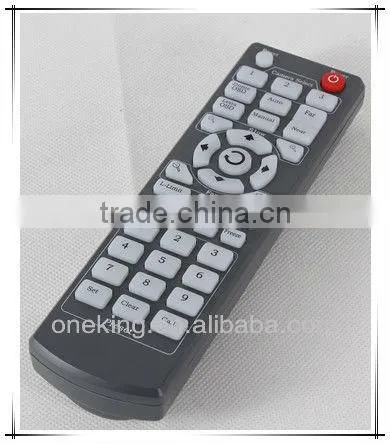

- IR Remote controller  One touch to Multi-functions

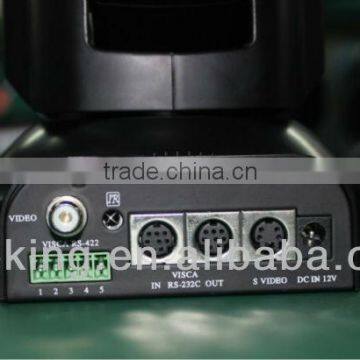

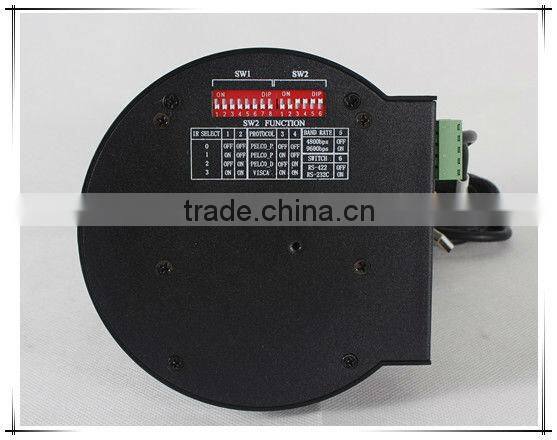

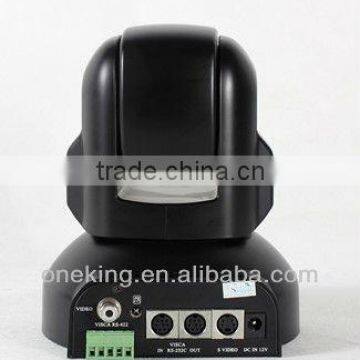

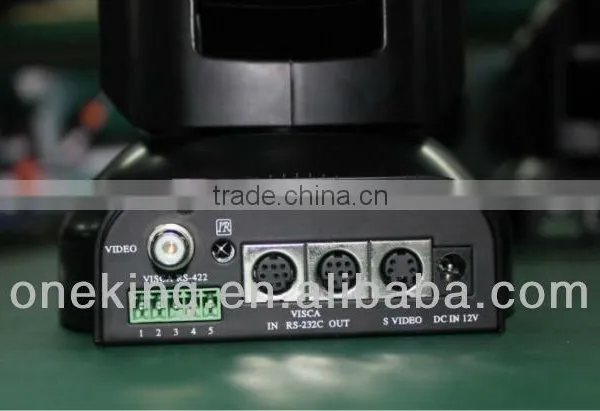

Detail images shows of Fixed Video PT Conference Camera:



Fixed lens Video Conference Camera with 360 degrees pan





Fixed lens Video Conference Camera with 360 degrees pan



PTZ USB Fixed lens Video Conference Camera Size:



Fixed lens Video Conference Camera with 360 degrees pan

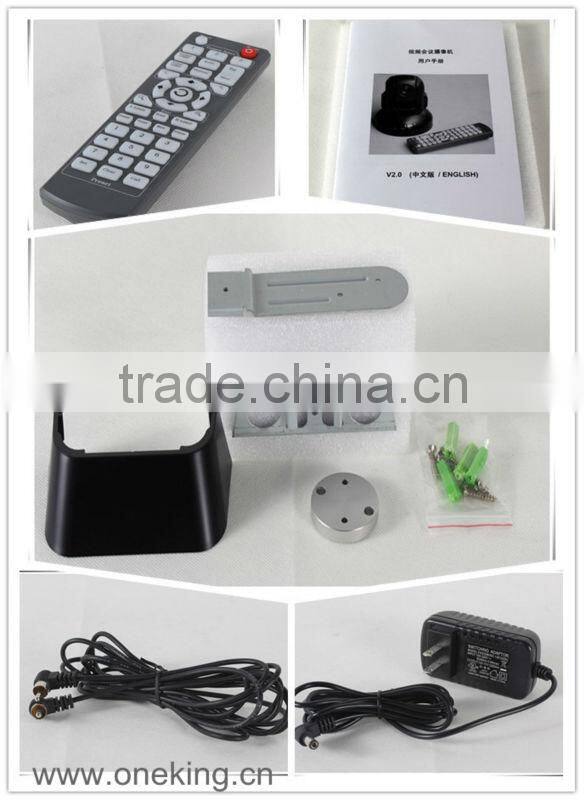

Accessories of  Video Conference Camera :





Controller  / Bracket / For Tripod / Screw / User Manual/  Power Adaptor  /Control Wire /  Video Capture Card Driver



PTZ  USB Fixed lens Video Conference Camera Package Box :









Fixed lens Video Conference Camera



Specification:



Model No.
C361
Image Sensor
Sensor
1/4" SONY CCD

Signal System
PAL/NTSC
Illumination
0.7Lux Color/0.05Lux B/W

White Balance
Auto/Manual
Gain Control
Auto
Back-light
compensation
On /Off
E-Shutter
1/50 - 1/120,000S

Horizontal
Resolution
480TVL
S/N Ratio
>50db
Lens
Focus
6mm

Iris
Auto/Manual
Zoom
fixed lens
Video Output
VBS: 1.0Vpp at 75 Ohm, S-Video (MINTRON/SONY Camera module)
USB Output (Optional)
Control Decoder
Built-in decoder
Communication
Interface
EIA/RS422, EIA/RS232(Bidirectional)
PTZ Control Protocol
VISCA, PELCO-P, PELCO-D (optional)
Baud Rate
4800/9600bps
Patrol Lines
4 Patrol Lines
Preset Position
64 Preset Position
Power-off Protection
Saved scanning or patrol line settings Automatically Before power off
Speed Matching
Slow down camera Pan/Tilt movement speed while camera zooming in
OSD Menu
To change parameters of camera or camera module from OSD Menu
Image Auto Flip
Image Auto Flip
Pan Speed
1-280 degree per second
Tilt Speed
1-100 degree per second
Pan Rotation Angle
360 degree continuously
Tilt Rotation Angle
240 degree
Auto Pan Scan
Support auto pan scanning
Boundary Scan
0-359 degree (programmable)
Remoter Control
IR wireless remote controller P/T/Z
Power Supply
DC12V±10%, 1.2A
Working Temperature
0-50°C
Environment Humidity
0-95%RH
Size(LxWxH)
124X120X145mm
Weight
800g
