Help CenterGYTY53-- Layer Stranding Optical Fiber Cable With PE Sheath and Steel Tape Armoring Sheath
Related Products
-
2015 New Products GYXTW Aerial Single Mode 24 Core Fiber Optical Cable Price per MeterUS$ 100 - 10,000MOQ: 1 Kilometer -
Fiber Optical Cable GYXTW/Aerial, Duct, Direct Burial Fibre CableUS$ 100 - 10,000MOQ: 1 Kilometer
-
GYXTW 4 Core Optical Fiber Cable / 6 Core Fiber Optic Cable / 12 Core Fiber Optic CableUS$ 100 - 10,000MOQ: 1 Kilometer
-
Best Quality of Single Loose Tube Outdoor /indoor Fibre Optic Cables GYFXYUS$ 100 - 10,000MOQ: 1 Kilometer
-
8core Multi Tube Armoured Duct & Aerial GYXTW Hdpe Pipe for Fiber Optic CableUS$ 0.08 - 3MOQ: 10 Kilometers
Packaging Detalis:
All cables will be delivered on drums with protection of both ends of the cable. Each drum will be a waterproof mark, with clearly factory name, date, cable type, cable length in unit gross weight, cable outer diameter, cable weight, and so on and will be provided the length of all fibers in each drum.
Delivery:
Within 10-20 days after receipt of the deposit confirmed.

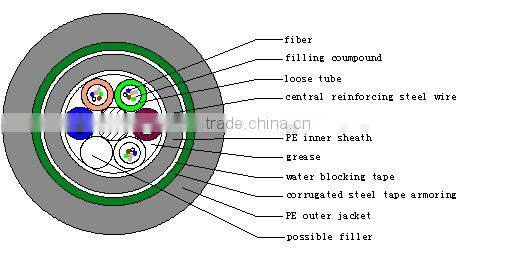

Loose tube
Metallic central reinforcing element
Filling compound
PE inner sheath
Corrugated steel tape coated with PE outer sheath
1.Low attenuation and dispersion, special control of exceed length and layer stranding technology ensures the good transmission, mechanical and environment performance.
2.Corrugated steel tape armored, enhance the cable resistance ability to lateral pressure
Water blocking material Ointment and waterproof tape prevent the cable from longitudinal water penetration.
3.Double jacket design enhances the performance of crushing, shot-gun resistance and water blocking.
4.Provide multi-protection to the cable and prevent the mechanical damage and rodent gnawing.
• Suitable for long-distance trunk and LAN communication.
By direct burial, duct and aerial
Fiber count(core) |
2-36 |
38-40 |
42-48 |
50-60 |
62-72 |
74-84 |
86-96 |
98-108 |
110-120 |
122-132 |
134-144 |
Outer diameter(mm) |
12.1 |
12.3 |
13.2 |
13.6 |
14.4 |
13.8 |
14.8 |
15.6 |
16.6 |
17.4 |
18.1 |
Cable weigh(kg/km) |
145 |
150 |
170 |
190 |
210 |
200 |
215 |
235 |
255 |
280 |
300 |
Minimum tensile strength(N) |
Short-term: 3000 |
||||||||||
Long-term: 1000 | |||||||||||
Minimum crushing(N/100mm) |
Short-term: 3000 |
||||||||||
Long-term: 1000 | |||||||||||
Bending radius |
Static:12.5 times of diameter Dynamic:25 times of diameter |
||||||||||
Standard length for delivery(km) |
2~6 |
||||||||||
Temperature range(0C) |
-40~+60 |
||||||||||
Comfortable Working Environment
Packing
