Product Details
Condition: | New | Application: | Beverage, Other, Beverage, beer bottle filling machine beer bottle filling and capping machine | Packaging Type: | Bottles, Other, Bottles, beer bottle filling machine beer bottle filling and capping machine |
Packaging Material: | Glass, Other, Glass, beer bottle filling machine beer bottle filling and capping machine | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 380V/50Hz (Or according to customer's requirements) | Power: | 1.5kw | Place of Origin: | Zhejiang, China |
Brand Name: | MIC | Model Number: | MIC-18-18-1 | Dimension(L*W*H): | 2300*1400*2500mm |
Weight: | 4500kg | Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
MIC-18-18-1 Micmachinery Chinese manufacturer beer bottle filling machine beer bottle filling and capping machine with CE
Video link:/watch?v=_kWjMK9v5Uo
We are manufacturer for can filling seaming machine and glass bottle filling capping machine, steady machine which can reach Germany standard, hope you can come to see us.
Type machine:
Model No. | XGF12-8-1 | XGF12-12-1 | XGF18-18-1 | XGF18-18-6 |
Rinsing heads | 12 | 12 | 18 | 18 |
Filling heads | 8 | 12 | 18 | 18 |
Capping heads | 1 | 1 | 1 | 6 |
Production capacity | 1000BPH | 2000BPH | 2500BPH | 4000BPH |
Model No. | XGF24-24-6 | XGF32-24-6 | XGF32-32-6 | XGF72-72-8 |
Rinsing heads | 24 | 32 | 32 | 72 |
Filling heads | 24 | 24 | 32 | 72 |
Capping heads | 6 | 6 | 6 | 8 |
Production capacity | 5000BPH | 8000BPH | 10000BPH | 36000BPH |
Product Description:
The series of products are the aseptic filling equipment for the pure beer, designed and developed on the basis of introducing the technology from Germany and combining the features in the production industry of pure beer in China. This machine is of good reliability of mechanical operation, perfect functions in rinsing, filling, capping, disinfecting and sterilizing, realizing filling the sterile beer into the sterile container in a sterile environment
1. This equipment is automatic washing filling capping three in one machine. Its of many advantages, such as compact structure, perfect control system and easy to be operated. Advanced touch screen and PLC control system makes man-machine communication true.

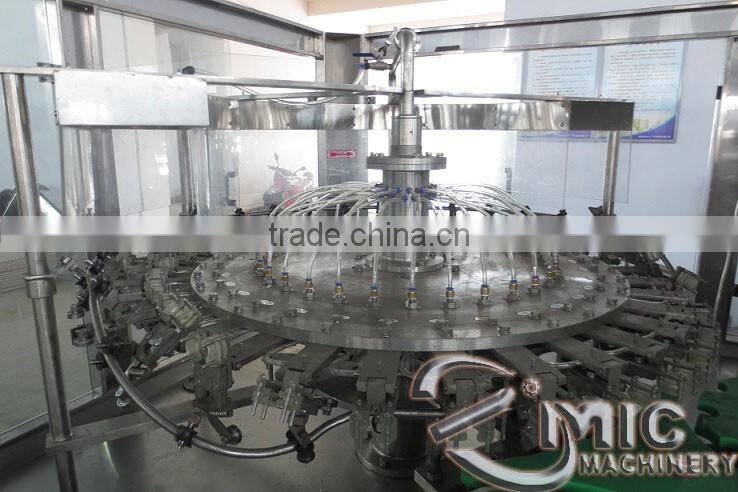

2. Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.

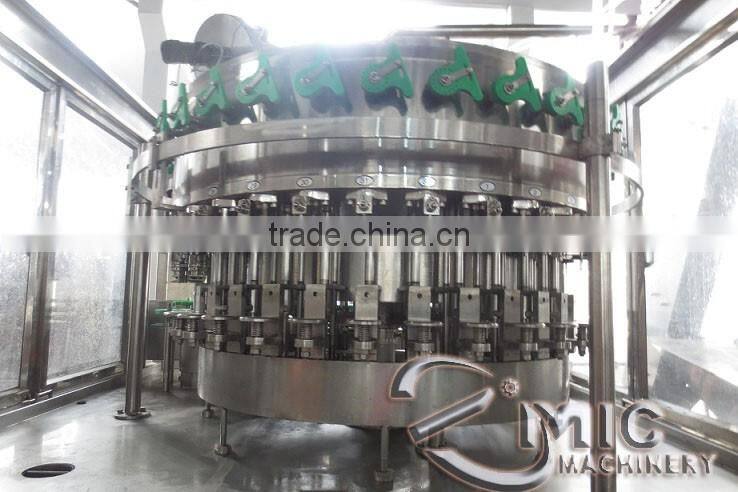

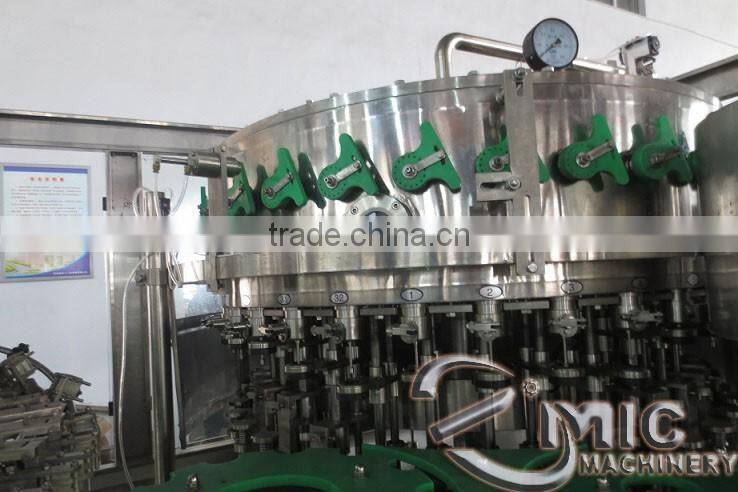

3. Filling part is mainly composed of filling barrel, filling valve (low temperature and isobar filling), filling pump, bottle hanging device / bottle pedestals, guide rail, elevating device, liquid indicator, pressure gauge, pressure regulator, etc.

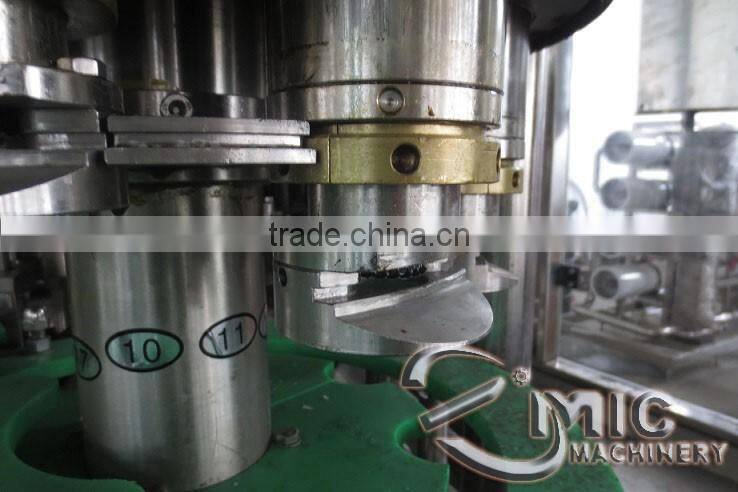

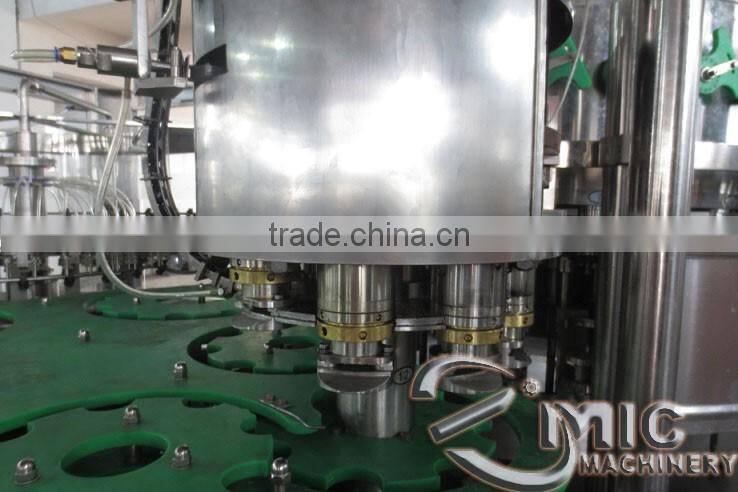

4. Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.
5. Main electrical components are all imported from world famous brands to guarantee excellent performance of the whole machine.

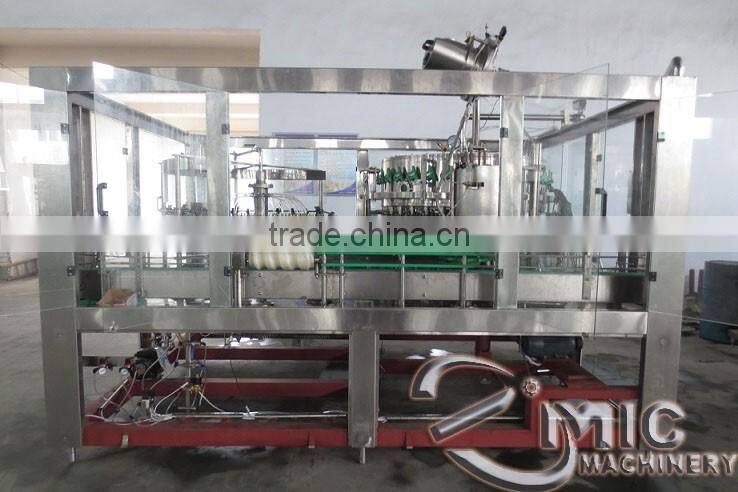

Beer Filling Machine Monoblock (CGF18-18-1)---The machine was used for filling beer into glass bottle and seal it by crown cap. The beer filling machine monoblock was combined with glass bottle washing, beer filling and crown capping machine into one body.
The guiding shaft for bottle positioning with bottle support, stable bottle in feed and discharge.
The controlling theory for the high pressure foaming injection system.
The high pressure forming injection system(induced bubble device) can reduce the air into beer bottle to use foam. So the beer will be more purity and fresh.
The beer filler height adjustable and crowner heads for different height of bottle. Designed cap hopper and transporter, less cap distortion, simpler structure and easier for clearing.
The crowner can be fully decrease the bacterial pollution.
Fast change over parts, such as bottle in feed worm, star wheel and guiding board.
Programmable controller automatically controls the filling steps, cullet flushing, filling valve opening/closing.
High pressure foaming.
It is a good beer machine for small and middle beer maker.
Packaging & Shipping:
1.Beer bottle filling machine beer bottle filling and capping machine
2.Export wooden case
3.One set in one case
4.Film wrapped
5.Wooden case size
Company Information:
Company introduction: Our company (Micmachinery) is found 2008, since 2010, the management board has rebuilt, after reconstruction, Micmachinery.Co.,Ltd has become a company, has one factory, one joint venture factory, what's more, we have 5 offices in China, here we have connection office for customer convenience.
About machine quality, 80% of machine is made from our own processing machines, and we have Chinese standard and high requirement standard for Europe. In order to full fill various markets.
About the Installation and training, Please no worries, we offer the machines installation and the translation service, the trader will be your site to help your installation and training.
FAQ
For Automatic glass bottle filling sealing machine question:
First of all, Before we operate Automatic glass bottle filling sealing machine, to clearly understand the instructions clearly Automatic glass bottle filling sealing machine, first read through the instructions again, adjust and use the familiar Automatic glass bottle filling sealing machine operating time must be in strict accordance with the instructions to Automatic glass bottle filling sealing machine instructions , pay attention to details of the problem , certainly the details determine success or failure
Secondly, In accordance with the instructions on the machine for regular repair and maintenance of the Automatic glass bottle filling sealing machine fuselage Oil it , so Automatic glass bottle filling sealing machine body as far as possible to protect the reservoir, so that the air can be isolated to avoid Automatic glass bottle filling sealing machine rusty , well protected Automatic glass bottle filling sealing machine body, and this is a way to extend the life of the 2 in1 filling machine .
Once again, We have to pay attention to hot stand -sealing cloth for cleaning, not retained foreign body in the above, to ensure clean Automatic glass bottle filling sealing machine try to avoid the amount of material for a long time into the mouth of the left cause corrosion.
Fourth, We should always check the machine to see contacts at various parts of the machine is good, important to ensure safe use of electricity, no electricity properly to prevent harm.
Fifth, If found faulty , we have to turn off the power , when necessary, by pressing the emergency stop button , and then deflated lift cover, and then close the voltage , check the reason , and troubleshooting.
Our Services:
According to customer’s requirement, we will offer our technician for oversea to install and adjust Beer bottle filling machine beer bottle filling and capping machine service.
We can also provide our Sales as translator to your site help the installation and Training.
Only to provide the local transportation, accommodation, air tickets (round trip) for Sales will be fine.
