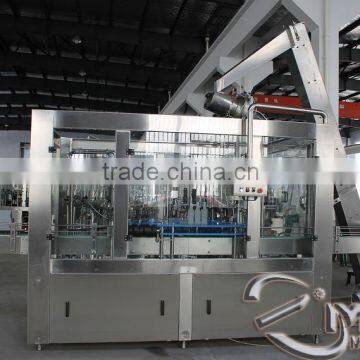

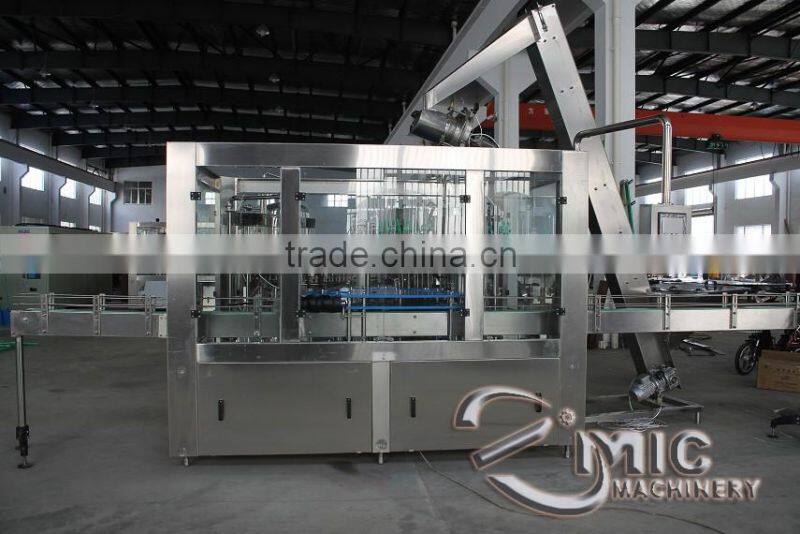

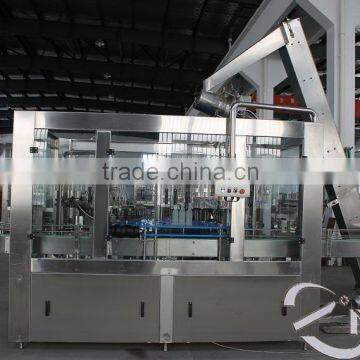

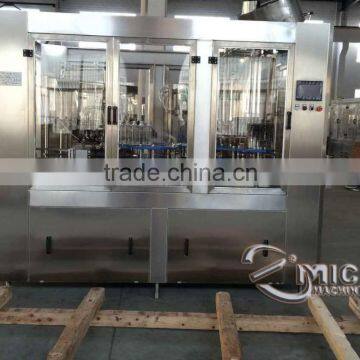

MIC-24-24-6 Micmachinery Top Quality Professional Manufacturer Glass Bottle Beer Making Equipment Wine Making Equipment With CE

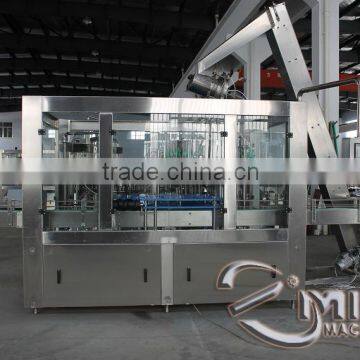

MIC-24-24-6 Micmachinery Top quality three in one glass bottle beer making equipment wine making equipment 5000-7000bph with CE

Video link:/watch?v=_kWjMK9v5Uo

We are manufacturer for can filling seaming machine and glass bottle filling capping machine, steady machine which can reach Germany standard, hope you can come to see us.

Other type machine:

Product Description:

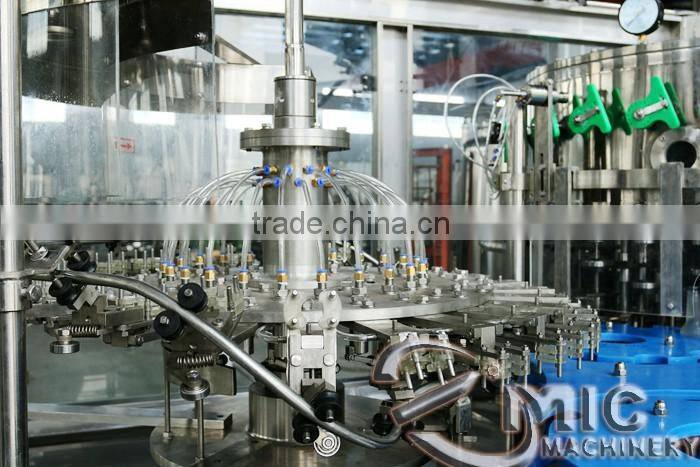

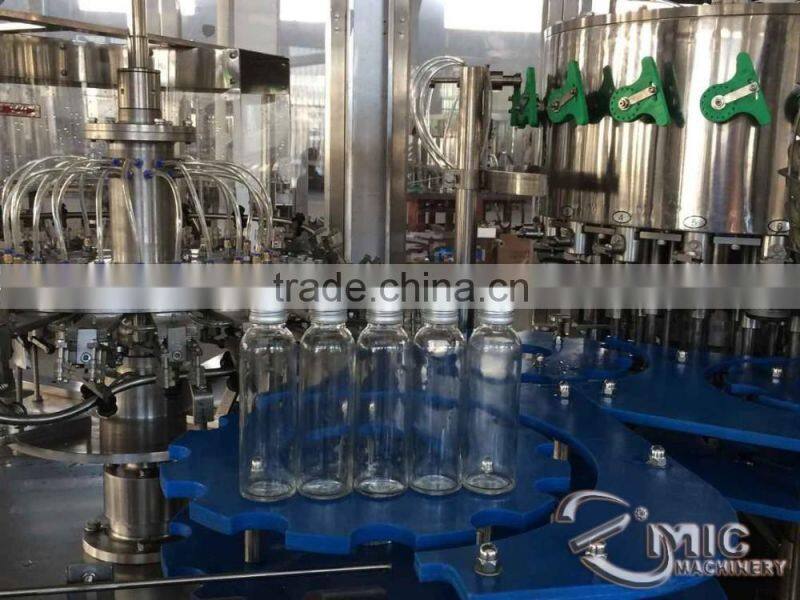

Rinser

1. The rotary wheel is a fully stainless steel welded structure.

2. The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of SUS304 stainless steel, this bottle clamp is hygienic and durable.

3. The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.

4. All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.

5. The rinser is driven by driving system positioned inside machine frame via gear transmission.

6. Transfer starwheel

7. Made of stainless steel of superior quality.

8. Equipped with bottle jam protection device.

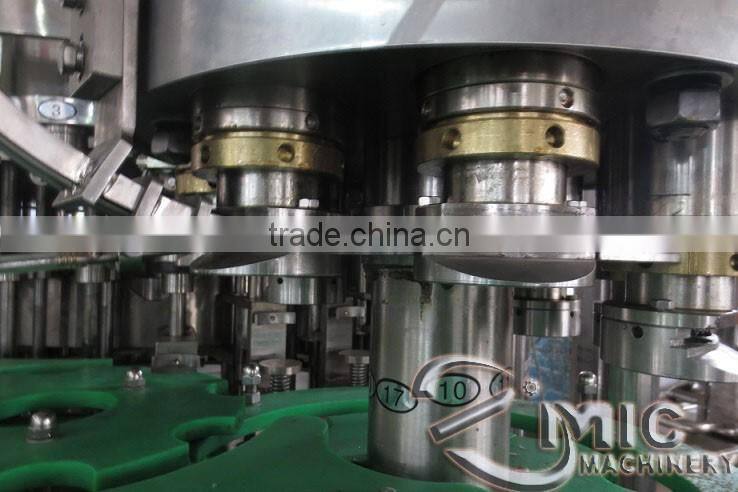

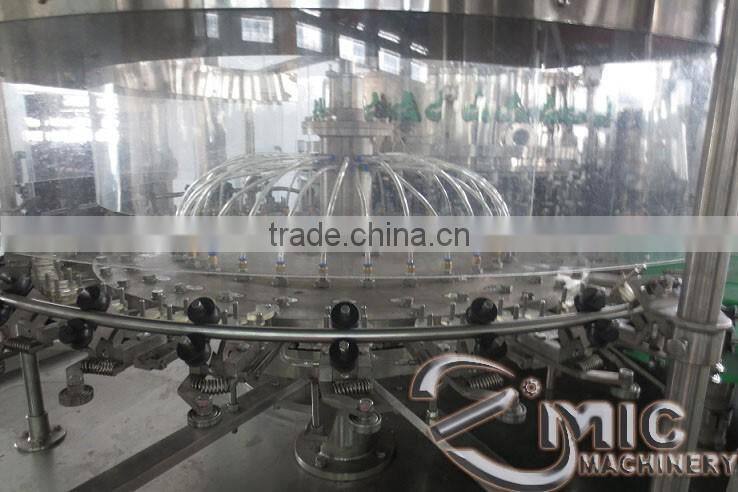

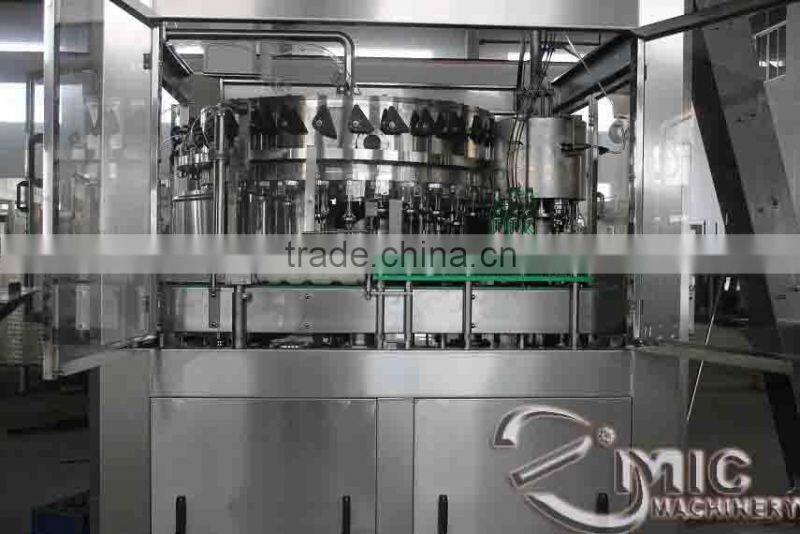

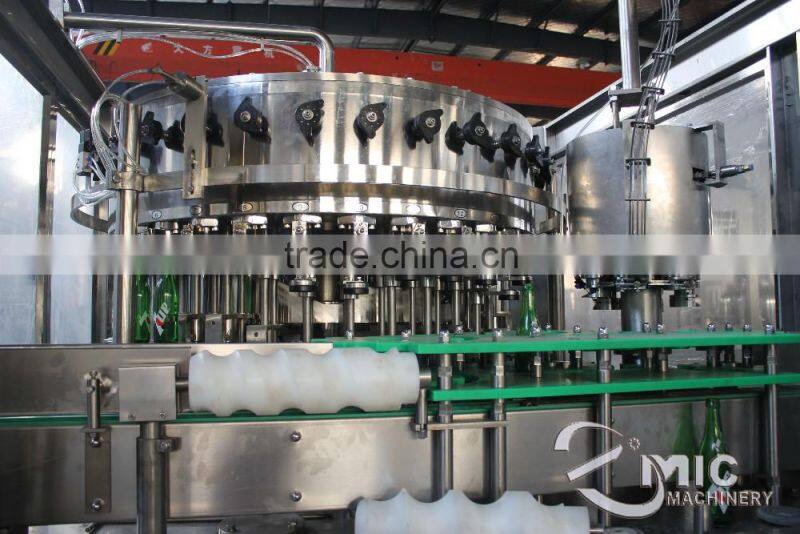

Filler

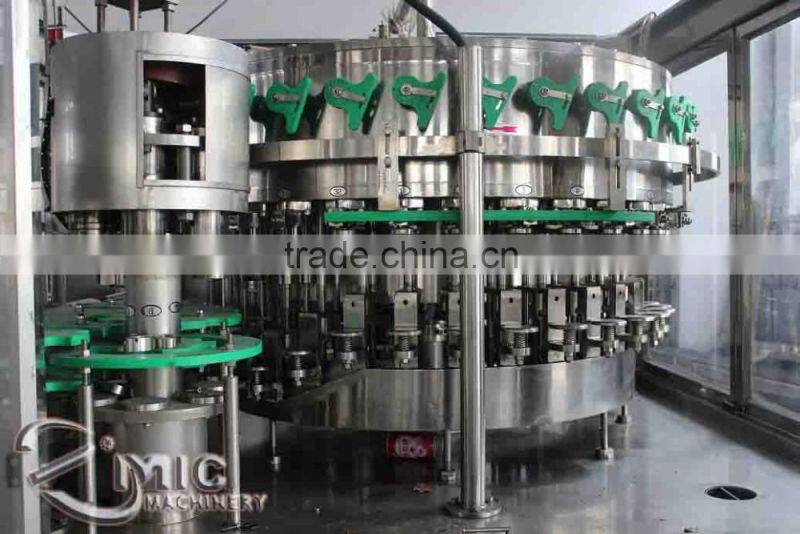

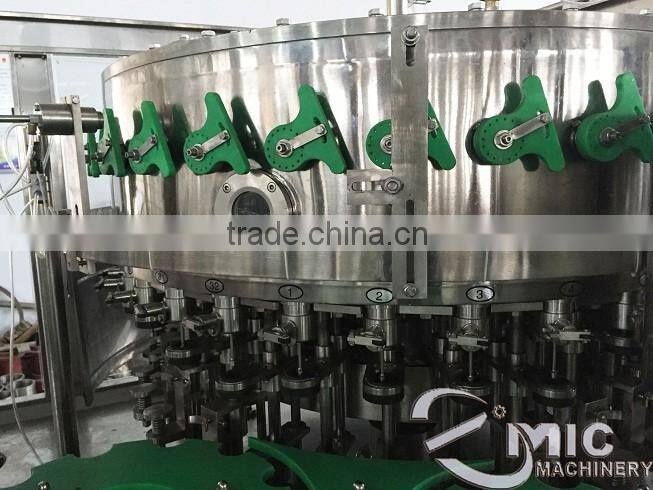

1. Rotary wheel fully made of stainless steel SUS 304.

2. Gravity filling method.

3. Filling valves are made of SUS316L.

4. Filling valves are reasonably structured with accurate filling.

5. Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.

6. Level of cylinder is controlled with float-ball.

7. Filler is driven through gears inside the machine frame.

8. Link-wheels in rinser, filler and capper are transported in ringed support of bottle-neck.

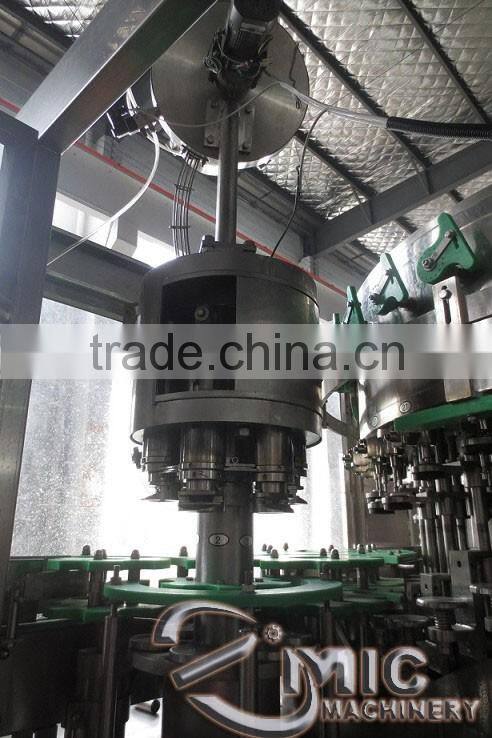

Capper

Capper is the machine with highest precision, influence very much with the stability and reliability of the filling monoblock. Our capper features as follows:

1. Cap distributing chute is equipped with reverse cap stop and reverse cap pick-out mechanism.

2. Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute.

3. The capper is equipped with inlet bottle detection switch.

4. Centrifugal way of cap arranging is adopted to reduce damage of caps.

5. A cap inspecting system is applied to control on-off of elevator.

1, The rinsing machine using high-strength stainless steel bottles of spring-loaded folders, to ensure a stable reversal of the glass bottles. The nozzle is a plum-like structure can wash every corner of the sidewall and bottom to make the bottle clean.
2, Filling machine with spring-type mechanical lifting equipment to upgrade glass bottles, large bearing support floundering in the vat and use of guide-rod in the orientation of the structure, there are pre-cover features.
3, Using high-precision mechanical filling valve, with cylinder liquid level and the back pressure controlled by a variable signal proportional. Fast, stable, accurate, to be vacuum one at a time.

4, Stainless steel plunger and mechanical stirring gland-type magnetic reasonable cap to ensure that the gland is healthy and reliable. Hopper and the cap taking- cover, capping transmitted by magnetic. The capping is reliable and automatic unloading, reducing the rate of broken bottles.
5, Before the capping, use hot water bubble set to displace bottlenecks air, ensuring the oxygen content of less than 0.15mg / L.
6, Filling machines includes broken bottle automatically stopping valve, broken bottle washing, and foam automatically exhausting device.
7, with perfect CIP cleaning function, and capable of rinsing filling pipes with acid, lye liquid and hot water.
8, All the materials in contact with the valves, tanks, pipes are made of stainless steel 304 materials, inside and outside the wall of mirror-polished, ensuring it is healthy.
9, Manually dry oil lubrication system to make sure equipment maintenance is more convenient.
10, The whole operation adopts advanced man-machine interface, PLC control, frequency conversion stepless speed regulation and other automatic control technology, with no bottle no open valves, no stamps; No cap no operation, and other security protection.

Packaging & Shipping:

1.Glass bottle beer making equipment wine making equipment
2.Export wooden case
3.One set in one case
4.Film wrapped
5.Wooden case size

Company Information:

Company introduction: Our company (Micmachinery) is found 2008, since 2010, the management board has rebuilt, after reconstruction, Micmachinery.Co.,Ltd has become a company, has one factory, one joint venture factory, what's more, we have 5 offices in China, here we have connection office for customer convenience.

About machine quality, 80% of machine is made from our own processing machines, and we have Chinese standard and high requirement standard for Europe. In order to full fill various markets.

About the Installation and training, Please no worries, we offer the machines installation and the translation service, the trader will be your site to help your installation and training.

Staff first, Stuff important

Aim:
Staff is the master of this company; Staff will become the owner of this company.
Management:
Learning, growing, adjusting, cultivating, picturing, accrediting, assuming, expanding, inspiring.
Believes:
Enterprise is your family; you are the member of this family.
Enterprise Vision:
Become a powerful, manufacturing, trading, refreshing concept company; strive to be hundred years enterprise.
Mission:
Provide the perfect solution for our friends.

FAQ

For glass bottle filling and sealing machine question:

First of all, Before we operate Automatic glass bottle filling and sealing machine, to clearly understand the instructions clearly Automatic glass bottle filling and sealing machine, first read through the instructions again, adjust and use the familiar Automatic glass bottle filling and sealing machine , the operating time must be in strict accordance with the instructions to Automatic glass bottle filling and sealing machine instructions , pay attention to details of the problem , certainly the details determine success or failure

Secondly, In accordance with the instructions on the machine for regular repair and maintenance of the Automatic glass bottle filling and sealing machine fuselage Oil it , so Automatic glass bottle filling and sealing machine body as far as possible to protect the reservoir, so that the air can be isolated to avoid Automatic glass bottle filling and sealing machine rusty , well protected Automatic glass bottle filling and sealing machine body, and this is a way to extend the life of the 2 in1 filling machine .

Once again, We have to pay attention to hot stand -sealing cloth for cleaning, not retained foreign body in the above , to ensure clean Automatic glass bottle filling and sealing machine try to avoid the amount of material for a long time into the mouth of the left cause corrosion .

Fourth, We should always check the machine to see contacts at various parts of the machine is good, important to ensure safe use of electricity, no electricity properly to prevent harm.

Fifth, If found faulty , we have to turn off the power , when necessary, by pressing the emergency stop button , and then deflated lift cover, and then close the voltage , check the reason , and troubleshooting.

Our Services:

According to customer’s requirement, we will offer our technician for oversea to install and adjust glass bottle beer making equipment wine making equipment service.

We can also provide our Sales as translator to your site help the installation and Training.

Only to provide the local transportation, accommodation, air tickets (round trip) for Sales will be fine.
