Specifications
ACSR conductor - Aluminum Conductor Steel Reinforcednductor:aluminium
2.low voltage
3.overhead used
4 high quality

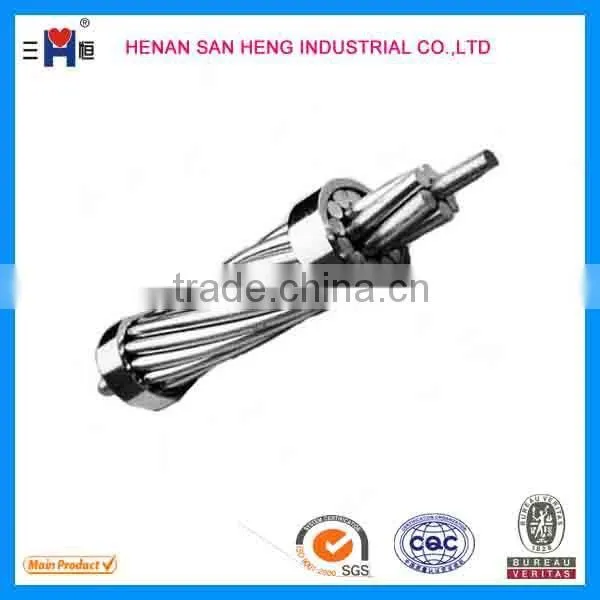

95mm2 ACSR Conductor Aluminum Conductor steel reinforced_ACSR cable
Standard:
According to IEC61089, and can also manufacture by standard of GB119783, ASTM, BS215, DIN and AS/NZS or other standards.
Characters:
1. Under the same weight, ACSR is with lower cost than Copper conductor.
2. In order to foster the prevention of corrosion, the non-oxidizing grease can be fully or partially applied to ACSR.
3. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength
to be achieved without sacrificing ampacity.
Advantages:
1. Excellent electric and mechanical characteristics.
2. Good conductivity, Resistance chemical corrosion and heat-ageing,environment stress.
3. Unit volume light, Simple in structure.
4. Convenient to use, especially for laying across
Application of ACSR (Aluminum Conductor Steel Reinforced)
ACSR cables have been widely used in power transmission lines with various voltage levels, because they have such good characteristics as simple, convenient installation and maintenance, low cost, large transmission capacity. Besides, they are also suitable for laying across rivers, valleys and the places where special geographical features exist.
Code name |
Nominal Area |
Stranding&Wire Diameter |
Approx Overall Diameter |
Sectional Area |
Approx Weight |
Breaking Load |
DC Resistance |
|||
Al |
Steel |
Al |
Steel |
Total |
||||||
mm2 |
mm |
mm |
mm |
mm2 |
mm2 |
mm2 |
Kg/km |
KN |
Ohm/km |
|
Squirrel |
20 |
6/2.11 |
1/2.11 |
6.33 |
21.0 |
3.50 |
24.5 |
84.7 |
7.87 |
1.3659 |
Gopher |
25 |
6/2.36 |
1/2.36 |
7.08 |
26.24 |
4.38 |
30.62 |
106 |
9.61 |
1.0930 |
Ferret |
40 |
6/3.00 |
1/3.00 |
9.00 |
42.41 |
7.07 |
49.48 |
172 |
15.20 |
0.6766 |
Rabbit |
50 |
6/3.35 |
1/3.35 |
10.05 |
52.88 |
8.82 |
61.70 |
214 |
18.35 |
0.5426 |
Mink |
60 |
6/3.66 |
1/3.66 |
11.00 |
63.1 |
10.50 |
73.6 |
254.9 |
21.67 |
0.4540 |
Horse |
70 |
12/2.79 |
7/2.79 |
13.95 |
73.37 |
42.83 |
116.20 |
538 |
61.20 |
0.3936 |
Dog |
100 |
6/4.72 |
7/1.57 |
14.15 |
105.00 |
13.50 |
118.50 |
394 |
32.70 |
0.2733 |
Wolf |
150 |
30/2.59 |
7/2.59 |
18.13 |
158.10 |
36.80 |
194.90 |
726 |
69.20 |
0.1828 |
Goat |
300 |
7/3.71 |
7/3.71 |
26.00 |
324.3 |
75.70 |
400.0 |
1488.2 |
135.13 |
0.0891 |
Bison |
350 |
7/3.00 |
7/3.00 |
27.00 |
381.7 |
49.50 |
431.2 |
1442.5 |
121.30 |
0.0758 |
Zebra |
400 |
54/3.18 |
7/3.18 |
28.62 |
428.90 |
55.60 |
484.50 |
1621 |
131.90 |
0.0674 |
Factory information
Established in 2000, Henan San Heng Industrial Co., Ltd. with those years' unremitting efforts and endeavors, has achieved sound cooperation and widely compliments from the clients throughout our country and all over the world by superior quality, reasonable price and sincere services.
Our products are mainly covering PVC cables .building cables, XLPE insulated power cables, PVC insulated power cables, aerial-bundle cables, PVC insulated wires, control cables, rubber cables, bare conductors, welding cables, and other related products.
Main Markets: Domestic market, Africa, Eastern Europe, Southeast Asia.
Testing
If you have any problem , please don't hesitate ro contact us.Your inquiry is welcomed at anytime.
we are confident to render our best service to you with promptness & efficiency.
1. Sufficient support for our tendering representatives.
2. OEM service available based on official & legal authorization.
3. Strict quality control system.
4. Faster lead time than our competitors.
5. Excellent quality with reasonable price.
6. Strong technical support (technical data, drawing, etc.)
7. Cable solutions to your particular requirements.
8. Free sample is available with economic express fee.
9. 12 months quality guarantee after delivery.
