Specifications

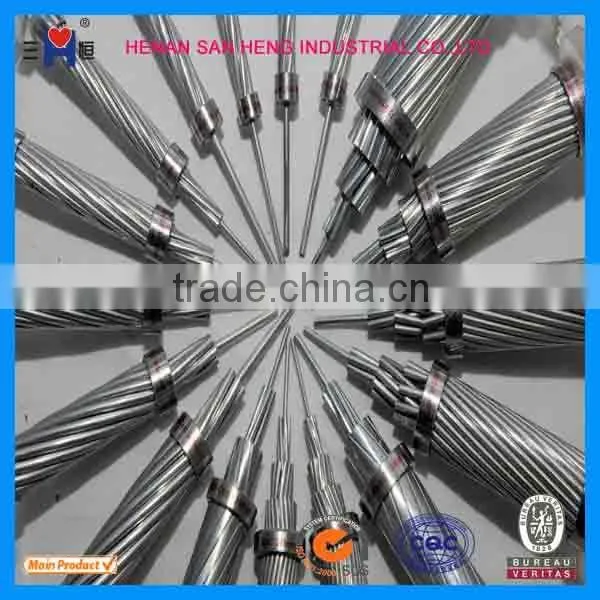

Overhead ACSR Conductor- Aluminum Conductor Steel Reinforced
nductor:aluminium
2.voltage:low
3.for overhead use
Bare Conductor Widely Used In Power Transmission Lines AAC AAAC ACSR AACSR ACAR ACS AC AL Bare Conductor
Bare Conductor Application:
Used as bare overhead transmission conductor and as primary and secondary distribution conductor and messenger support.ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.
Bare Conductor Quality:
Production accroding to ASTM-B232,BS215-2,and IEC60189,DIN48201.
Bare Conductor Material:
Conductor:AL1350 pure aluminum
Steel core:G1A or G2A steel wire
Galvanized steel reinforced
Bare Conductor Working Conditions:
Ambient temperature:Above -20°C
Working temperature:Not exceed 80°C
Laying bending radius:Not less than 30 times the cables outer diameter
Bare Conductor Standards:
ASTM-B232 Standard specification for Concentric-Lay-Stranded Aluminum 1350 Conductors
BS215-2 Aluminium conductors steel-reinforced —For overhead power transmission
DIN48204 Steel reinforced aluminum stranded conductors
IEC209 Aluminum stranded conductor steel reinforced
Customized type available.
MOQ: 1*20GP full container
Delivery: 15-20 days
Code name |
Nominal Area |

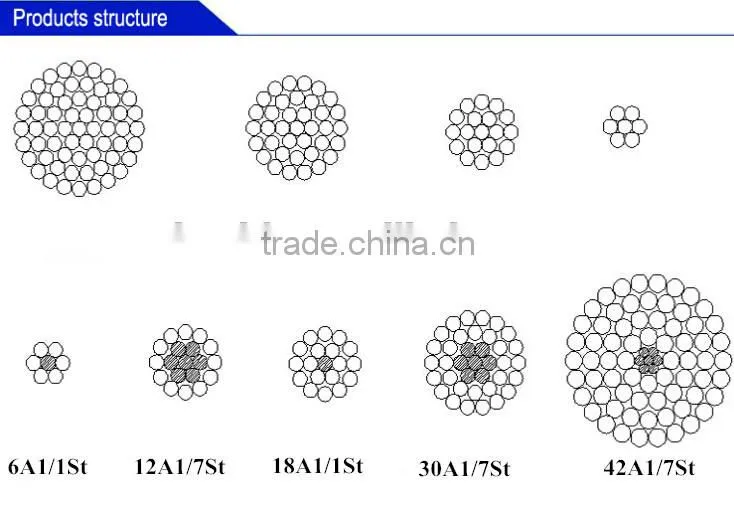

Stranding&Wire Diameter |
Approx Overall Diameter |
Sectional Area |
Approx Weight |
Breaking Load |
DC Resistance |
|||
Al |
Steel |
Al |
Steel |
Total |
||||||
mm2 |
mm |
mm |
mm |
mm2 |
mm2 |
mm2 |
Kg/km |
KN |
Ohm/km |
|
Squirrel |
20 |
6/2.11 |
1/2.11 |
6.33 |
21.0 |
3.50 |
24.5 |
84.7 |
7.87 |
1.3659 |
MOLE |
10 |
6/1.50 |
1/1.50 |
4.50 |
10.62 |
1.77 |
12.39 |
43 |
4.14 |
2.076 |
Gopher |
25 |
6/2.36 |
1/2.36 |
7.08 |
26.24 |
4.38 |
30.62 |
106 |
9.61 |
1.0930 |
WEASEL |
30 |
6/2.59 |
1/2.59 |
7.77 |
31.61 |
5.27 |
36.88 |
128 |
11.45 |
0.9077 |
FOX |
35 |
6/2.79 |
1/2.79 |
8.37 |
36.66 |
6.11 |
42.77 |
149 |
13.2 |
0.7822 |
Ferret |
40 |
6/3.00 |
1/3.00 |
9.00 |
42.41 |
7.07 |
49.48 |
172 |
15.20 |
0.6766 |
Rabbit |
50 |
6/3.35 |
1/3.35 |
10.05 |
52.88 |
8.82 |
61.70 |
214 |
18.35 |
0.5426 |
RACOON |
75 |
6/4.10 |
1/4.10 |
12.3 |
79.2 |
13.2 |
92.4 |
320 |
27.2 |
0.3622 |
OTTER |
80 |
6/4.22 |
1/4.22 |
12.66 |
83.88 |
13.98 |
97.86 |
339 |
28.80 |
0.3419 |
CAT |
90 |
6/4.50 |
1/4.50 |
13.50 |
95.40 |
15.90 |
111.30 |
386
|
32.70 |
0.2733 |
Mink |
60 |
6/3.66 |
1/3.66 |
11.00 |
63.1 |
10.50 |
73.6 |
254.9 |
21.67 |
0.4540 |
HARE |
100 |
6/4.72 |
1/4.72 |
14.16 |
105.00 |
17.50 |
122.50 |
425 |
36.00 |
0.3007 |
Horse |
70 |
12/2.79 |
7/2.79 |
13.95 |
73.37 |
42.83 |
116.20 |
538 |
61.20 |
0.3936 |
Dog |
100 |
6/4.72 |
7/1.57 |
14.15 |
105.00 |
13.50 |
118.50 |
394 |
32.70 |
0.2733 |
TIGER |
125 |
30/2.36 |
7/2.36 |
16.52 |
131.1 |
30.6 |
161.7 |
602 |
58 |
0.2202 |
Wolf |
150 |
30/2.59 |
7/2.59 |
18.13 |
158.10 |
36.80 |
194.90 |
726 |
69.20 |
0.1828 |
LYNX |
183.4 |
30/2.79 |
7/2.79 |
19.53 |
183.4 |
42.8 |
226.2 |
842 |
79.8 |
0.1576 |
Goat |
300 |
7/3.71 |
7/3.71 |
26.00 |
324.3 |
75.70 |
400.0 |
1488.2 |
135.13 |
0.0891 |
Bison |
350 |
7/3.00 |
7/3.00 |
27.00 |
381.7 |
49.50 |
431.2 |
1442.5 |
121.30 |
0.0758 |
Zebra |
400 |
54/3.18 |
7/3.18 |
28.62 |
428.90 |
55.60 |
484.50 |
1621 |
131.90 |
0.0674 |
High quality, factory price, wholesale, customization, wholehearted service, various specification. Welcome inquiries !
Director Mr. Lee together with all staff members sincerely welcome your visit and guidance at anytime!
Why you choose us?
1) Your inquiry will be replied to within the hour
2) Your label design according to your requirements ready in 2 days
3) 16 years OEM/ODM experience
4) Goods are sold with rerun or refund guarantee due to quality issue!
5) prompt shipment by reputed shipping line and professional documents
6) cargoes photo before and after loading into container after shipment with e-mail
7)15 years after-sale service
If you have any problem , please don't hesitate ro contact us.Your inquiry is welcomed at anytime.
we are confident to render our best service to you with promptness & efficiency.
1.Can you provide Type Test Reports?
A: Yes we can provide type test reports issued by Chinese laboratories.
2. Can we represent SANHENG Cable to bid?
A: Please check it with us if we have authorized any other company in your country already.
3. Have you ever supplied cables to our country?
A: Cables have been supplied to many countries across the world such as USA, Australia, Switzerland, Singapore, Sri Lanka, the Philippines, Mongolia, UAE, Yemen, Iran, Iraq, Nigeria, Egypt, Lesotho, Cameroon, etc.
4. According to which standards can SANHENG Cable produce cables?
A: IEC, BS, VDE, NFC, ASTM, etc
