Specifications
1.High quality2.Promote delivery
3.Best price
4.Manufacturer with more than 15 yeas

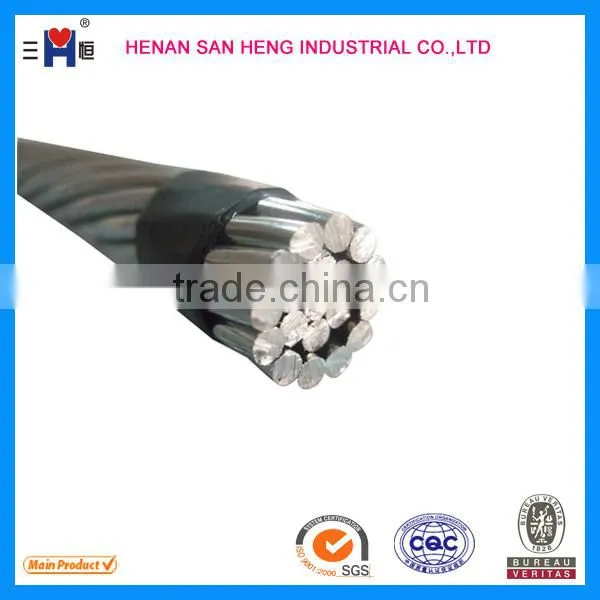

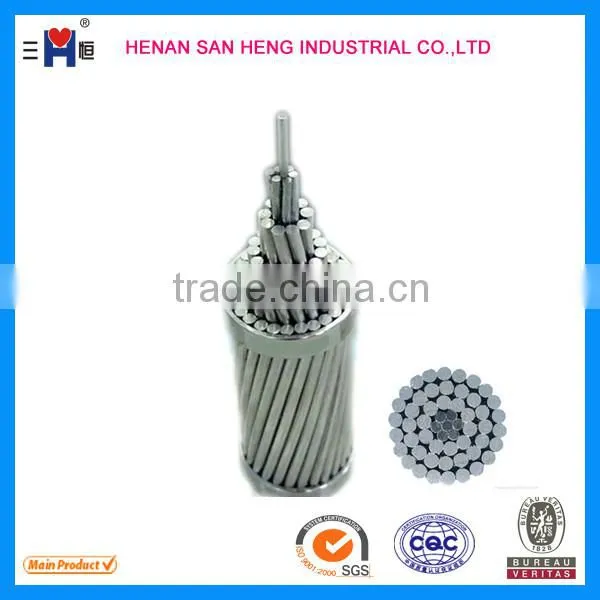

AAAC (All Aluminum Alloy Conductor) referred to have higher strength but lower conductivity than pure aluminum.being lighter, alloy conductors can sometimes be used to advantage in place of the more conventional ACSR;having lower breaking loads than the latter,their use becomes particularly favourable when ice and win loadings are low.
We can supply this conductor according to different recognized standards,such as BS EN50182,IEC61089,ASTM B399DIN 48, customer special specification also can be satisfied.
The data sheets below show the most common standards,British standard and IEC standard.
IEC Sizes IEC 61089
Code Number |
Stranding&wire diameter |
Approx Overall diameter |
Nominal area |
Approx. Weight |
Breaking Load |
DC Resistance at 20 |
mm |
mm |
mm2 |
Kg/km |
KN |
Ohm/km |
|
|
16 25 40 63 100 125 160 200 250 315 400 450 500 560 630 710 800 900 1000 1120 1250 |
7/1.83 7/2.29 7/2.89 7/3.63 19/2.78 19/3.10 19/3.51 19/3.93 19/4.39 37/3.53 37/3.98 37/4.22 37/4.45 61/3.67 61/3.89 61/4.13 61/4.38 91/3.81 91/4.01 91/4.25 91/4.49 |
5.49 6.86 8.68 10.9 13.9 15.5 17.6 19.6 22.0 24.7 27.9 29.6 31.2 33.0 35.0 37.2 39.5 41.8 44.1 46.7 49.4 |
18.4 28.8 46.0 72.5 115 144 184 230 288 363 460 518 575 645 725 817 921 1036 1151 1289 1439 |
50.4 78.7 125.9 198.3 316.3 395.4 506.1 632.7 790.8 998.9 1268.4 1426.9 1585.5 1778.4 2000.7 2254.8 2540.6 2861.1 3179.0 3560.5 3973.7 |
5.43 8.49 13.58 21.39 33.95 42.44 54.32 67.91 84.88 106.95 135.81 152.79 169.76 190.14 213.90 241.07 271.62 305.58 339.53 380.27 424.41 |
1.7896 1.1453 0.7158 0.4545 0.2877 0.2302 0.1798 0.1439 0.1151 0.0916 0.0721 0.0641 0.0577 0.0516 0.0458 0.0407 0.0361 0.0321 0.0289 0.0258 0.0231 |
