ACSR bare conductor acsr BS215 Rabbit ACSR power cable
- 100000 Meter / Meters per Month
- QINGDAO CHINA
- T/T
- Mooring rope cable
- Manufacturer of waterproof gas electric composite cable for air ducts, specialized cable for underwater divers
- The difference between different types of automotive cables and selection advice
- China manufacturer Communicate cable RVVP 4*0.3mm2 for power generation
- IEC62196-2 mode 3 16A single-phase electric vehicle charging process
- Automotive high-voltage cables with protection class IP67 characteristics
Product Details
Place of Origin: | Henan, China | Brand Name: | SANHENG, SANHENG | Model Number: | Rabbit ACSR power cable, Rabbit ACSR power cable |
Insulation Material: | Other, NONE, Bare | Type: | Other, Medium Voltage, Bare | Application: | Other, Overhead, Overhead |
Conductor Material: | Other, Aluminum, Aluminum and Steel | Jacket: | Other, NONE |
Product Description
Specifications
Rabbit ACSR power cable- Aluminum Conductor Steel Reinforced
nductor:aluminium
2.voltage:low
3.for overhead use
ACSR bare conductor acsr BS215 Rabbit ACSR power cable

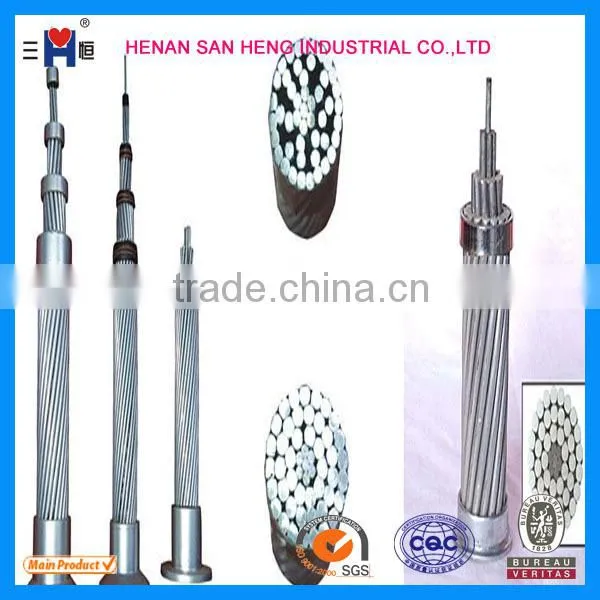

ACSR conductors ( Aluminum Conductor Steel Reinforced)
ACSR(Aluminum Conductor Steel Reinforced) is widely used in the overhead power distribution system of our country.
We can supply this conductor according to different recognized standards,such as IEC61089,BS215,ASTM B232,CSA C49,DIN48204,JIS C3110, customer special specification also can be satisfied.
The data sheets below show the most common standards,British standard.
British Sizes BS215
Code name | Nominal Area | Stranding&Wire Diameter | Approx Overall Diameter | Sectional Area | Approx Weight | Breaking Load | DC Resistance | |||
Al | Steel | Al | Steel | Total | ||||||
mm2 | mm | mm | mm | mm2 | mm2 | mm2 | Kg/km | KN | Ohm/km | |
Squirrel | 20 | 6/2.11 | 1/2.11 | 6.33 | 21.0 | 3.50 | 24.5 | 84.7 | 7.87 | 1.3659 |
MOLE | 10 | 6/1.50 | 1/1.50 | 4.50 | 10.62 | 1.77 | 12.39 | 43 | 4.14 | 2.076 |
Gopher | 25 | 6/2.36 | 1/2.36 | 7.08 | 26.24 | 4.38 | 30.62 | 106 | 9.61 | 1.0930 |
WEASEL | 30 | 6/2.59 | 1/2.59 | 7.77 | 31.61 | 5.27 | 36.88 | 128 | 11.45 | 0.9077 |
FOX | 35 | 6/2.79 | 1/2.79 | 8.37 | 36.66 | 6.11 | 42.77 | 149 | 13.2 | 0.7822 |
Ferret | 40 | 6/3.00 | 1/3.00 | 9.00 | 42.41 | 7.07 | 49.48 | 172 | 15.20 | 0.6766 |
Rabbit | 50 | 6/3.35 | 1/3.35 | 10.05 | 52.88 | 8.82 | 61.70 | 214 | 18.35 | 0.5426 |
RACOON | 75 | 6/4.10 | 1/4.10 | 12.3 | 79.2 | 13.2 | 92.4 | 320 | 27.2 | 0.3622 |
OTTER | 80 | 6/4.22 | 1/4.22 | 12.66 | 83.88 | 13.98 | 97.86 | 339 | 28.80 | 0.3419 |
CAT | 90 | 6/4.50 | 1/4.50 | 13.50 | 95.40 | 15.90 | 111.30 | 386
| 32.70 | 0.2733 |
Mink | 60 | 6/3.66 | 1/3.66 | 11.00 | 63.1 | 10.50 | 73.6 | 254.9 | 21.67 | 0.4540 |
HARE | 100 | 6/4.72 | 1/4.72 | 14.16 | 105.00 | 17.50 | 122.50 | 425 | 36.00 | 0.3007 |
Horse | 70 | 12/2.79 | 7/2.79 | 13.95 | 73.37 | 42.83 | 116.20 | 538 | 61.20 | 0.3936 |
Dog | 100 | 6/4.72 | 7/1.57 | 14.15 | 105.00 | 13.50 | 118.50 | 394 | 32.70 | 0.2733 |
TIGER | 125 | 30/2.36 | 7/2.36 | 16.52 | 131.1 | 30.6 | 161.7 | 602 | 58 | 0.2202 |
Wolf | 150 | 30/2.59 | 7/2.59 | 18.13 | 158.10 | 36.80 | 194.90 | 726 | 69.20 | 0.1828 |
LYNX | 183.4 | 30/2.79 | 7/2.79 | 19.53 | 183.4 | 42.8 | 226.2 | 842 | 79.8 | 0.1576 |
Goat | 300 | 7/3.71 | 7/3.71 | 26.00 | 324.3 | 75.70 | 400.0 | 1488.2 | 135.13 | 0.0891 |
Bison | 350 | 7/3.00 | 7/3.00 | 27.00 | 381.7 | 49.50 | 431.2 | 1442.5 | 121.30 | 0.0758 |
Zebra | 400 | 54/3.18 | 7/3.18 | 28.62 | 428.90 | 55.60 | 484.50 | 1621 | 131.90 | 0.0674 |
High quality, factory price, wholesale, customization, wholehearted service, various specification. Welcome inquiries !
Director Mr. Lee together with all staff members sincerely welcome your visit and guidance at anytime!
Why you choose us?
1) Your inquiry will be replied to within the hour
2) Your label design according to your requirements ready in 2 days
3) 16 years OEM/ODM experience
4) Goods are sold with rerun or refund guarantee due to quality issue!
5) prompt shipment by reputed shipping line and professional documents
6) cargoes photo before and after loading into container after shipment with e-mail
7)15 years after-sale service
If you have any problem , please don't hesitate ro contact us.Your inquiry is welcomed at anytime.
we are confident to render our best service to you with promptness & efficiency.
1.Can you provide Type Test Reports?
A: Yes we can provide type test reports issued by Chinese laboratories.
2. Can we represent SANHENG Cable to bid?
A: Please check it with us if we have authorized any other company in your country already.
3. Have you ever supplied cables to our country?
A: Cables have been supplied to many countries across the world such as USA, Australia, Switzerland, Singapore, Sri Lanka, the Philippines, Mongolia, UAE, Yemen, Iran, Iraq, Nigeria, Egypt, Lesotho, Cameroon, etc.
4. According to which standards can SANHENG Cable produce cables?
A: IEC, BS, VDE, NFC, ASTM, etc
