Help Center50mm2 Aluminum Conductor Steel Reinforced Acsr Rabbit Conductor
Related Products
-
Bare Conductor Widely Used In Power Transmission Lines AAC AAAC ACSR AACSR ACAR ACS AC AL Bare ConductorUS$ 0.1 - 20MOQ: 1 Kilometer -
BS215 Wolf Fox Horse ACSR Bare CableUS$ 0.1 - 20MOQ: 1 Kilometer
-
ACSR Bare Conductor Acsr BS215 Rabbit ACSR Power CableUS$ 0.1 - 20MOQ: 1 Kilometer
-
Overhead and Bare Insulation Electric Transmission Cable Without SheathUS$ 10 - 999MOQ: 10 Kilograms
-
Overhead Application Bare Conductor Penguin Linnet Raven Dove Swan Dog Aac Acsr Cable ConductorUS$ 5 - 500MOQ: 500 Meters
Specifications
ACSR conductor - Aluminum Conductor Steel Reinforcednductor:aluminium
2.low voltage
3.overhead used
4 high quality

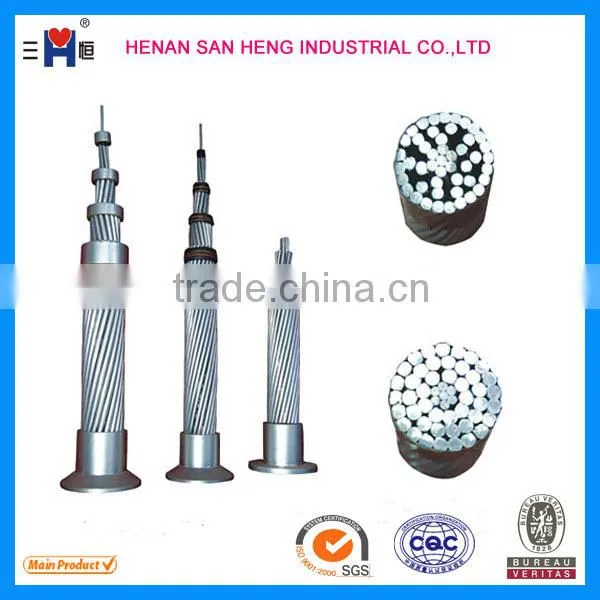

50mm2 Aluminum Conductor steel reinforced acsr rabbit conductor
Standard:
According to IEC61089, and can also manufacture by standard of GB119783, ASTM, BS215, DIN and AS/NZS or other standards.
Characters:
1. Under the same weight, ACSR is with lower cost than Copper conductor.
2. In order to foster the prevention of corrosion, the non-oxidizing grease can be fully or partially applied to ACSR.
3. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength
to be achieved without sacrificing ampacity.
Advantages:
1. Excellent electric and mechanical characteristics.
2. Good conductivity, Resistance chemical corrosion and heat-ageing,environment stress.
3. Unit volume light, Simple in structure.
4. Convenient to use, especially for laying across
Application of ACSR (Aluminum Conductor Steel Reinforced)
ACSR cables have been widely used in power transmission lines with various voltage levels, because they have such good characteristics as simple, convenient installation and maintenance, low cost, large transmission capacity. Besides, they are also suitable for laying across rivers, valleys and the places where special geographical features exist.
Code name |
Nominal Area |
Stranding&Wire Diameter |
Approx Overall Diameter |
Sectional Area |
Approx Weight |
Breaking Load |
DC Resistance |
|||
Al |
Steel |
Al |
Steel |
Total |
||||||
mm2 |
mm |
mm |
mm |
mm2 |
mm2 |
mm2 |
Kg/km |
KN |
Ohm/km |
|
Squirrel |
20 |
6/2.11 |
1/2.11 |
6.33 |
21.0 |
3.50 |
24.5 |
84.7 |
7.87 |
1.3659 |
Gopher |
25 |
6/2.36 |
1/2.36 |
7.08 |
26.24 |
4.38 |
30.62 |
106 |
9.61 |
1.0930 |
Ferret |
40 |
6/3.00 |
1/3.00 |
9.00 |
42.41 |
7.07 |
49.48 |
172 |
15.20 |
0.6766 |
Rabbit |
50 |
6/3.35 |
1/3.35 |
10.05 |
52.88 |
8.82 |
61.70 |
214 |
18.35 |
0.5426 |
Mink |
60 |
6/3.66 |
1/3.66 |
11.00 |
63.1 |
10.50 |
73.6 |
254.9 |
21.67 |
0.4540 |
Horse |
70 |
12/2.79 |
7/2.79 |
13.95 |
73.37 |
42.83 |
116.20 |
538 |
61.20 |
0.3936 |
Dog |
100 |
6/4.72 |
7/1.57 |
14.15 |
105.00 |
13.50 |
118.50 |
394 |
32.70 |
0.2733 |
Wolf |
150 |
30/2.59 |
7/2.59 |
18.13 |
158.10 |
36.80 |
194.90 |
726 |
69.20 |
0.1828 |
Goat |
300 |
7/3.71 |
7/3.71 |
26.00 |
324.3 |
75.70 |
400.0 |
1488.2 |
135.13 |
0.0891 |
Bison |
350 |
7/3.00 |
7/3.00 |
27.00 |
381.7 |
49.50 |
431.2 |
1442.5 |
121.30 |
0.0758 |
Zebra |
400 |
54/3.18 |
7/3.18 |
28.62 |
428.90 |
55.60 |
484.50 |
1621 |
131.90 |
0.0674 |
Factory information
Testing
If you have any problem , please don't hesitate ro contact us.Your inquiry is welcomed at anytime.
we are confident to render our best service to you with promptness & efficiency.
Why you choose us?
1) Your inquiry will be replied to within the hour
2) Your label design according to your requirements ready in 2 days
3) 16 years OEM/ODM experience
4) Goods are sold with rerun or refund guarantee due to quality issue!
5) prompt shipment by reputed shipping line and professional documents
6) cargoes photo before and after loading into container after shipment with e-mail
7)15 years after-sale service
1.Can you provide Type Test Reports?
A: Yes we can provide type test reports issued by Chinese laboratories.
2. Can we represent SANHENG Cable to bid?
A: Please check it with us if we have authorized any other company in your country already.
3. Have you ever supplied cables to our country?
A: Cables have been supplied to many countries across the world such as USA, Australia, Switzerland, Singapore, Sri Lanka, the Philippines, Mongolia, UAE, Yemen, Iran, Iraq, Nigeria, Egypt, Lesotho, Cameroon, etc.
4. According to which standards can SANHENG Cable produce cables?
A: IEC, BS, VDE, NFC, ASTM, etc
