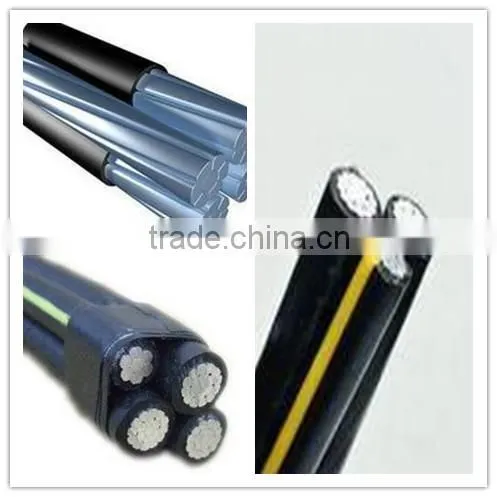

XLPE insulated rubber jacket aluminum conductor Aerial Bundle Cable (ABC cable)

Name: XLPE insulated rubber jacket aluminum conductor Aerial Bundle Cable (ABC cable)
Brand: Sanheng
Price: USD $5 - 500 / Meter

FOB Price

USD $5 - $500 / Meter

500 Meters(Min.Order)

Supply Ability 1000 Kilometer / Kilometers per Month
Port Qingdao
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Henan, China	Brand Name:	Sanheng	Model Number:	abc
Insulation Material:	XLPE	Type:	Low Voltage	Application:	Other, Overhead, construction, overhead
Conductor Material:	Aluminum	Jacket:	Rubber

Product Description

Specifications

ABC Aerial Bundle Cable
1.High Quality
2.Fast Delivery
3. Manufacturer
4.20 Years Experience

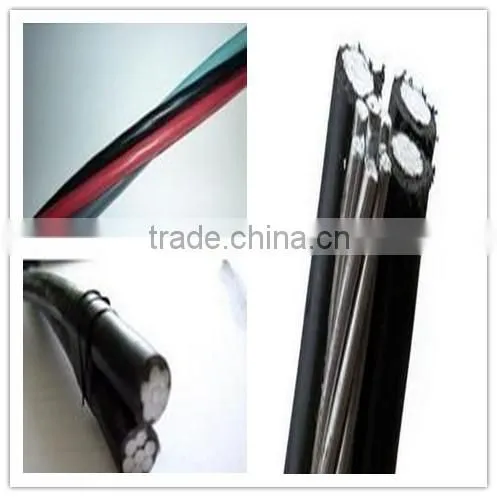

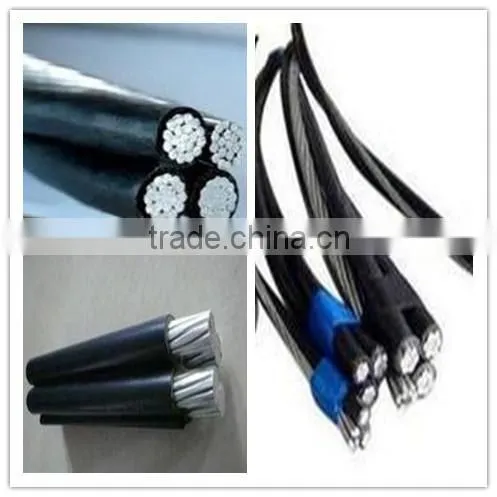

XLPE insulated rubber jacket aluminum conductor Aerial Bundle Cable (ABC cable)

Product Description

Specifications

The cable as a new-type aerial cable is used for transmitting electric power overhead, extensively used in rebuilding of an urban. Primarily used for overhead service applications such as street lighting,outdoor lighting,and temporary service for constrction.

aluminum conducor abc cable

1 The basic construction is as follows:
single power core consisting of standard aluminum conductors, insulated with pvc insulation

2 Application

To be used at cottages of 600V phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene (XLPE) insulated conductors.
It meets or exceeds the following specifications:
2.1. Aluminum Wire, 1350-H19 for Electrical Purposes.
2.2. Aluminum Conductors, Concentric-Lay-Stranded.
2.3. Aluminum Conductor, Concentric-Lay-Stranded, Coated Steel Reinforced(ACSR)
2.4. Concentric-Lay-Stranded 6201-T81 Conductors
2.5. Compressed Round Stranded Aluminum Conductors Using Single Input Wire.
It meets or exceeds all applicable requirements of ANSI/ICEA S-76-474

3.Types (ABC Aerial cable with ACSR messenger Core)

Nominal cross-section area (mm2)	Conductor structure			Insulation material	Insulation Thickness (mm)	Approx. Overall Diameter (mm)	Approx.weight (kg/km)	Packing meters per drum
	Phase (Compacted AL)	Neutral(bare ACSR)
	(No./mm)	Aluminum (No./mm)	Steel (No./mm)
1x16+16	7/1.72	6/1.72	1/1.72	pvc	1.2	12.5	121.9	250-4000m
1x25+25	7/2.15	6/2.15	1/2.15		1.2	14.9	182.2	250-4000
1x35+35	7/2.54	6/2.54	1/2.54		1.4	17.5	254.7	250-3500m
1x70+70	19/2.15	12/2.15	7/2.15		1.4	23.6	382.2	250-3000m
1x95+95	19/2.54	12/2.54	7/2.54		1.6	27.6	528.2	250-3000m
2x16+16	7/1.72	6/1.72	1/1.72		1.2	14.2	187.6	250-4000m
2x25+25	7/2.15	6/2.15	1/2.15		1.2	16.7	273.8	250-3500m
2x35+35	7/2.54	6/2.54	1/2.54		1.4	19.7	386.9	250-3500m
2x70+70	19/2.15	12/2.15	7/2.15		1.4	26.1	617.2	250-3000m
2x95+95	19/2.54	12/2.54	7/2.54		1.6	30.5	850.9	250-3500m
3x70+70	19/2.15	12/2.15	7/2.15		1.4	29.7	1024.3	250-3000m
3x95+95	19/2.54	12/2.54	7/2.54		1.6	34.6

Packaging & Shipping

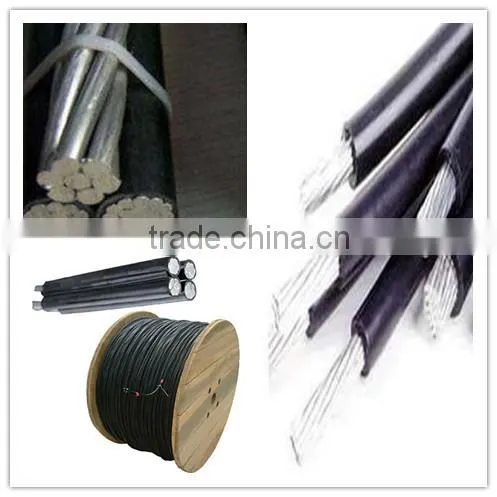

Packaging Detail: Wooden drums, steel drums or steel-wooden drums.

Delivery Detail: Within 15 working days and depending on the quantity

We could producing according to the customers' requirements.Welcome your request for any quotations!

Certifications

Our products have been repeatedly tested by National Ministry of Electrical Material Test Center, National Electric Wire and Cable Supervision & Inspection Center and Wire and Cable Products Supervision & Inspection Center of Henan province to be Qualified Products. We have got China electical products safety certification and in accordance with the IEC standard.

OEM Service

Why you choose us?

1) Your inquiry will be replied to within the hour
2) Your label design according to your requirements ready in 2 days
3) 16 years OEM/ODM experience
4) Goods are sold with rerun or refund guarantee due to quality issue!
5) prompt shipment by reputed shipping line and professional documents
6) cargoes photo before and after loading into container after shipment with e-mail

7)15 years after-sale service

Contacts Person

If you have any problem , please don't hesitate ro contact us.Your inquiry is welcomed at anytime.

we are confident to render our best service to you with promptness & efficiency.

FAQ

1.Can you provide Type Test Reports?

A: Yes we can provide type test reports issued by Chinese laboratories.

2. Can we represent SANHENG Cable to bid?

A: Please check it with us if we have authorized any other company in your country already.

3. Have you ever supplied cables to our country?

A: Cables have been supplied to many countries across the world such as USA, Australia, Switzerland, Singapore, Sri Lanka, the Philippines, Mongolia, UAE, Yemen, Iran, Iraq, Nigeria, Egypt, Lesotho, Cameroon, etc.

4. According to which standards can SANHENG Cable produce cables?

A: IEC, BS, VDE, NFC, ASTM, etc
