Specifications
1)durable performance2)on site installation
3)low noise
4)CE, ISO ,SONCAP,BV certificate
If you need any help,please contact me by email or add skype:qingqing1234321,
my whatsapp is 0086+18763606031
Gas Generator:
Nature Gas Generator feature, specification, price and photos
Nature gas generator feature:
1) Our engineer will install the nature gas generator on your site
2) Gas consumption: less than 0.28cbm/kWh
3) We supply you spare parts during the whole service life.
4) Nature gas generator powered by famous &good quality engine and alternator, such as Cummins, Deutz.
5) Nature gas generator with longer life: nature gas engine has a life of over several years if it is properly operated and maintained
6) Low operation cost of nature gas generator: nature gas has a rich reserve with low cost and a high rate of return
7) High profit of nature gas generator: low operation&maintenance cost, supply of electricity and thermal power at the same time.
8) Nature gas generator coupled with brushless alternators of Leroy Somer /Stamford/ Marathon, etc.
9) Well performed control system, high quality monitor instrument, with sound and light alarm devices, auto shutdown when main power on, auto start when main power off.
10) Protection function: over-current, under-voltage, auto-regulate voltage, reverse power
11) Monitor function: speed, water temperature, lub-oil temperature, lube-oil pressure, exhaust temperature
12) Supply connection: 3 phase, 4 lines
14) Rated frequency: 50Hz / 60Hz
15) Rated power factor: 0.8
16) Exciting way: brushless
17) Starting mode: 24V DC electric starting system
18) Cooling mode: closed-circuit cooling system
Nature gas generator specification:
| Nature gas generator | Gas-Engine | Alternator | Overall Size (mm) | Net Weight (kg) | ||
| Model | Rated Power (kW/kVA) | Rated Current (A) | Model | Model | ||
| SPT10GF | 10/12.5 | 18 | SP2100DT | 164C | 1600X650X1250 | 470 |
| SPT20GF | 20/25 | 36 | SP4100DT | PI144E | 2000X730X1320 | 620 |
| SPT30GF | 30/37.5 | 54 | SP4105DT | PI144H | 2100X730X1320 | 760 |
| SPT40GF | 40/50 | 72 | SP6105DT | UCI224D | 2480X800X1320 | 1200 |
| SPT50GF | 50/62.5 | 90 | SP6105DT | UCI224E | 2500X800X1320 | 1250 |
| SPT70GF | 70/87.5 | 126 | SP6135DT | UCI224G | 2550X1010X1430 | 2410 |
| SPT90GF | 90/112.5 | 162 | SP6135ADT | UCI274D | 2550X1010X1470 | 2530 |
| SPT120GF | 120/150 | 216 | SP6140ADT | UCI274E | 2700X1010X1470 | 2600 |
| SPT160GF | 160/200 | 288 | SP12V135DT | UCI274H | 3060X1350X1790 | 3200 |
| SPT200GF | 200/250 | 360 | SP12V138DT | UCI274K | 3060X1350X1790 | 3300 |
| SPT400GF | 400/500 | 720 | SP12V190DT | HCI544D | 4600X2040X2210 | 10700 |
| SPT500GF | 500/625 | 900 | SP12V190ZDT | HCI544FS | 4820X2040X2780 | 12000 |
| SPT700GF | 700/875 | 1260 | SPG12V190ZLDT | HCI634H | 5120X2040X2250 | 11800 |
| SPT800GF | 800/1000 | 1440 | SPA12V190ZLDT | HCI634J | 6190*2110*2800 | 12000 |
| SPT1000GF | 1000/1250 | 1800 | SPAD12V192ZLT2 | PI734A | 6710*2950*3000 | 32000 |
Parameter of nature gas generator: |
Advertised Voltage: 400/230V, 220/127V,440/254V, 480/277V, etc |
Frequency: 50Hz/ 60Hz Speed: 1500r.p.m / 1800 r.p.m |
Power Factor: 0.8(lagging) |
Protection Standard: IP23 |
Model of Connection: 3 phase 4 lines /1 phase |
Insulation Grade: H |
Frequency Drop(%): ≤ 0.5 |
Transient state frequency deviation(%):(advertised power ) +10~-7 |
Frequency Recovery Time(S): ≤ 3 |
Voltage Recovery Time(S): ≤4 |
Waveform Distortion(%): ≤5 |
After sales promise:
1. Since genset reached the agreed destination, it will be guaranteed within 12 months or 1500 hours.
2. We give technical guide all the service life. In the warranty days, we send spare parts for free.
After warranty, we take the spare parts cost.
3. Daily consumed components, wrong operating, lack of maintenance are not include in the quality guarantee.
Testing:

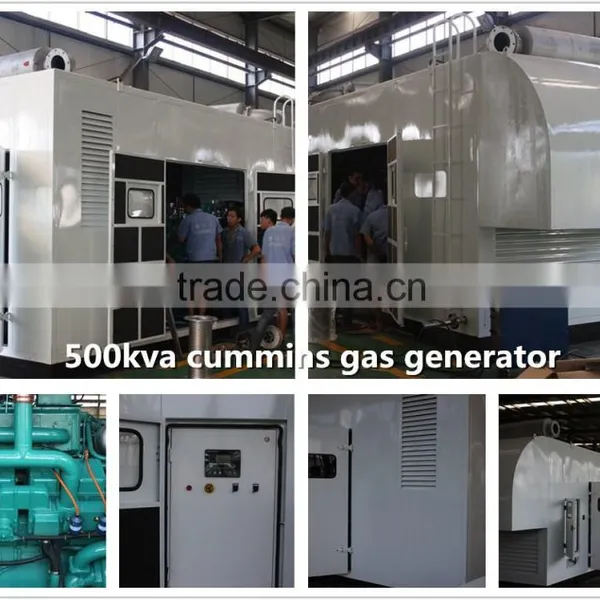

Nature gas generator on site:
