CE Approved industrial gas genset for sale!
1. Gas genset feature, specification, photos and price
1) Low natural gas consumption: 0.3Nm³/kw.h.
2) The running cost of gas genset is lower.
3) Our engineer will install the gas genset on your site.
4) We supply you spare parts during the whole service life.
Gas genset feature
1)Gas genset power range: 8kW to 1000kW
2) Gas genset are clean and environmental friendly
3) Longer life: natural gas engine has a life of over several years if it is properly operated and maintained
4) Low operation cost: natural gas has a rich reserve with low cost and a high rate of return
5) High profit: low operation cost, supply of electricity and thermal power at the same time, low maintenance cost
6) Gas genset coupled with brushless alternators of Leroy Somer / Engga
7) Well performed control system, high quality monitor instrument, with sound and light alarm devices, auto shutdown
8) Protection function: over-current, under-voltage, auto-regulate voltage, reverse power
9) Monitor function: speed, water temperature, lube-oil temperature, lube-oil pressure, exhaust temperature
10) Gas consumption: less than 0.33cbm/kWh
11) Supply connection: 3 phase, 4 lines
12) Rated voltage: 400V
13) Rated speed: 1,500rpm/1,800rpma
14) Rated frequency: 50Hz / 60Hz
15) Rated power factor: 0.8
16) Exciting way: brushless
17) Starting mode: 24V DC electric starting system
18) Cooling mode: closed-circuit cooling system
natural gas genset specification
| Gas genset | Gas-Engine | Alternator | Overall Size (mm) | Net Weight (kg) | ||
| Model | Rated Power (kW/kVA) | Rated Current (A) | Model | Model | ||
| SPT10GF | 10/12.5 | 18 | SP2100DT | 164C | 1600X650X1250 | 470 |
| SPT20GF | 20/25 | 36 | SP4100DT | 184EF | 2000X730X1320 | 620 |
| SPT30GF | 30/37.5 | 54 | SP4105DT | 184H | 2100X730X1320 | 760 |
| SPT40GF | 40/50 | 72 | SP6105DT | 224D | 2480X800X1320 | 1200 |
| SPT50GF | 50/62.5 | 90 | SP6105DT | 224E | 2500X800X1320 | 1250 |
| SPT70GF | 70/87.5 | 126 | SP6135DT | 224G | 2550X1010X1430 | 2410 |
| SPT90GF | 90/112.5 | 162 | SP6135ADT | 274D | 2550X1010X1470 | 2530 |
| SPT120GF | 120/150 | 216 | SP6140ADT | 274F | 2700X1010X1470 | 2600 |
| SPT160GF | 160/200 | 288 | SP12V135DT | 274H | 3060X1350X1790 | 3200 |
| SPT200GF | 200/250 | 360 | SP12V138DT | 4C | 3060X1350X1790 | 3300 |
| SPT400GF | 400/500 | 720 | SP12V190DT | 1FC | 4600X2040X2210 | 10700 |
| SPT500GF | 500/625 | 900 | SP12V190ZDT | 1FC | 4820X2040X2780 | 12000 |
| SPT700GF | 700/875 | 1260 | SPG12V190ZLDT | 1FC | 5120X2040X2250 | 11800 |
| SPT800GF | 800/1000 | 1440 | SPA12V190ZLDT | 1FC | 6190*2110*2800 | 12000 |
| SPT1000GF | 1000/1250 | 1800 | SPAD12V192ZLT2 | 1FC | 6710*2950*3000 | 32000 |

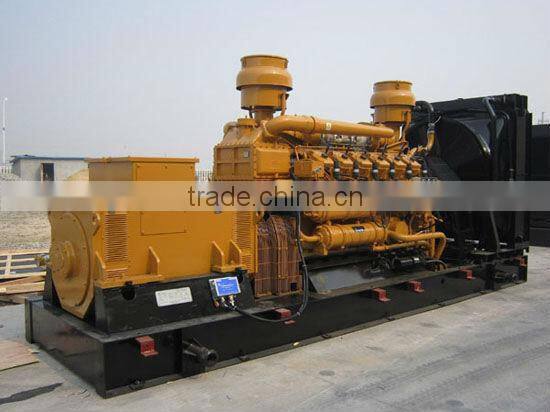

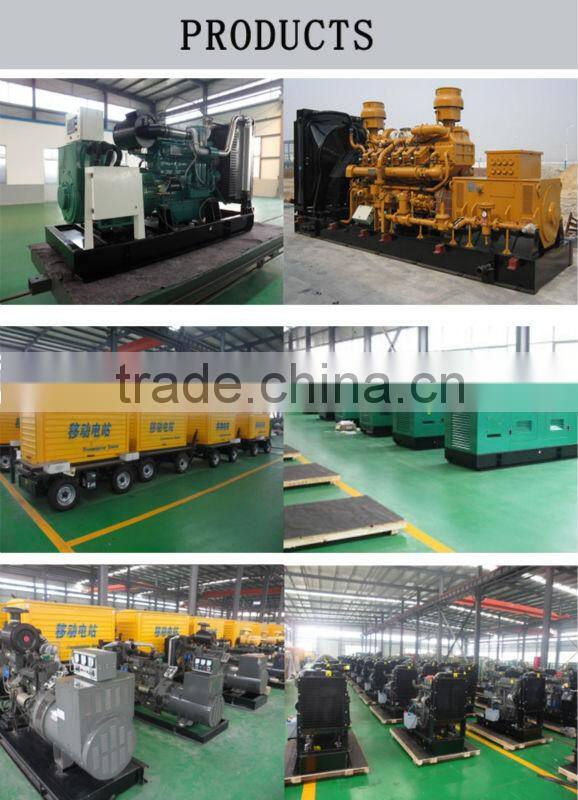

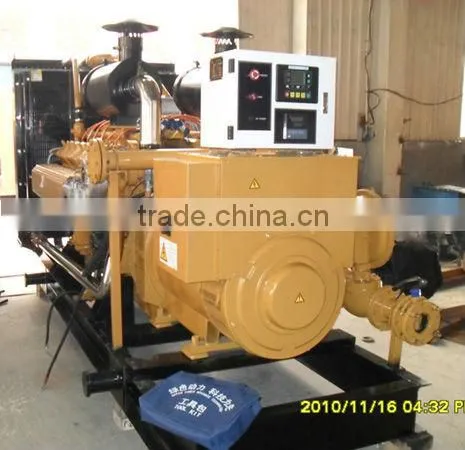

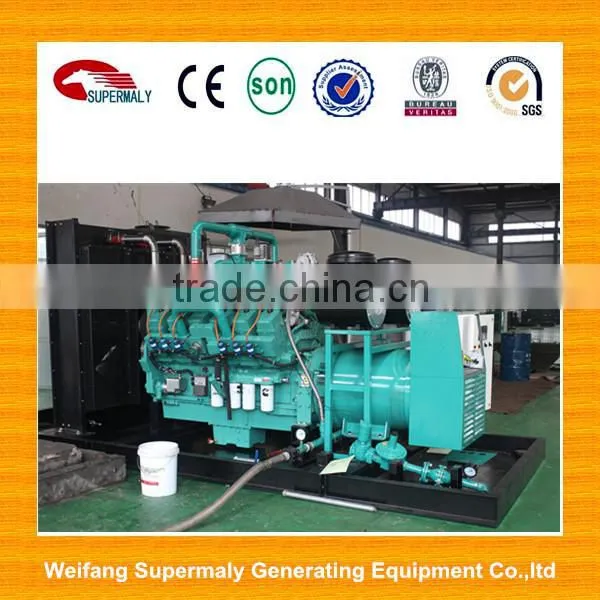

gas genset photos

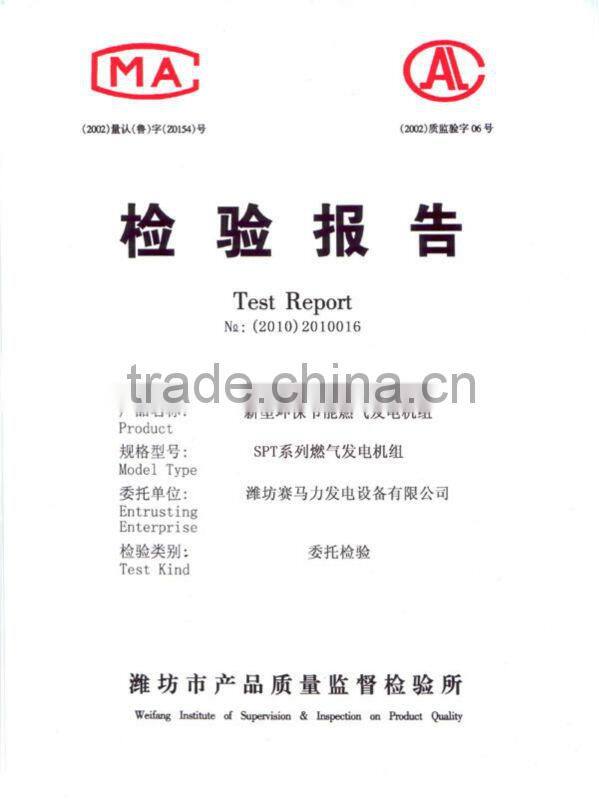

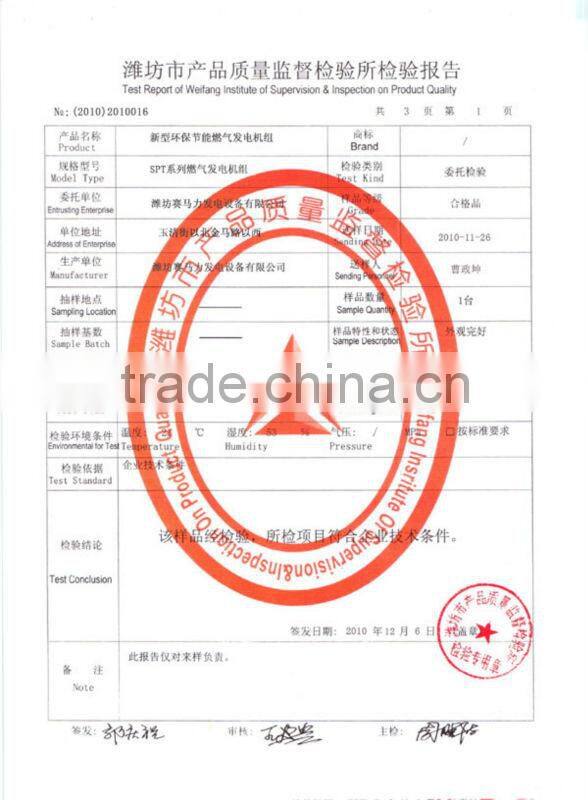

Testing Equipment
Gas genset on site

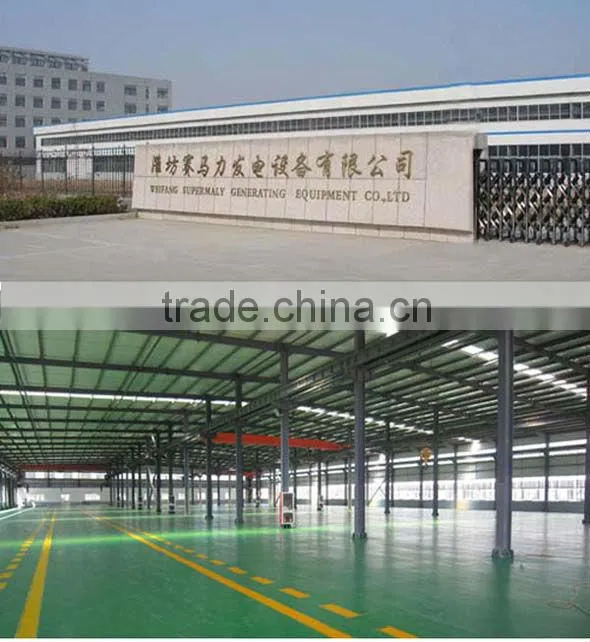

our factory
