CE Approved gas generator factory

Specifications

CE Approved gas generator factory
1)low running cost
2)global warranty 1 year
3)on site installation

CE Approved gas generator factory

1. gas generator price,  feature and specification

 1) Low gas consumption: 0.28Nm³/kw.h.

 2) The running cost of gas generator is lower.

 3) Our engineer will install the gas generator on your site.

 4) We supply you spare parts during the whole service life.



 Gas generator price & Feature

1) Power range: 8kW to 1100kW
2) Gas generator are clean and environmental friendly
3) Longer life: natural gas engine has a life of over several years if it is properly operated and maintained

4) Low operation cost: natural gas has a rich reserve with low cost and a high rate of return
5) High profit: low operation cost, supply of electricity and thermal power at the same time, low maintenance cost
6) Gas generator coupled with brushless alternators of Leroy Somer / Engga
7) Well performed control system, high quality monitor instrument, with sound and light alarm devices, auto shutdown
8) Protection function: over-current, under-voltage, auto-regulate voltage, reverse power
9) Monitor function: speed, water temperature, lube-oil temperature, lube-oil  pressure, exhaust temperature
10) Gas consumption: less than 0.33cbm/kWh
11) Supply connection: 3 phase, 4 lines
12) Rated voltage: 400V
13) Rated speed: 1,500rpm/1,800rpma
14) Rated frequency: 50Hz / 60Hz
15) Rated power factor: 0.8
16) Exciting way: brushless
17) Starting mode: 24V DC electric starting system
18) Cooling mode: closed-circuit cooling system



For the price, pls contact with me by email or alitalk online.





 2. Gas generator price & specification

gas generator set model		rated power(KW/KVA)	diesel engine	alternator	overall size(mm)	gross weight(kg)
			model	model
SPT10GF		10/12.5	SP2100DT	PI044F	1600*650*1250	470
SPT20GF		20/25	SP4100DT	PI144E	2000*730*1320	620
SPT30GF		30/37.5	SP4105DT	PI144J	2100*730*1320	760
SPT40GF		40/50	SP6105DT	UCI224D	2480*800*1320	1200
SPT50GF		50/62.5	SP6105DT	UCI224F	2500*800*1320	1250
SPT70GF		70/87.5	SP6135DT	UCI224G	2550*1010*1430	2410
SPT90GF		90/112.5	SP6135ADT	UCI274D	2550*1010*1470	2530
SPT120GF		120/150	SP6140ADT	UCI274F	2700*1010*1470	2600
SPT160GF		160/200	SP12V135DT	UCI274H	3060*1350*1790	3200
SPT200GF		200/250	SP12V138DT	UCD274K	3060*1350*1790	3300
SPT400GF		400/500	SP12V190DT	HCI544C	4600*2040*2210	10700
SPT500GF		500/625	SP12V190ZDT	HCI544FS	4820*2040*2780	12000
SPT700GF		700/875	SPG12V190ZLDT	HCI634H	5120*2040*2250	11800
SPT800GF		800/1000	SP12V190ZLT	HCI634J	6190*2110*2800	12000
SPT1000GF		1000/1250	SPG12V190ZLT2	PI734A	6710*2950*3000	32300





500kw natural gas generator specification

500kW Natural Gas Generator
Genset Model		Open Type	SPT500GF
Rated power(kW)			500
Standby power(kW)			550
Rated current(A)			900
Overall Size(mm)		Length(mm)	4820
		Width(mm)	2040
		Height(mm)	2780
Gross Weight(kg)			12000
Gas engine	Model		SP12V190ZDT
	Engine type		4-stroke, spark plug ignition, wet cylinder liner, 1000rpm
	Rated Power (kW)		550
	Rated speed(rpm)		1000
	No of Cylinder		12.V
	Bore*stroke(mm)		190*210
	Cooling type		water cooled
	Displacement(L)		71.45
	Heat consumption(kJ/kw.h)		≤11386
	Lube oil consumption(g/kw.h)		≤1.63
	Stable speed regulating rate		0-5% adjustable
	Compression ratio		08:01
	Rotation direction of crankshaft		Counter-clockwise(facing to flywheel)
	Governor		Electric governor
	Starting method		DC 24V Electric motor
Alternator	Brand		Stamford technology alternator
	Model		XN5FS
	Rated power(kW)		500
	Power Efficiency		91.30%
	Voltage Regulation		≤±1
	Excitation Type		Brushless
	Insulation Class		H

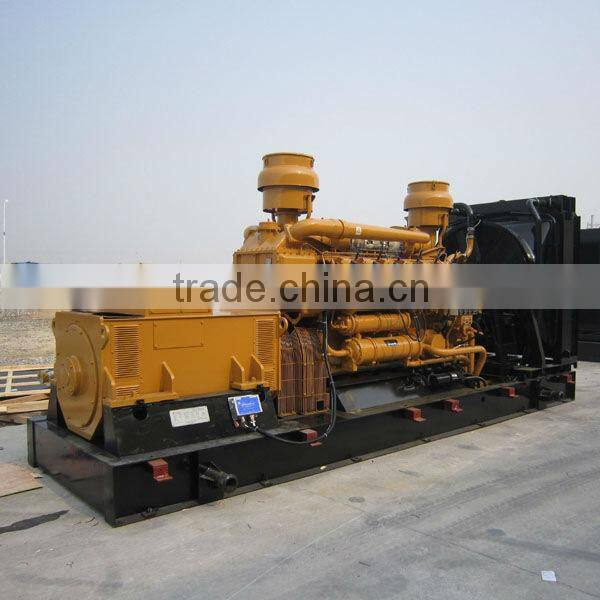

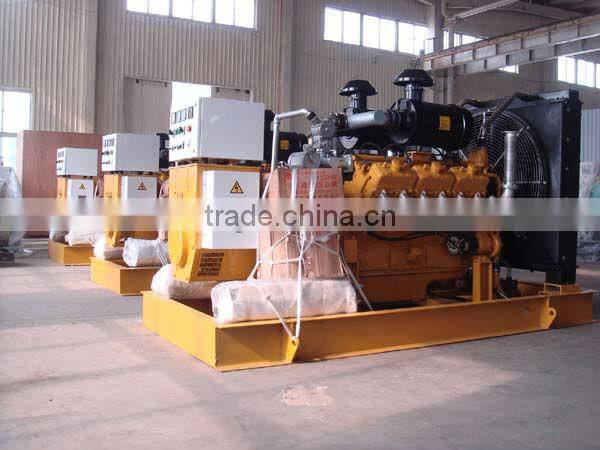

3. gas generator price &photos
