Specifications
ISO approved 500kw /625kva gas generator for Iran market1)famous brand
2)1 year warranty
3)on site installation
ISO approved 500kw /625kva gas generator for Iran market
Gas electric generator feature, specification, price and photos.
1. Gas electric generator feature
1) Our engineer will install the gas electric generator on your site.
2) Gas electric generator by fuel natural gas or biogas.
3) We supply you spare parts during the whole service life.

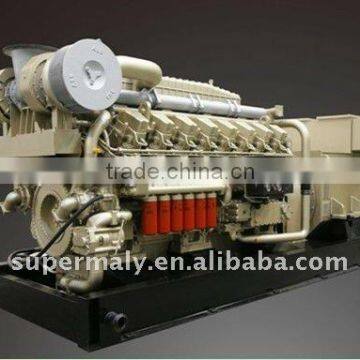

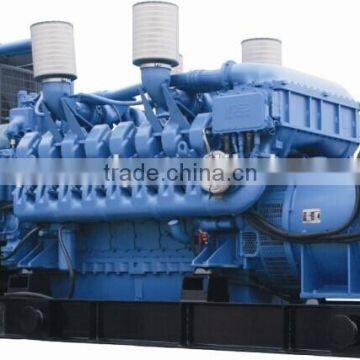

4) Gas electric generator powered by famous and good quality engine and alternator
5) Longer life: gas electric generator has a life of over 15 years if it is properly operated and maintained
6) Low operation cost: gas electric generator has a rich reserve with low cost and a high rate of return
7) High profit: low operation and maintenance cost, supply of electricity and thermal power at the same time
8) Gas electric generator coupled with brushless alternators of Leroy Somer / Engga
9) Well performed control system, high quality monitor instrument, with sound and light alarm devices
10) Protection function: over-current, under-voltage, auto-regulate voltage, reverse power
11) Monitor function: speed, water temperature, lub-oil temperature, lub-oil pressure, exhaust temperature
13) Supply connection: 3 phase, 4 lines
14) Rated frequency: 50Hz / 60Hz
15) Rated power factor: 0.8
16) Exciting way: brushless
17) Starting mode: 24V DC electric starting system

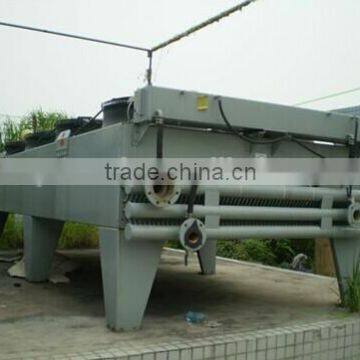

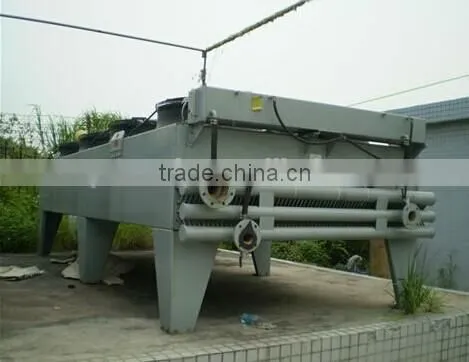

18) Cooling mode: closed-circuit cooling system
2. Gas electric generator specification-natural gas
| 500kW Natural Gas Generator | |||
| Genset Model | Open Type | SPT500GF | |
| Rated power(kW) | 500 | ||
| Standby power(kW) | 550 | ||
| Rated current(A) | 900 | ||
| Overall Size(mm) | Length(mm) | 4820 | |
| Width(mm) | 2040 | ||
| Height(mm) | 2780 | ||
| Gross Weight(kg) | 12000 | ||
| Gas engine | Model | SP12V190ZDT | |
| Engine type | 4-stroke, spark plug ignition, 1000rpm | ||
| Rated Power (kW) | 550 | ||
| Rated speed(rpm) | 1000 | ||
| No of Cylinder | 12.V | ||
| Bore*stroke(mm) | 190*210 | ||
| Cooling type | water cooled | ||
| Displacement(L) | 71.45 | ||
| Heat consumption(kJ/kw.h) | ≤11386 | ||
| Lube oil consumption(g/kw.h) | ≤1.63 | ||
| Stable speed regulating rate | 0-5% adjustable | ||
| Compression ratio | 8:1 | ||
| Rotation direction of crankshaft | Counter-clockwise(facing to flywheel) | ||
| Governor | Electric governor | ||
| Starting method | DC 24V Electric motor | ||
| Alternator | Brand | Stamford technology alternator | |
| Model | XN5FS | ||
| Rated power(kW) | 500 | ||
| Power Efficiency | 91.30% | ||
| Voltage Regulation | ≤±1 | ||
| Excitation Type | Brushless | ||
| Insulation Class | H | ||
| Other terms | Delivery time | Within 30days after the deposit | |
| Payment terms | 30% deposit, the balance T/T before shippment; | ||
| Warranty | 1 year or 1500 running hours; | ||
| Supply scope | gas engine; AC synchronous generator; | ||
| Fan and water tank cooling system; | |||
| High-efficient silencer; | |||
| MCCB air conservation swith and control cabinet; | |||
| Commen base (with shock absorber); | |||
| Battery and connecting wire; | |||

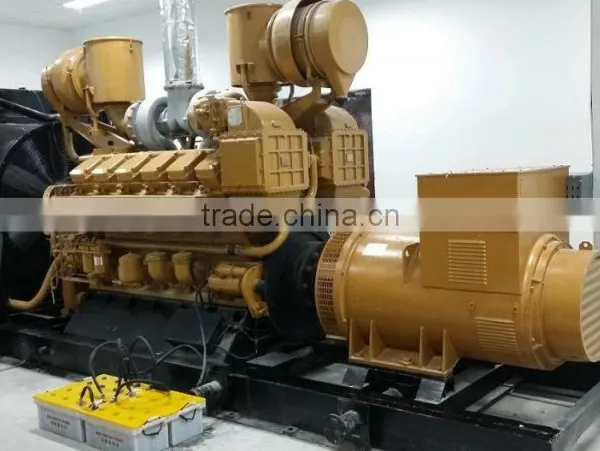

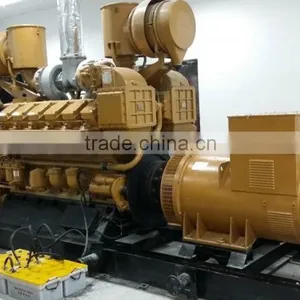

3. Gas electric generator on site
4. After sales service
1. Since gas electric generator reached the agreed destination, its main parts will be guaranteed within 12 months or 1500 hours.
2. We give technical guide all the service life. In the warranty days, we send spare parts for free. After warranty, we take the spare parts cost.
3. Daily consumed components, wrong operating, lack of maintenance are not include in the quality guarantee.
4. We can go to the user place and install the gas electric generator on the site.

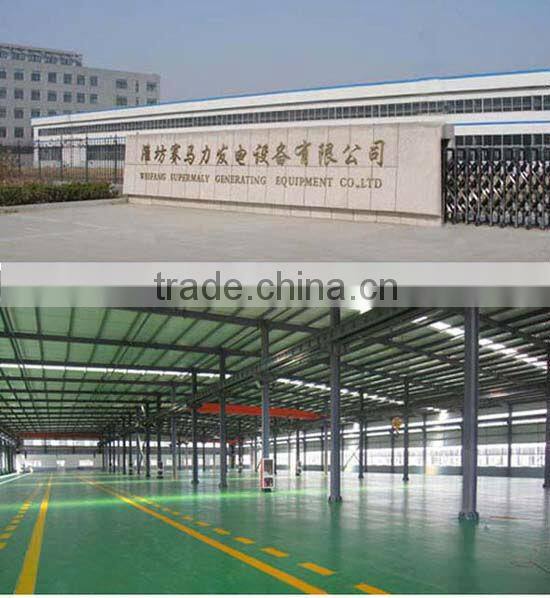

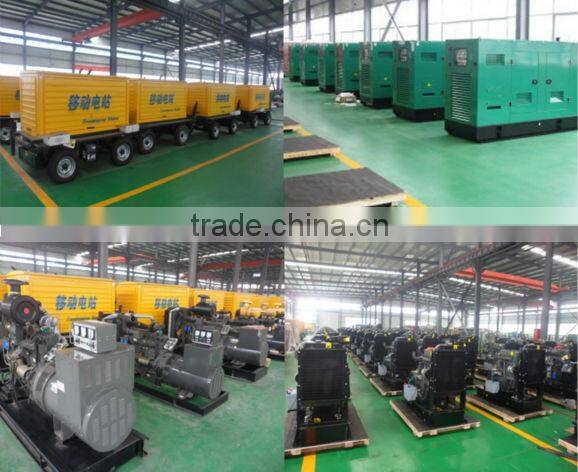

5. Our factory, products and testing equipment
