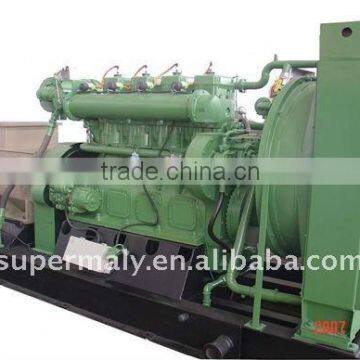

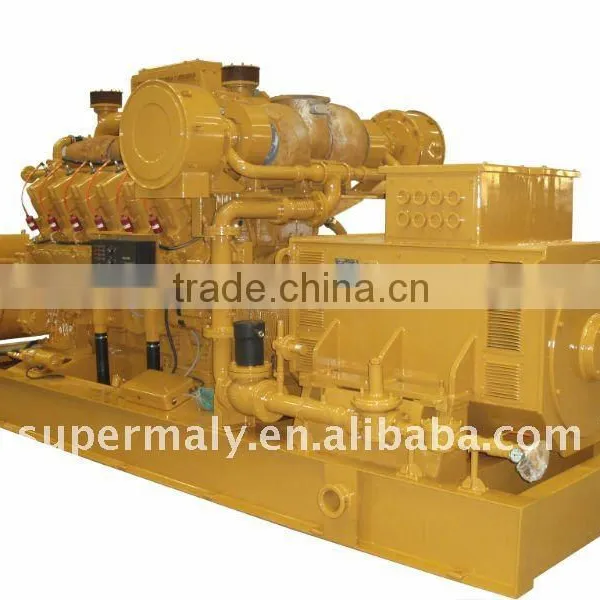

Factory price!! water cooled natural gas generator 10-1000kw from SHANDONG SUPERMALY

Specifications

nature gas generator 10-1000kw
1)durable performance
2)on site installation
3)low noise
4)CE, ISO certificate

If you need any help,please contact me by email or add skype:qingqing1234321,my whatsapp is 0086+18763606031





water cooled nature gas generator 10-1000kw from SUPERMALY







Nature Gas Generator feature, specification, price and photos







Nature gas generator feature:



 1) Our engineer will install the nature gas generator on your site



 2) Gas consumption: less than 0.28cbm/kWh



 3) We supply you spare parts during the whole service life.



 4) Nature gas generator powered by famous &good quality engine and alternator



 5) Nature gas generator with longer life: nature gas engine has a life of over several years if it is properly operated and maintained



 6) Low operation cost of nature gas generator: nature gas has a rich reserve with low cost and a high rate of return



 7) High profit of nature gas generator: low operation&maintenance cost, supply of electricity and thermal power at the same time.



 8) Nature gas generator coupled with brushless alternators of Leroy Somer /Stamford/ Marathon, etc.



 9) Well performed control system, high quality monitor instrument, with sound  and light alarm devices, auto shutdown when main power on, auto start when main power off.



10) Protection function: over-current, under-voltage, auto-regulate voltage, reverse power



11) Monitor function: speed, water temperature, lub-oil temperature, lube-oil pressure, exhaust temperature



12) Supply connection: 3 phase, 4 lines



14) Rated frequency: 50Hz / 60Hz



15) Rated power factor: 0.8



16) Exciting way: brushless



17) Starting mode: 24V DC electric starting system



18) Cooling mode: closed-circuit cooling system







Nature gas generator specification:



Nature gas generator			Gas-Engine	Alternator	Overall Size                (mm)	Net Weight (kg)
Model	Rated Power             (kW/kVA)	Rated Current (A)	Model	Model
SPT20GF	20/25	36	HG4B	PI444E	1800X710X1350	860
SPT30GF	30/37.5	54	HG4B	PI144J	1800X710X1350	900
SPT50GF	50/62.5	90	HG6B	UCI224E	2300X820X1400	1250
SPT80GF	80/100	144	HGN14	UCI274C	3150X1000X1500	2550
SPT100GF	100/125	180	HGN14	UCI274D	3150X1000X1500	2600
SPT120GF	120/150	216	HGN14	UCI274F	3150X1000X1500	2650
SPT150GF	150/187.5	270	HGNT14	UCI274G	3150X1000X1500	2900
SPT200GF	200/250	360	HGNT14	UCI274K	3150X1000X1500	2960
SPT250GF	250/312.5	450	HGK19	UCI444D	3470X1230X2300	3640
SPT300GF	300/375	540	HGK19	UCI444FS	3470X1230X2300	3850
SPT400GF	400/500	720	HGK38	HCI544C	4250X1700X2185	5880
SPT500GF	500/625	900	HGK38	HCI544FS	4250X1700X2180	6080
SPT700GF	700/875	1260	SPG12V190ZLDT	HCI634H	5120X2040X2250	11800
SPT800GF	800/1000	1440	SPA12V190ZLDT	HCI634J	6190*2110*2800	12000
SPT1000GF	1000/1250	1800	SPAD12V192ZLT2	PI734A	6710*2950*3000	32000







Parameter of nature gas generator:

Advertised Voltage: 400/230V, 220/127V,440/254V, 480/277V, etc

Frequency: 50Hz/ 60Hz   Speed: 1500r.p.m / 1800 r.p.m

Power Factor: 0.8(lagging)

Protection Standard: IP23

Model of Connection: 3 phase 4 lines /1 phase

Insulation Grade: H

Frequency Drop(%): ≤ 0.5

Transient state frequency deviation(%):(advertised power ) +10~-7

Frequency Recovery Time(S): ≤ 3

Voltage Recovery Time(S): ≤4

Waveform Distortion(%): ≤5







After sales promise:



1. Since genset reached the agreed destination, it will be guaranteed within 12 months or 1500 hours.



2. We give technical guide all the service life. In the warranty days, we send spare parts for free.



After warranty, we take the spare parts cost.



3. Daily consumed components, wrong operating, lack of maintenance are not include in the quality guarantee.

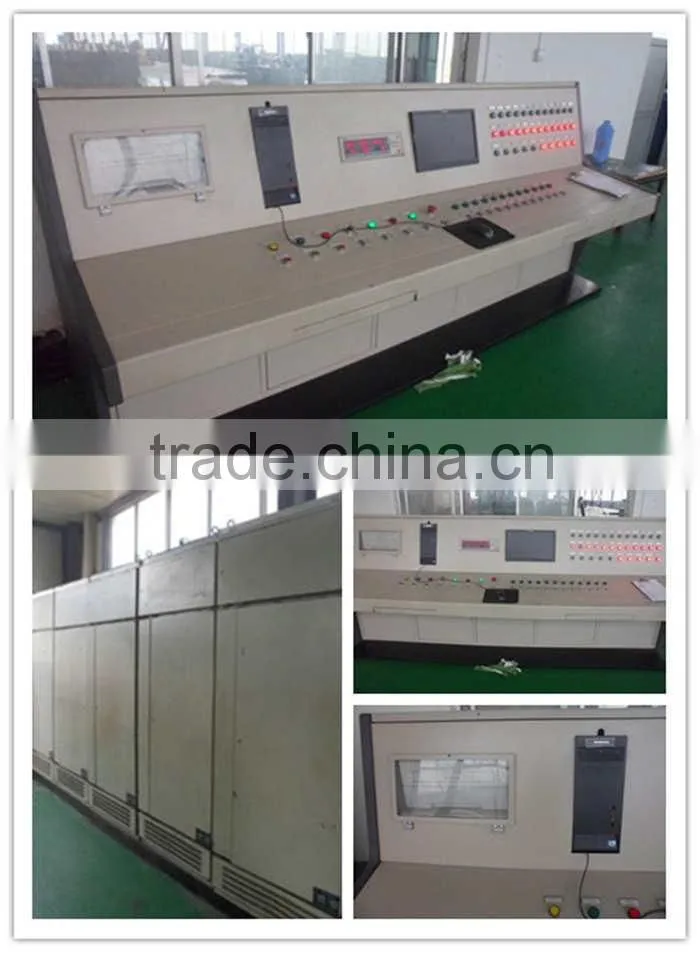

 Testing:

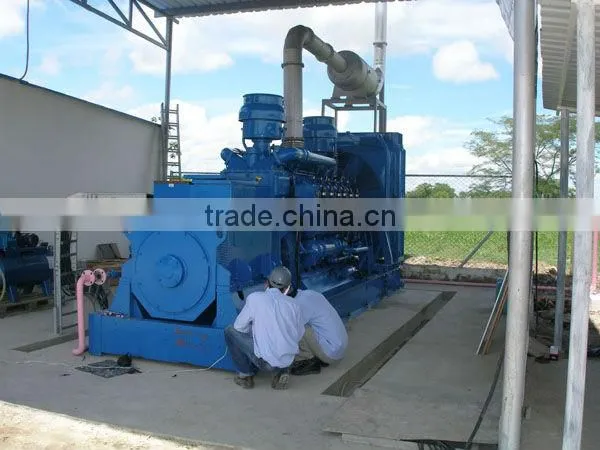

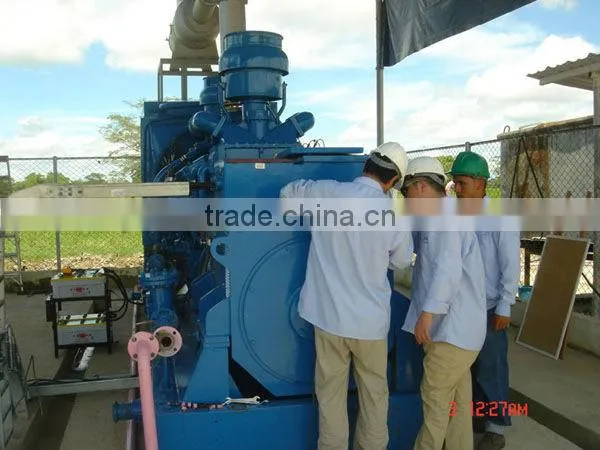

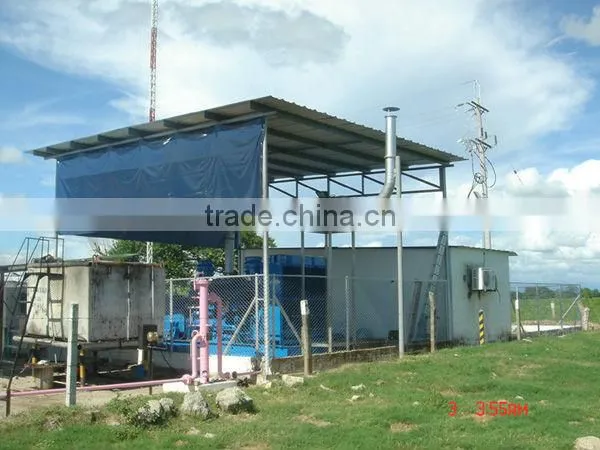

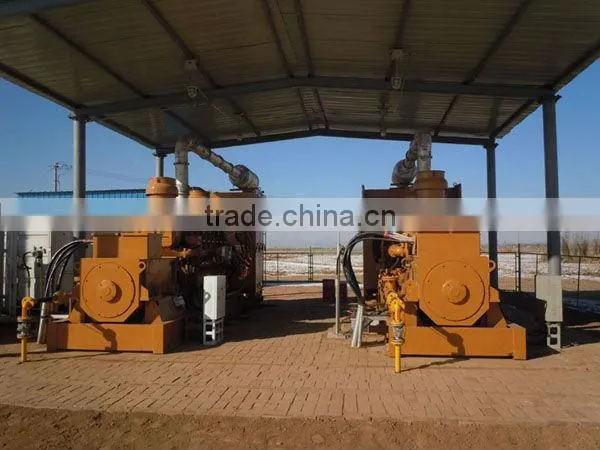

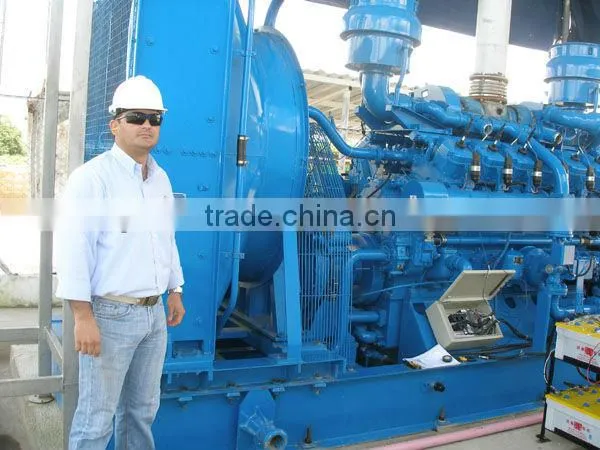

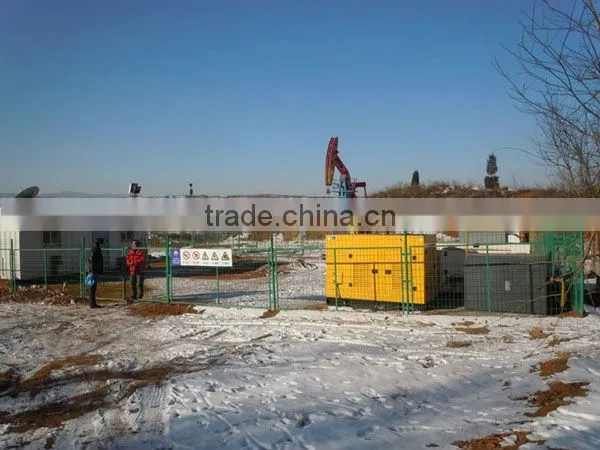

Nature gas generator on site:
