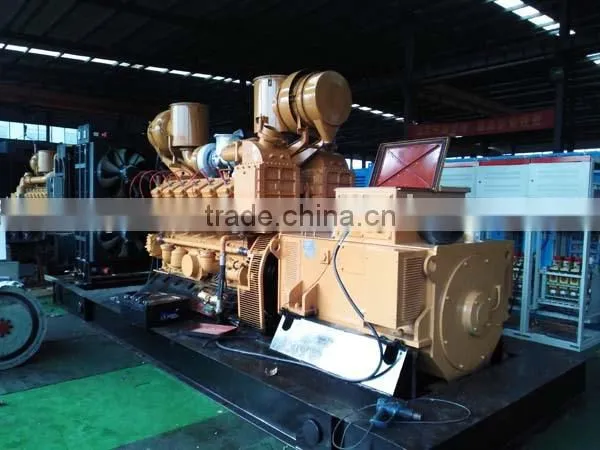

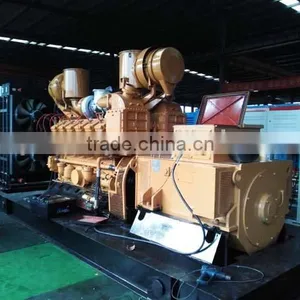

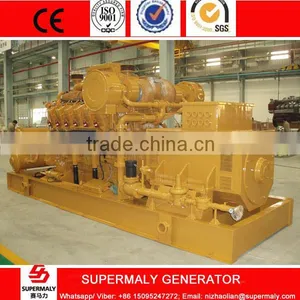

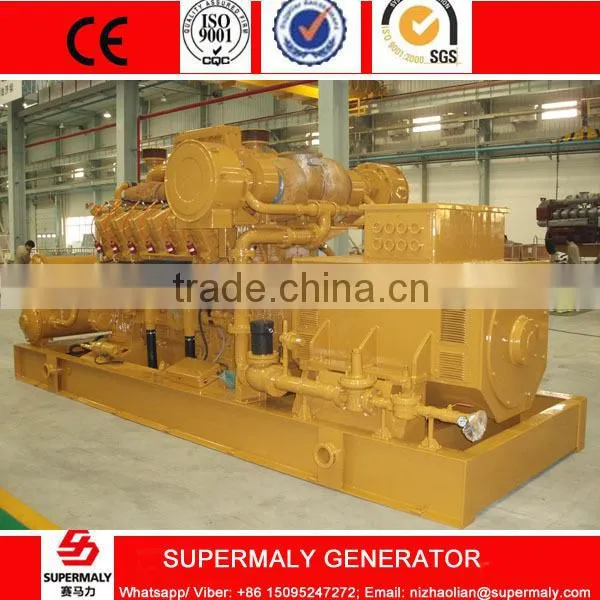

500kw Natural Gas Generator Set With CHP System

Name: 500kw Natural Gas Generator Set With CHP System
Brand: SUPERMALY
SKU: 109303369
Availability: InStock

US$ 90,000 - 150,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

SUPERMALY

Model Number:

SP500GFT

Shandong Supermaly Generating Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name SUPERMALY

Model Number SP500GFT

Output Type AC Three Phase

Speed 1500RPM/1800RPM

Frequency 50/60HZ

Rated Power 500KW

Rated Voltage 400V, 480V,220V,415V,etc

Rated Current 900A

Product Description

1. Our advantage on 500kw natural gas generator set

1) 500kw natural gas generator with low gas consumption: 0.3Nm³/kw.h.

2) Our engineer will install the 500kw natural gas generator on your site.

3) We supply you spare parts during the whole service life.

4) Professional gas generator manufacturer, decades’ years of manufacturing and exporting experience

5) Adopt International quality standards, to meet high quality requirement

6) Good reputation for Reliable quality & Reasonable price

7) Strong technical support

8)Advanced production line with skilled workers

2. 500kw natural gas generator set specification

500kW Natural Gas Generator specification
Genset Model		Open Type	SPT500GF
Rated power(kW)			500
Standby power(kW)			550
Rated current(A)			900
Overall Size(mm)		Length(mm)	4820
		Width(mm)	2040
		Height(mm)	2780
Gross Weight(kg)			12000

Gas engine	Model		SP12V190ZDT
	Engine type		4-stroke, spark plug ignition, 1000rpm
	Rated Power (kW)		550
	Rated speed(rpm)		1000
	No of Cylinder		12.V
	Bore*stroke(mm)		190*210
	Cooling type		water cooled
	Displacement(L)		71.45
	Heat consumption(kJ/kw.h)		≤11386
	Lube oil consumption(g/kw.h)		≤1.63
	Stable speed regulating rate		0-5% adjustable
	Compression ratio		8:1
	Rotation direction of crankshaft		Counter-clockwise(facing to flywheel)
	Governor		Electric governor
	Starting method		DC 24V Electric motor
Alternator	Brand		Stamford technology alternator
	Model		XN5FS
	Rated power(kW)		500
	Power Efficiency		91.30%
	Voltage Regulation		≤±1
	Excitation Type		Brushless
	Insulation Class		H

Other terms	Delivery time		Within 30days after the deposit
	Payment terms		30% deposit, the balance T/T before shippment;
	Warranty		1 year or 1500 running hours;
	Supply scope		gas engine; AC synchronous generator;
			Fan and water tank cooling system;
			High-efficient silencer;
			MCCB air conservation swith and control cabinet;
			Commen base (with shock absorber);
			Battery and connecting wire;
