Specification of 625kva supermaly gas generator set 500kw
| Model | 500GF |
| Standby Power (50HZ) | 550KW/687.5KVA |
| Prime Power (50HZ) | 500KW/625KVA |
Standard Features 625kva supermaly gas generator set 500kw :
General Features
Engine (JICHAIPZ8V190)
Radiator 40°C max, fans are driven by belt ,with safety guard
24V charge alternator
Alternator (STAMFORDHCI544FS), single bearing alternator IP23, insulation class H/H
Absorber
Dry type air filter ,fuel filter ,oil filter, coolant filter
Main line circuit breaker
Standard control panel
Two 12V batteries ,rack and cable
Ripple flex exhaust pipe ,exhaust siphone, flange, muffler.
User manual

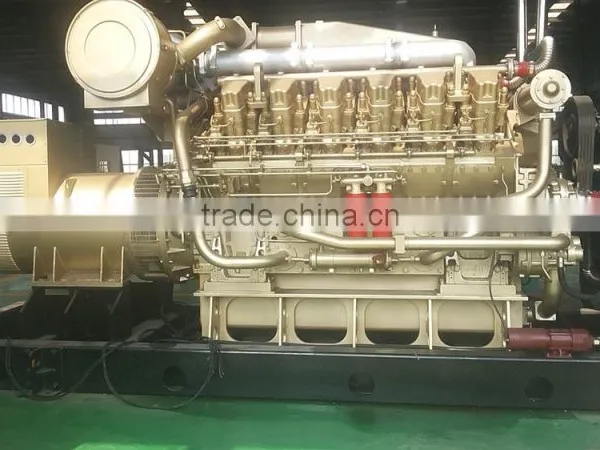

Engine Data:
Manufacturer /Model: JICHAI PZ8V190, 4-CYCLE
Air intake System: Turbocharger, Water Cooling
Fuel System : A type fuel Pump
Cylinder Arrangement: 8 Cylinder in LINE
Displacement : 47.6L
Bore and Stroke: 190*210(MM)
Compression Ratio: 17:1
Rated RPM: 1500rpm
Max standby Power at Rated RPM:588KW
Governor Type: mechanical
Frequency Regulation ,Steady State : <±0.5%
Alternator Data:
Manufacture /Type: STAMFORD HCI544FS
Number of Phase: three
Connecting Type: 3 Phase and 4 wire Rotating Field
Number of Bearing: one
Power Factor: 0.8
Protection Grade:IP23
Altitude: ≤1000m
Exciter Type: Brush less, self-exciting
Insulation Class, Temperature Rise: H/H
Telephone Influence Factor (TIF): < 50
THF:<2%
Voltage Regulation, Steady State: ≤1.5%
Alternator Capacity: 230 KVA
Alternator Efficiencies: 92.7%

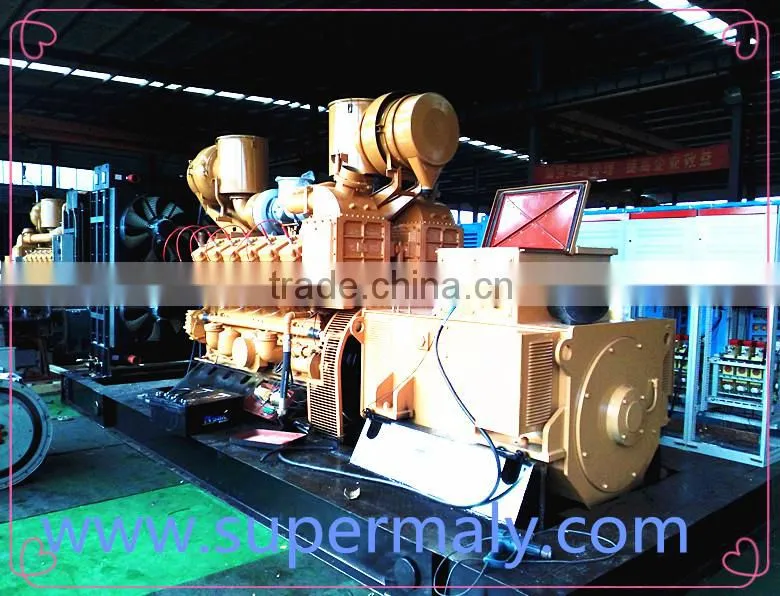

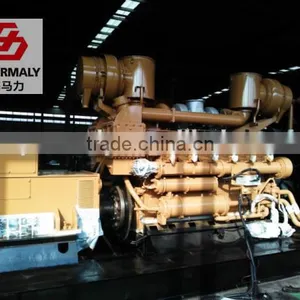

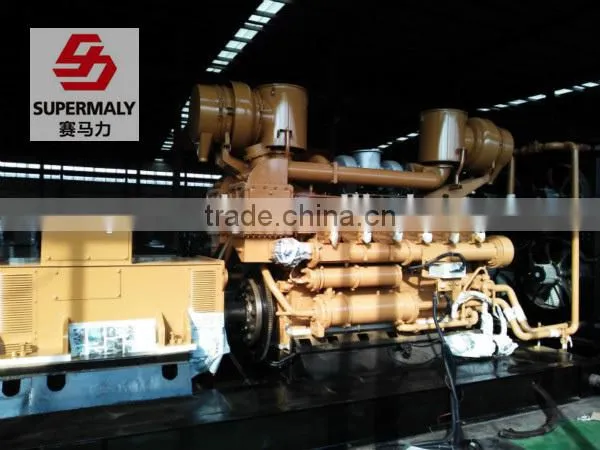

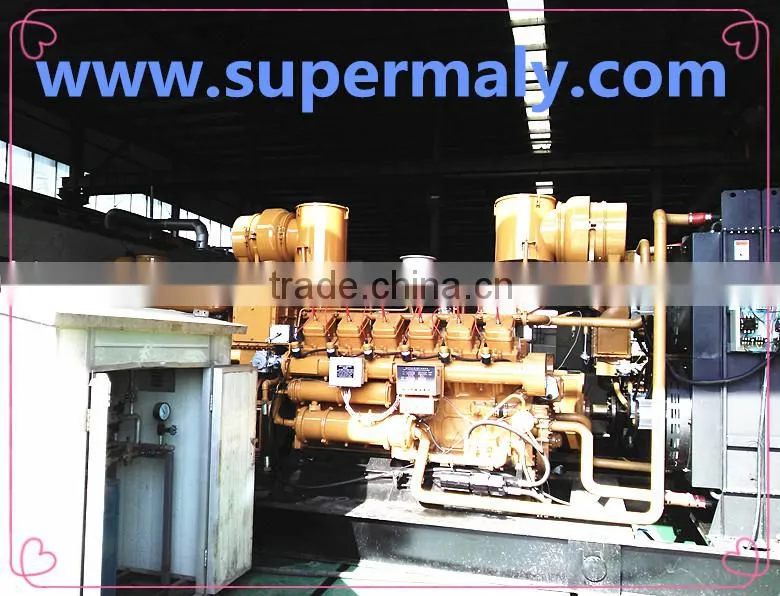

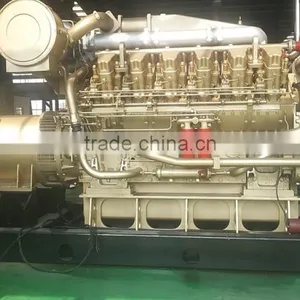

Photos of 625kva supermaly gas generator set 500kw

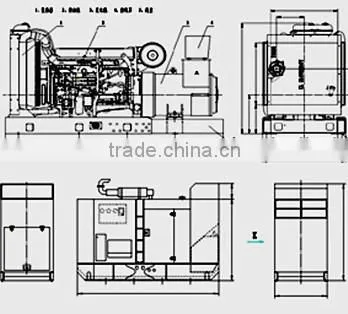

open -frame type :
overall size:5270*1970*2780mm
weight:10700kgs

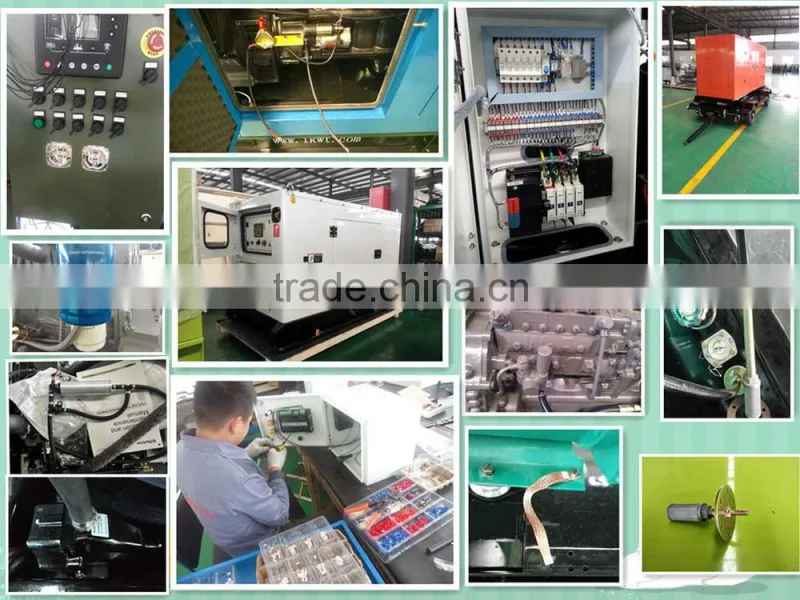

.Panel Control:
. Key Manual Start Module Engine Control & Monitoring Panel
· Low Oil Pressure , High Water Temp Protection Features
· Tamper-Proof Engine Hour Counter
· Auto/Manual Start
· Simultaneous Multiple Engine Parameters Monitoring
· Remote Start/Stop thru SMS, with GSM SIM Card (on some models)

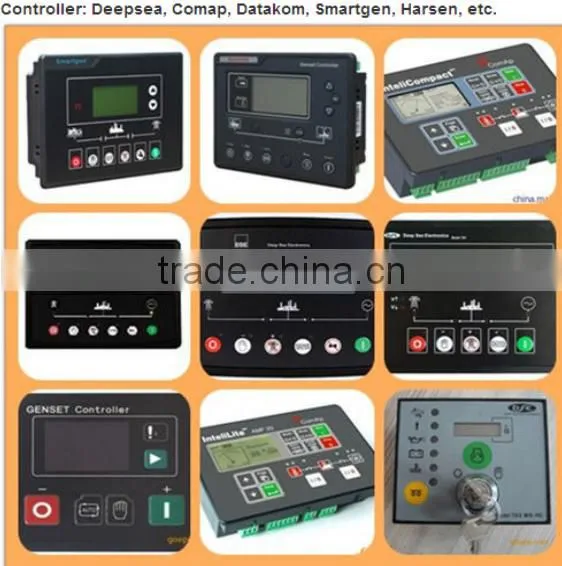

Controller: Deepsea, Comap, Datakom, Smartgen, Harsen, etc.
1.Warranty iterms will be issued by our own factory, which is simple and quick;
2.Warranty period will be 12 monthes or 1500 working hours from commissioning date;
3.Parts replacement under warranty will be sent (include sea freight and insurance) to buyer freely;
