Gas Compositon of Supermaly SP20GFZ Brushless 3P 4W Biogas Genset
Biogas is a mixture gas, main composition is methane(CH4) and carbon dioxide,Methane covers45-70%,carbon dioxide covers 30-40%and also a bit of other gas like hydrogen,carbon monoxide,hydrothion sulfide oxygen,nitrogen,etc.Because there are abundant of methane,the biogas can be used as a kind of fuel.Biogas is a kind of product that organics is resolved by bacterium under the anaerobic condition.Garbage in the city,sludge in the sewage treatment plants,excerment and straws all can be used to generate biogas.
Requirements for Supermaly SP20GFZ Brushless 3P 4W
Biogas Genset:
Within 1m from pressure regulting value of gas intake
1.gas temperature within 40
2.Pressure 3-20kpa,pressure changing rate within 1kpa/min
3.H2S within 200mg/Nm3
4.NH3 within 200mg/Nm3
5.CH4 content more than 40%,changing rate within 2%/min
6.Impurity Particle size within 5,impurity content within 30mg/Nm3
7.Moisture content within40g/Nm3
In order to extend the using time and ensure the running time of generator set ,desulfurization is necessary.Gas tank-to ensure the pressure of gas steady and adequate and keep the generator set in a very stable woring situation .
Specification of Supermaly SP20GFZ Brushless 3P 4W Biogas Genset
| Model NO. | SP20GFZ |
| Engine No. | SP4105 |
| Gas mix type | Outside |
| Rated Power | 20kw |
| Rated voltage | 400/230V |
| Phase | 3phase 4 wire |
| Rated Frequency | 50hz |
| Rated Speed | 1500r/min |
| Power Factor | 0.8 |
| Rated Current | 36A |
| Voltage Regulating Range | 95-105% |
| Voltage Steady State Regalation Rate | within +2/-2% |
| Voltage Transient State Regulation Rate | within +10/-10% |
| Voltage Settling | within 1s |
| Voltage Volatility | within +0.5%/-0.5% |
| Frequency Transient State Regulation Rate | Within 0.5% |
| Frequency Transient State Regulation Rate | Within +10%/-10% |
| Heat Consumption | 11.38mj/kw.h |
| Pressure | 3-20kpa |
| Cylinder number | 4 |
| Cylinder Diameter | 105mm |
| Stroke | 125mm |
| Intake Mode | Natural intake |
| Sparking Mode | Sparking plug |
| Voltage Regulation Mode | Automatic |
| Speed Regulation Mode | Electric speed regulate |
| Lubricating Mode | Prussure and splash |
| Cooling Mode | Circulating water cooling |
| Starting Mode | 24V electric motor |
| Overthaul Time | more than 25000h |
| Noise | Within 1056dba |
| Exhaust Temperature | Within 650 |
| Displacement | 4.33L |
| Size(mm) | 2200X850X1300mm |
| Weight | 900kg |

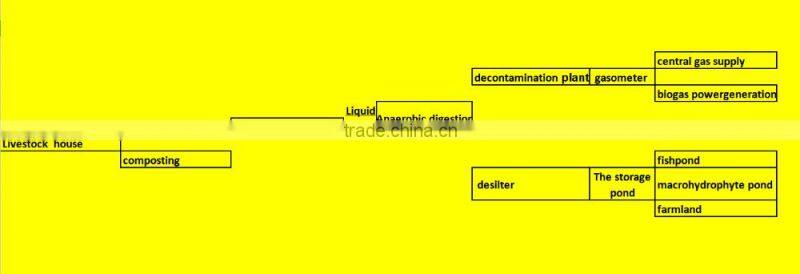

Drawing for Power Generating of Supermaly SP20GFZ Brushless 3P 4W Biogas Genset

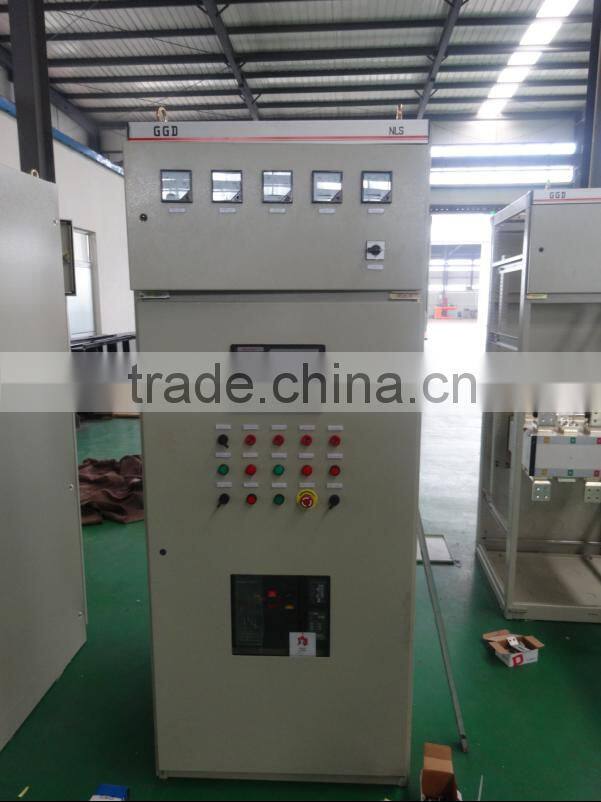

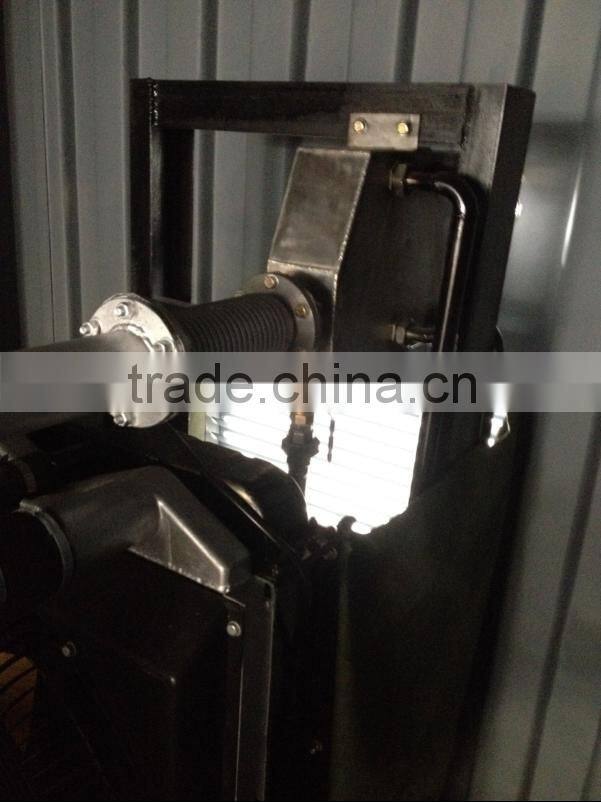

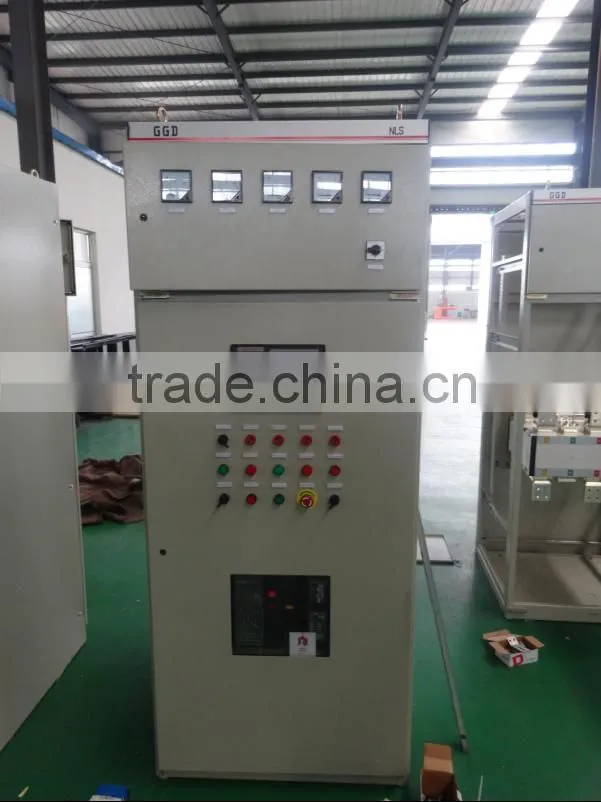

Photo of Power Generating of Supermaly SP20GFZ Brushless 3P 4W Biogas Genset Working Condition
Every year, our company will take part in many different exhibitions.
Shandong Supermaly Generating Equipment Co., Limited is located in Weifang city, known as "Power City of China", Shandong Province, China. We are the High technology enterprises of Shandong Province, Primarily engaged in land using and marine diesel generating set, automatic diesel pump set, and diesel engine, and other power equipment.
The power range of our diesel generating set is from 8KW to 1000KW. It is coupled by world famous brand engine such as PERKINS, CUMMINS, DEUTZ, STEYR, RICARDO, VOLVO, etc, with world famous brand alternator such as STAMFORD, MARATHON, LEROY SOMER, etc. We also can supply most generating sets coupled by Chinese brand engine and alternator. We are the OEM factory of above engines and alternators. Our products are with advantage of Lower noise, lower vibration, easily starting, reliable performance, which can be widely used in factories, mines, banks, hospitals, shipbuilding, telecommunications, oil field, buildings, construction field and other fields, or used as the standby power. Our marine diesel generators were certified by China Classification Society (CSS), Chinese fishing boats Inspection Agency (ZY reduction). Land using diesel generator sets are with certification of ISO9001-2000, CE, SONCAP and other international authoritative institutions and the quality system certification.
Shandong Supermaly Generating Equipment CO., Limited's products are being sold in most area of China, and exporting to more than 30 countries in Asia, Africa, North America, Europe, and South America.
Shandong Supermaly Generating Equipment CO., LTD. warmly welcome your visiting and cooperation
WARRANTY
1.Warranty iterms will be issued by our own factory, which is simple and quick;
2.Warranty period will be 12 monthes or 1500 working hours from commissioning date;
3.Parts replacement under warranty will be sent (include sea freight and insurance) to buyer freely;
4.Easy torn prts are excluded in the warranty, like plugs, condenser, fuse, battery, seal;
5.Problems caused by customer's incorrect man-made operation will be covered by the user;
6.Part use for overhual and ordinary maintanence will be offered by us in factory price;
7.Skillful engineers of us are available dispatched to customers place for training and service
