Specification of 200kw natural gas Genset with CHP And Synchronization System
Photos of 200kw natural gas Genset with CHP And Synchronization System

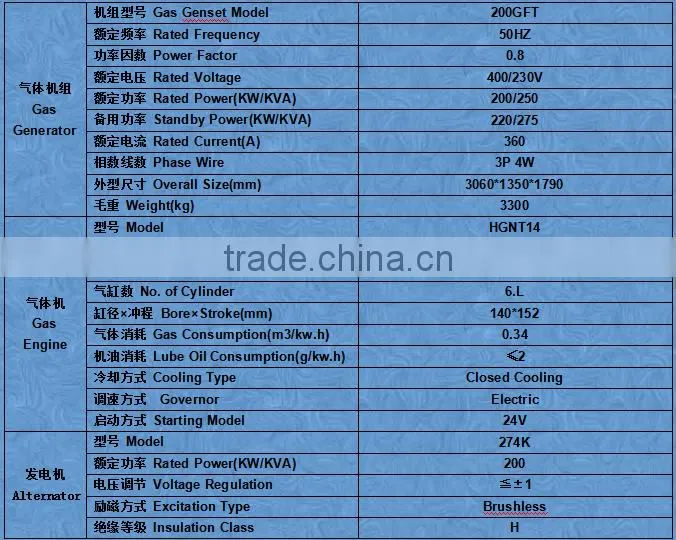

Specification of 200kw natural gas Genset with CHP And Synchronization System
Flywheel System
Rotate direction |
Anti-closewise direction from flywheel cover |
Flywheel cover |
SAE 1# |
Flywheel |
14# |
Mechanical structure
Type |
Overhead valve |
Quatity of valves |
2-intake,2-discharge |
Fuel System
Mixer |
200 |
Fuel regulating valve |
FISHER HSR-DN30 |
Lub-System
Lubricating type |
High-pressure oil pump |
Oil pump |
Drived by crankshaft gear |
Lub-Oil filter |
Full flow type,Cylindrical |
Oil Pan capacity(L) |
13 |
Limit of gradient |
40℃ |
Lub-oil requirment |
SAE15W-40 CF4(at least) |
Cooling System
Cooling way |
Forced water cooling |
Capacity(L:engine only) |
7.9(Dry type exhaust pipe) |
Min-pressure |
69kpa |
Water pump |
Centrifugal pump driven by belt |
Temprature regulation rang of thermostat |
82-94℃ |
Electrical System
Battery charger |
24V*12A |
Voltage regulating |
Built-in IC voltage regulating panel |
Starting motor |
24V |
Battery capacity |
12A |
Ignition system |
USA altronic ignition module |
Ignition control |
Altronic CD1 unit(12V or 24V) |
Max allowed limit
Gas intake pressure |
2.5kpa |
Exhaust gas discharging pressure |
7.0kpa |
Supermaly 100KW Gas Generator with controller Deepsea working conditions
1. Acceptable working conditions:
-Ambient temperature : -40℃~+40℃
(antifreeze or hot water needed for below-20℃)
-Relative humidity:<90%(20℃)
-Altitude:≤1000m
Normal working conditions:
Genset can run at rated power on the conditions:
Atmospheric Pressure: 100kPa, Ambient Temp: 20℃, Relative Humidity: 30%.
2. Applied gas:
Natural Gas
-Acceptable gas pipeline pressure: 3~450kPa
-Engine inlet press re: 0.8~5.0kPa (80~500mmH2O)
-CH4 content: for natural gas ≥85%; for biogas≥55%
-Sulphur content≤400ppm
-Gas heat value≥4500kcal/Nm3 (18.81MJ/Nm3 ). Genset output power will increase as the gas heat value increase, if use low heat value gas for fuel(Heat value<5500kcal/Nm3,it will lower the power efficiency.
Gas doesn’t include free water or free materials (the size of impurities should be less than 5μm.)
Partner
1. we supply spare parts during the whole service life.
2. one year warranty. and we are manufacturer with 2 factories in weifang city, after-sale service guaranteed.
3. open frame type/ silent type/ weatherproof type/ trailer/ container type, at your option.
4. Engine brand can be Cummins, Deutz, Lovol, Ricardo
5. Decades’ years of manufacturing and exporting experience
6. Adopt International quality standards, to meet high quality requirement
7. Good reputation for Reliable quality & Reasonable price
8. Strong technical support
9. Advanced production line with skilled workers
