Help Center625KVA Natural Methane Gas Generator With Reliable Quility
Related Products
-
Gas Generator Set (8-1000kW) Lpg ng Gas Generator SetUS$ 1,000 - 100,000MOQ: 1 Set -
Installation Guide 30kva Biomass GeneratorUS$ 5,900 - 310,000MOQ: 1 Set
-
10-1000KW Water Cooled 60HZ Natural Gas Generator With 1800rpmUS$ 5,900 - 310,000MOQ: 1 Set
-
CE Approved Biomass Generator Set With ATS BoxUS$ 5,900 - 31,000MOQ: 1 Set
-
On Sale! CE Approved Silent Natural Gas Generator 15kvaUS$ 4,000 - 5,000MOQ: 1 Set
Specification of 625KVA Natural Methane Gas Generator with Reliable Quility :
| Model | 500GF |
| Standby Power (50HZ) | 500KW/625KVA |
| Prime Power (50HZ) | 550KW/687.5KVA |
Standard Features of 625KVA Natural Methane Gas Generator with Reliable Quility :
General Features
Engine (JICHAI H12V190Z)
Radiator 40°C max, fans are driven by belt ,with safety guard
24V charge alternator
Alternator (STAMFORD PI734E), single bearing alternator IP23, insulation class H/H
Absorber
Dry type air filter ,fuel filter ,oil filter, coolant filter
Main line circuit breaker
Standard control panel
Eighe 24V batteries ,rack and cable
Ripple flex exhaust pipe ,exhaust siphone, flange, muffler.
User manual
Engine Data:
Manufacturer /Model: JICHAI H12V190Z, 4-CYCLE
Air intake System: Turbocharger, Water Cooling
Fuel System : A type fuel Pump
Cylinder Arrangement: 12 Cylinder V type
Displacement :73.15L
Bore and Stroke: 190*215(MM)
Compression Ratio: 17:1
Rated RPM: 1500rpm
Max standby Power at Rated RPM:1740KW
Governor Type: mechanical
Frequency Regulation ,Steady State : <±0.5%
Alternator Data:
Manufacture /Type: STAMFORD PI734E
Number of Phase: three
Connecting Type: 3 Phase and 4 wire Rotating Field
Number of Bearing: one
Power Factor: 0.8
Protection Grade:IP23
Altitude: ≤1000m
Exciter Type: Brush less, self-exciting
Insulation Class, Temperature Rise: H/H
Telephone Influence Factor (TIF): < 50
THF:<2%
Voltage Regulation, Steady State: ≤1.5%
Alternator Capacity:1900 KVA
Alternator Efficiencies: 91.9%

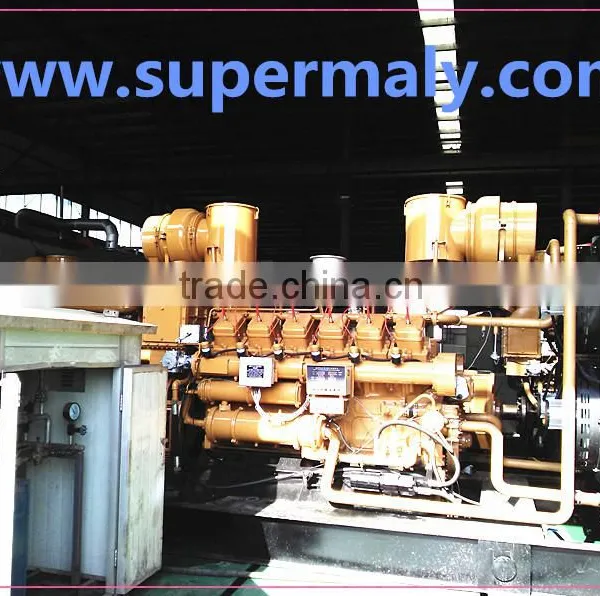

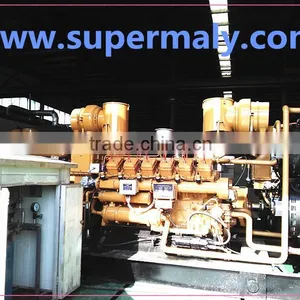

Photos of 625KVA Natural Methane Gas Generator with Reliable Quility :
open -frame type :
overall size:6380*2200*2640mm
weight:17200kgs
Silent Type:
overall size:7250*2890*3480mm
weight:17720kgs
if you buy thes series 625KVA Natural Methane Gas Generator with Reliable Quility ,you don't worry about the reliability of our product ,with these famous factories support ,you can calm down and dare to use it ,what else you can face many problems in the process of using it ,of course ,the promlen is the less the better .We believe our products .So will you .
625KVA Natural Methane Gas Generator with Reliable Quility ,these products is not include in open type ,but also the silent type ,trailer type and so on .The below the silent type ,you just add 6000$ you can got this type generator .Besides silent type ,We are also container type for gas generator .
the process of making generator of 625KVA Natural Methane Gas Generator with Reliable Quility
1.Warranty iterms will be issued by our own factory, which is simple and quick;
2.Warranty period will be 12 monthes or 1500 working hours from commissioning date;
3.Parts replacement under warranty will be sent (include sea freight and insurance) to buyer freely;
