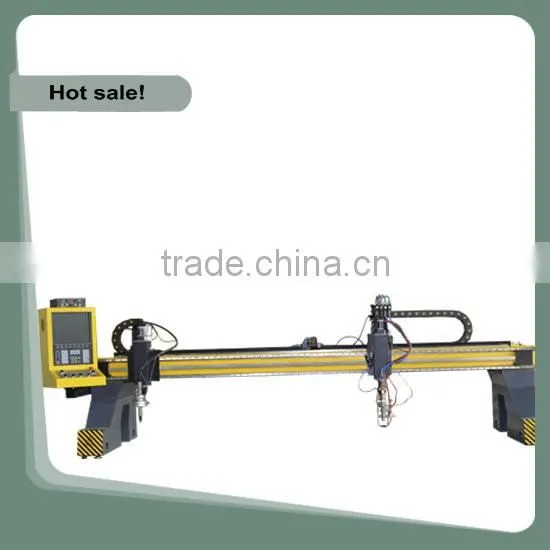

Heavy Duty Gantry Cnc Plasma Cutting Machine
US$ 12,000 - 25,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Fujian, China
Brand Name:
Zhangzhou Xinsanhu
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Heavy Duty Gantry Cnc Gas Cutting Machine Cnc Flame Cutting Machine for MetalUS$ 12,000 - 30,000MOQ: 1 Set -
Table Cnc Flame Cutting MachineUS$ 12,000 - 25,000MOQ: 1 Set
-
Table Cnc Gas Cutting Machine for Metal CuttingUS$ 12,000 - 25,000MOQ: 1 Set
-
Light Duty Gantry Cnc Gas Cutting MachineUS$ 8,500 - 15,000MOQ: 1 Set
-
Light Duty Gantry Cnc Plasma Cutting MachineUS$ 8,500 - 15,000MOQ: 1 Set
Condition
New
Place of Origin
Fujian, China
Brand Name
Zhangzhou Xinsanhu
Model Number
CNCTG series
Voltage
220V
Warranty
12 months
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Wide body strengthen box welding structureAll the welding points are stress released
Plasma and flame torch optional
Gantry cnc cutting machine, gantry cnc cutter, cnc cut off machine, dragon cnc cutting machine, cnc plasma cutting machine, cnc plasma cutter, metal cutting machine, dragon cnc cutter
Gantry CNC plasma cutting machine is one of our main product, our engineers and workers make it owns both good looking and strong practibility features, it is being widely used in various industry area.
The main structure and features of gantry cnc plasma cutting machine
- The beam adopts enhanced wide body box structure and endframe adopts low center of gravity, make the equipment durable and symmetric. All the welding points are stress released to ensure the whole rigidity strength and dynamic balance.
- The machine is equipped with gear rack, servo motor and planetary reducer on both horizontal and vertical direction, the horizontal move adopts high precision drive rail and steel belt, can transmit stably on the same or specular direction between master-slave cutting torches.
- Crossbeam drive adopts PMI linear guide rail , to ensure the moving accuracy and cutting quality.
- Well performed Thermadyne, Hypertherm and Kjellberg plasma power supply optional
- Automatic memory function when power off or emergency stop.
- Auto alarm function when faced with a mistake or arc breaking.
- Multilanguage(English, Chinese, French, Germany, Portuguess, Spanish ect) switch on the interface.
- 17" LCD touch screen, convenient design, easy to operate.
The configuration and parameters of gantry cnc plasma cutting machine
| Configuration | |||||
| Structure | Wide body strengthen welding box structure | ||||
| Drive motor | Panasonic servo motor | ||||
| Reducer | Shimpo | ||||
| Crossbeam guide rail | PMI linear guide rail | ||||
| Guide rail | 43kg heavy guide rail | ||||
| CNC system | SJTU-SK (Hypertherm Micro EDGE, EDGE PRO optional) | ||||
| Nesting software | FASTCAM | ||||
| Automatic height controller | HYD arc voltage THC | ||||
| Plasma power supply | Thermadyne, Hypertherm and Kjellberg | ||||
| Specification | |||||
| Voltage | 220V | ||||
| Working temperature | - 10°C -45°C | ||||
| Humidity | <95%, no condensation | ||||
| Crossbeam width | ≥500mm | ||||
| Cutting thickness | 0.5 to 50mm | ||||
| Cutting speed | 50 to 8000 mm/min | ||||
| Travel speed | 1 to 12000 mm/min | ||||
| Cutting width | 0.8m less than track width | ||||
| Cutting length | 2m less than track length | ||||
| Torch lifting height | 200mm | ||||
| Cutting material | mild steel, stainless steel, aluminium etc | ||||
| Operation language | Multilanguage | ||||
Main parts of gantry cnc plasma cutting machine
Our services
- 12 months warranty
- Available OEM and ODM
- Any after sale questions will be replied in 24 hours
- Free installing and operating train
- Offer testing certification before delivering
- Size, logo, configuration, color can be customized
- Installing and cutting video can be provided
- Engineers are available to service aboard
