Light duty gantry cnc plasma cutting machine

Specifications

Light weight, easy to install
Large size cutting area
Gas and plasma dual use
Automatic ignition device on gas cutting torch

Gantry cnc cutting machine, gantry cnc cutter, cnc cut off machine, dragon cnc cutting machine, cnc plasma cutting machine, metal cutting machine,  mini gantry cnc cutting machine, cnc plasma cutter



Light duty gantry cnc cutting machine has the same cutting ability with heavy duty cnc cutting machine, their main difference is the cutting accuracy and quality.

Light duty gantry cnc plasma cutting machine can be equipped with two plasma cutting torches to cut the same shape at the same time, largely save the working time and improve the effeciency.

Light duty gantry cnc plasma cutting machine take Thermadyne, Hypertherm and Kjellberg as its plasma power supply.



The main structure and features of light duty gantry cnc plasma cutting machine

1. The beam adopts rectangle steel tube when equipped with two or more moving body and cutting torches, uses aluminum alloy tube when equipped with one cutting torch.
2. The machine is equipped with gear rack, stepper motor and planetary reducer on both horizontal and vertical direction, the horizontal move adopts high precision drive rail and steel belt, can transmit stably on the same or specular direction between master-slave cutting torches.

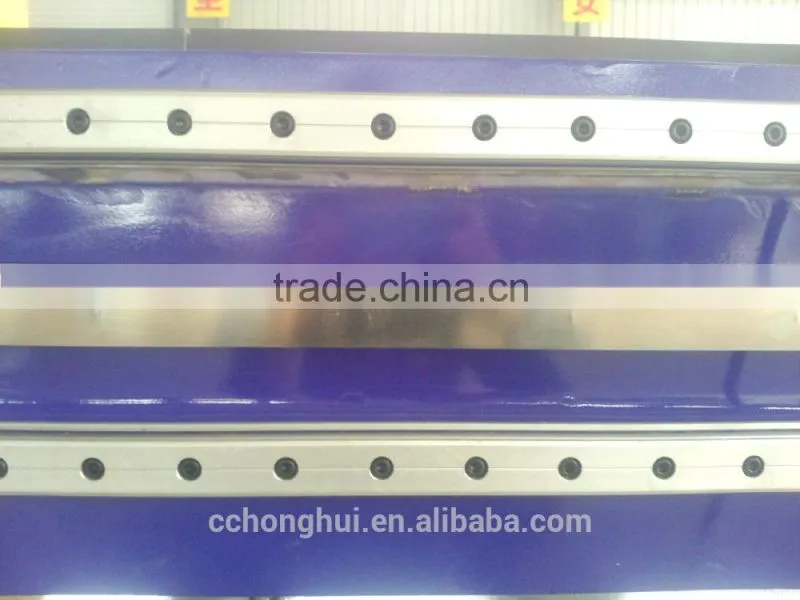

3. Crossbeam drive adopts double axis guide rail ,  to ensure the moving accuracy and cutting quality.
4. Automatic memory function when power off or emergency stop.
5. Auto alarm function when faced with a mistake or arc breaking.
6. Multilanguage(English, Chinese, French, Germany, Portuguess, Spanish ect) switch on the interface.

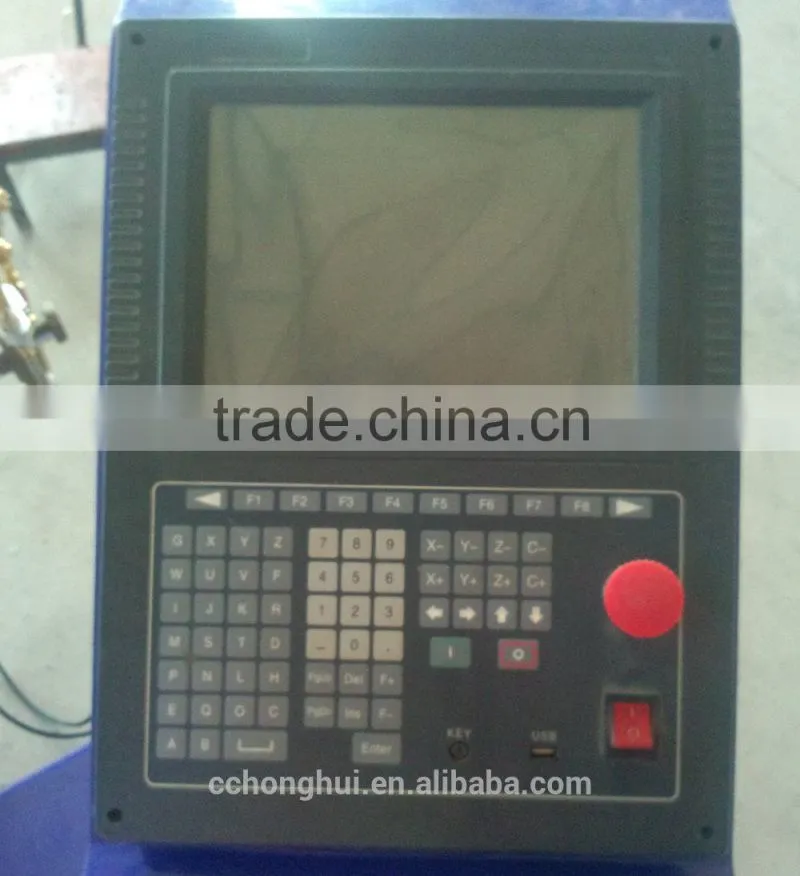

7. 10.4"(START) or 7", 17"(SJTU-SK) LCD touch screen, convenient design, easy to operate.

 The configuration and parameters of light duty gantry cnc plasma cutting machine

Configuration
Structure	rectangle steel structure
Drive motor	Precise stepper motor
Reducer	Golden Sky
Crossbeam guide rail	Double axis guide rail
Guide rail	24kg level guide rail
CNC system	SJTU-SK or START
Nesting software	FASTCAM
Automatic height controller	HYD arc voltage THC
Cutting material	mild steel, stainless steel, aluminum etc
Specification
Voltage	220V
Working temperature	- 10°C -45°C
Humidity	<95%, no condensation
Crossbeam width	≥200mm
Cutting thickness	0.5 to 50mm
Cutting speed	50 to 8000 mm/min
Travel speed	1 to 12000 mm/min
Cutting width	0.8m less than track width
Cutting length	2m less than track length
Torch lifting height	200mm
Operation language	Multilanguage
